Compact. Commercial. Coming in Hot.

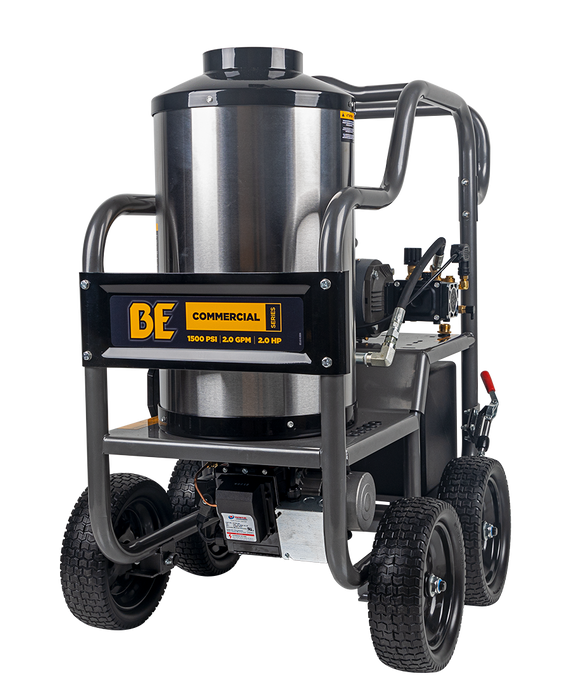

The BE Power Equipment HW152EA Hot Water Pressure Washer is engineered for commercial users who need the cleaning power of hot water in a compact, electric-powered format. Delivering 1,500 PSI at 2.0 GPM, this unit provides focused pressure and controlled flow ideal for cutting grease, oil, and grime in shops, facilities, and service environments where space, power availability, and efficiency matter.
Powered by a TechTop 2.0 HP single-phase electric motor and paired with a CP CTE1 triplex pump, the HW152EA delivers reliable performance with reduced maintenance and smooth operation. A 120V AC Wayne diesel burner produces up to 172,000 BTU, heating water to 89°C / 193°F to dramatically improve cleaning effectiveness compared to cold water systems.
Built on a rugged powder-coated steel frame with integrated roll cage and flat-free wheels, the HW152EA is easy to maneuver while maintaining the durability expected from commercial-grade hot water equipment.
Built for Compact Commercial Cleaning
The HW152EA is designed for professional environments that require hot water cleaning performance without the footprint or power demands of larger industrial units. It is ideal for:
-
Automotive repair shops and detailing bays
-
Food service and sanitation facilities
-
Property maintenance and facility management
-
Light industrial and contractor cleaning
-
Equipment, tool, and parts washing
Hot water improves cleaning efficiency by breaking down grease, oils, and bacteria faster, reducing cleaning time and chemical usage while delivering superior results.
Features
TechTop Electric Motor
At the core of the HW152EA is a TechTop 2.0 HP electric motor, engineered for dependable daily operation in commercial environments. Operating on standard 120V single-phase power, this motor provides smooth, consistent output while maintaining low noise and zero emissions.
Motor features include:
This electric setup makes the HW152EA a true plug-and-play solution for indoor and enclosed workspaces.
CP CTE1 Triplex Pump
Paired with the electric motor is a CP CTE1 triplex pump, built for durability and smooth pressure delivery in hot water applications.
Pump features include:
-
Forged brass manifold
-
Ceramic plungers for long service life
-
Built-in unloader for precise pressure regulation
-
Thermal relief valve for temperature protection
-
Pump oil drain hose for easier maintenance
This triplex pump configuration ensures consistent pressure while extending component life.
High-Efficiency Hot Water System
The HW152EA features a compact but powerful hot water system designed to deliver reliable heat in commercial settings.
Hot water system features include:
-
120V AC Wayne burner
-
172,000 BTU output
-
80’ x 1/2” Schedule 80 cold-rolled steel heating coil
-
Adjustable thermostat
-
Maximum water temperature of 89°C / 193°F
-
Diagnostic lights and burner switch
-
Inline fuel filter
Heat dramatically enhances cleaning performance, especially for grease, oil, and sanitation applications.
Integrated Safety and Control Systems
This hot water pressure washer is equipped with multiple built-in safety and monitoring systems, including:
These features help protect internal components while ensuring safe and reliable operation.
Powder-Coated Steel Frame with Roll Cage
The HW152EA is built on a heavy-duty powder-coated steel frame with an integrated roll cage for added protection. Flat-free tires allow for easy transport across job sites, while the compact footprint makes storage simple in tight spaces.
All-in-One Setup with Pro Accessories
The HW152EA comes ready to work with professional-grade accessories included:
-
50 ft. x 3/8” twin-wire braided high-pressure hose with quick-connect fittings
-
36” insulated spray wand for safe hot water operation
-
Insulated trigger gun with safety lock
-
5 quick-connect spray nozzles – 0°, 15°, 25°, 40°, and soap
All accessories are rated for hot water use and designed for commercial durability.
Product Details
Model: HW152EA
Pressure: 1,500 PSI
Flow Rate: 2.0 GPM
Motor: TechTop electric motor
Horsepower: 2.0 HP
Voltage: 120V
Phase: Single
Amperage: 20A
Motor Speed: 3,450 RPM
Pump: CP Triplex CTE1
Pump Class: P5
Burner: 120V AC Wayne
BTU Output: 172,000
Maximum Temperature: 89°C / 193°F
Heating Coil: 80’ x 1/2” Schedule 80 cold-rolled steel
Burner Fuel Tank: 22.7 L / 6 gal black poly
Thermostat: Adjustable
Hour Meter: Yes
Tachometer: No
Flow / Pressure Switch: Yes
Thermal Relief Valve: Yes
Diagnostic Lights: Yes
Burner Switch: Yes
Inline Fuel Filter: Yes
Unloader: Built-in
Injector: Adjustable
Oil Drain Hoses: Engine: N/A • Pump: Yes
Power Cord / Plug: 26’ / NEMA 5-20
Warranty Coverage
-
Motor: 2 Years
-
Pump: 5 Years
-
Burner: 3 Years
-
Coil: Lifetime
