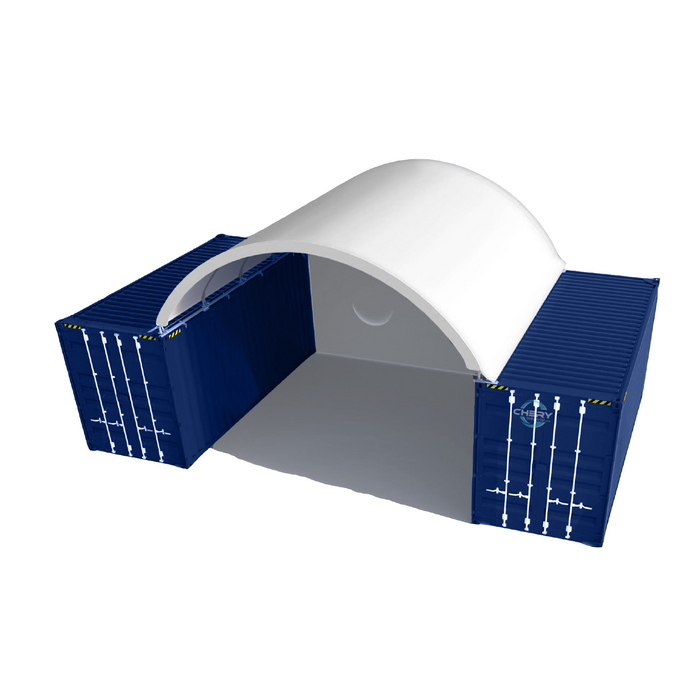

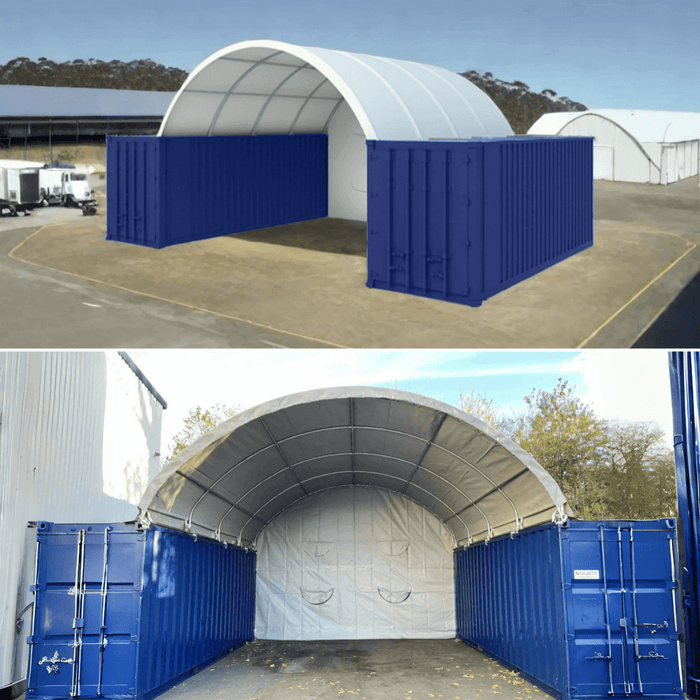

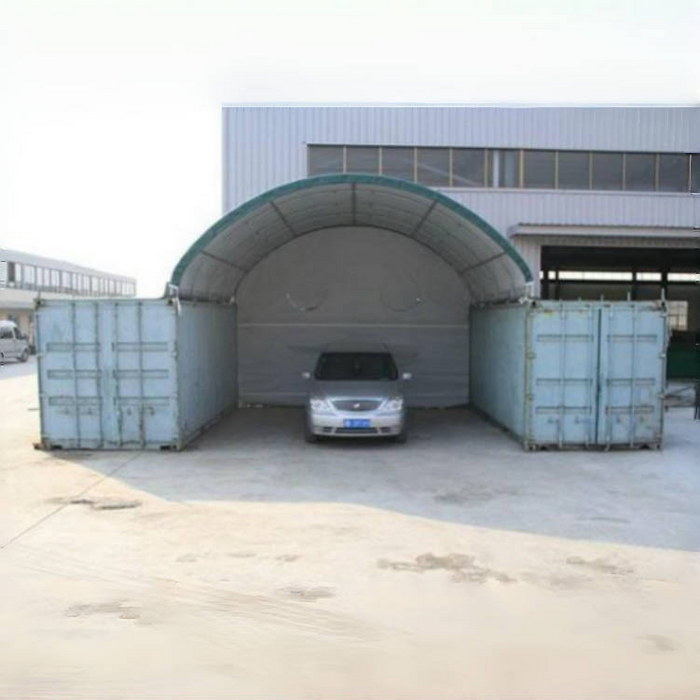

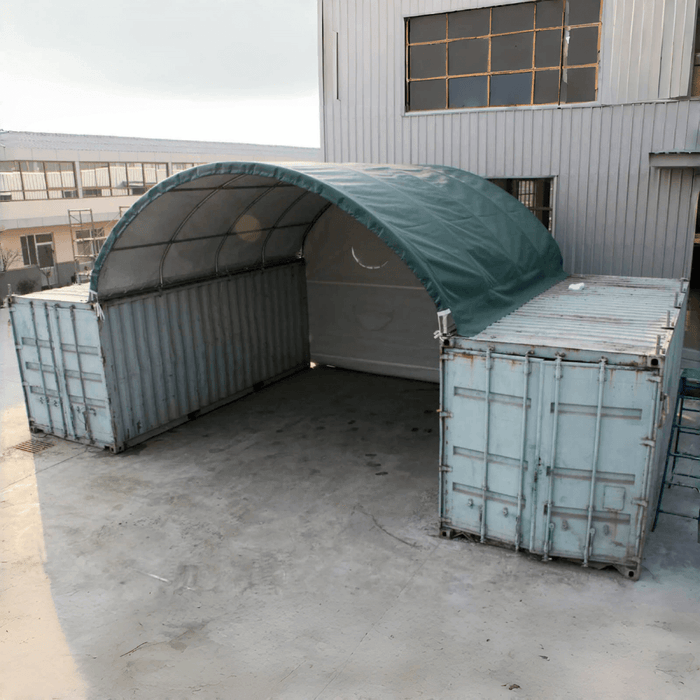

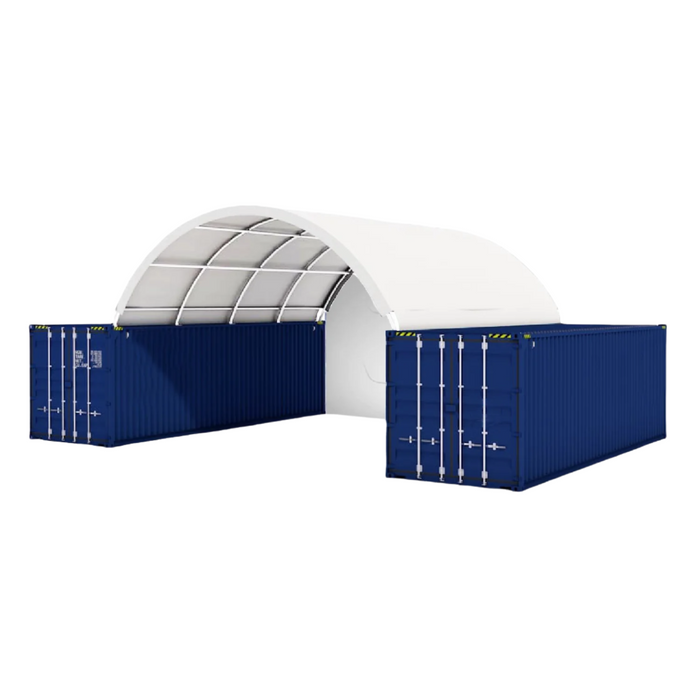

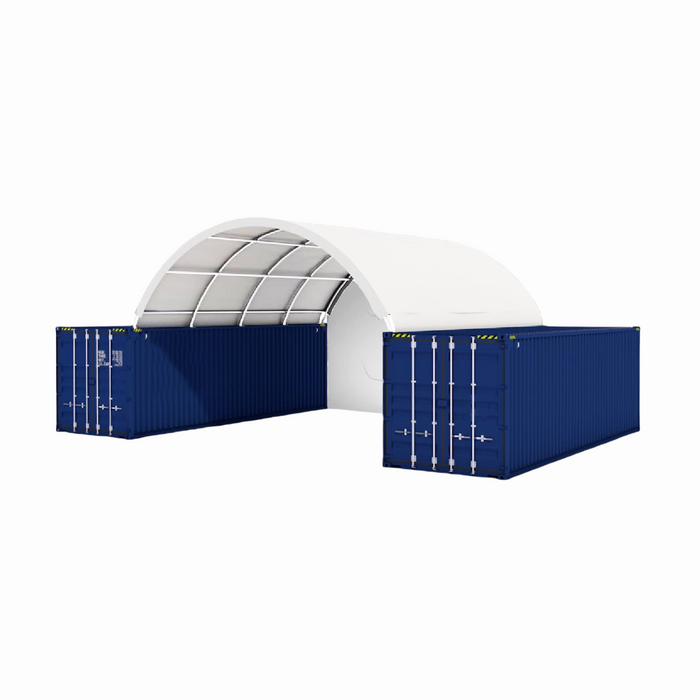

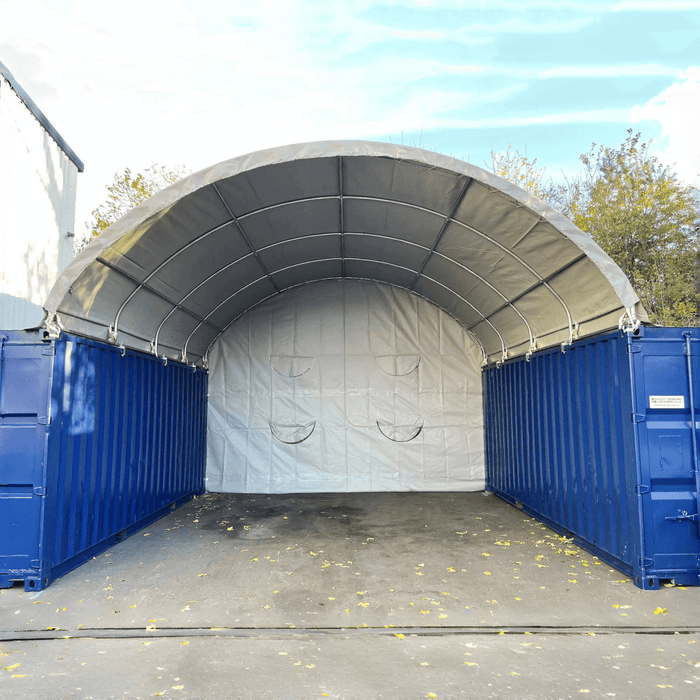

Chery Industrial 20x20 ft Container Shelter with Closed Back Panel
The Chery Industrial 20’ x 20’ Container Shelter with Closed Back Panel is a robust outdoor canopy designed to extend the functionality of standard shipping containers by creating a protected and semi-enclosed space. With a generous 20 × 20 ft footprint, this shelter helps shield vehicles, machinery, materials, and outdoor work areas from sun, rain, wind, and other elements. The addition of a closed back panel provides increased protection and privacy on one end, making it ideal for job sites, storage yards, agricultural properties, and commercial facilities where secure shelter is needed.
Constructed with a sturdy galvanized steel frame, this shelter delivers dependable structural support and resistance to rust and corrosion, even in challenging weather conditions. The solid back panel adds an extra layer of protection, helping block direct wind and rain along the rear side while also offering a surface for mounting lights or signage if desired. The open front and side areas ensure easy access and movement under the canopy, creating a practical covered workspace or storage area.
Assembly is straightforward, using a combination of durable steel tubing and secure connection hardware that supports long-term use. Whether you’re looking to protect equipment from weather exposure or to create a covered outdoor workspace, this container shelter provides a stable and versatile solution. Its thoughtful design makes it a valuable addition to any outdoor storage setup, enhancing usability and extending the life of stored items.
Built for strength and outdoor performance, the Chery Industrial 20’ x 20’ Container Shelter with Closed Back Panel delivers reliable shelter coverage combined with enhanced protection and accessibility — giving you a versatile and long-lasting solution for your outdoor storage or work needs.
Features
- Style: Pony Wall.
- The tarpaulin is PFAS-free and EU REACH compliant.
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- There is no pole inside, and 100% of the interior space is available.
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Specifications
| Description |
Specifications |
| Model |
C2020 Dome Container Shelter |
| Dimension (ft) |

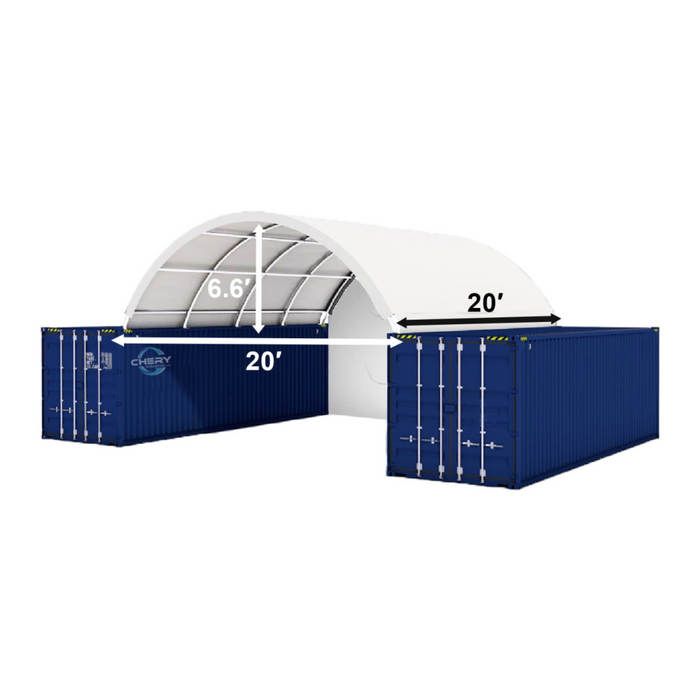

W20xL20xH6.6 |
| Frame |
Single Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(420 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance |
-22 - +158 °F |
| Front/back walls (optional) |
- Front Panel
- Half Panel
- Rear Panel
|
| Arch Interval |
5 ft |
| Arch Ø (mm) |
Ø45x1.5 |
| Purlin Ø (mm) |
Ø32x1.2 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Easy Installation |
Twist lock and clamp installation |
| Weld |
No welding required |
| Average assembly time for DIY with 4 persons |
Max. 1 day |
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Package Size
Box A:
- LxWxH (inch): 76x29.5x13 (11oz PE)
- Weight (lb): 570
Box B:
- LxWxH(inch): 76x28.5x6
- Weight(lb): 86
A forklift or equivalent is required for unloading.
