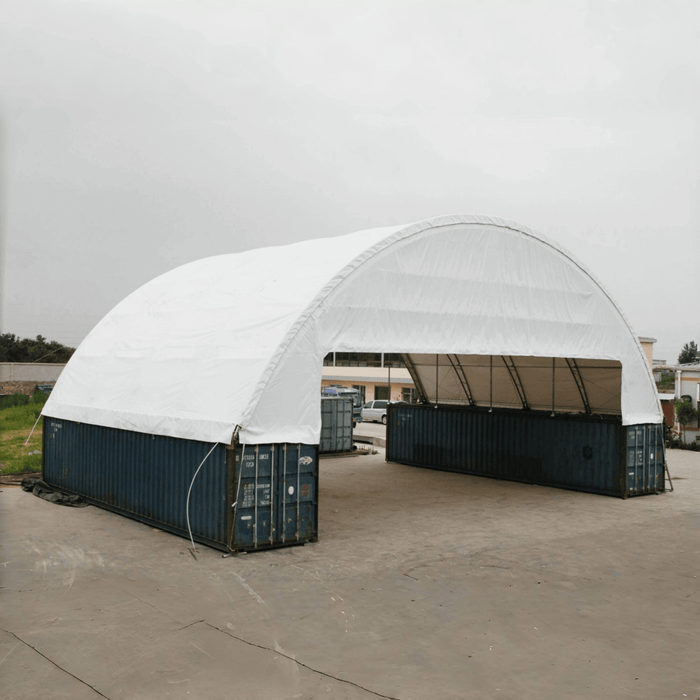

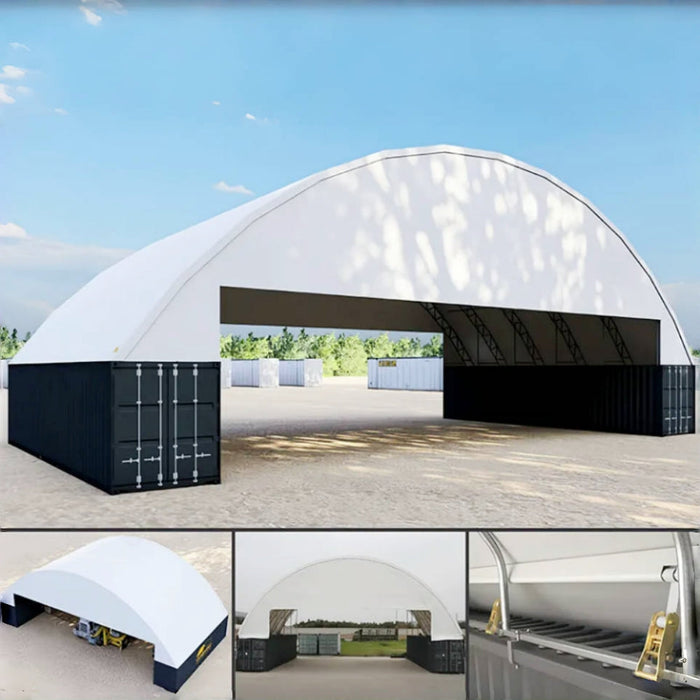

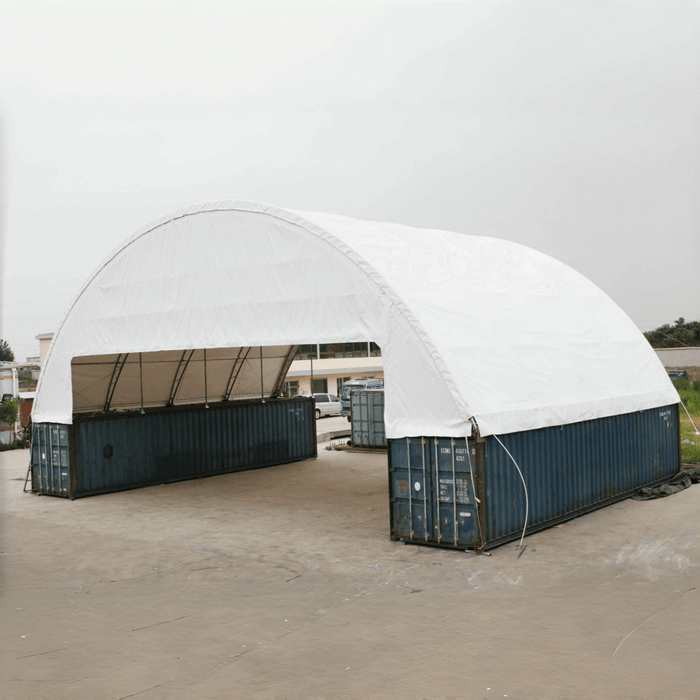

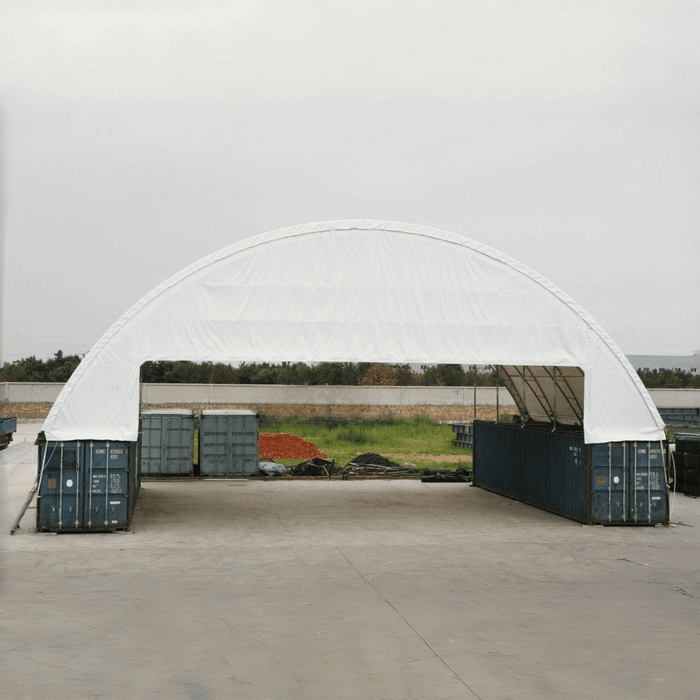

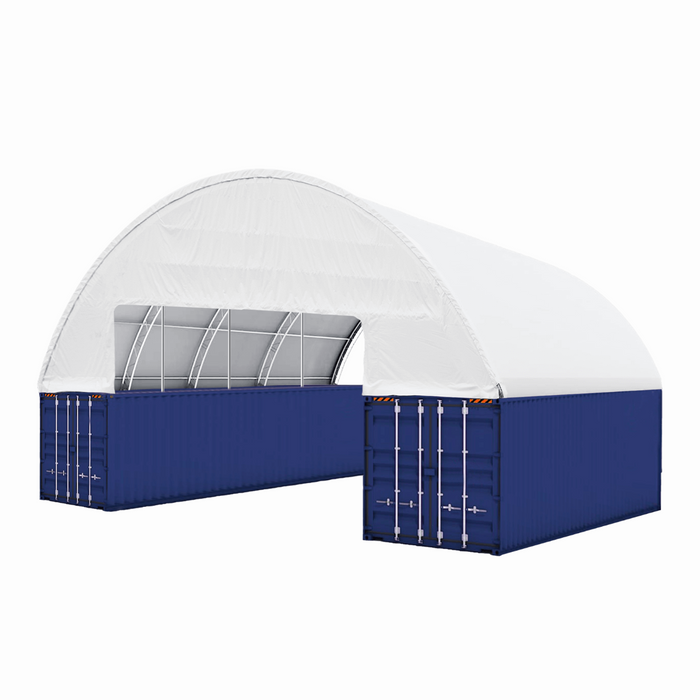

Chery Industrial 60'x40'x15' Double Truss Container Canopy Shelter
The Chery Industrial Double Truss Shipping Container Canopy Shelter 60×40×15 is a rugged and versatile shelter designed to provide reliable overhead protection in industrial, commercial, and outdoor settings. Built to accommodate two standard shipping containers, this heavy-duty canopy creates a covered space ideal for storage, loading docks, equipment protection, or workspace needs. Featuring a double truss structural design, the shelter delivers enhanced strength and stability to withstand harsh weather and demanding environments.
Constructed with sturdy materials and a robust frame, the canopy shelter offers long-lasting performance and dependable coverage for valuable assets or operations. Its expansive 60 ft width, 40 ft depth, and 15 ft height create a spacious, unobstructed interior area that easily accommodates large vehicles, machinery, or bulk materials. The height and clearance also allow for efficient movement and logistics activities beneath the canopy.

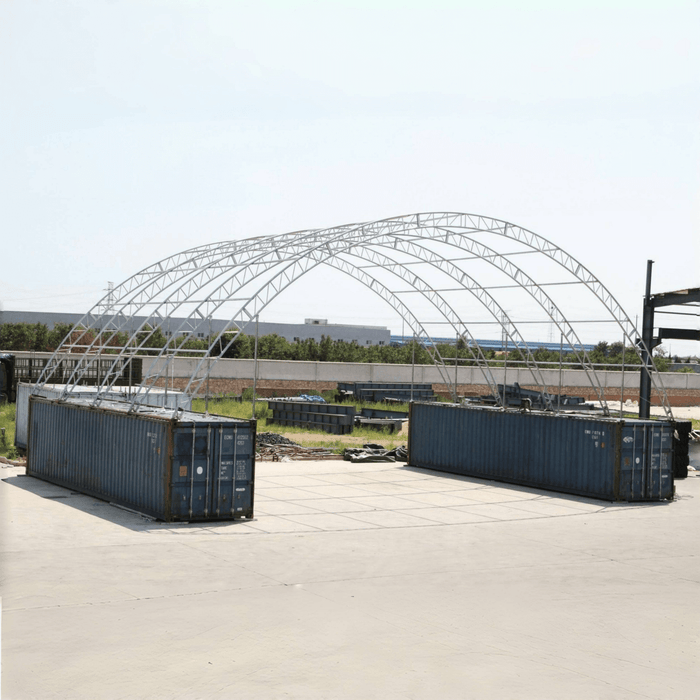

The double truss design not only improves load distribution but also enhances resistance to wind and other environmental stresses, making the shelter suited for outdoor storage or work-through areas where protection from sun, rain, and debris is critical. This canopy is ideal for businesses seeking a durable and cost-effective solution for covering high-traffic industrial zones or creating sheltered operational space.
Easy to assemble and integrate with existing infrastructure, the Chery Industrial canopy shelter offers flexibility and practicality for a variety of applications. Whether protecting shipping containers, equipment, vehicles, or project zones, this double truss shelter combines substantial coverage with structural integrity to meet rigorous performance demands.
Features
- CSA/TUV Snow Rating Report, heavy-duty PVC cover designed specifically for winter to withstand strong winds and snow.
- SGS fabric Certificate. The tarpaulin is PFAS-free and EU REACH compliant.
- No pole inside, and 100% of the interior space is available.
- Usage: ideal for industrial, commercial, and agricultural applications. You can also use it for a warehouse, storage tent, garden and lawn equipment, backyard items, firewood, vehicle shed, etc.
Specifications
| Description |
Specifications |
| Model |
C604015 Dome Container Shelter |

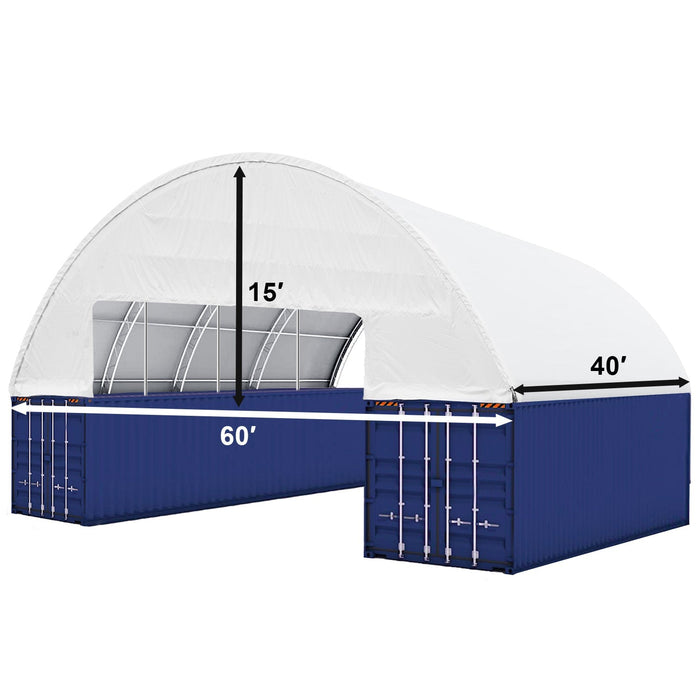

| Dimension (ft) |
W60xL40xH15 |
| Frame |
Double Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Snow Load |
7.3 Ibs/ft² |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
9.8 ft |
| Arch Ø (mm) |
Ø60x1.8 |
| Purlin Ø (mm) |
Ø60x1.5 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Easy Installation |
Twist lock and clamp installation |
| Weld |
Base plates need to be welded on the Containers. |
| Average assembly time for DIY with 4 persons |
- Shelter: 2 days
- Front or back wall: ½ day per wall
|
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
- Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.
Package Size
- LxWxH (inch): 131x44.1x61.4
- Weight (lb): 4149
- A forklift or equivalent is required for unloading
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
