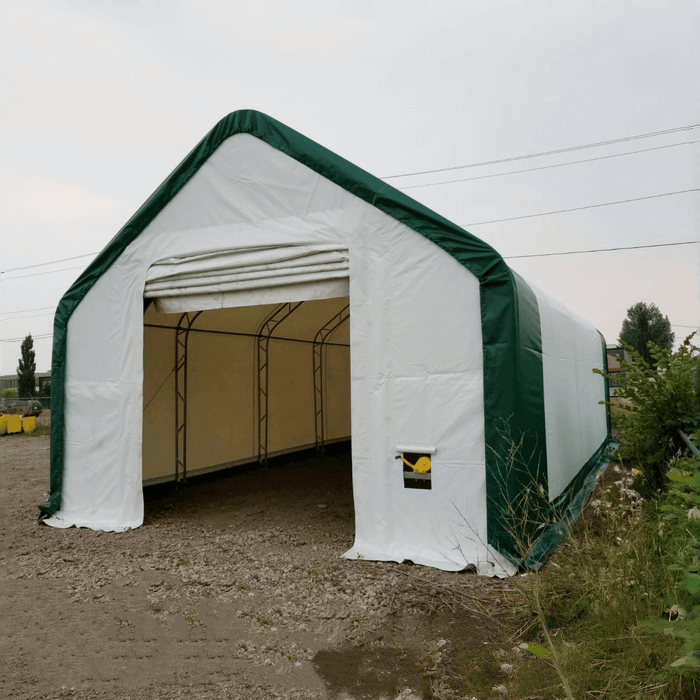

Chery Industrial Double Truss Storage Shelter W20'xL33'xH16'

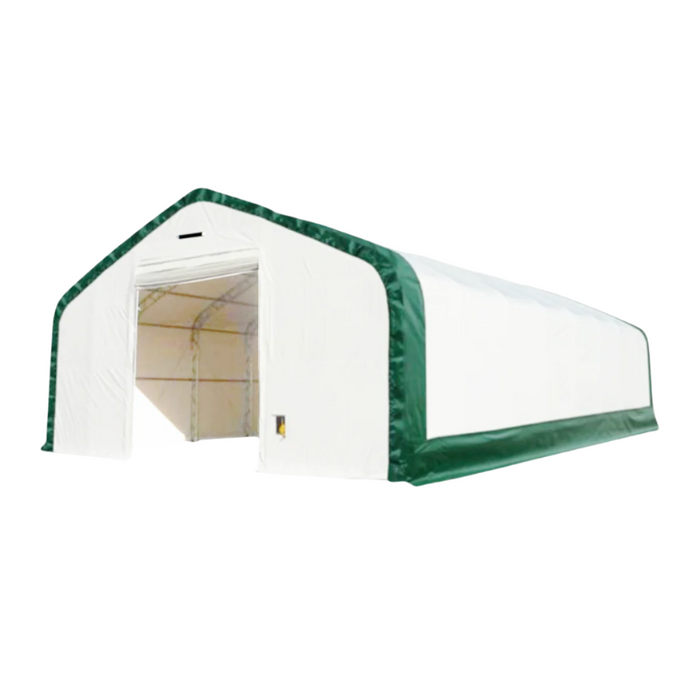

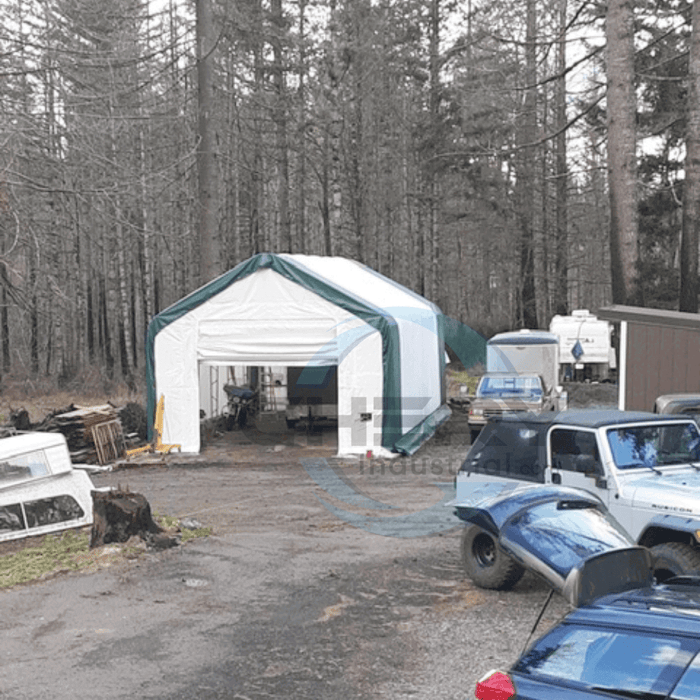

The Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 20′ W × 33′ L × 16′ H is a heavy-duty outdoor shelter designed to provide reliable protection for vehicles, tools, equipment, materials, and machinery in residential, agricultural, commercial, and industrial settings. Its double-truss frame and durable canopy offer strength and stability, making it ideal for withstanding challenging weather conditions such as snow, wind, and rain.

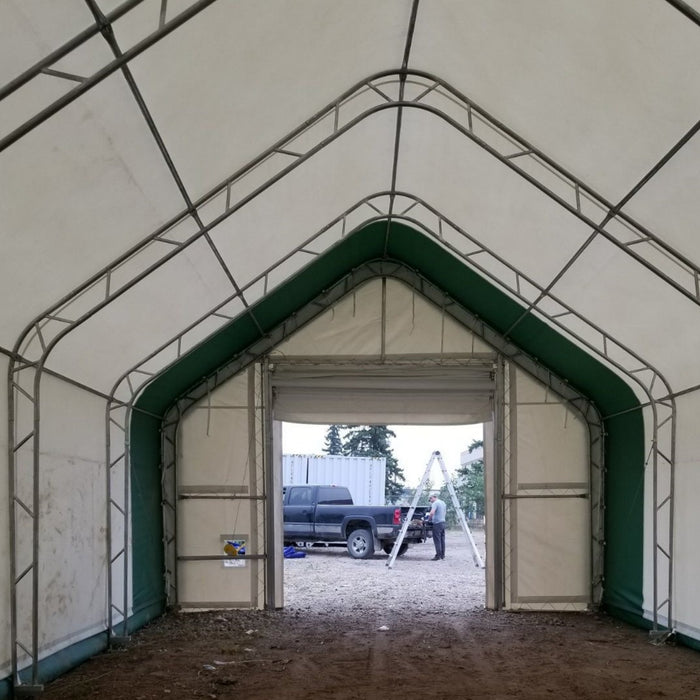

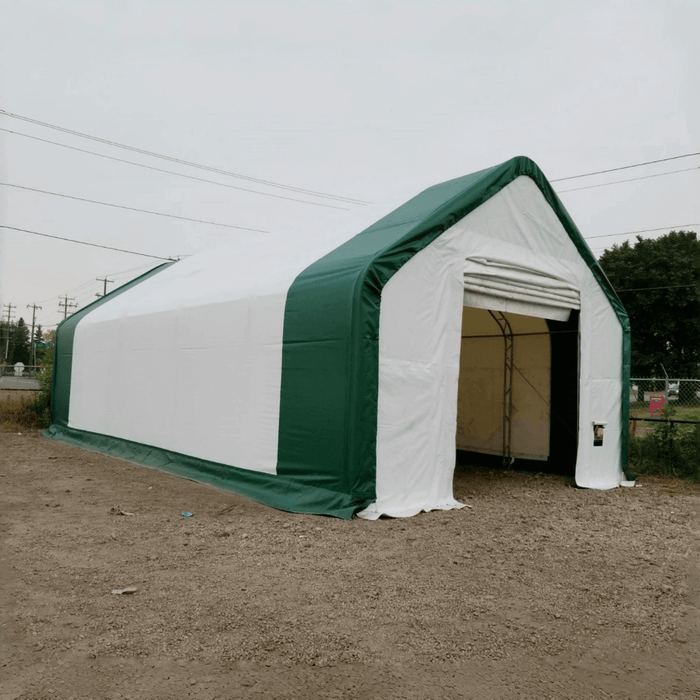

Constructed with a galvanized steel frame featuring double truss support and a high-quality weather-resistant canopy, this shelter maximizes interior space while maintaining structural rigidity. The design allows natural light inside while shielding contents from outdoor elements, making it suitable for storage, workspace coverage, and equipment protection without a permanent foundation.

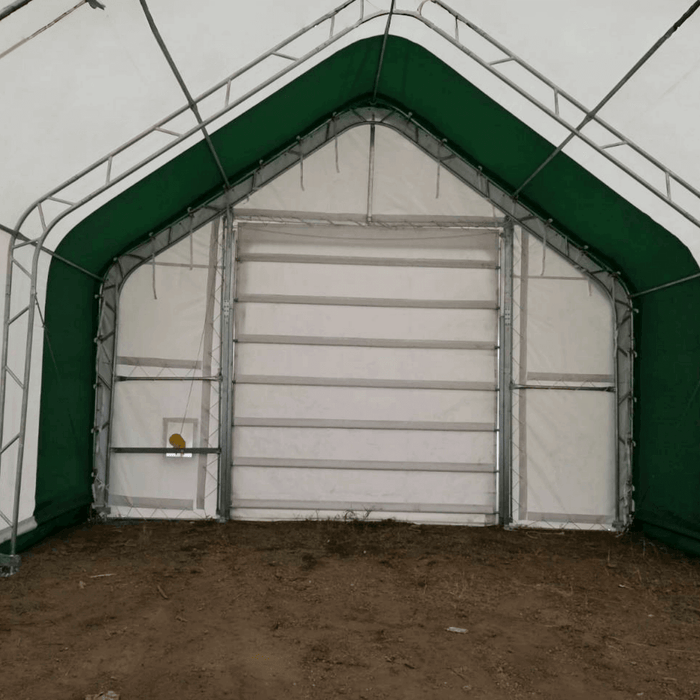

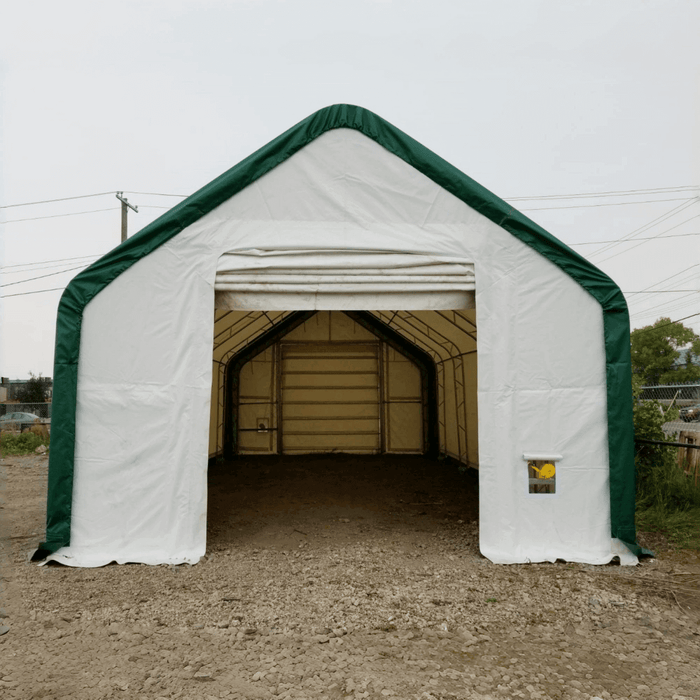

Large mechanical roll-up doors at both ends provide easy access for vehicles, equipment, and large materials. Built-in ventilation promotes airflow and reduces moisture buildup inside the shelter, keeping stored items dry and protected. This versatile shelter combines rugged construction with practical functionality for a variety of storage needs.
Features
- No building permits required*.
- Easy to set up and install.
- Portable for moving to new locations.
- Two large doors allow entry and exit more easily.
- Fabric cover blocks UV radiation and provides natural light.
- A galvanized steel frame helps the shelter to resist terrible weather conditions.
- Suitable for several purposes.
Specifications
| Description |
Specifications
|

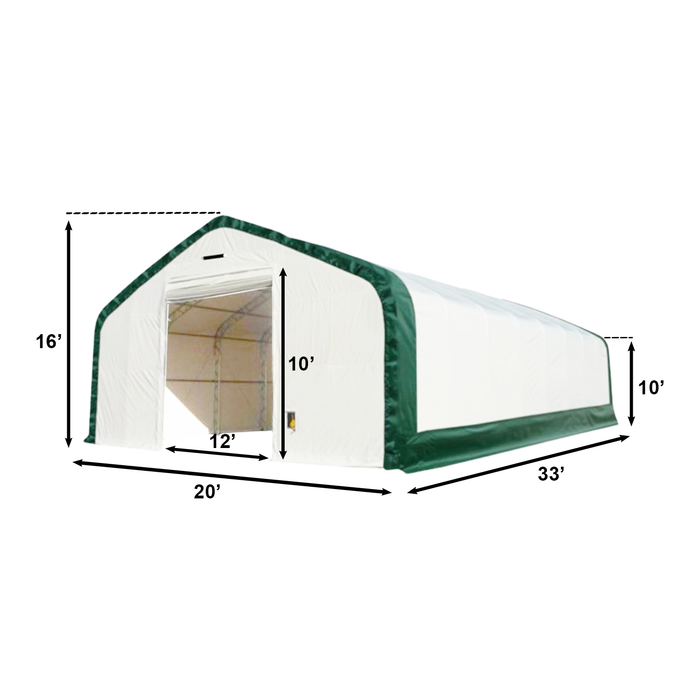

| Dimensions (WxLxH)
|
20'x33'x16' |
| Side-wall Height |
10 ft |
| Door size (WxH) (Front & Rear) |
12'x10' |
| Door Type |
Mechanical Rollup Door |
| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 40x1.5mm |
| Purlin Ø |
Φ 40x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
6 |

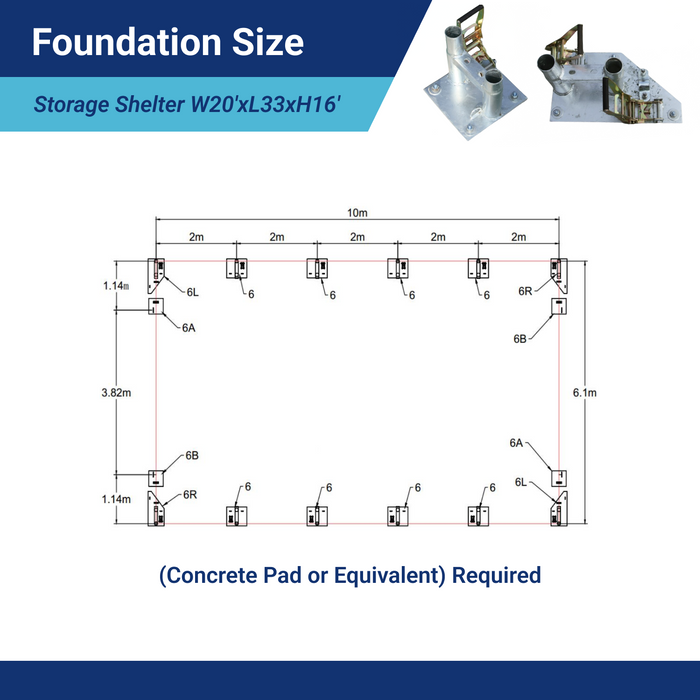

| Number of Anchor plates |
12 |

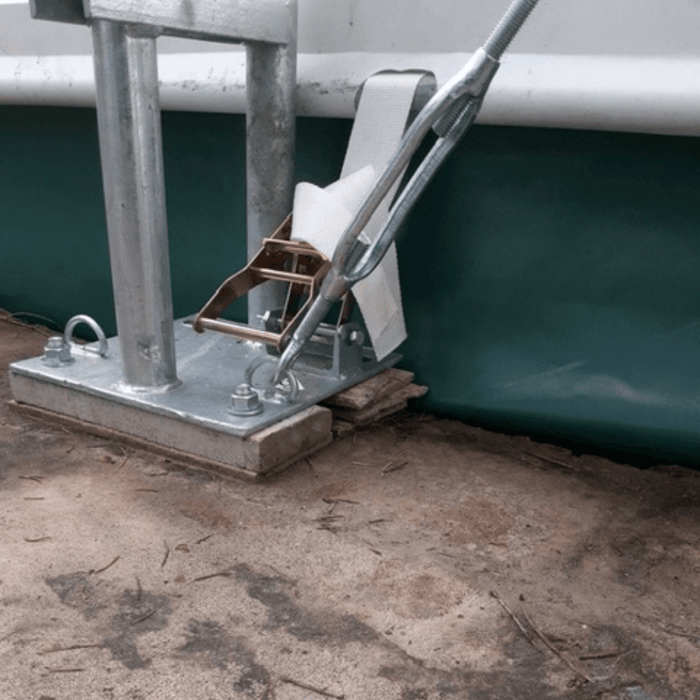

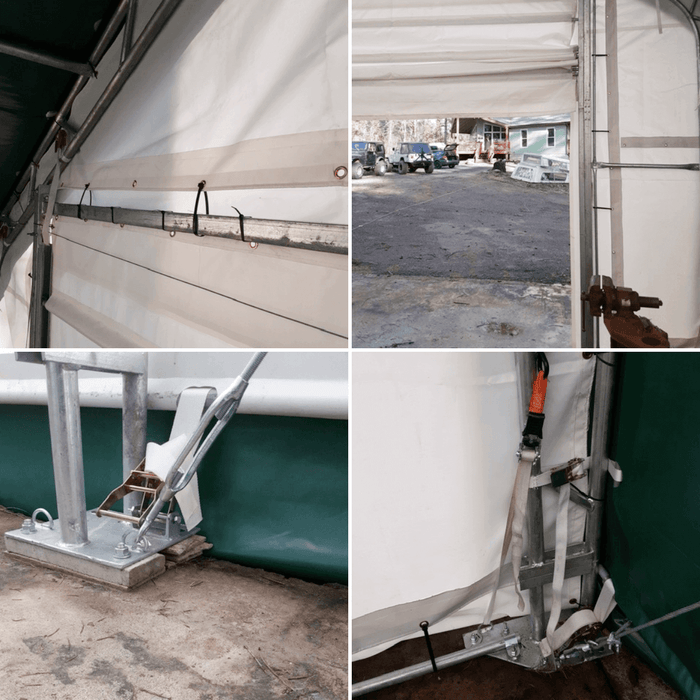

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
1 Day |
| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 87.4x43.3x40.6
- Weight (lb): 2095
- A forklift or equivalent is required for unloading

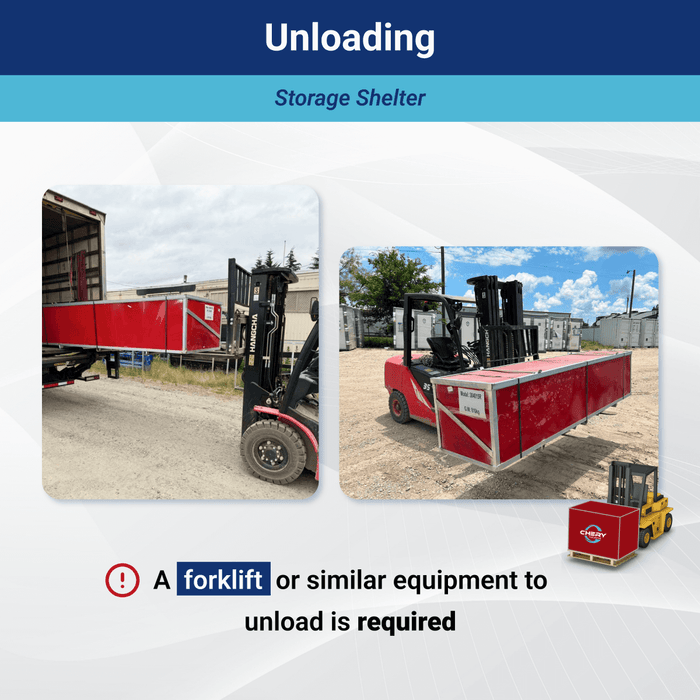

Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
