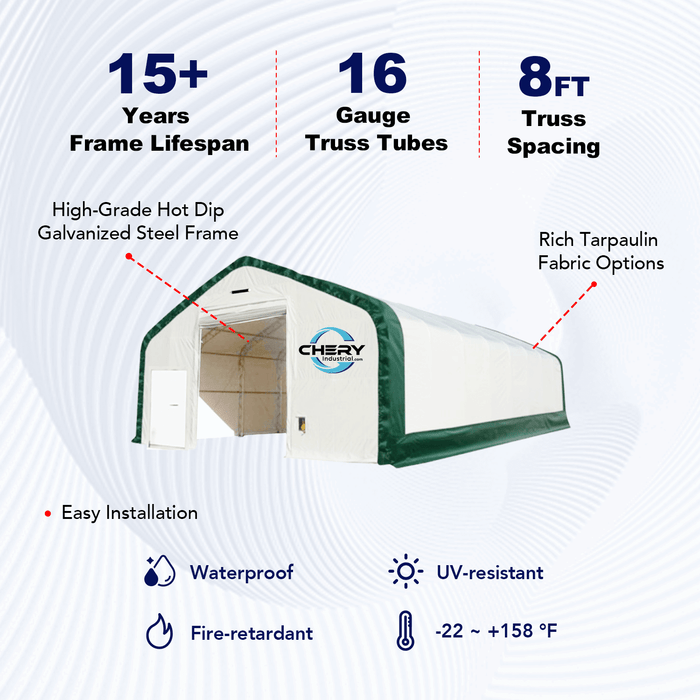

Chery Industrial Gold Mountain Double Truss Storage Shelter 40′ W × 80′ L × 21′ H (8 ft Truss Spacing)

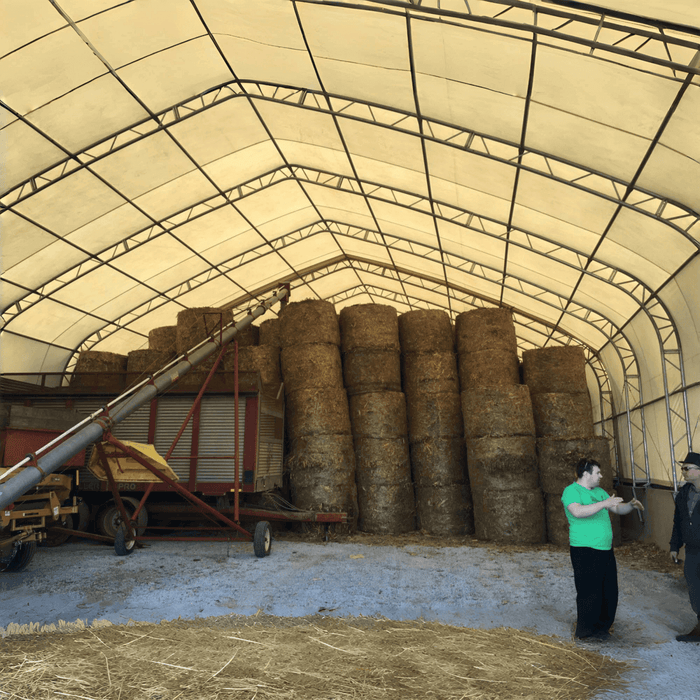

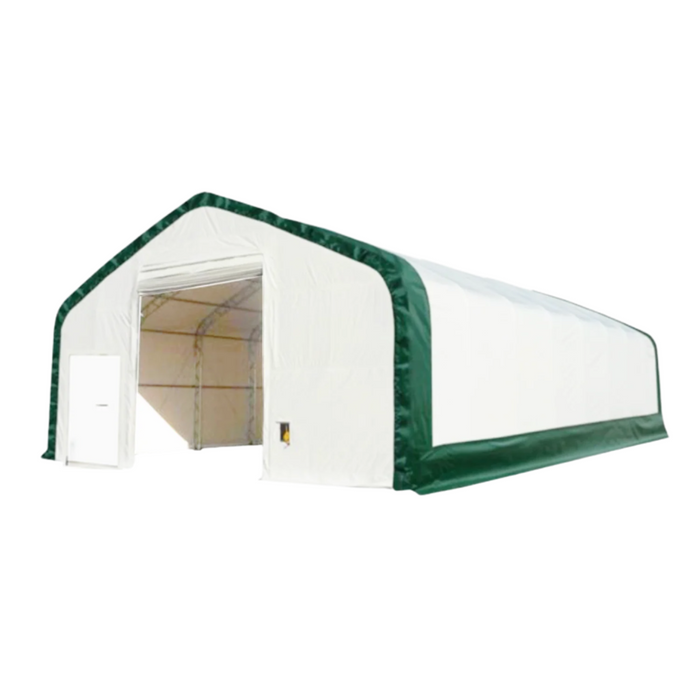

The Chery Industrial Gold Mountain Double Truss Storage Shelter 40′ W × 80′ L × 21′ H with 8 ft truss spacing provides a spacious 3,200 sq ft covered area designed to protect vehicles, equipment, tools, agricultural materials, and industrial supplies from harsh outdoor conditions. Its double truss arch design combined with a heavy-duty PVC canopy makes it a reliable storage solution for demanding environments such as farms, construction sites, warehouses, and manufacturing facilities.

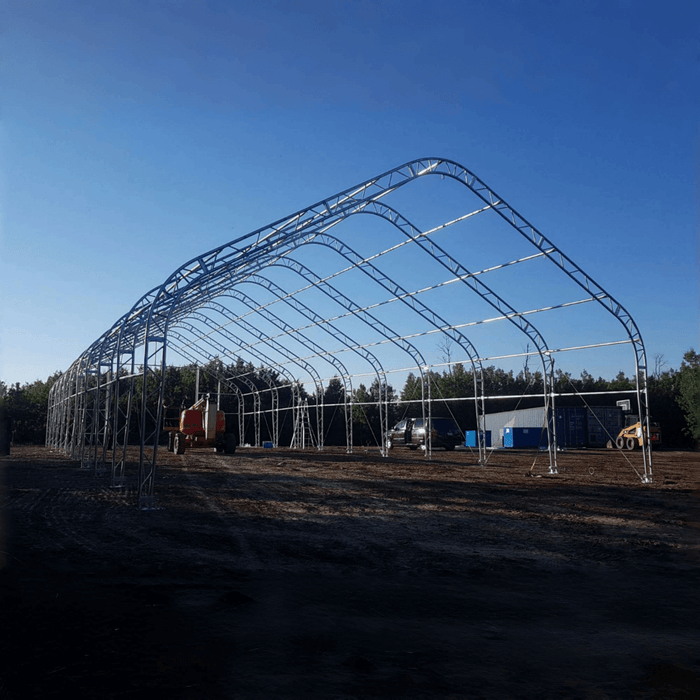

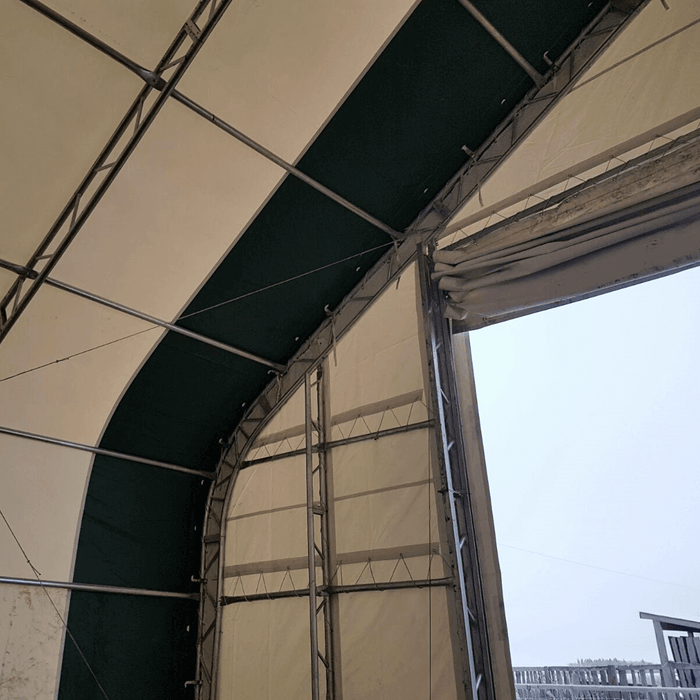

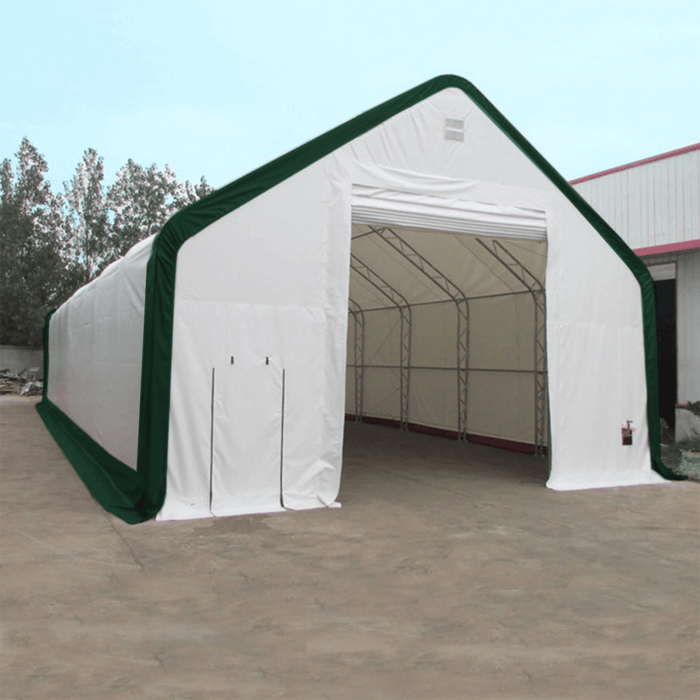

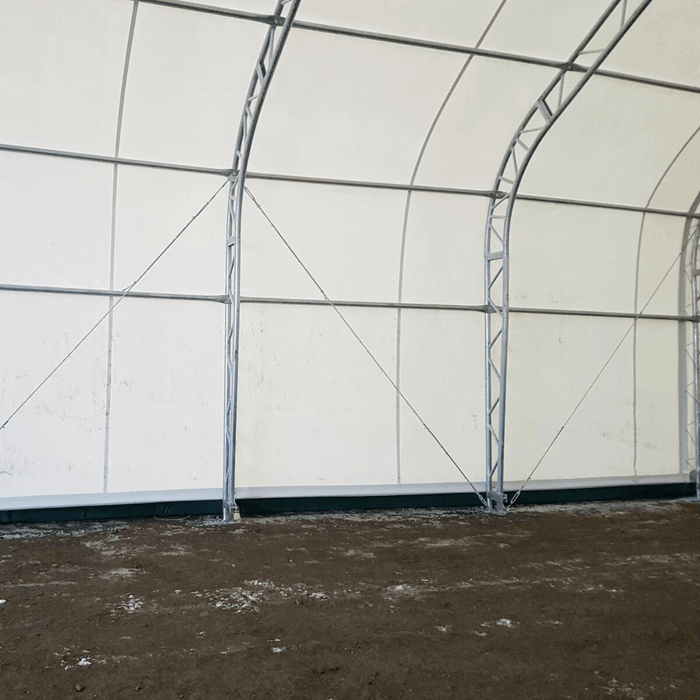

Constructed with a 16-gauge galvanized steel double truss frame, this shelter delivers excellent strength and long-term durability. The water- and UV-resistant PVC canopy helps shield contents from rain, sun, and snow, while mechanical roll-up doors on both ends allow easy access for loading and unloading. A 2.6′ × 6.6′ side man door provides convenient entry for daily use.
Ventilation vents located at the top ends promote airflow and help reduce internal moisture, protecting stored items from condensation. Installation is flexible and straightforward with included stake pegs, eliminating the need for a permanent foundation and allowing placement in a variety of locations.
Ideal for large-scale storage needs, this shelter offers dependable protection and practical design features. With its reinforced structure and weather-resistant materials, the Chery Industrial Gold Mountain Double Truss Storage Shelter is a durable and versatile solution for safeguarding valuable equipment and materials year-round.
Features
- No building permits required*.
- Provides unlimited storage space with 40’ width, 80’ length, and 21’ height.
- Suitable for different purposes, from residential to commercial.
- The galvanized steel structure is built to last and is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- No need to use electricity during the day with the PVC cover providing enough natural light.

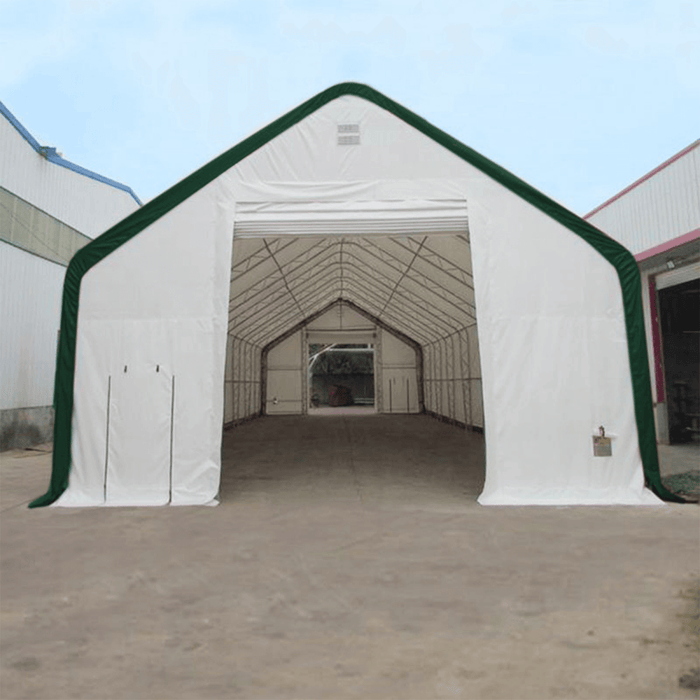

- Easy entry and exit with double doors, which are placed at both ends.
Specifications
| Description |
Specifications
|

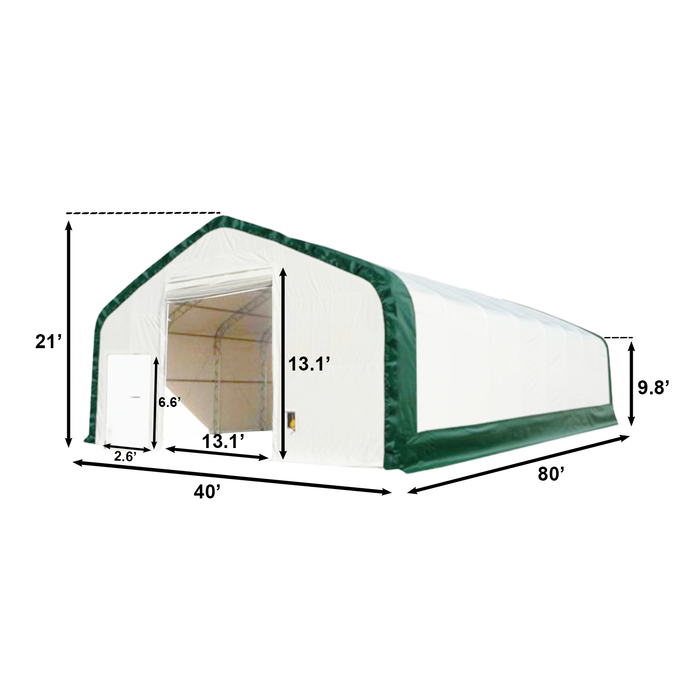

| Dimensions (WxLxH)
|
40'x80'x21' |
| Side-wall Height |
9.8 ft |
| Door size (WxH) (Front & Rear) |
13.1'x13.1' |
| Door Type |
Mechanical Rollup Door |
| Man Door (WxH) |
2.6'x6.6' |
| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 60x1.5mm |
| Purlin Ø |
Φ 60x1.5mm |
| Arch Spacing |
8 ft |
| Number of Arch |
11 |
| Number of Anchor plates |
22 |

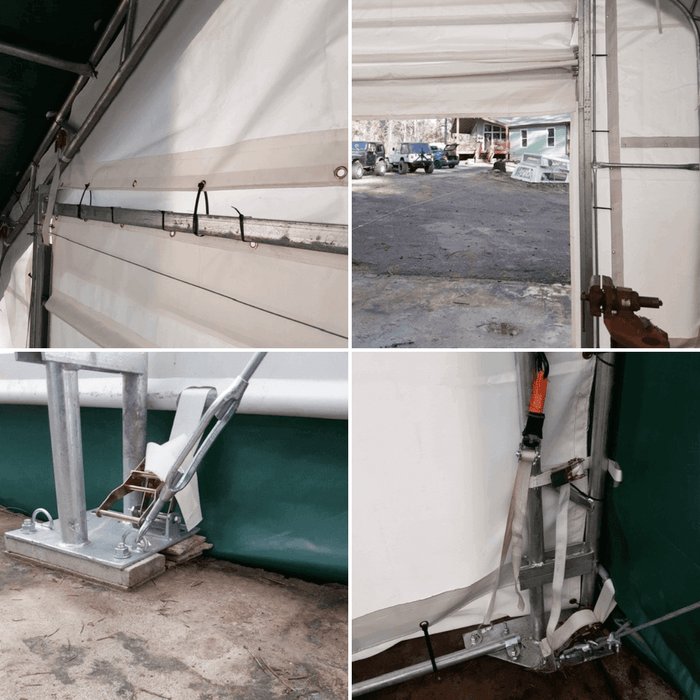

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |
| Snow Load |
48 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 2 boxes(124x44x46); 1 boxes(98x44x35)
- Weight (lb): 5600
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
