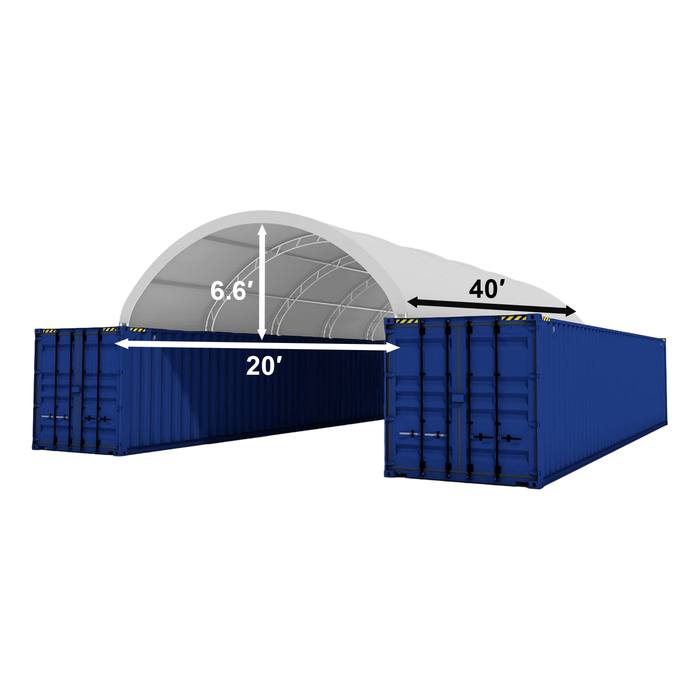

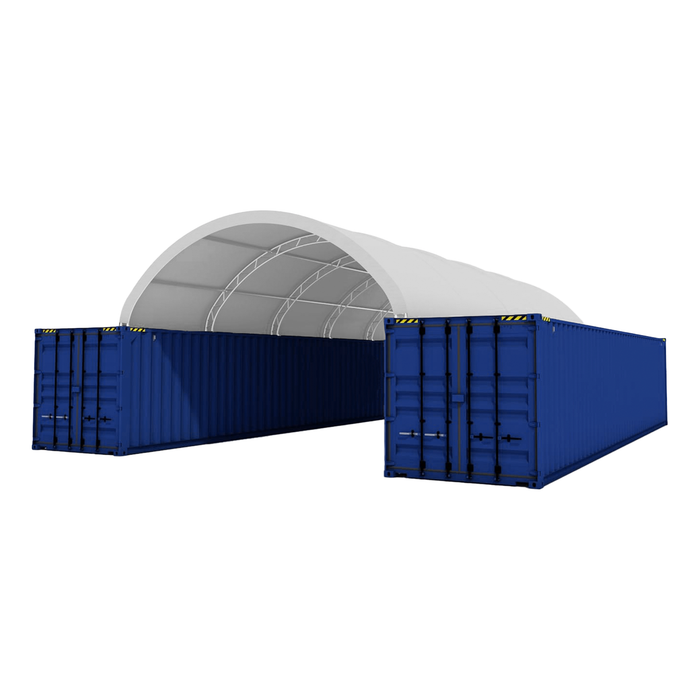

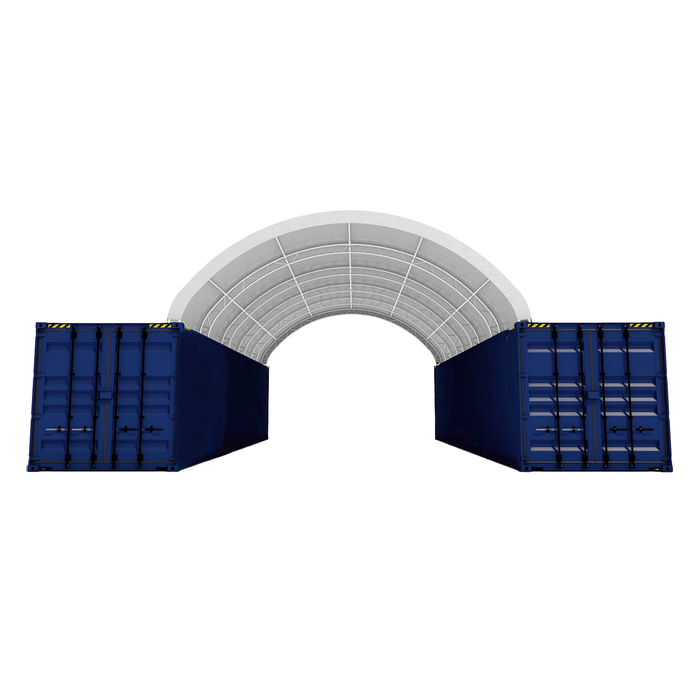

Chery Industrial Fortified Double Truss Container Shelter 20′ W × 40′ L × 6.6′ H
The Chery Industrial Fortified Double Truss Container Shelter 20′ W × 40′ L × 6.6′ H is a rugged and dependable cover solution designed to fit over standard 20′ shipping containers for enhanced protection against the elements. With its reinforced structure and double truss frame, this shelter provides superior stability and weather resistance, making it ideal for industrial, agricultural, and commercial environments requiring long-term coverage for equipment, materials, and workspaces.

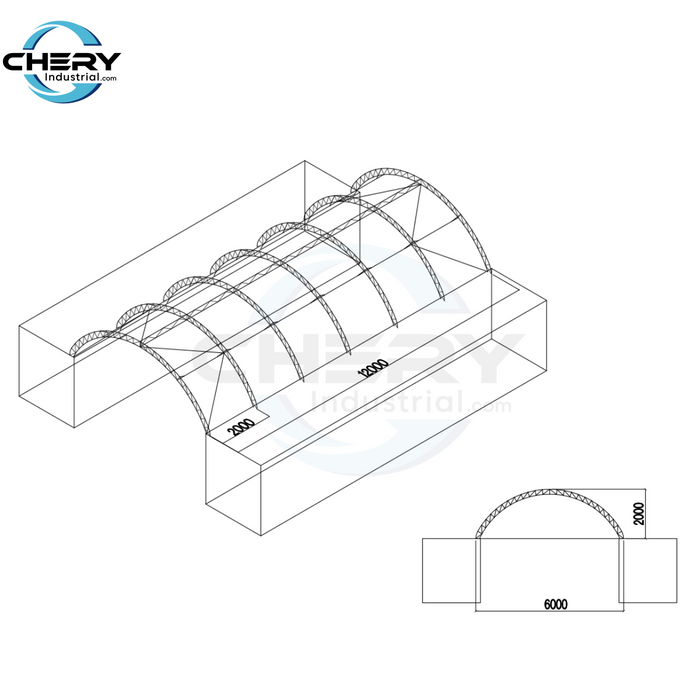

Constructed with a reinforced hot-dip galvanized double truss steel frame, this container shelter offers exceptional strength and durability. The robust frame connectors and self-locking nuts maintain structural integrity with minimal maintenance, while ratchet tensioners ensure optimal canopy tautness for enhanced performance in windy and challenging weather conditions.
Designed for easy installation on shipping containers, the Fortified Container Shelter requires minimal preparation and delivers reliable coverage without a permanent foundation. Its protective PVC canopy resists water and sun exposure, making it suitable for protecting stored items, work areas, and equipment from rain, UV damage, and light snow conditions.

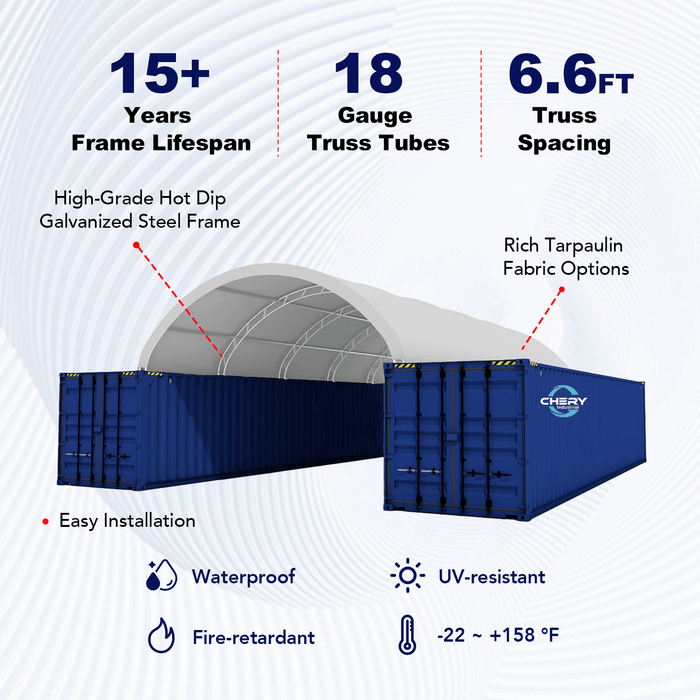

With a snow load rating of approximately 25 lbs/ft², wind resistance of up to 60 mph, and temperature tolerance from –22 °F to +158 °F, this shelter is built to withstand varied outdoor conditions. The durable canopy has an estimated 7–10-year lifespan, and the heavy-duty steel frame is engineered for more than 15 years of service, offering lasting protection and peace of mind.
Features
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- The tarpaulin is PFAS-free and EU REACH compliant.
- No pole inside, and 100% of the interior space is available.
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Specifications
| Description |
Specifications |
| Model |
C2040 Dome Container Shelter |
| Dimension (ft) |
W20xL40xH6.6 |
| Frame |
Double Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
6.6 ft |
| Arch Ø (mm) |
Ø32x1.2 |
| Purlin Ø (mm) |
Ø40x1.2 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Easy Installation |
Twist lock and clamp installation |
| Weld |
|
| Average assembly time for DIY with 4 persons |
- Shelter: 2 days
- Front or back wall: ½ day per wall
|
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
