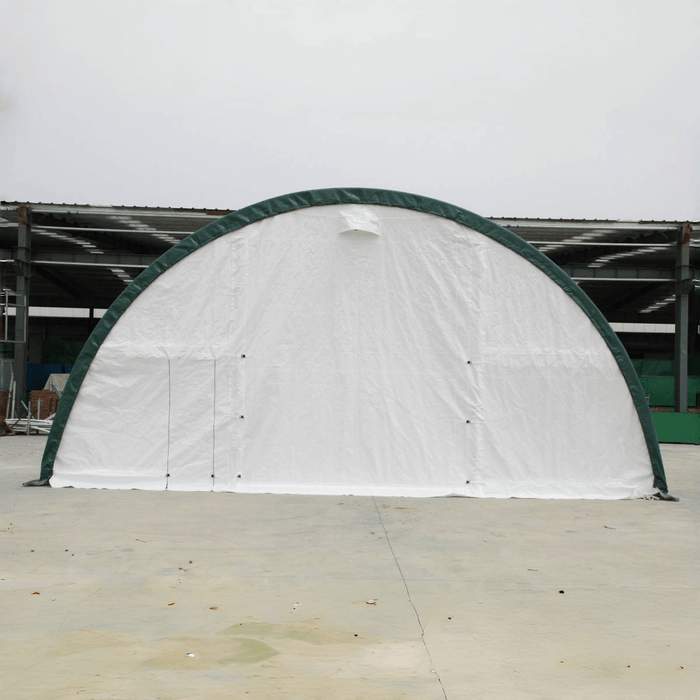

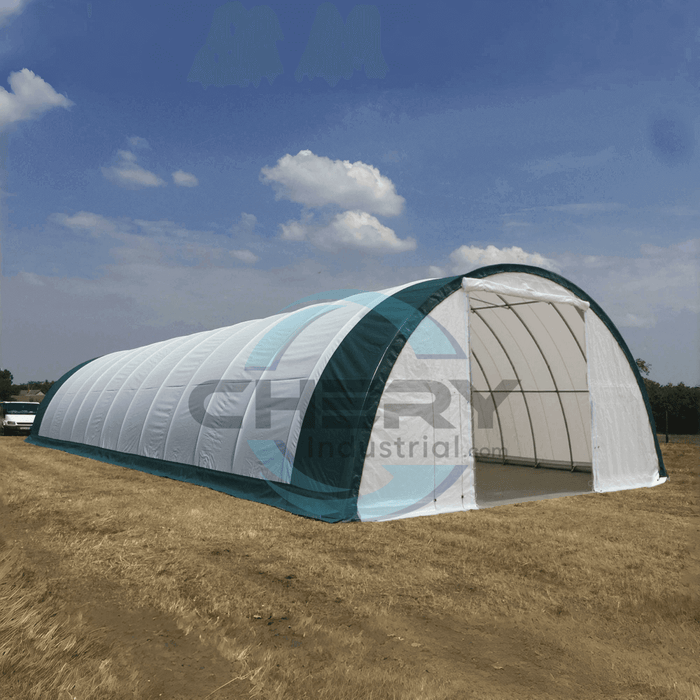

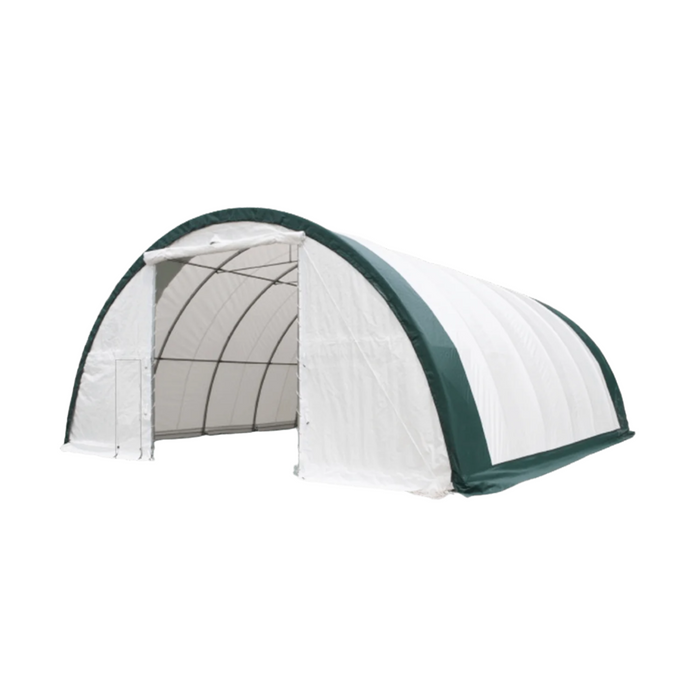

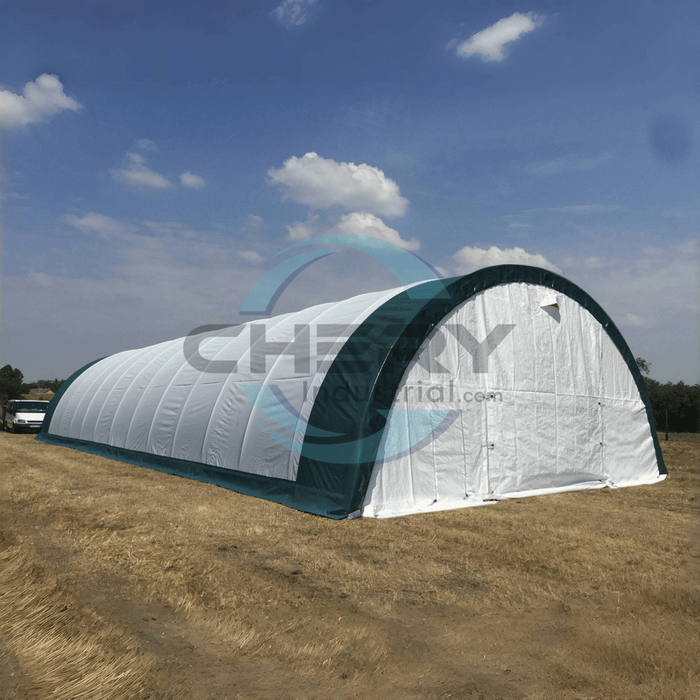

Chery Industrial Gold Mountain 30’ x 85’ x 15’ Single Truss Arch Storage Shelter
The Chery Industrial Gold Mountain 30’ x 85’ x 15’ Single Truss Arch Storage Shelter offers an expansive and durable outdoor storage solution designed to protect large equipment, vehicles, materials, and agricultural goods from the elements. With approximately 2,550 sq ft of covered space, this high‑capacity shelter is ideal for industrial, commercial, agricultural, or residential applications where strong, reliable protection is needed. Built with a heavy‑duty single truss galvanized steel frame and rugged canopy material options including PE or PVC, it delivers lasting performance and weather resistance.

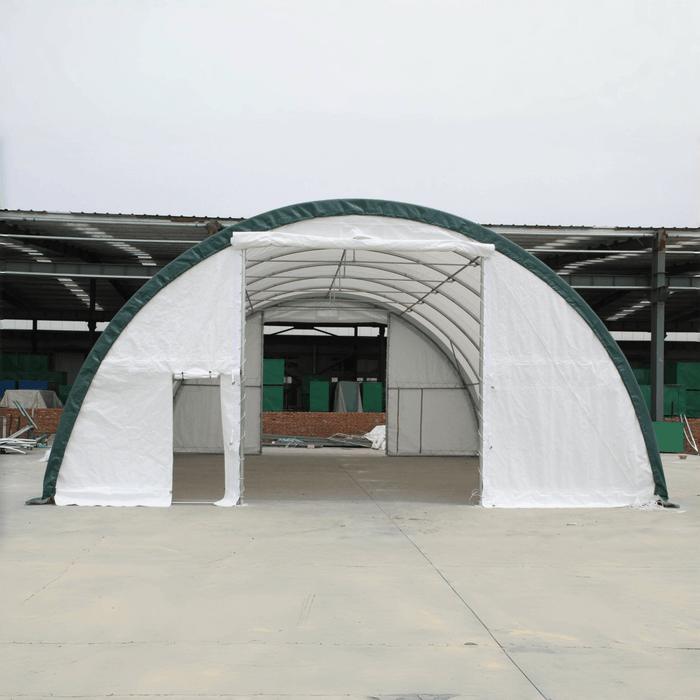

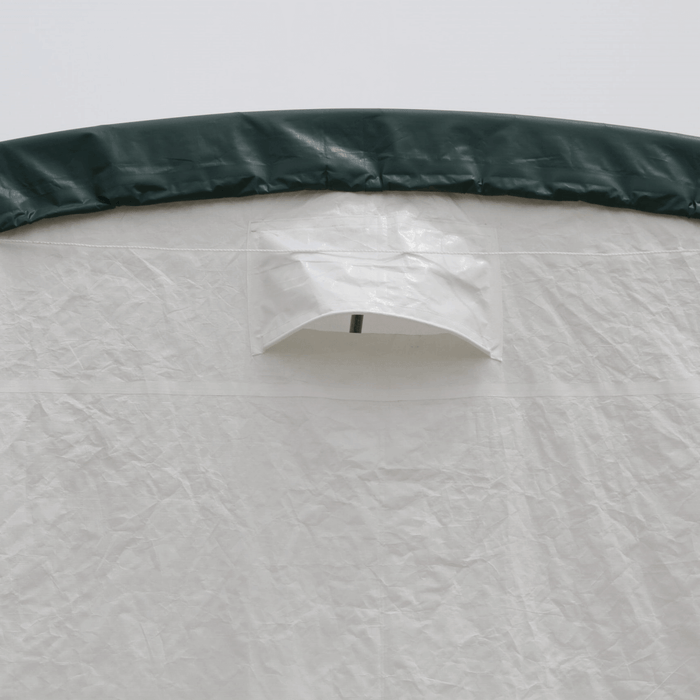

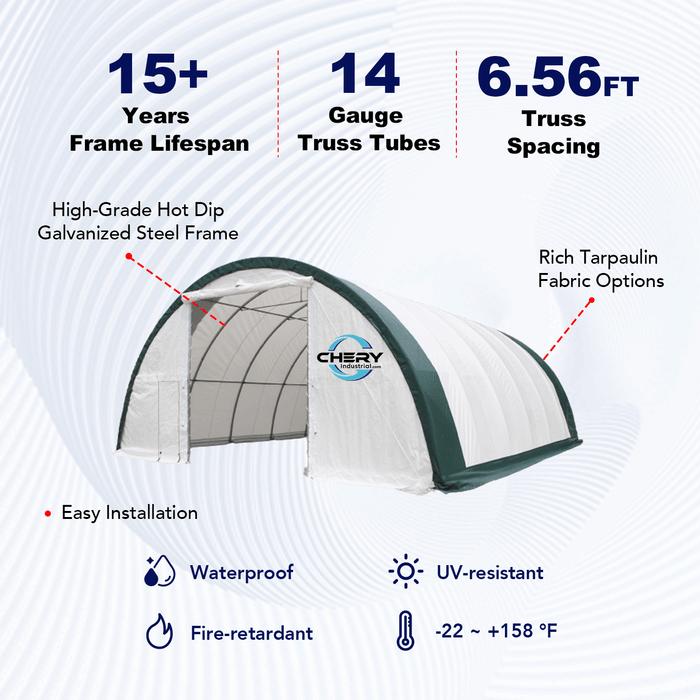

This storage shelter features large rope pull‑up doors at both the front and rear — each about 11.5’ × 11.5’ — to allow easy drive‑through access for machinery and vehicles. A side 2.6’ × 6.6’ man door provides convenient personal entry without the need to open the larger doors. The structural design includes 14‑gauge steel truss tubes with 6.56 ft spacing for solid support, along with top vents that help improve interior airflow and reduce moisture buildup for healthier storage conditions.
Installation is flexible and straightforward, with no permanent foundation required thanks to included stake pegs and a pipe and ratchet tension system that helps secure the shelter in place. Designed to withstand typical outdoor conditions, this shelter balances strength and practicality, making it a dependable choice for storing tools, vehicles, construction materials, farm equipment, or seasonal inventory.
With options for different canopy fabrics and customizable features, the Gold Mountain storage shelter can be tailored to your specific environment and operational demands. It’s a versatile investment for anyone seeking a spacious, robust space that protects assets year‑round.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Features
- No building permits required*.
- Resistant toward water, UV, and fading
- Style: Freestanding
- There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
- A huge capacity for trucks, automobiles, and more bulk storage
- Protect belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Certificate: SGS

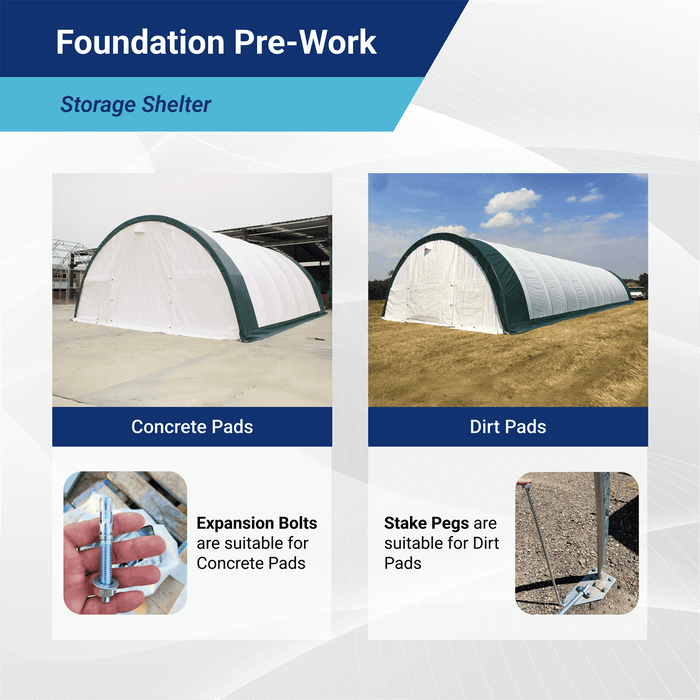

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specifications
|

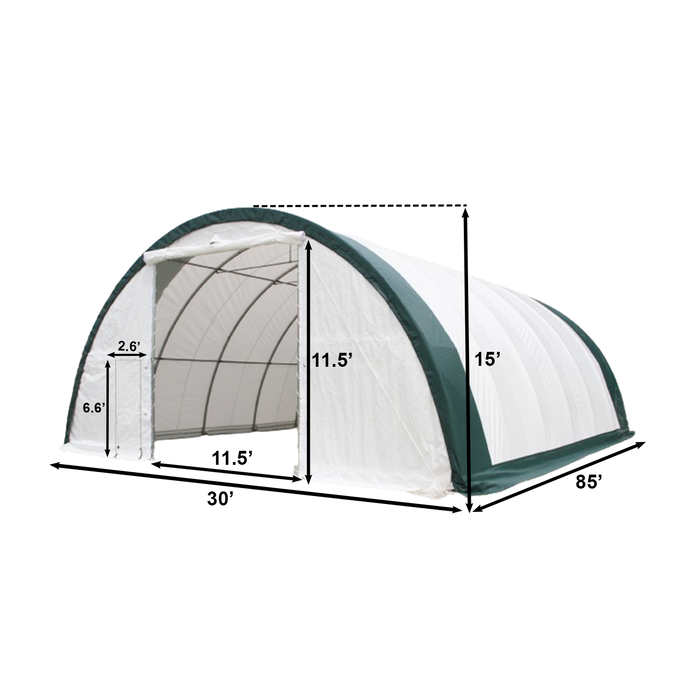

| Dimensions (WxLxH)
|
30'x85'x15' |
| Door size (WxH) (Front & Rear) |
11.5'x11.5' |
| Door Type |
Rope Pullup Door |

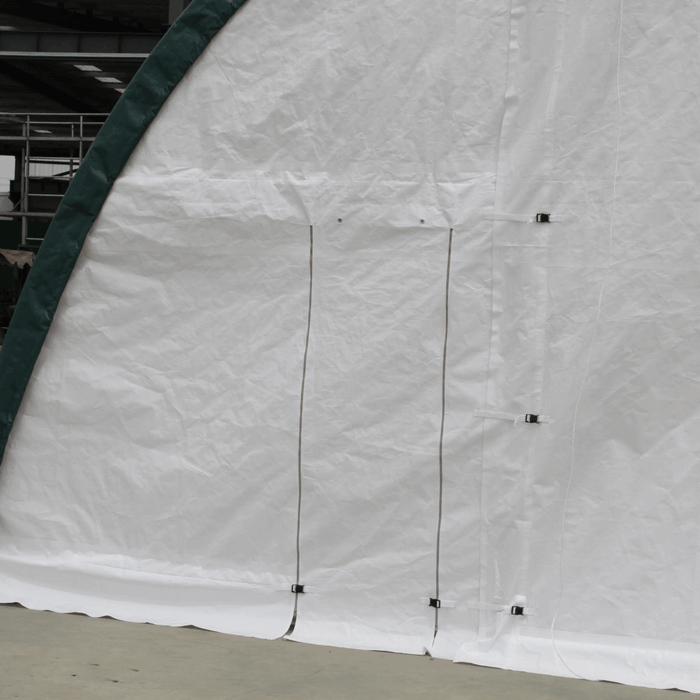

| Man Door (WxH) |
2.6'x6.6' |
| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
14 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Ф 70x42x2mm |
| Purlin Ø |
Φ 40x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
14 |

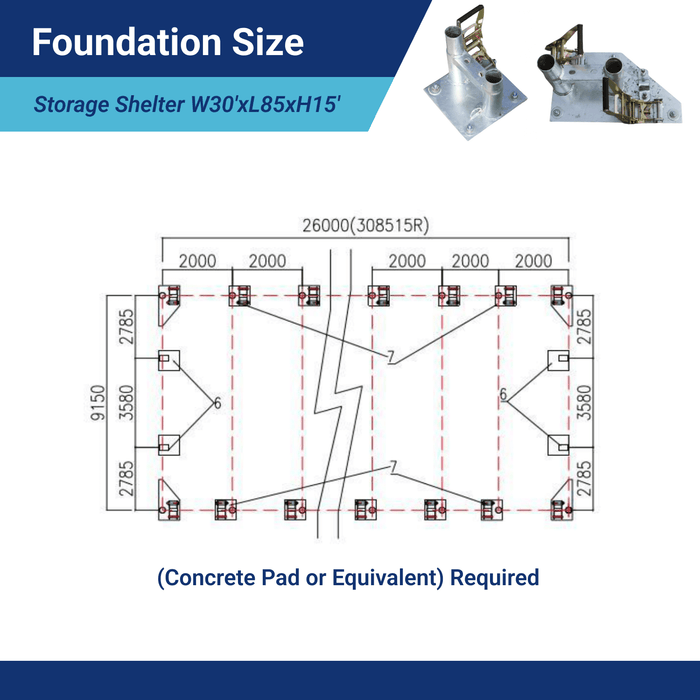

| Number of Anchor plates |
28 |

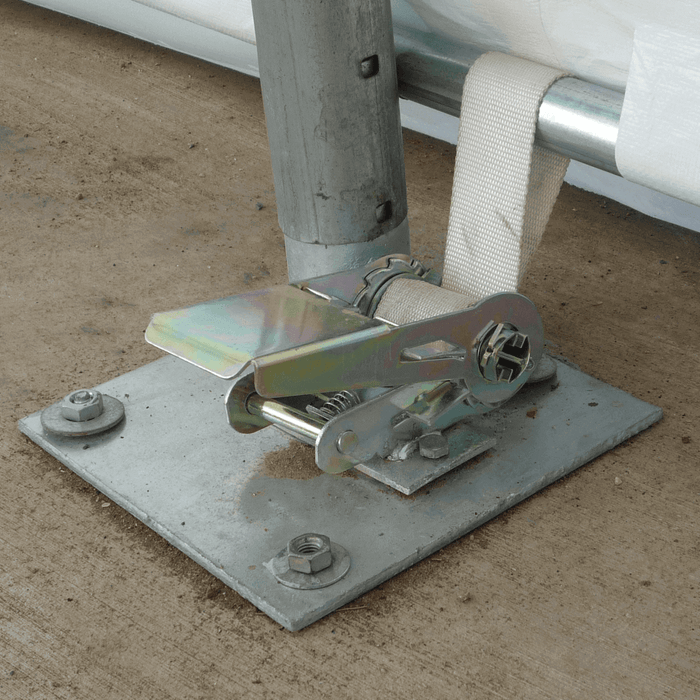

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |

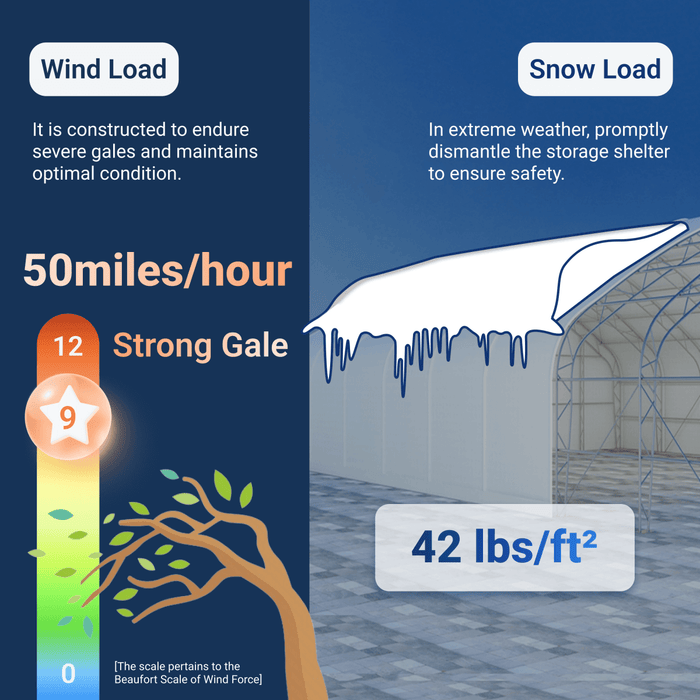

| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 114.2x28.4x43.3
- Weight (lb): 3080
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
