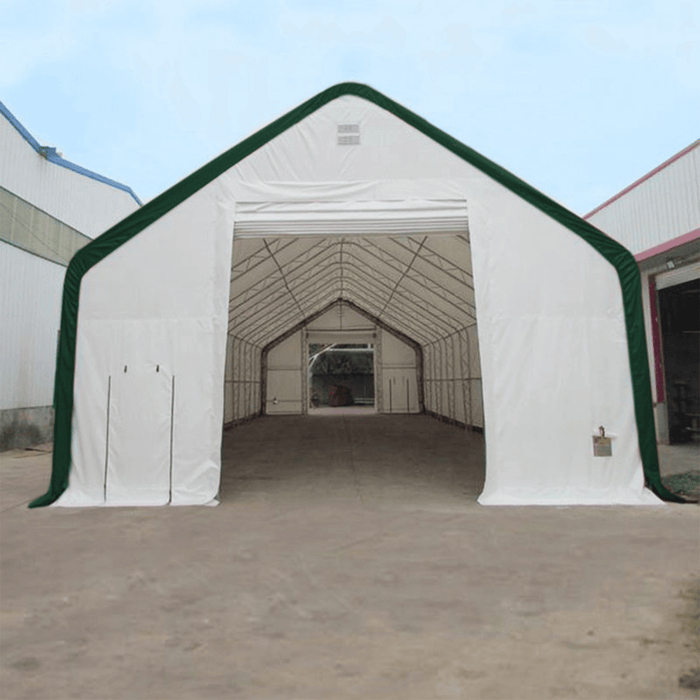

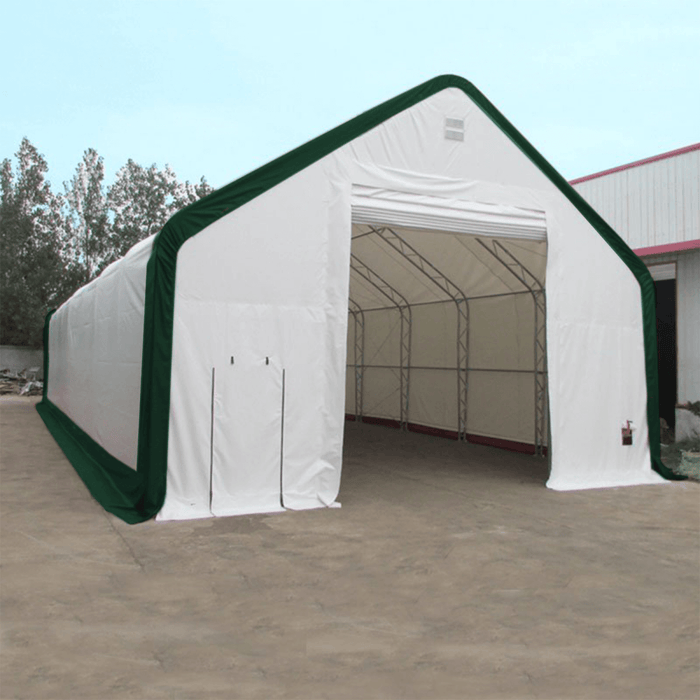

Chery Industrial Double Truss Storage Shelter W30'xL40'xH20'

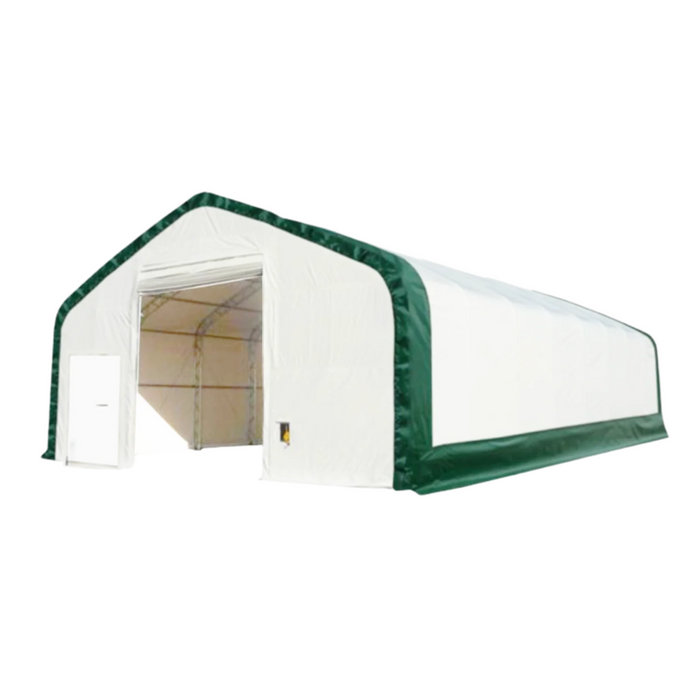

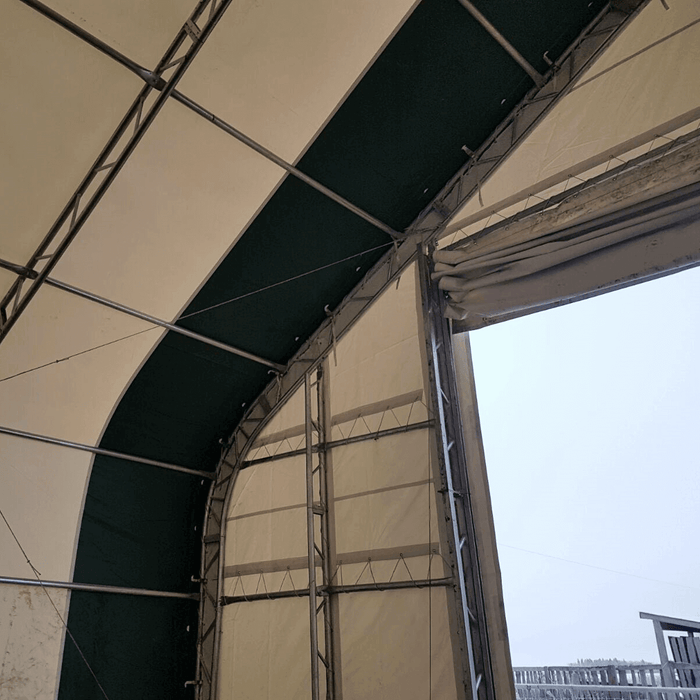

The Gold Mountain W30’xL40’xH20’ Double Truss Arch Storage Shelter is a robust and versatile outdoor storage solution designed to protect your tools, vehicles, agricultural materials, event supplies, and more from harsh weather conditions. Built with a heavy‑duty double truss galvanized steel frame and durable PVC canopy, this shelter delivers reliable performance across all seasons and is engineered to withstand winds up to 60 mph and heavy snow loads.
Constructed with a 16‑gauge galvanized steel truss tube and a heat‑sealed triple‑layer PVC fabric that resists water, UV, and fire, this storage shelter offers superior all‑weather protection and lasting durability. The peak roof design not only enhances strength but also helps to prevent snow buildup, while the mechanical roll‑up doors on both ends simplify access for loading and unloading.
Spanning approximately 1,200 sq ft of coverage, the spacious interior includes a large side man door and requires no permanent foundation thanks to the included stake pegs, making installation flexible and convenient. Its wide application makes it ideal for farming, warehousing, and manufacturing environments, and custom options are available to meet unique business needs.
This shelter is backed by a generous warranty—2 years on the steel frame and up to 8 years on the PVC canopy—ensuring long‑term use and peace of mind. Whether you’re protecting valuable equipment or creating additional covered workspace, the Gold Mountain Double Truss Storage Shelter delivers strength, reliability, and protection you can trust.

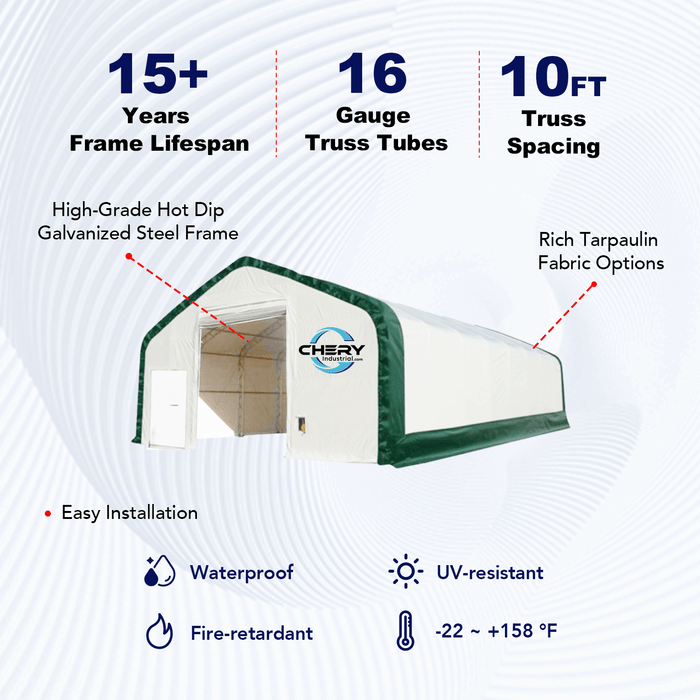

Features
- No building permits required*.
- Easy to set up and install.
- Portable for moving to new locations.
- Two large doors allow entry and exit more easily.
- Fabric cover blocks UV radiation and provides natural light.
- A galvanized steel frame helps the shelter to resist terrible weather conditions.
- Suitable for several purposes.
Specifications
| Description |
Specifications
|

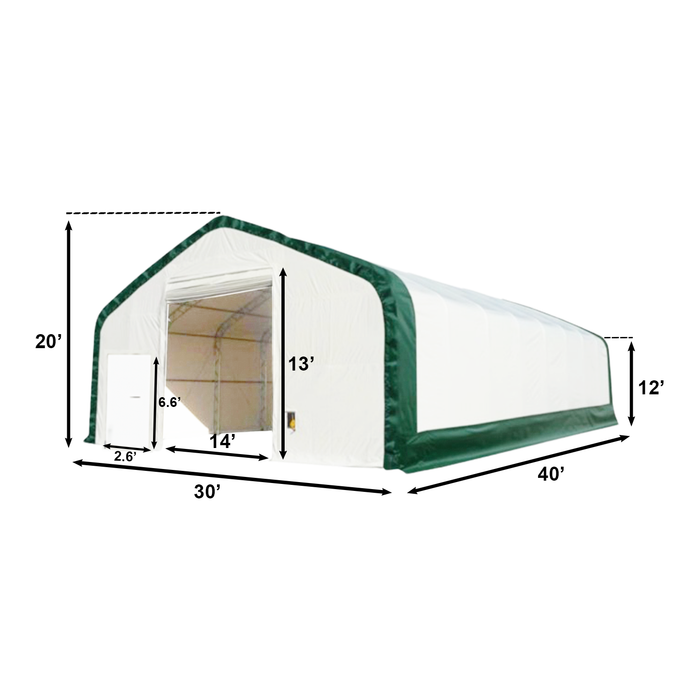

| Dimensions (WxLxH)
|
30'x40'x20' |
| Side-wall Height |
12 ft |
| Door size (WxH) (Front & Rear) |
14'x13' |

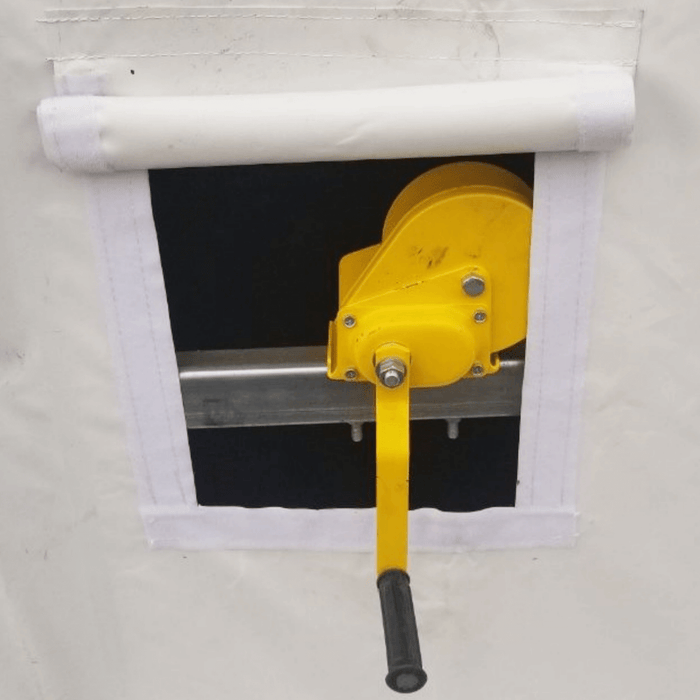

| Door Type |
Mechanical Rollup Door |
| Man Door (WxH) |
2.6'x6.6' |

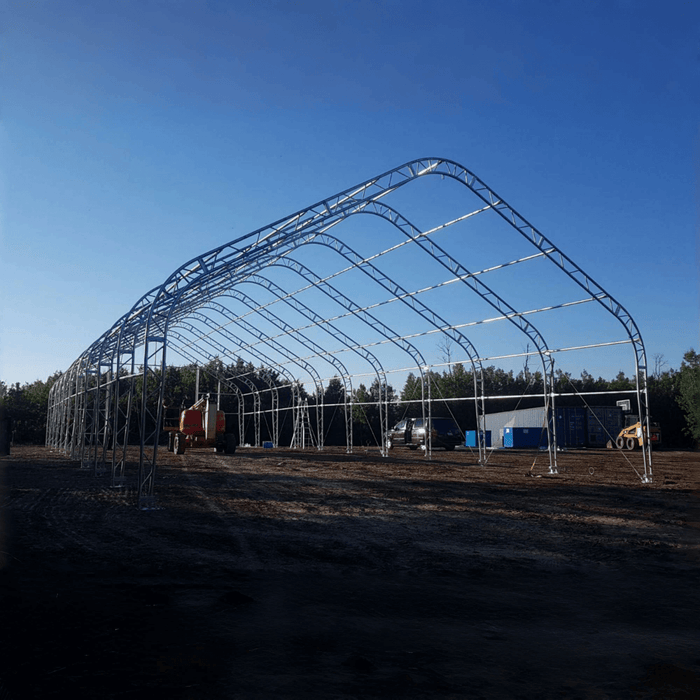

| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |

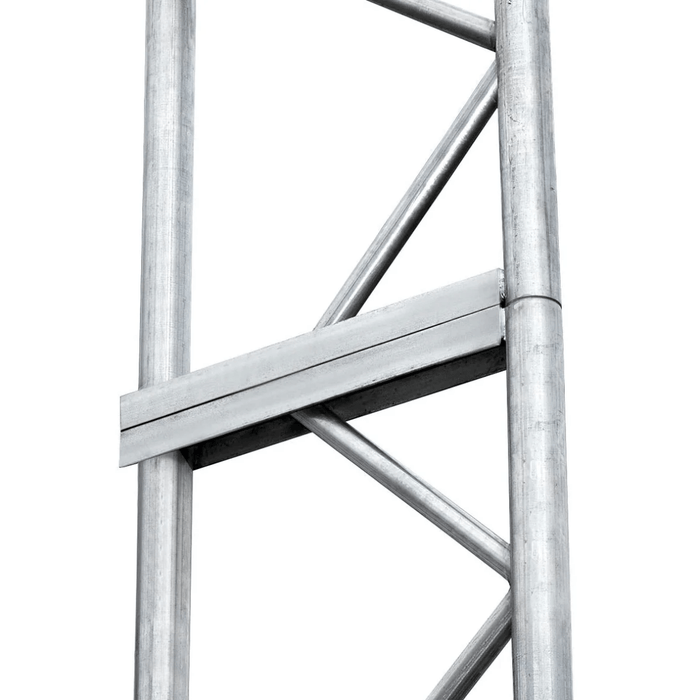

| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 48x1.5mm |
| Purlin Ø |
Φ 48x1.5mm |

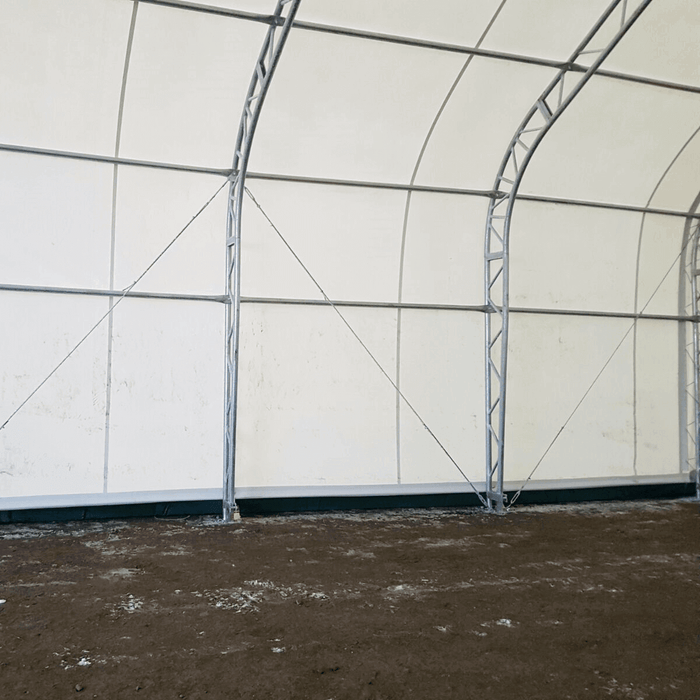

| Arch Spacing |
10 ft |
| Number of Arch |
5 |

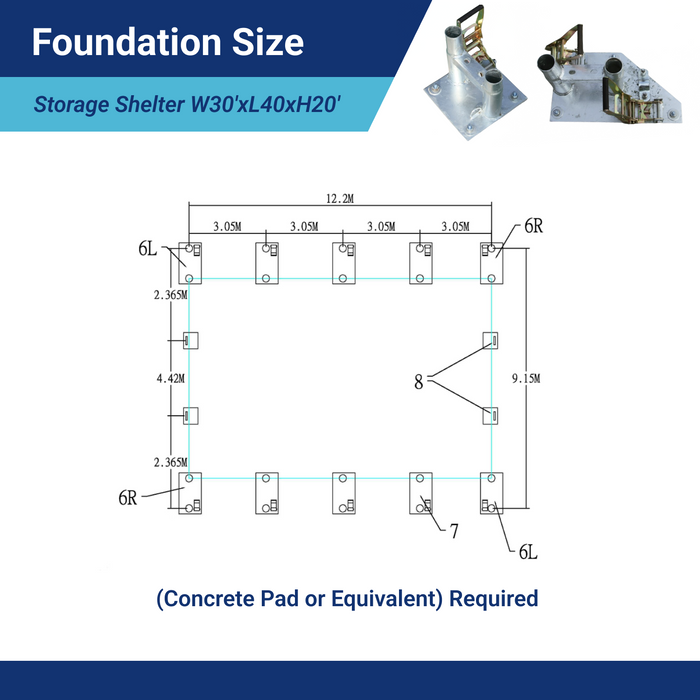

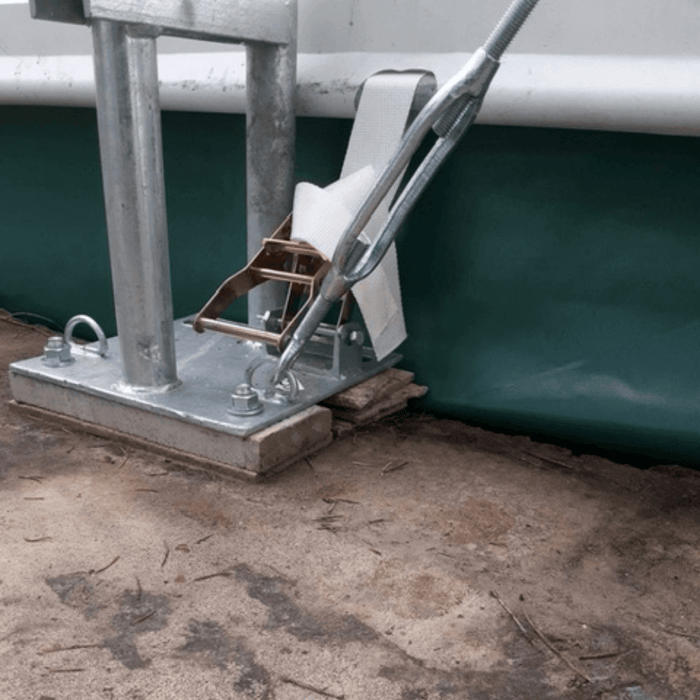

| Number of Anchor plates |
10 |

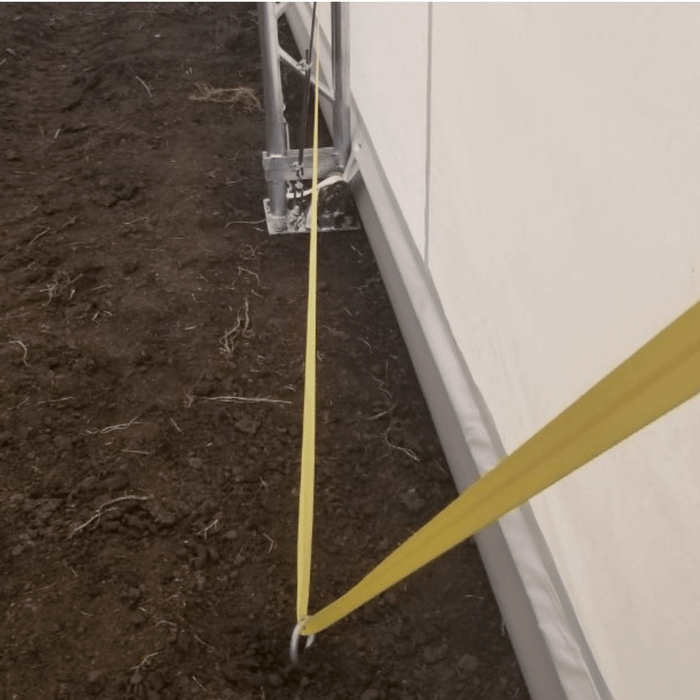

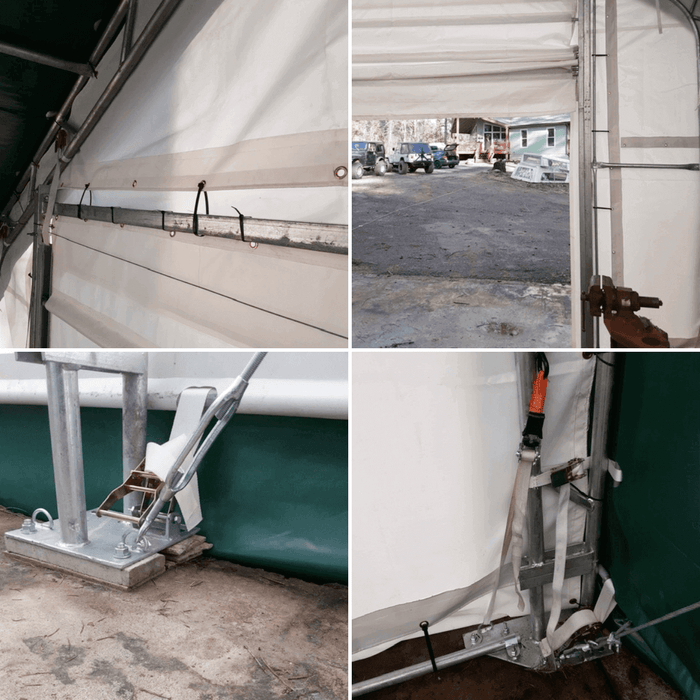

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
3 Days |

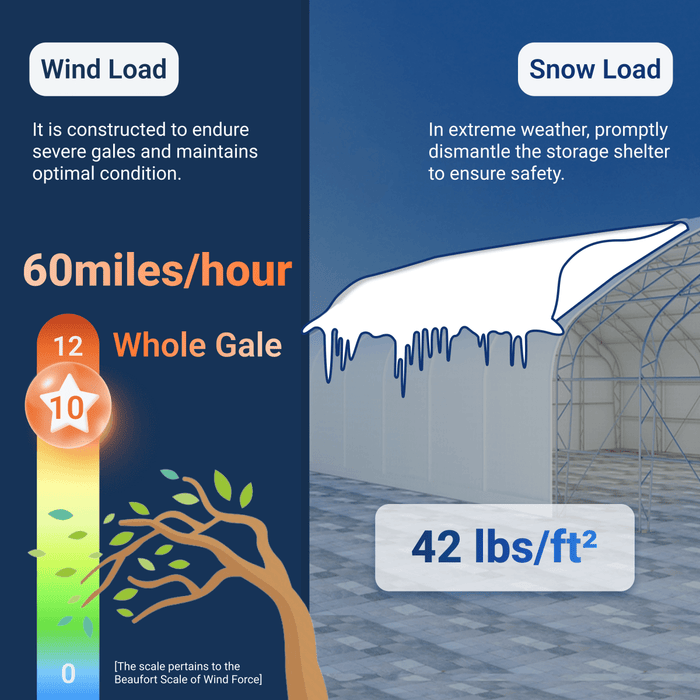

| Snow Load |
42 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |

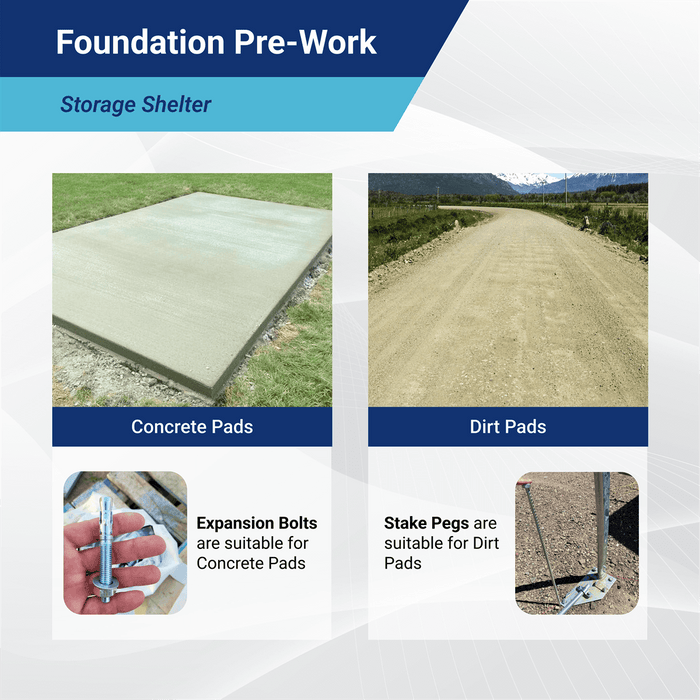

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 122.8x42.5x35.4
- Weight (lb): 2590 (for 16oz PVC); 3131 (for 23oz PVC)
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
