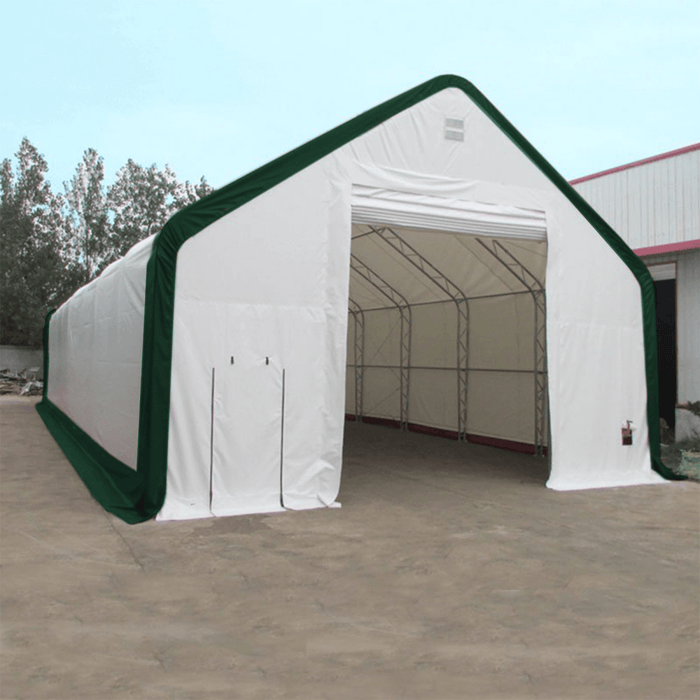

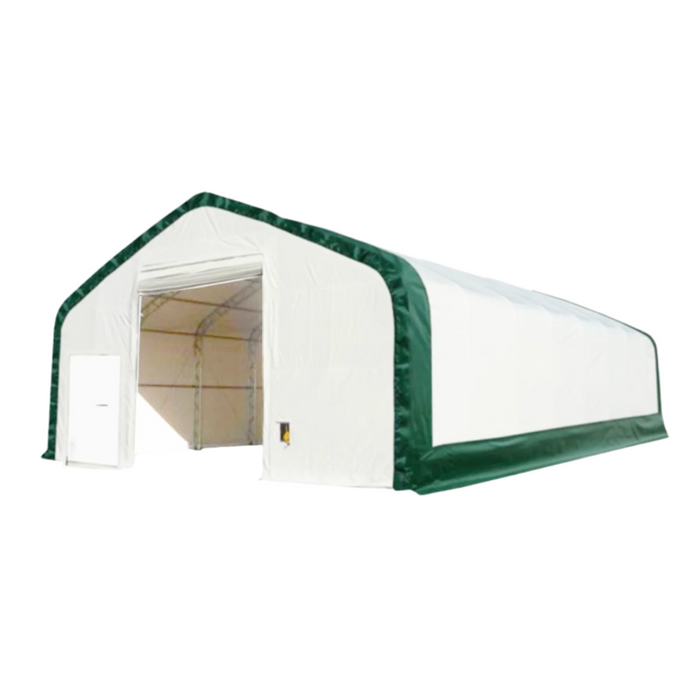

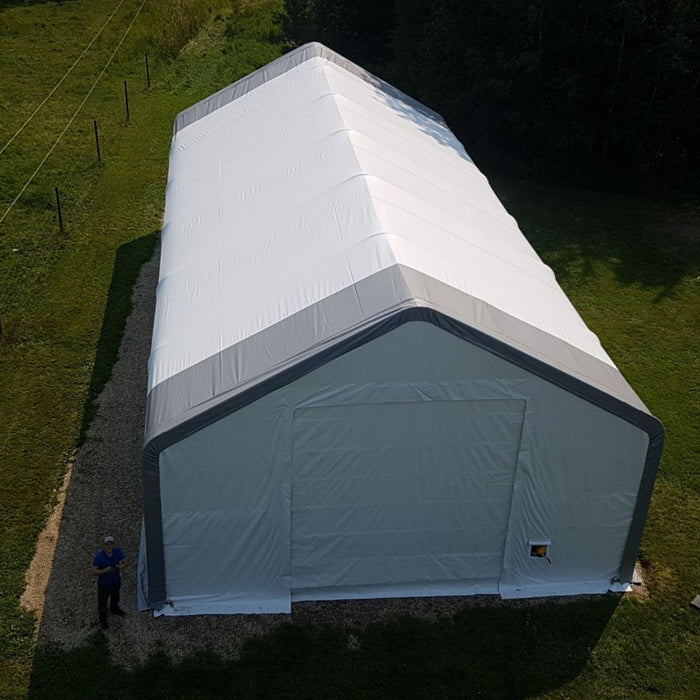

Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 30′ W × 80′ L × 20′ H
The Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 30′ W × 80′ L × 20′ H provides 2,400 sq ft of covered space for protecting vehicles, equipment, tools, agricultural materials, and other valuable assets from harsh outdoor conditions. Designed with a peaked roof and heavy-duty construction, this shelter offers dependable all-weather protection for year-round use in industrial, agricultural, and commercial environments.

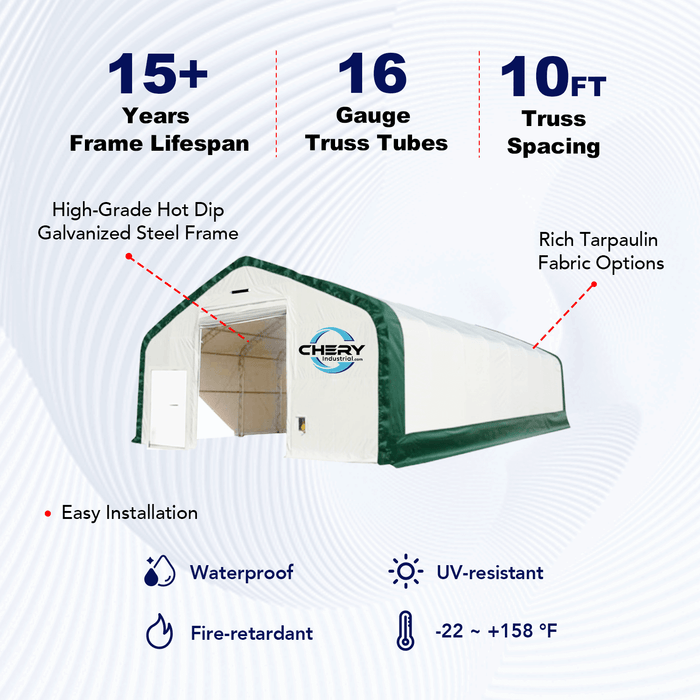

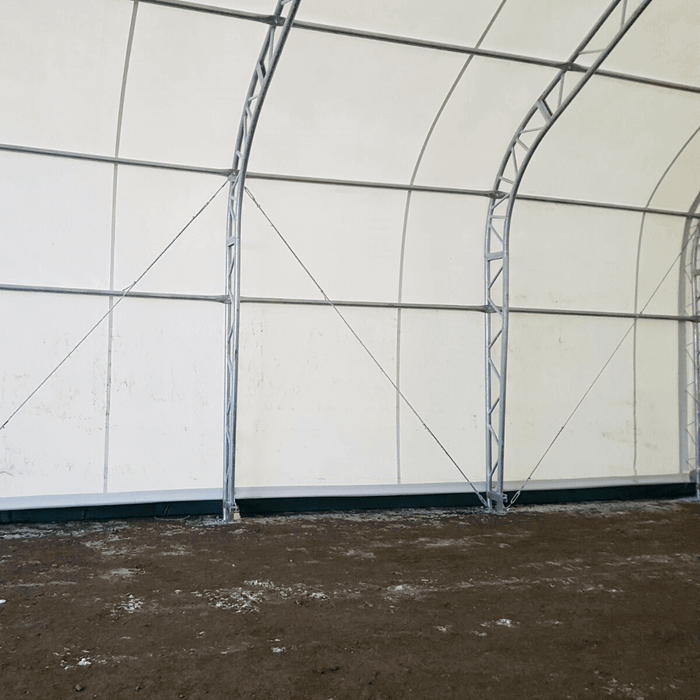

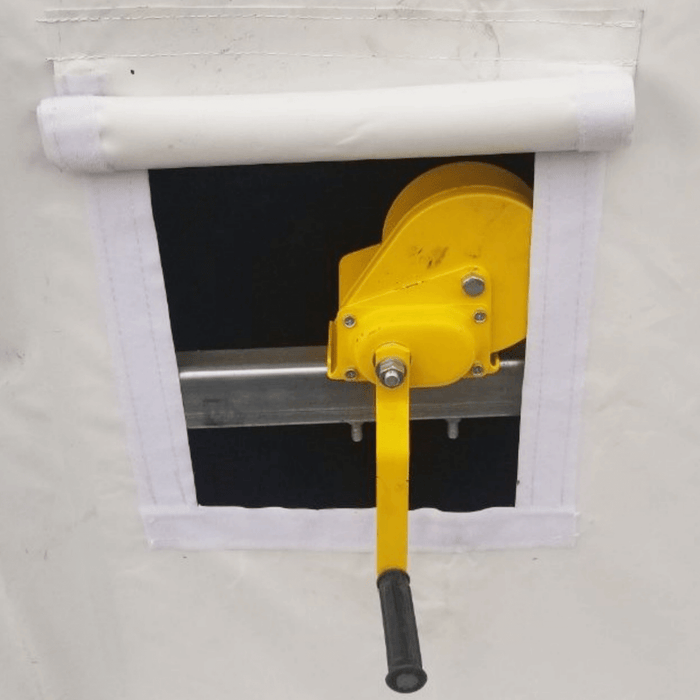

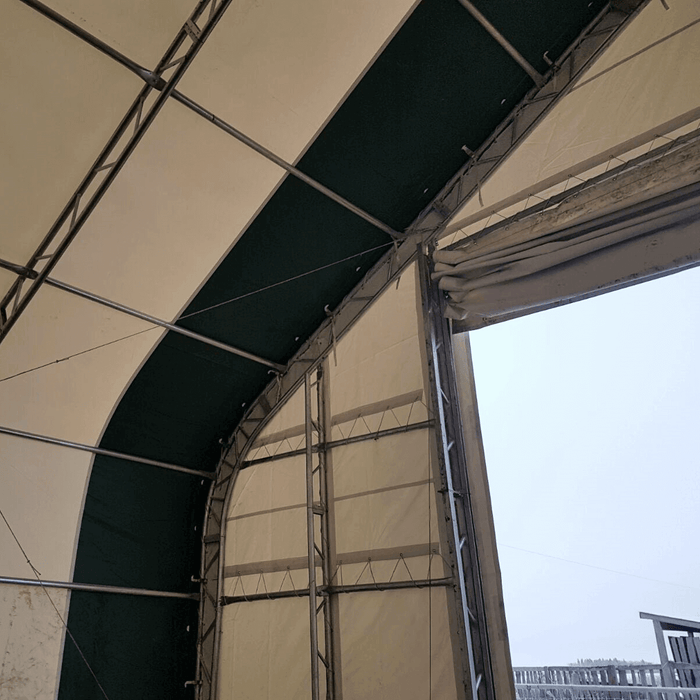

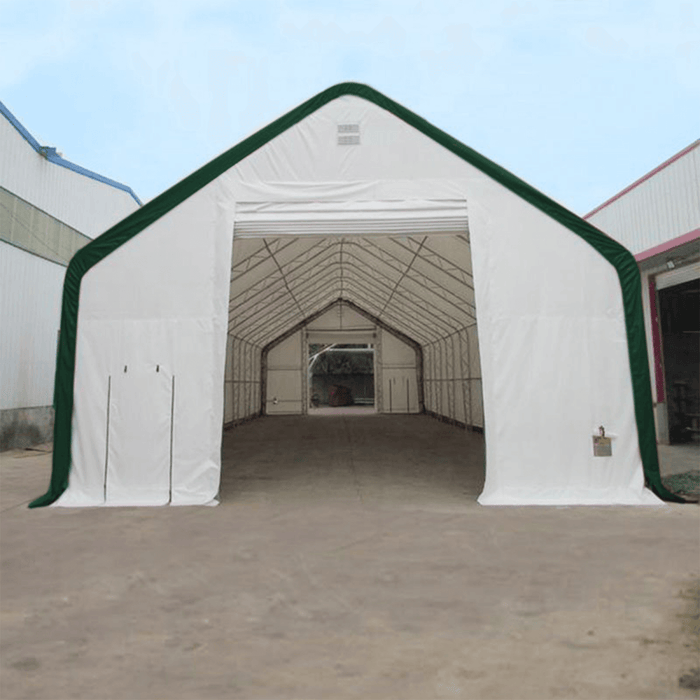

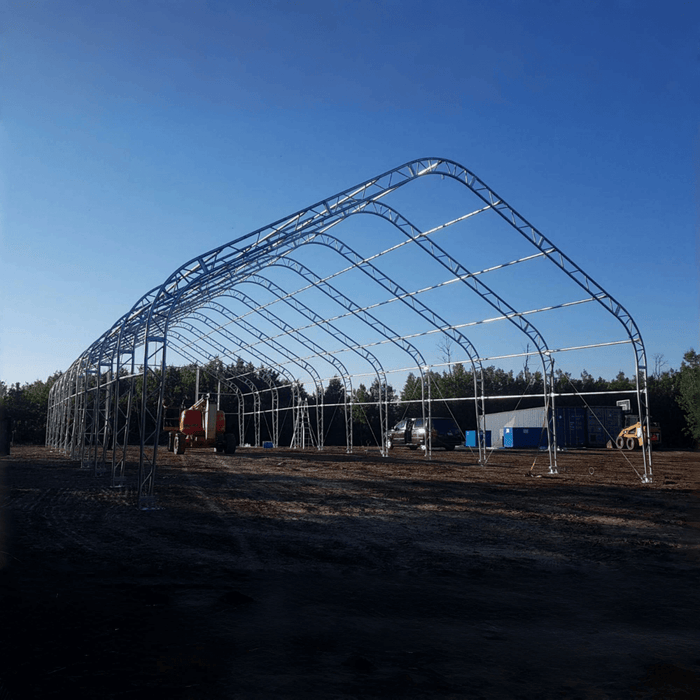

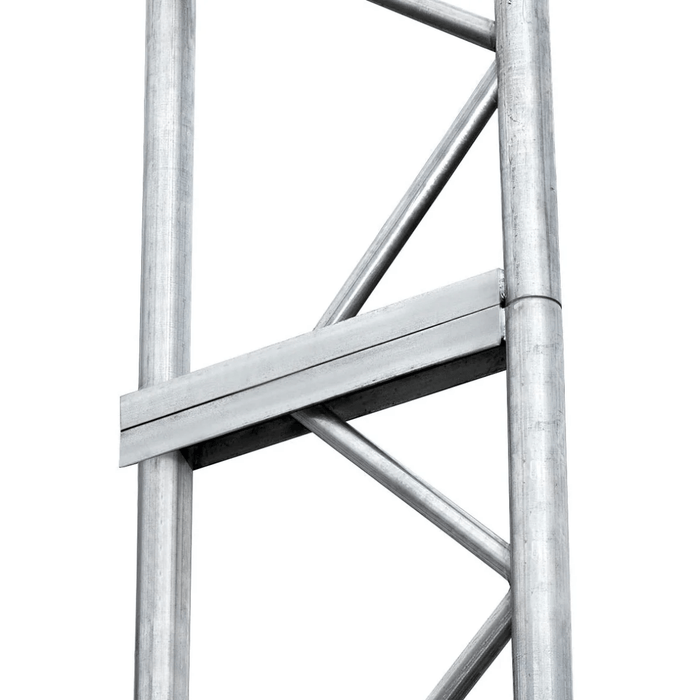

Built with a 16-gauge galvanized steel double truss frame and 10 ft truss spacing, the structure delivers excellent strength and stability. The durable PVC canopy is water-resistant, tear-resistant, and UV-resistant, helping shield stored items from rain, sun, and snow while allowing natural light inside. Mechanical roll-up doors at both ends and a 2.6′ × 6.6′ side man door provide convenient access for loading, unloading, and daily entry.
Ventilation vents located at the top ends promote airflow and help reduce internal moisture, protecting contents from condensation buildup. The peak roof design supports efficient snow shedding, enhancing durability in colder climates. Installation is flexible with included stake pegs, eliminating the need for a permanent foundation and allowing placement in a wide range of locations.
Ideal for farms, construction sites, warehouses, and industrial facilities, this storage shelter combines rugged construction with practical design features. With a PVC canopy lifespan of approximately 7–10 years and a steel frame designed for over 15 years of service, the Chery Industrial Gold Mountain Double Truss Arch Storage Shelter delivers long-term reliability and protection for your equipment and materials.
Features
- No building permits required*.
- Ideal for agriculture, farms, events, film sets, garages, and automobile storage.
- The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- The PVC provides bright natural light, which helps to save on utility bills.
- Easy entry and exit with double doors placed at both ends.
- The quality of the structure is designed by experienced engineers and advanced technology.
- Easy to install or dismantle and transport to the new locations.
Specifications
| Description |
Specifications
|

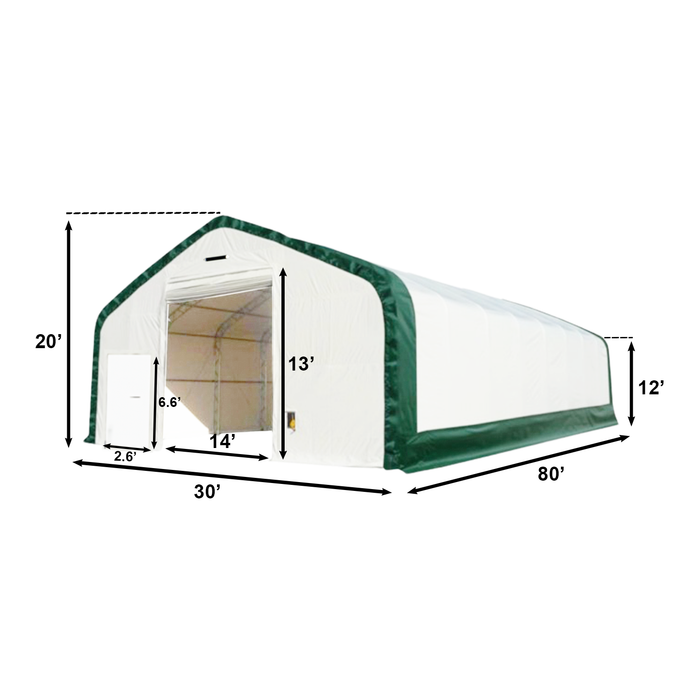

| Dimensions (WxLxH)
|
30'x80'x20' |
| Side-wall Height |
12 ft |
| Door size (WxH) (Front & Rear) |
14'x13' |
| Door Type |
Mechanical Rollup Door |
| Man Door (WxH) |
2.6'x6.6' |
| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 48x1.5mm |
| Purlin Ø |
Φ 48x1.5mm |
| Arch Spacing |
10 ft |
| Number of Arch |
8 |

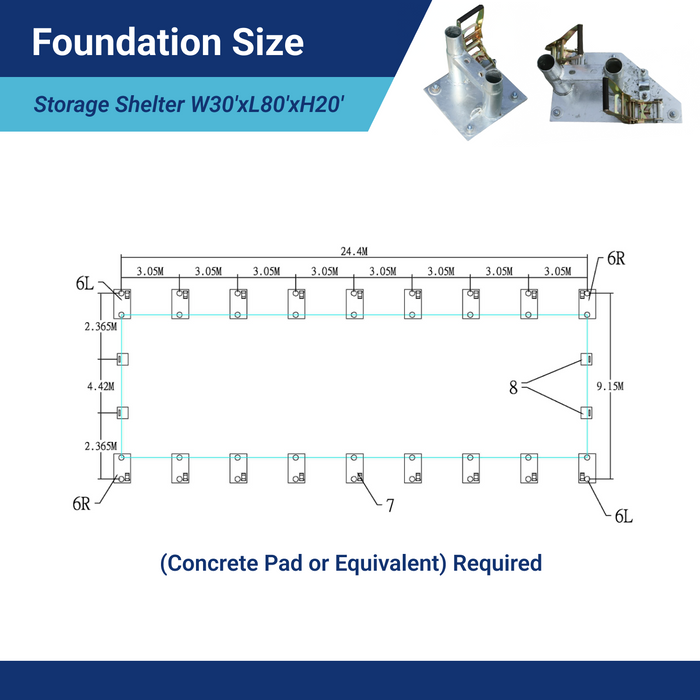

| Number of Anchor plates |
16 |

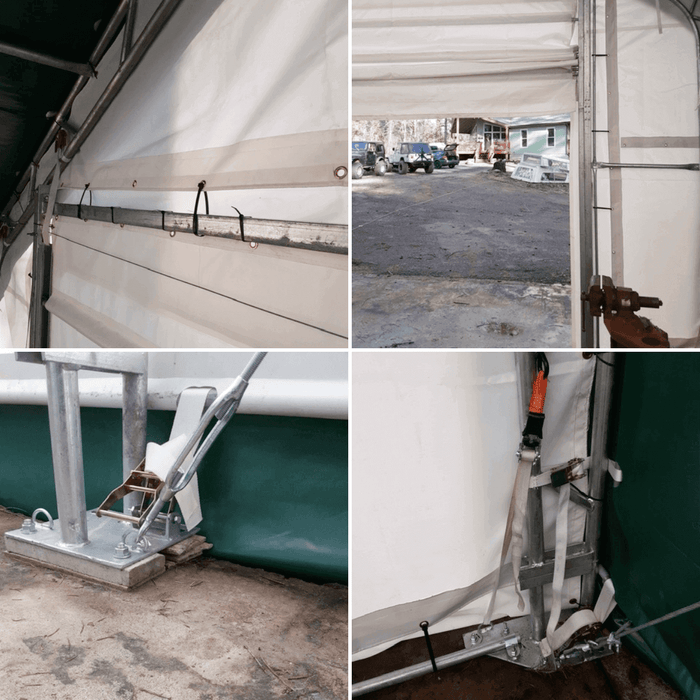

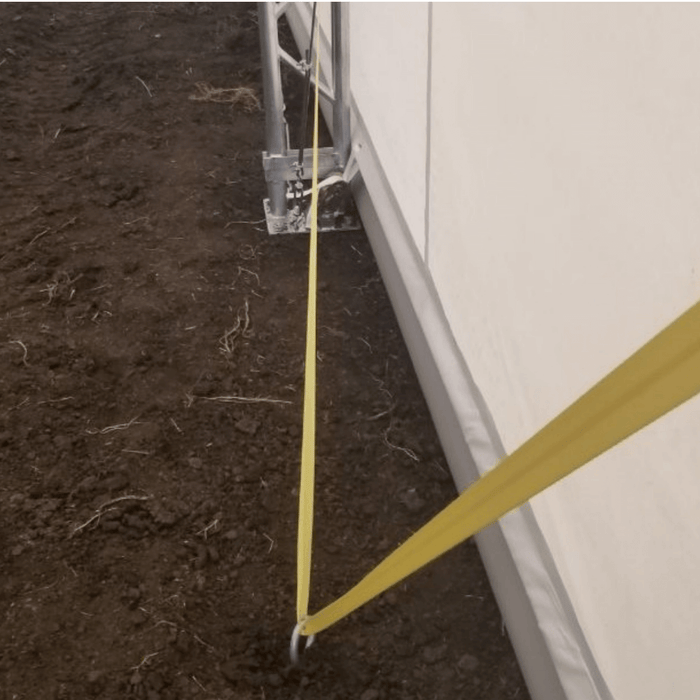

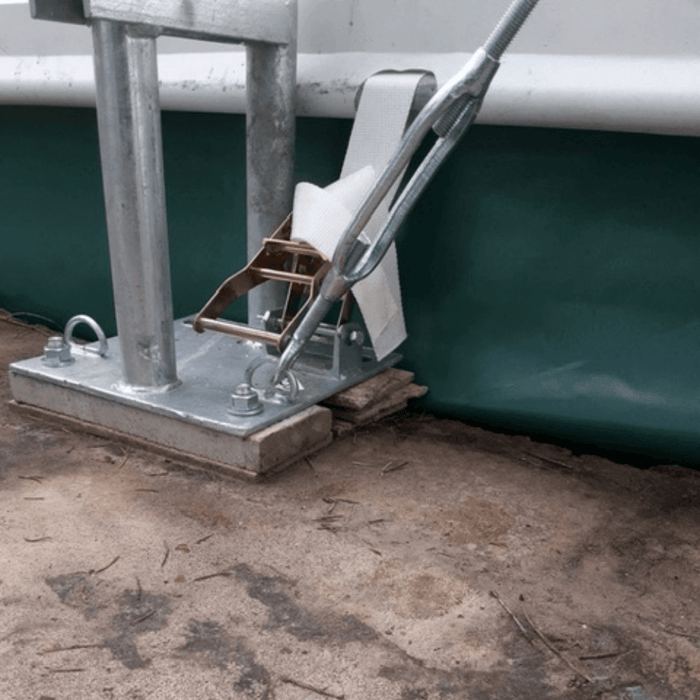

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |
| Snow Load |
42 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |

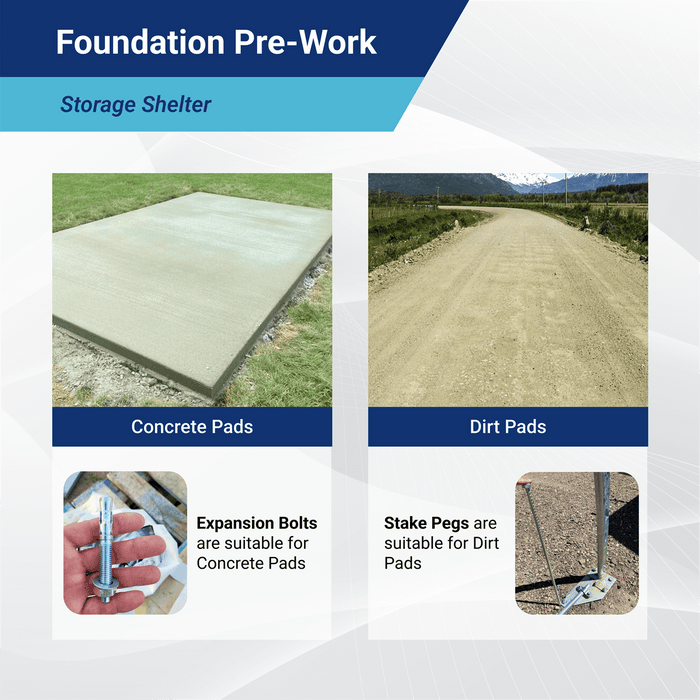

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 123x43x53
- Weight (lb): 4767
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
