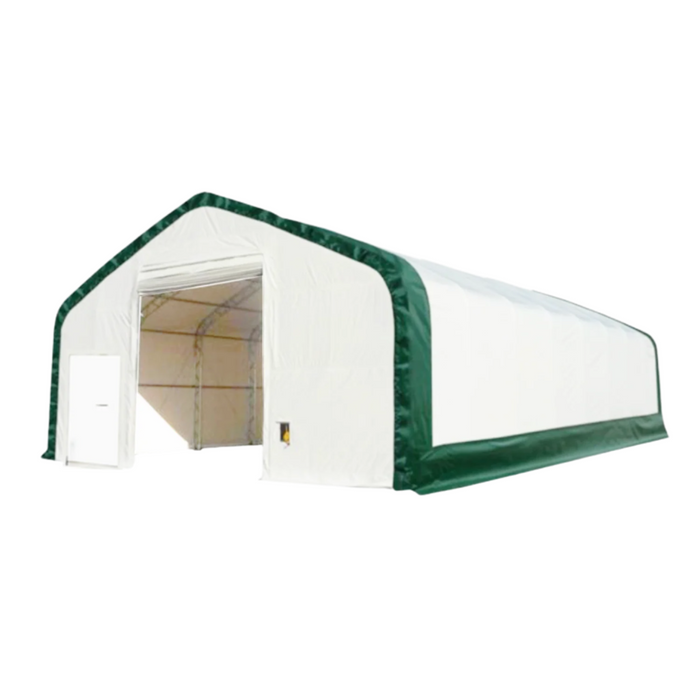

Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 40′ W × 64′ L × 23′ H

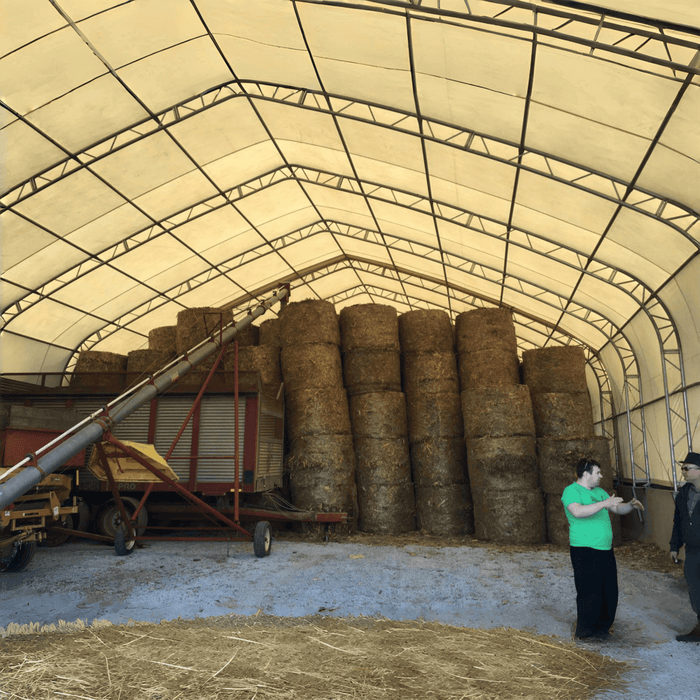

The Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 40′ W × 64′ L × 23′ H offers a spacious 2,560 sq ft of covered area to protect vehicles, equipment, tools, agricultural materials, and other valuable assets from rain, sun, wind, and snow. Its durable construction and peaked roof design deliver dependable all-weather protection, making it ideal for farms, industrial sites, warehouses, and commercial applications.

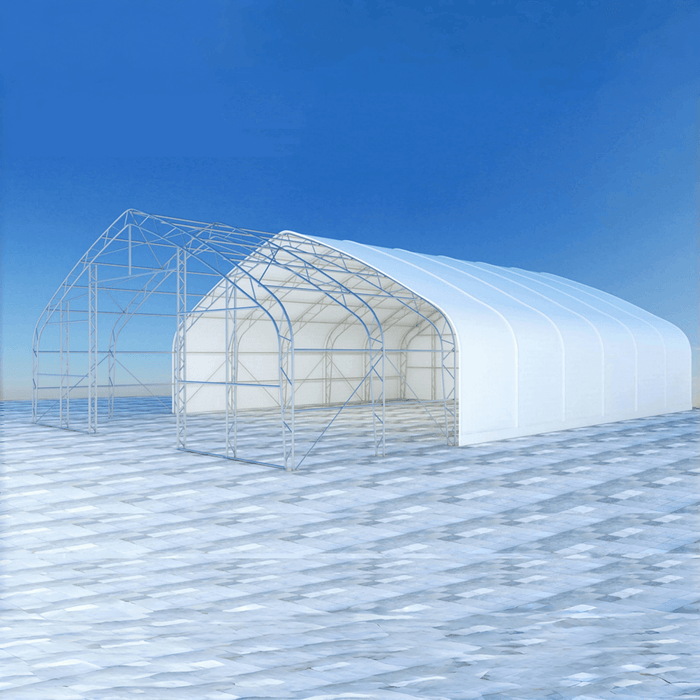

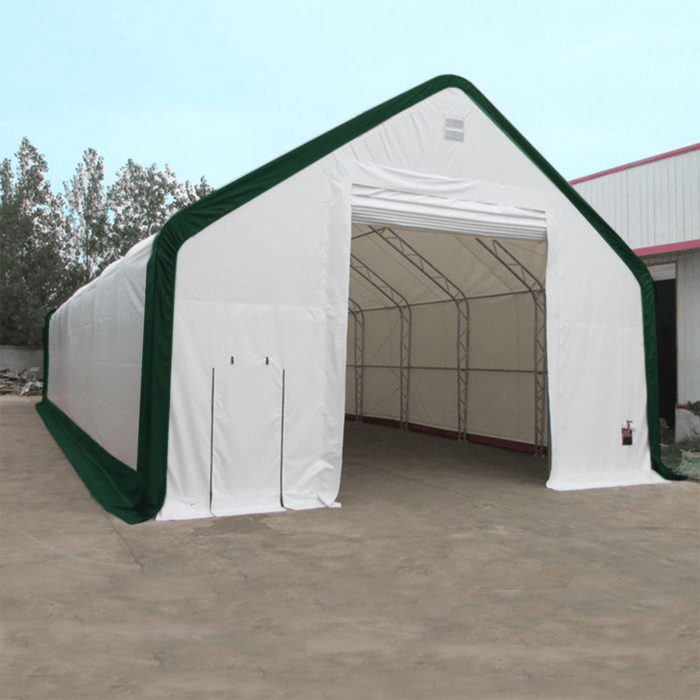

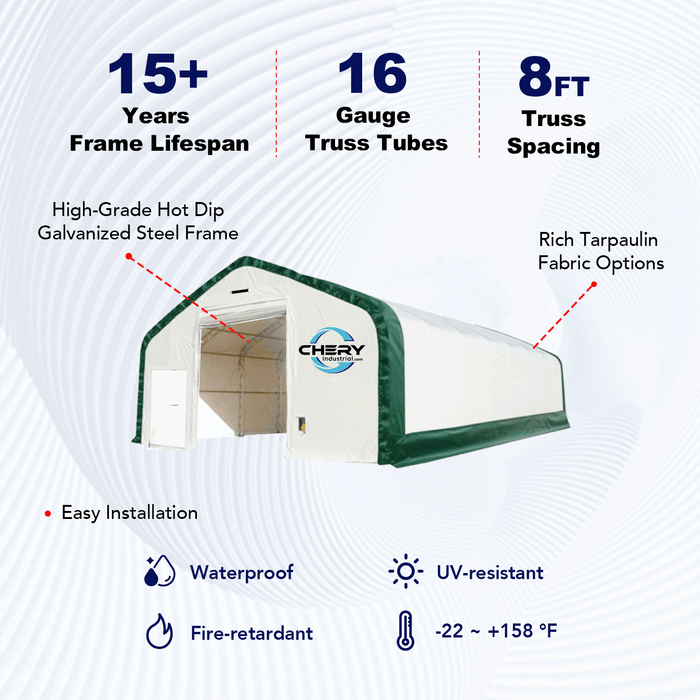

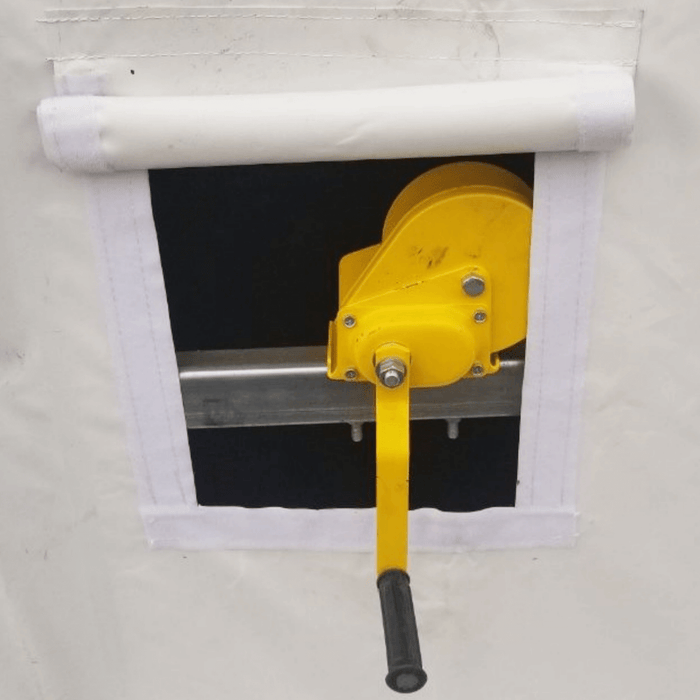

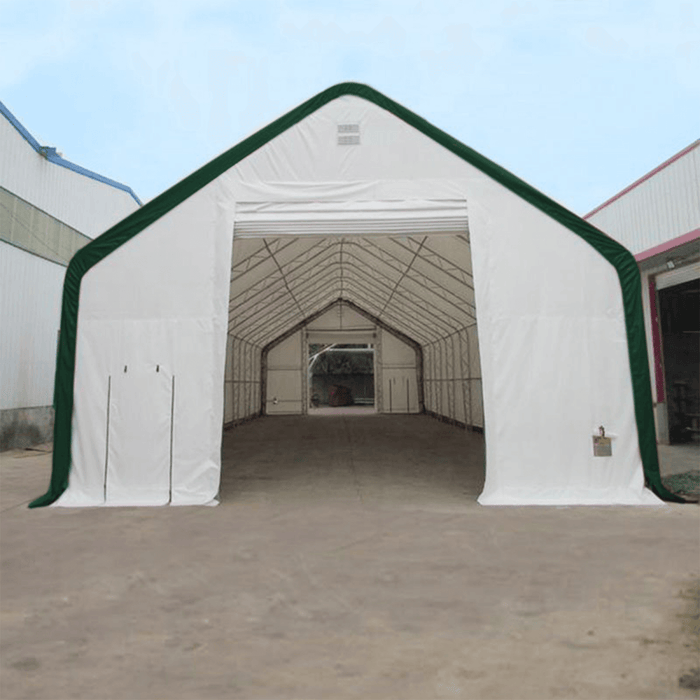

Built with a strong 16-gauge galvanized steel double truss frame and heavy-duty PVC canopy, this shelter provides long-lasting structural strength and resistance to outdoor elements. The water- and UV-resistant PVC fabric canopy helps keep stored items dry and shielded from harmful sun exposure. Mechanical roll-up doors on both ends ensure easy access for large equipment and frequent use, while a convenient side man door supports everyday entry.
Ventilation vents positioned at the top ends promote airflow and help reduce condensation, protecting contents from internal moisture buildup. The peaked roof design also aids in efficient shedding of snow and rain, enhancing durability in varied weather conditions. Installation is flexible and straightforward with included stake pegs, eliminating the need for a permanent foundation and allowing placement in a variety of outdoor locations.
With a PVC canopy lifespan of approximately 7–10 years and a galvanized steel frame engineered for over 15 years of service, the Chery Industrial Gold Mountain Double Truss Arch Storage Shelter delivers reliable, long-term protection for your valuable equipment and materials, making it a versatile solution for large-scale storage needs.
Features
- No building permits required*.
- Easy to set up and install.
- Portable for moving to new locations.
- Two large doors allow entry and exit more easily.
- Fabric cover blocks UV radiation and provides natural light.
- A galvanized steel frame helps the shelter to resist terrible weather conditions.
- Suitable for several purposes.
Specifications
| Description |
Specifications
|

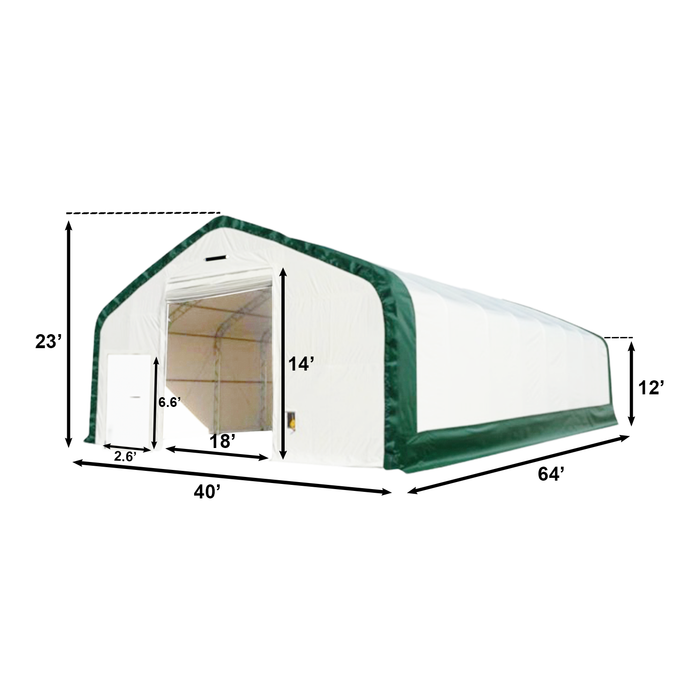

| Dimensions (WxLxH)
|
40'x64'x23' |
| Side-wall Height |
12 ft |
| Door size (WxH) (Front & Rear) |
18'x14' |
| Door Type |
Mechanical Rollup Door |
| Man Door (WxH) |
2.6'x6.6' |

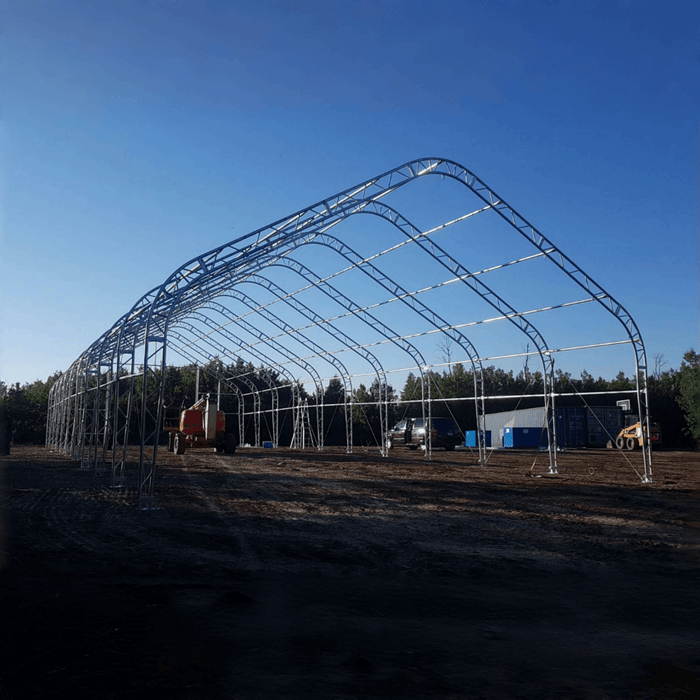

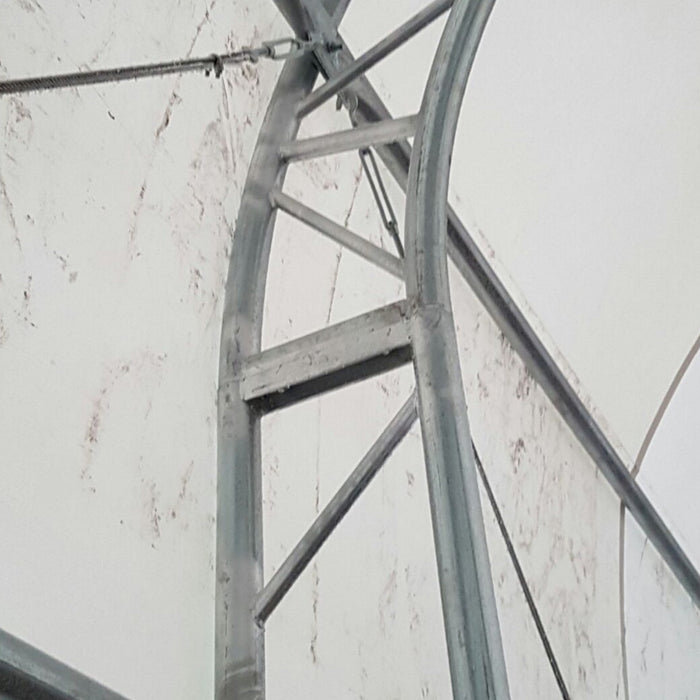

| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |

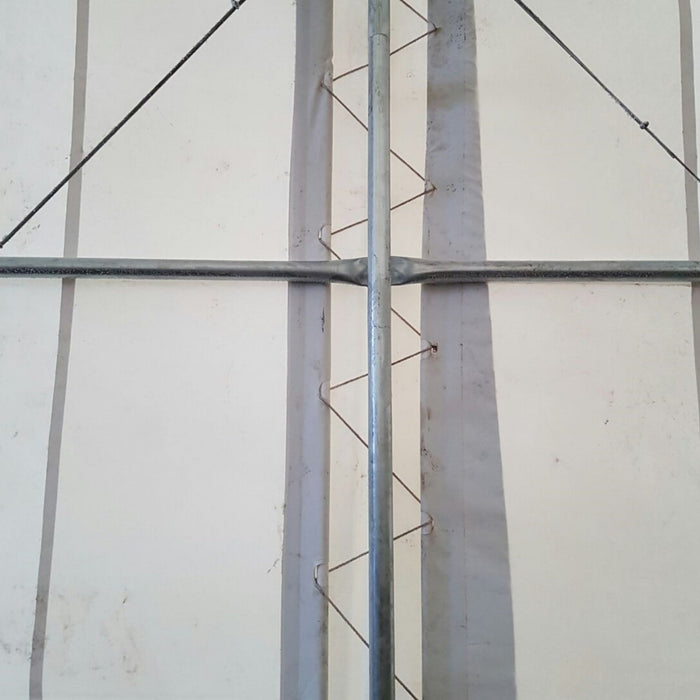

| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 60x1.5mm |
| Purlin Ø |
Φ 60x1.5mm |
| Arch Spacing |
8 ft |
| Number of Arch |
9 |

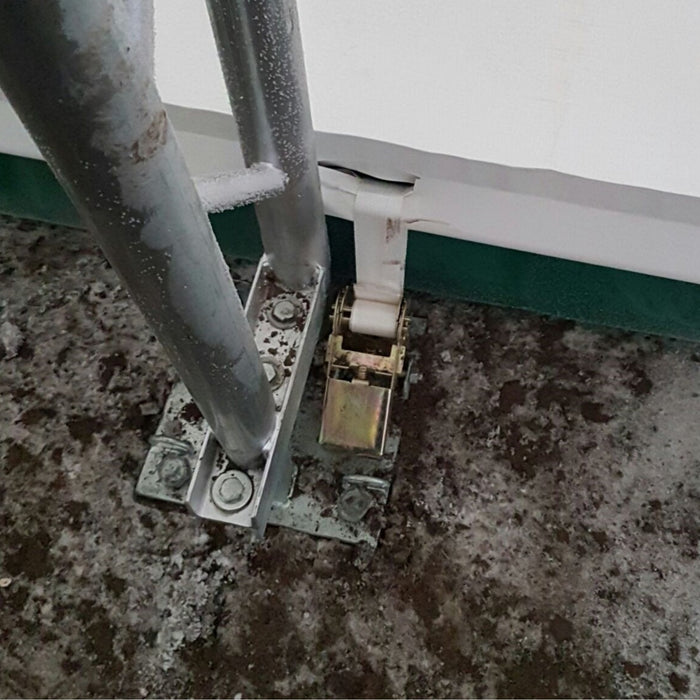

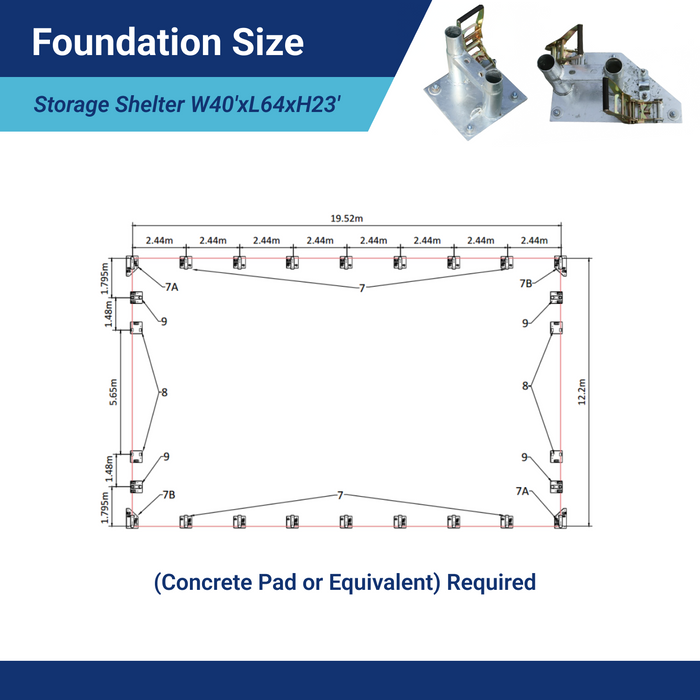

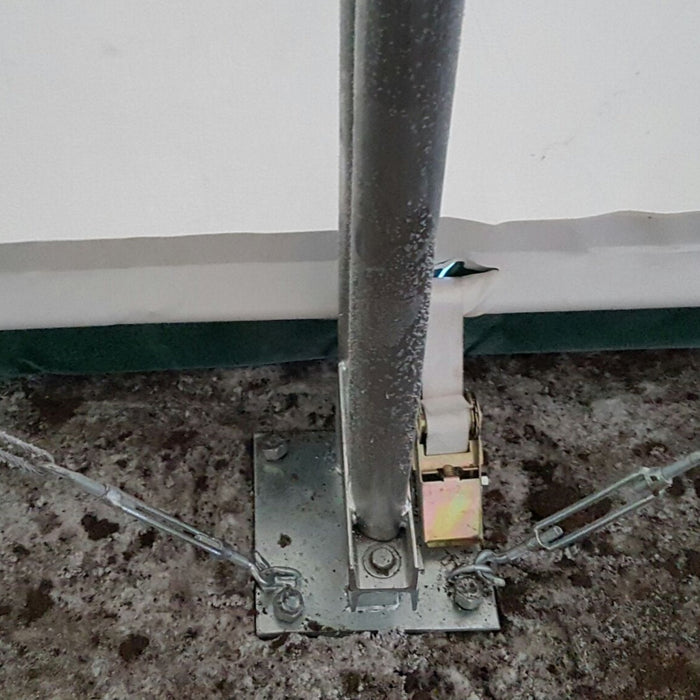

| Number of Anchor plates |
18 |

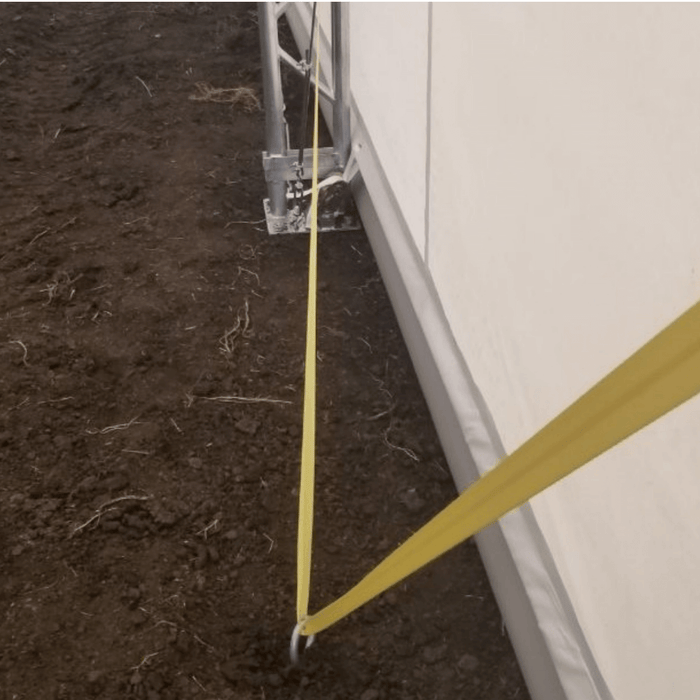

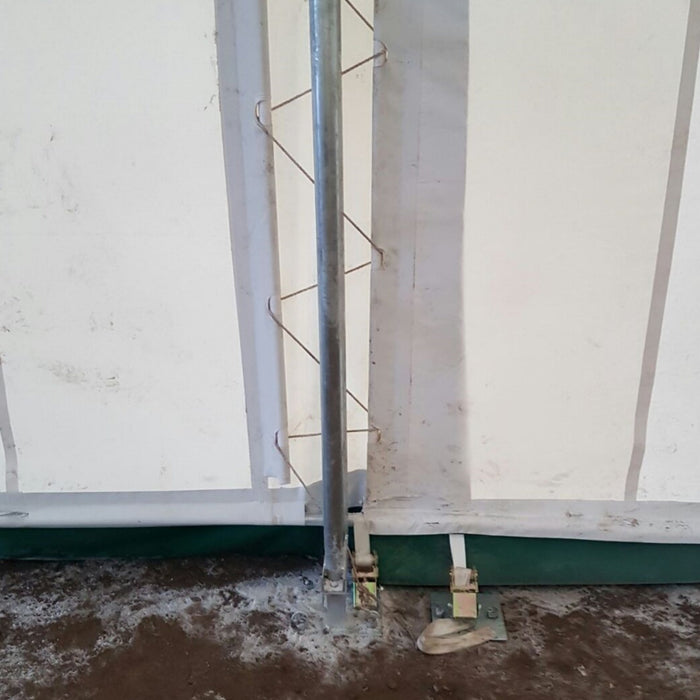

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |

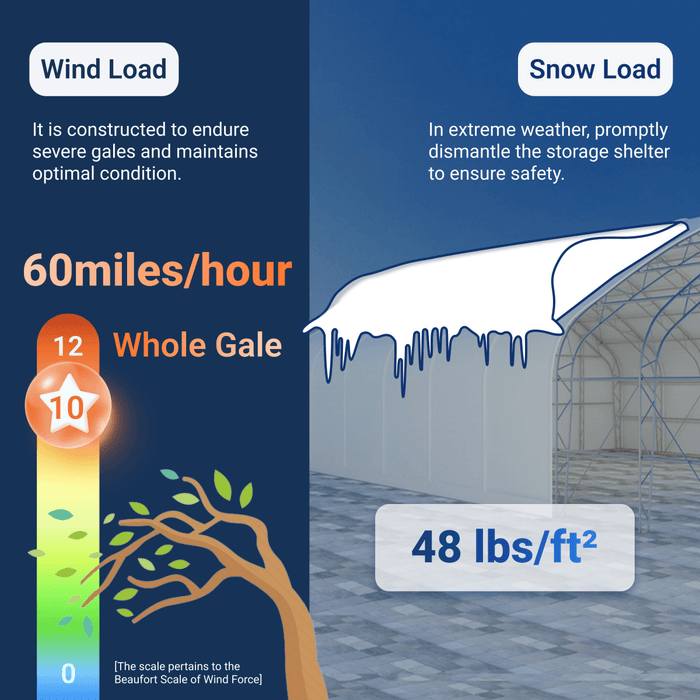

| Snow Load |
48 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |

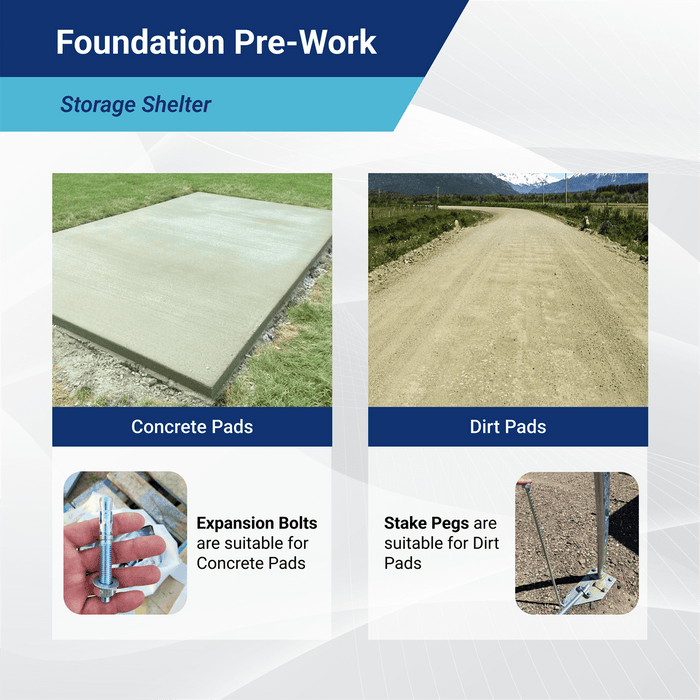

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): box A: 124x44x46; box B: 124x44x46; box C: 98x44x35
- Weight (lb): 7533
- A forklift or equivalent is required for unloading

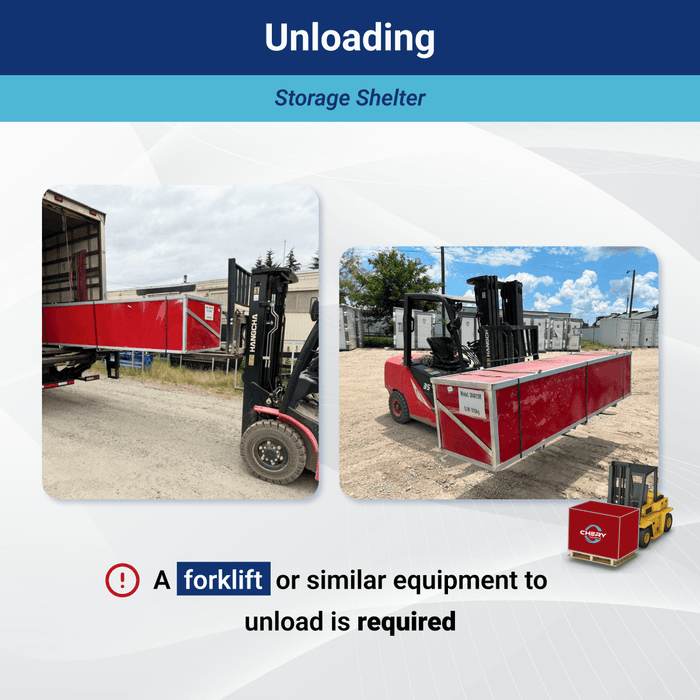

Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
