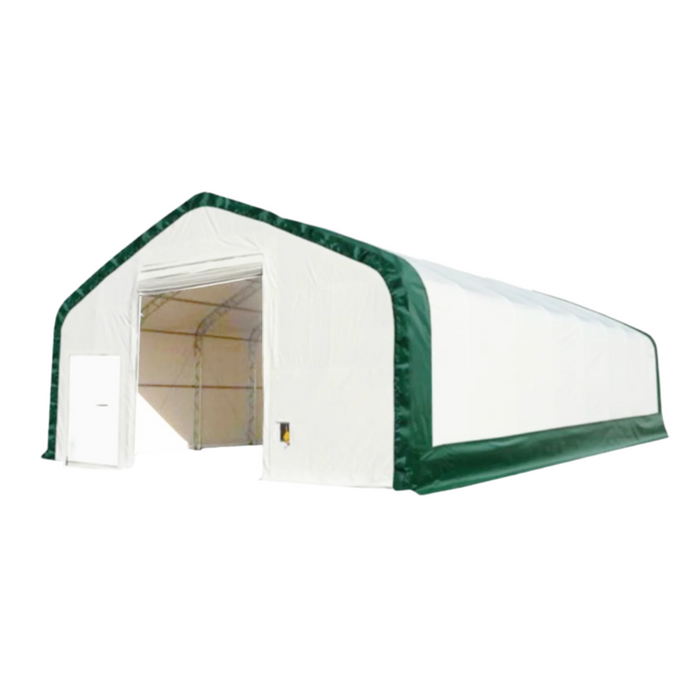

Chery Industrial Gold Mountain Double Truss Storage Shelter 40′ W × 80′ L × 23′ H

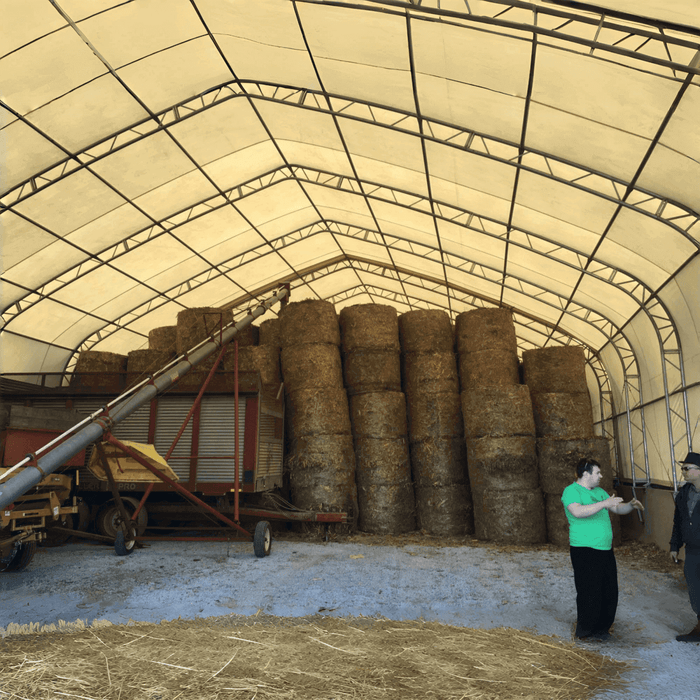

The Chery Industrial Gold Mountain Double Truss Storage Shelter 40′ W × 80′ L × 23′ H delivers a generous 3,200 sq ft of covered space designed to protect vehicles, equipment, tools, agricultural supplies, and other valuable assets from sun, rain, wind, and snow. Built with a peaked roof and heavy-duty construction, this shelter offers reliable all-weather protection for year-round use in farms, commercial lots, industrial facilities, and construction sites.

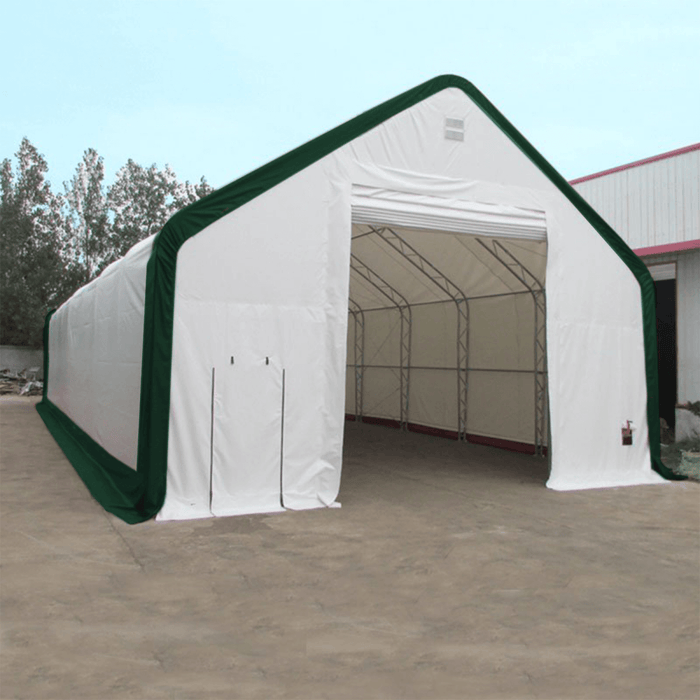

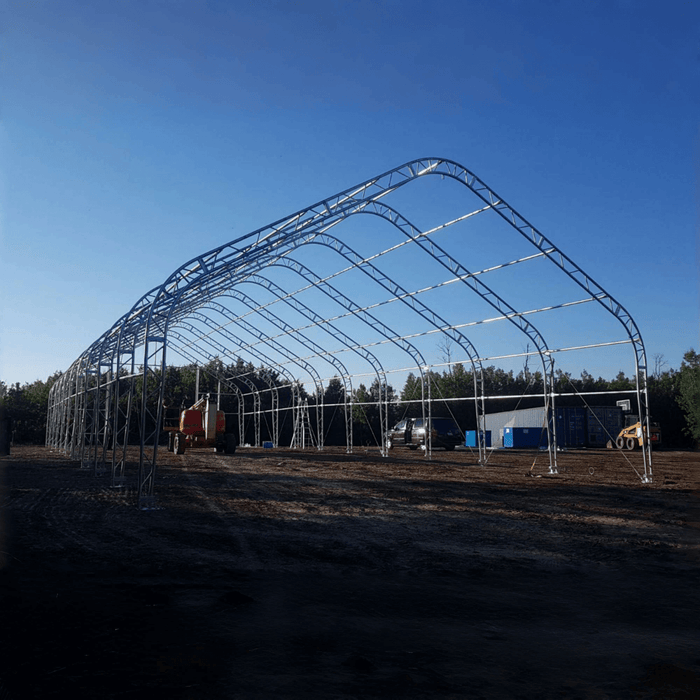

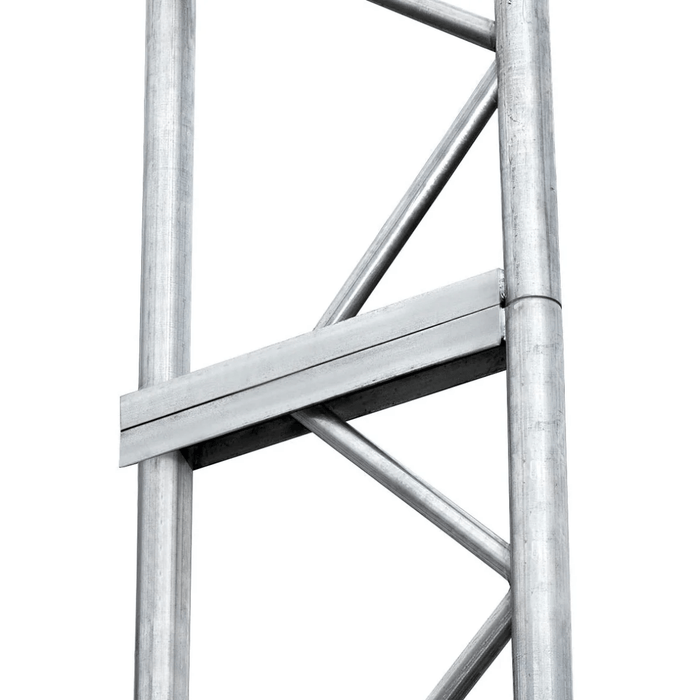

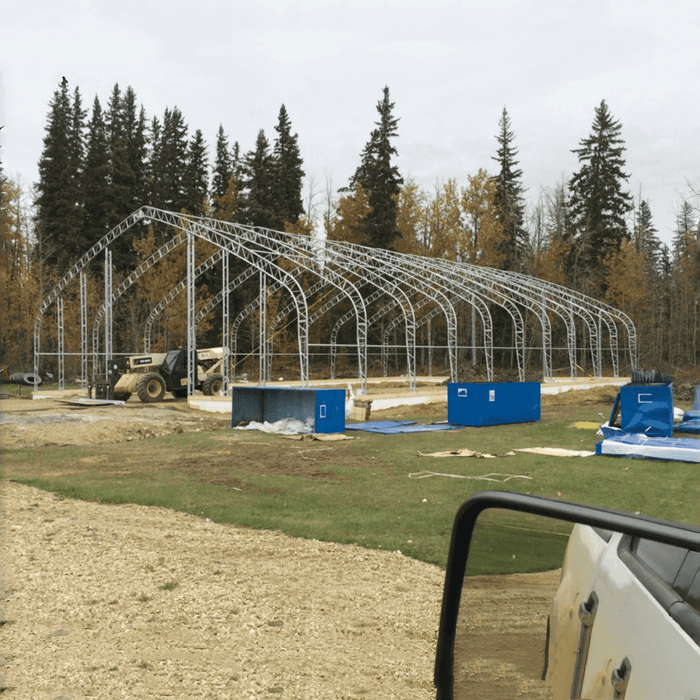

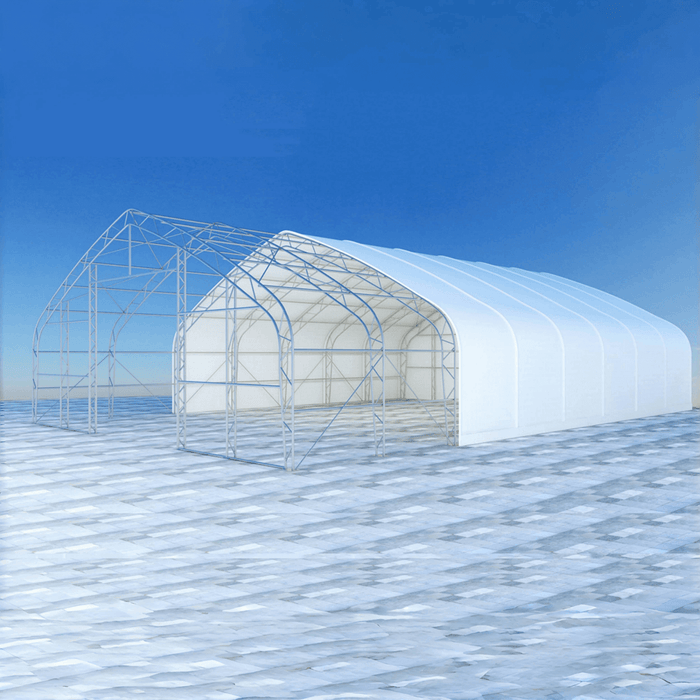

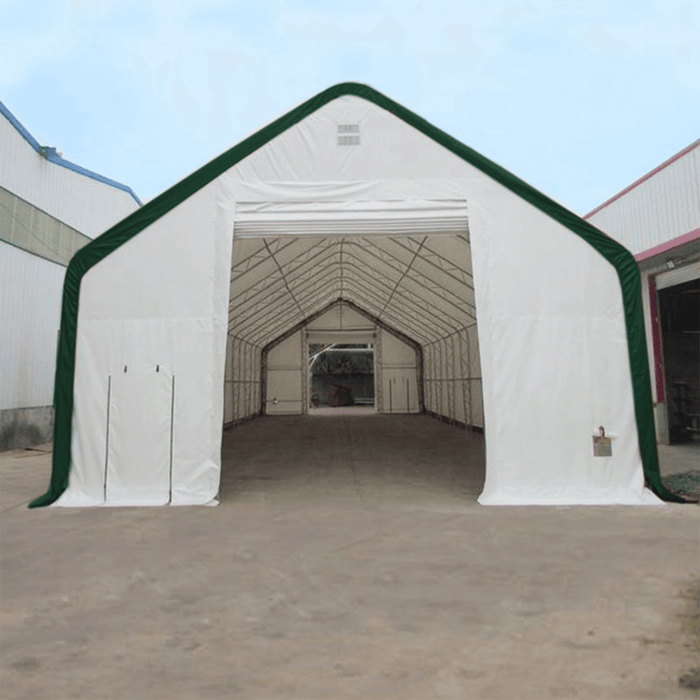

Constructed with a robust double truss galvanized steel frame, this shelter provides exceptional strength and long-lasting performance in demanding outdoor conditions. The water- and UV-resistant PVC canopy shields contents from harsh elements while allowing natural light into the interior. Large mechanical roll-up doors on both ends make access easy for large equipment, and a convenient side man door offers simple daily entry.

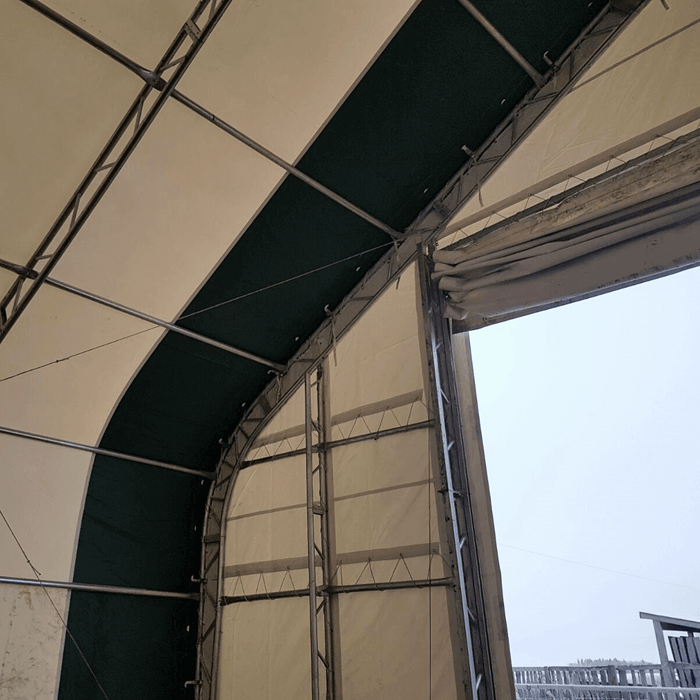

Ventilation vents at the top ends help promote airflow and reduce internal moisture, protecting stored items from condensation damage. The peaked roof design enhances snow and rain shedding, improving durability in varied climates. Installation is flexible and simple, using included stake pegs that eliminate the need for a permanent foundation and allow placement in diverse locations.
With a PVC canopy lifespan of approximately 7–10 years and a galvanized steel frame engineered for over 15 years of service, the Chery Industrial Gold Mountain Double Truss Storage Shelter combines rugged construction with practical features to offer dependable, long-term protection and versatile storage solutions for a wide range of needs.
Features
- No building permits required*.
- Easy to set up and install.
- Portable for moving to new locations.
- Two large doors allow entry and exit more easily.
- Fabric cover blocks UV radiation and provides natural light.
- A galvanized steel frame helps the shelter to resist terrible weather conditions.
- Suitable for several purposes.

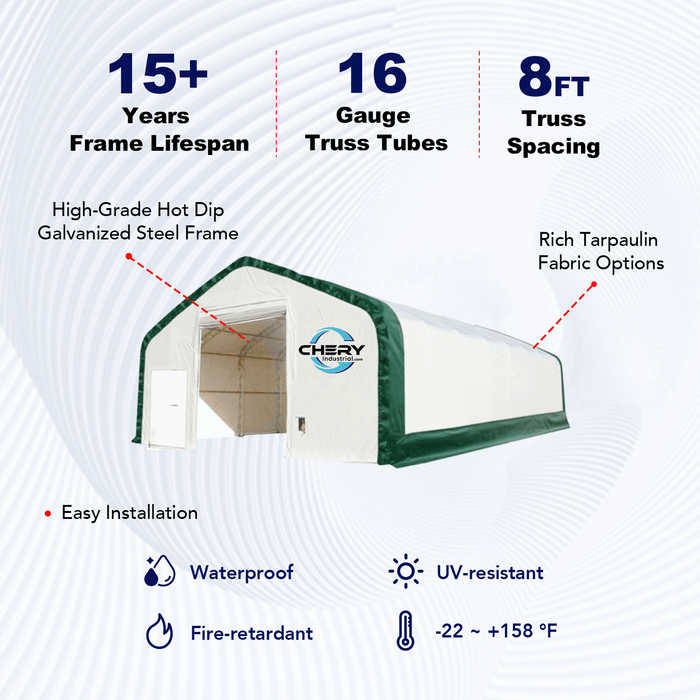

Specifications
| Description |
Specifications
|

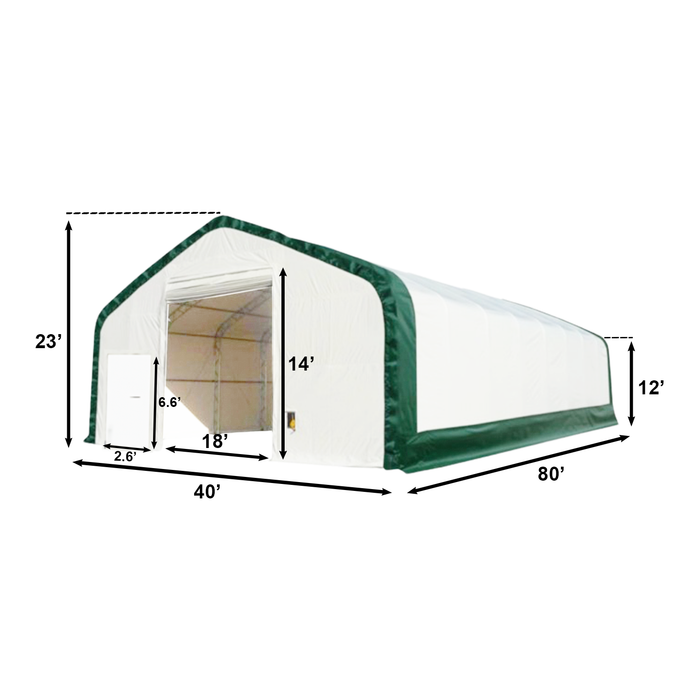

| Dimensions (WxLxH)
|
40'x80'x23' |
| Side-wall Height |
12 ft |
| Door size (WxH) (Front & Rear) |
18'x14' |

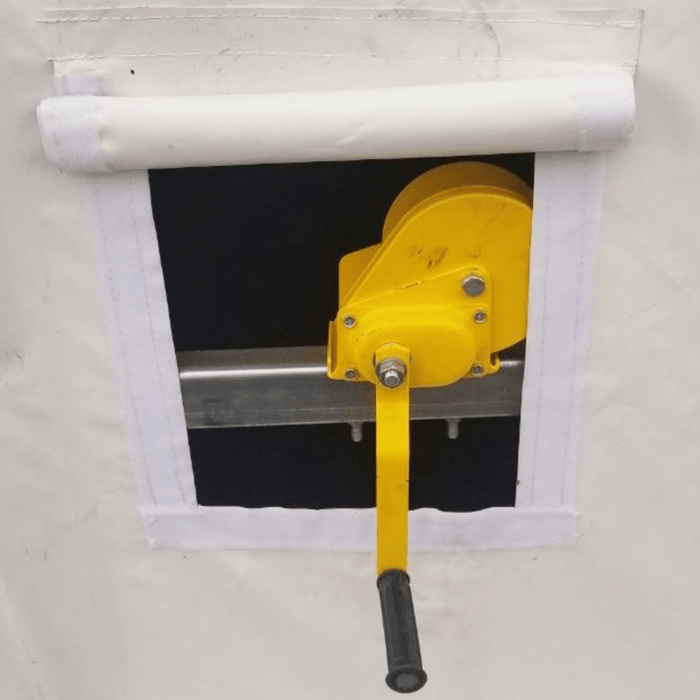

| Door Type |
Mechanical Rollup Door |
| Man Door (WxH) |
2.6'x6.6' |

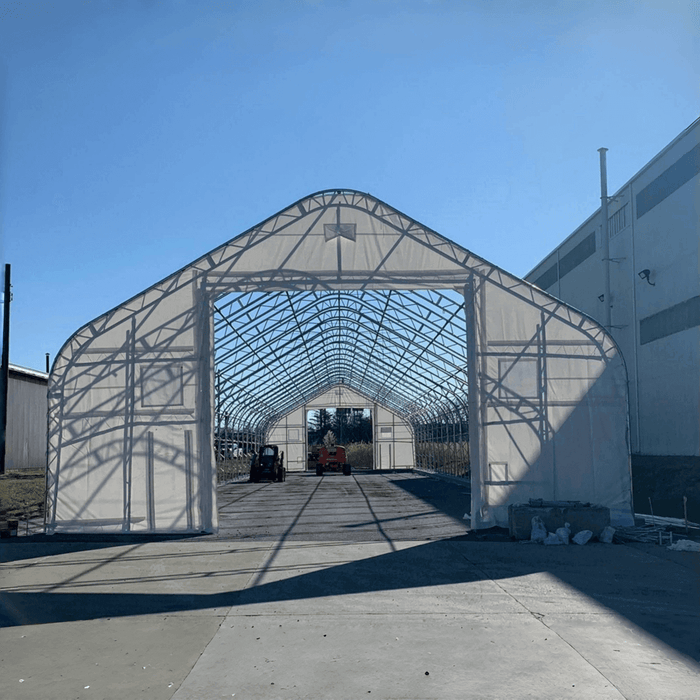

| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 60x1.5mm |
| Purlin Ø |
Φ 60x1.5mm |
| Arch Spacing |
8 ft |
| Number of Arch |
11 |

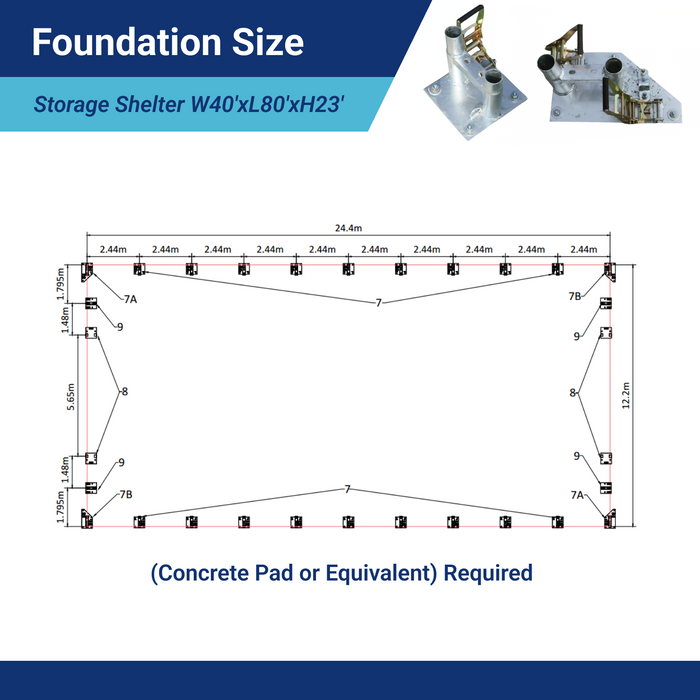

| Number of Anchor plates |
22 |

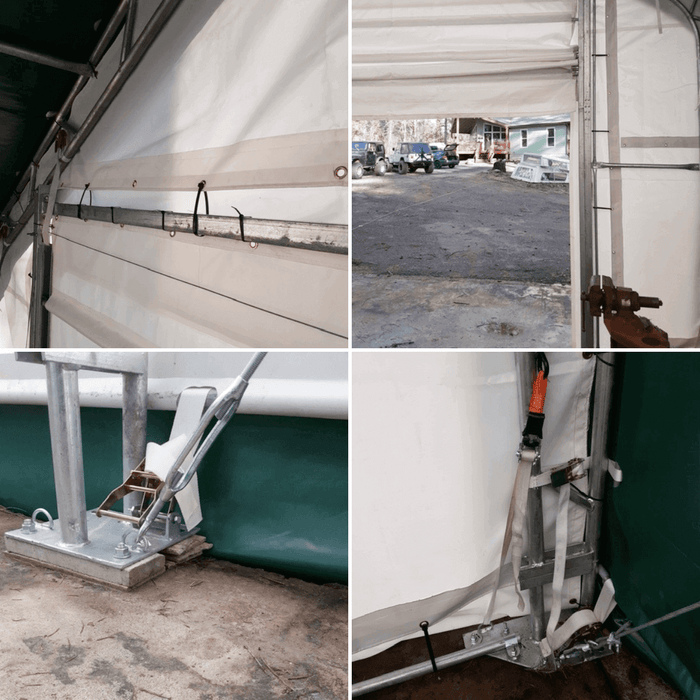

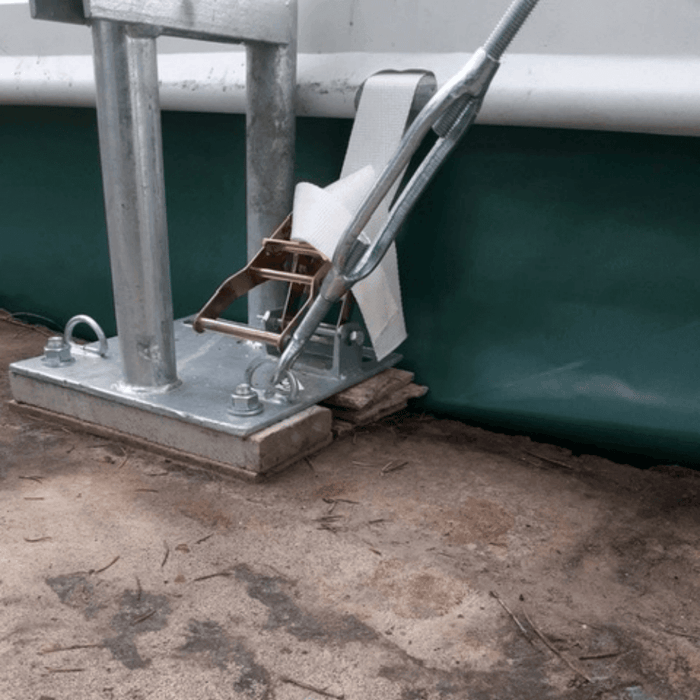

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |
| Snow Load |
48 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |

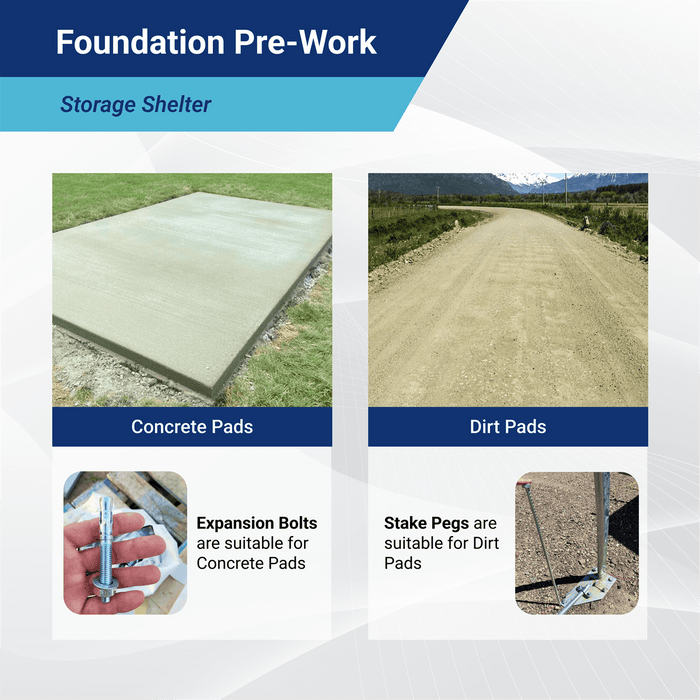

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): Box A: 123x42.5x43.3; Box B: 123x42.5x43.3; Box C: 123x42.5x43.3.
- Weight (lb): 8144
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
