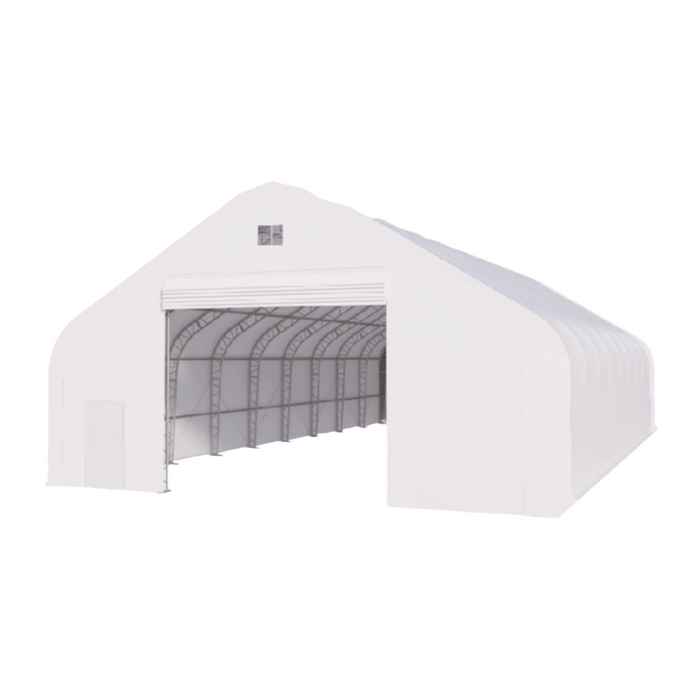

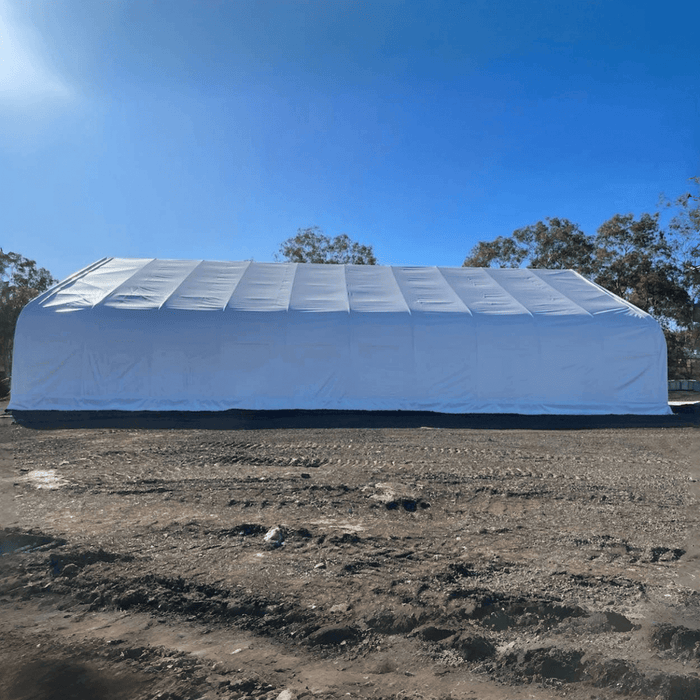

Chery Industrial Gold Mountain Double Truss Storage Shelter 70′ W × 120′ L × 28′ H

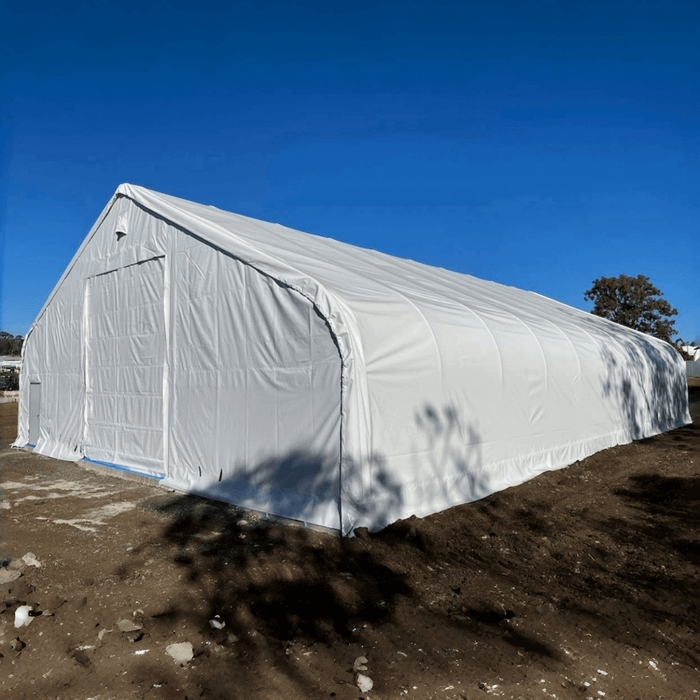

The Chery Industrial Gold Mountain Double Truss Storage Shelter 70′ W × 120′ L × 28′ H delivers an expansive 8,400 sq ft of covered space designed to protect large vehicles, heavy equipment, tools, agricultural materials, and industrial supplies from rain, sun, wind, and snow. Its heavy-duty construction and peaked roof design provide dependable all-weather protection for year-round use in farms, commercial facilities, warehouses, construction yards, and industrial sites.

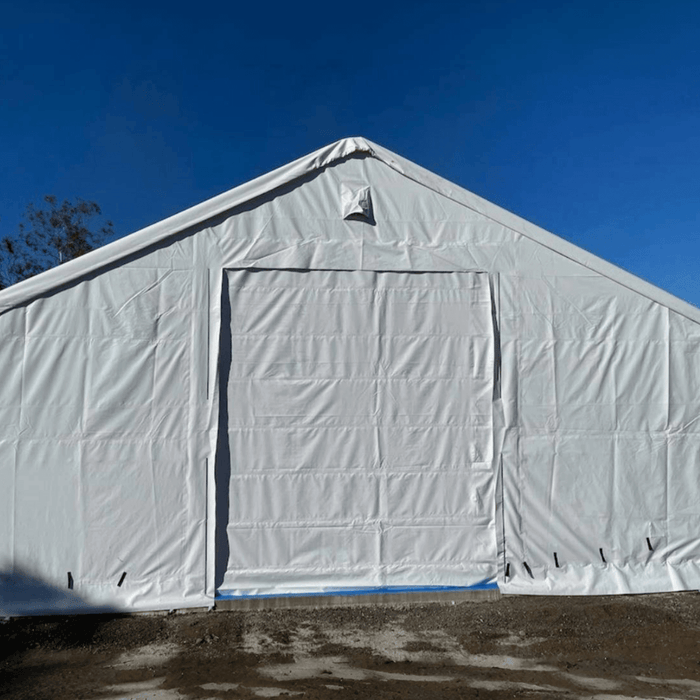

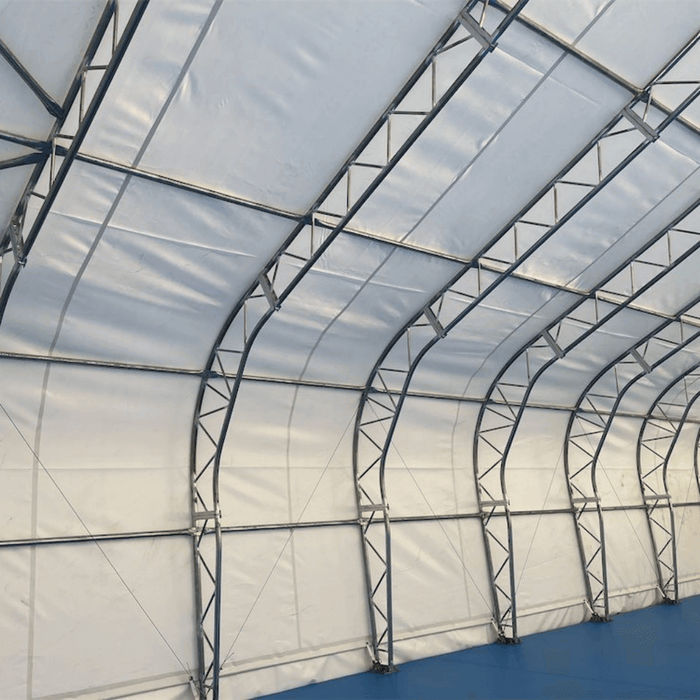

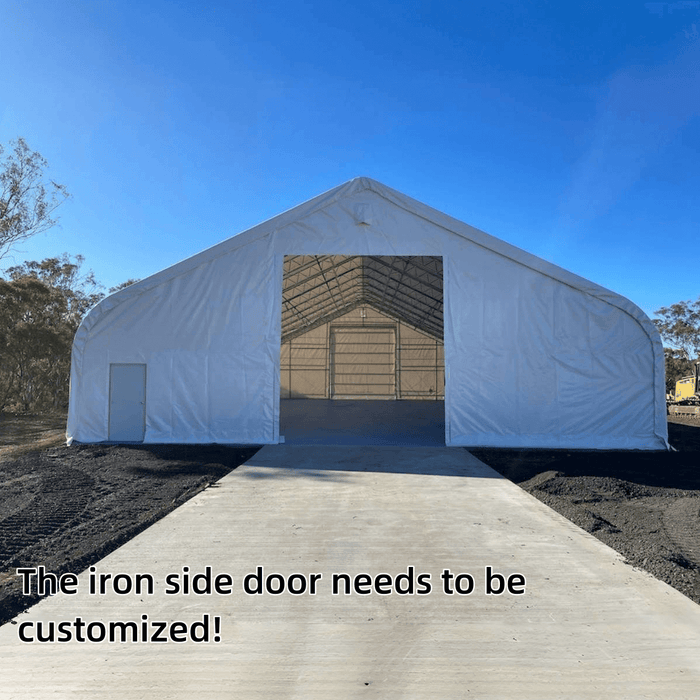

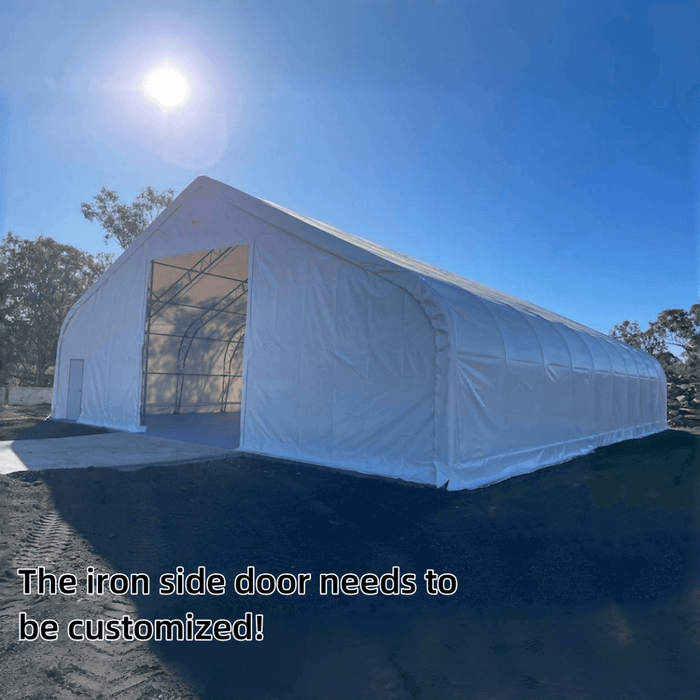

Built with a reinforced double truss galvanized steel frame, this storage shelter offers exceptional strength and long-lasting durability in demanding outdoor environments. The water- and UV-resistant PVC canopy shields contents from harsh elements while allowing natural light inside, helping create a well-lit interior space. Large mechanical roll-up doors at both ends make it easy to move equipment and materials in and out, while a convenient side man door supports everyday access.
Ventilation vents positioned at the top ends promote improved airflow and help reduce internal moisture, protecting stored items from condensation buildup. The peaked roof design also enhances snow and rain shedding, maintaining performance and extending service life across various weather conditions. Installation is flexible and straightforward with included stake pegs, eliminating the need for a permanent foundation and allowing placement in multiple outdoor locations.
With a PVC canopy life expectancy of approximately 7–10 years and a galvanized steel frame engineered for more than 15 years of service, the Chery Industrial Gold Mountain Double Truss Storage Shelter offers reliable, long-term protection and a versatile storage solution for large-scale needs.
Features
- No building permits required*.
- Suitable for different purposes, from residential to commercial.
- The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- No need to use electricity during the day with the PVC cover providing enough natural light.
- Easy entry and exit with double doors, which are placed at both ends.
Specifications
| Description |
Specifications
|

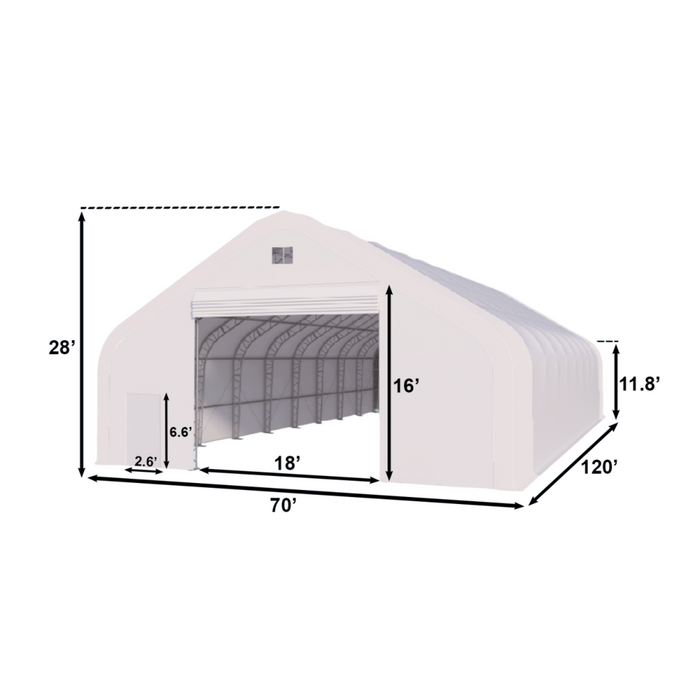

| Dimensions (WxLxH)
|
70'x120'x28' |
| Side-wall Height |
11.8 ft |

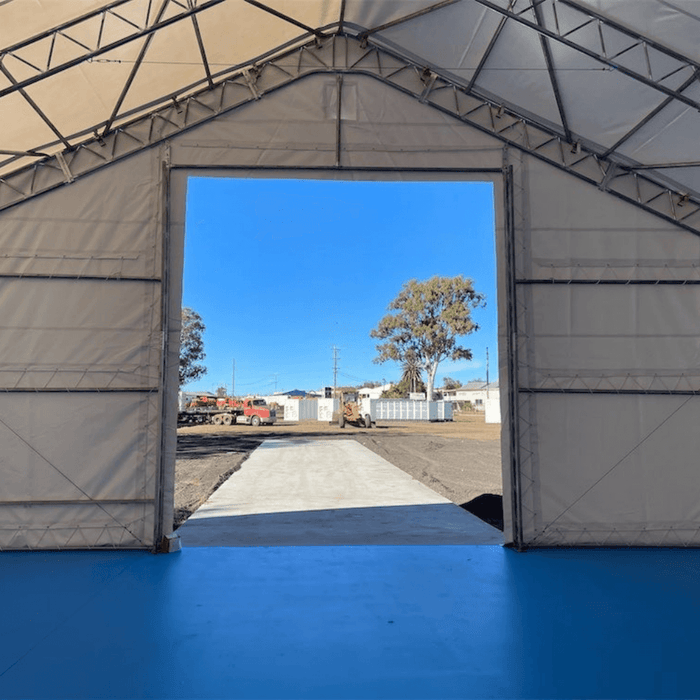

| Door size (WxH) (Front & Rear) |
18'x16' |
| Door Type |
Mechanical Rollup Door |

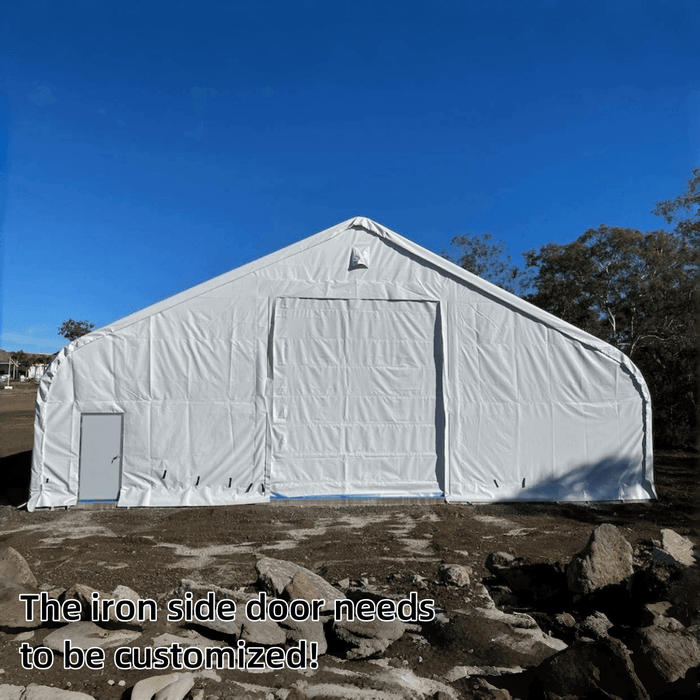

| Man Door (WxH) |
2.6'x6.6' |
| Frame |

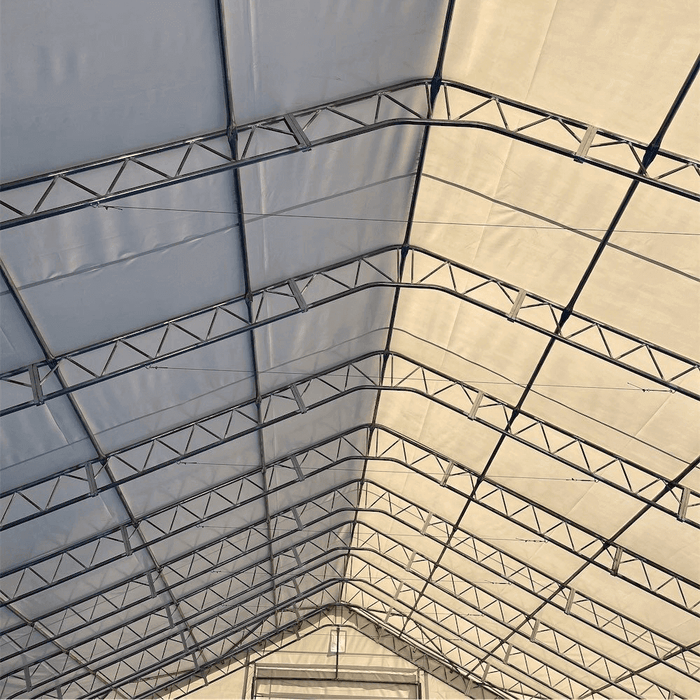

Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
14 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 76x2.0mm |
| Purlin Ø |
Φ 60x1.5mm |
| Arch Spacing |
8 ft |
| Number of Arch |
16 |

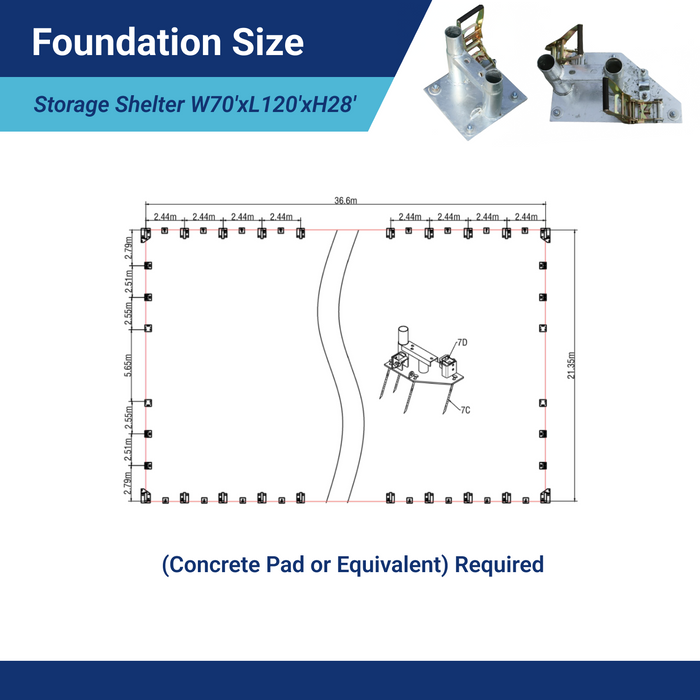

| Number of Anchor plates |
32 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
5 Days |

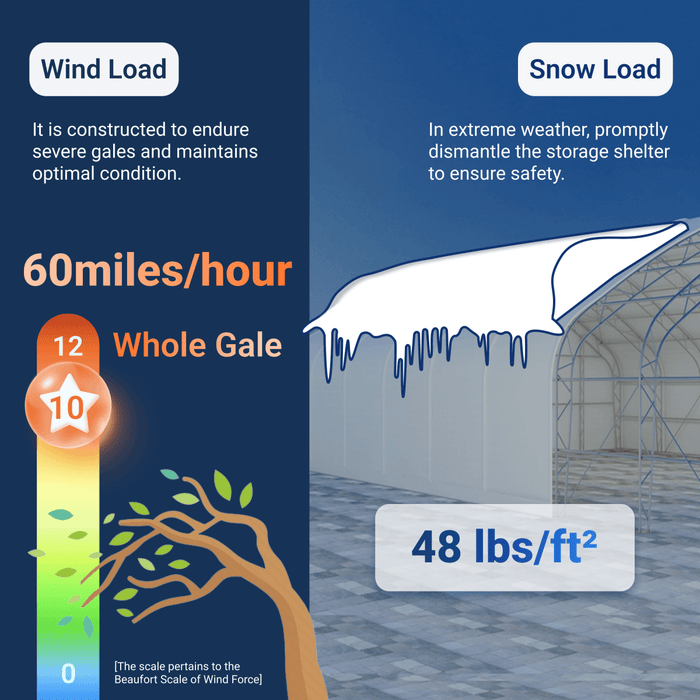

| Snow Load |
48 lbs/ft² |
| Wind Load |
60 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|

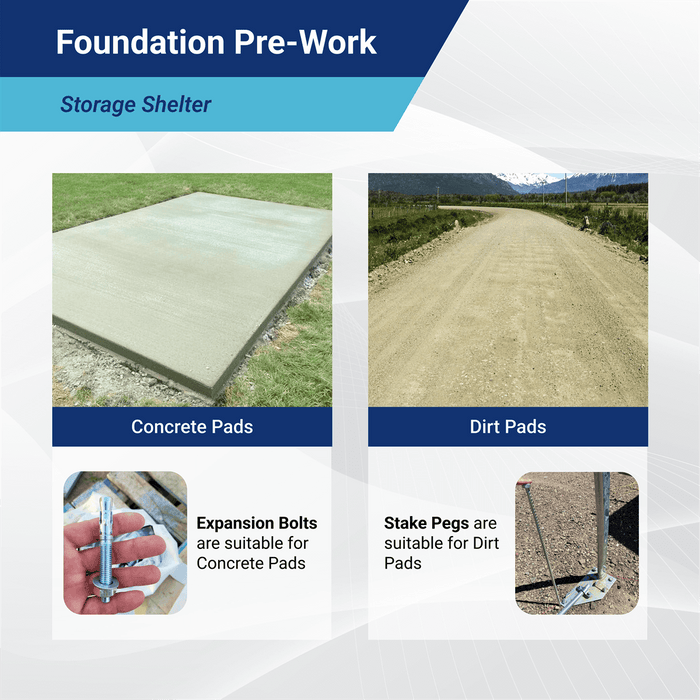

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 7 boxes(124x43.3x50); 3 boxes(100x43.3x50)
- Weight (lb): 26301
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
