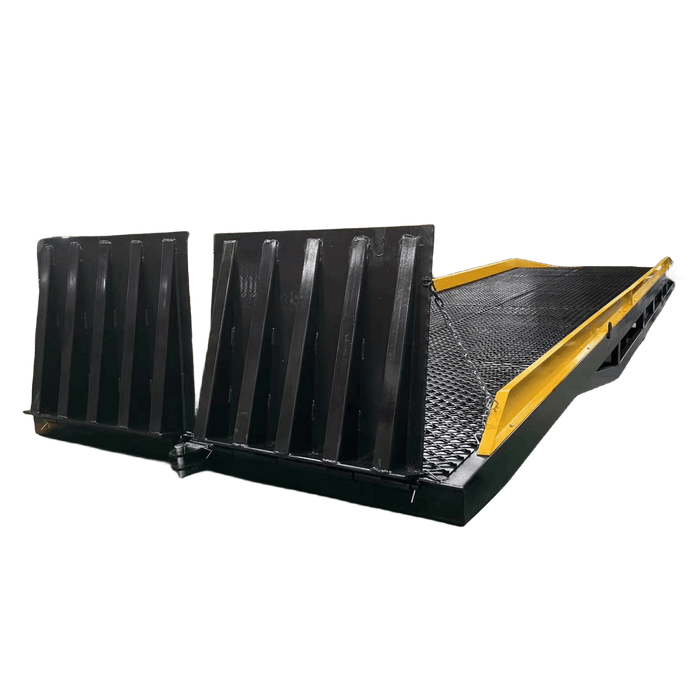

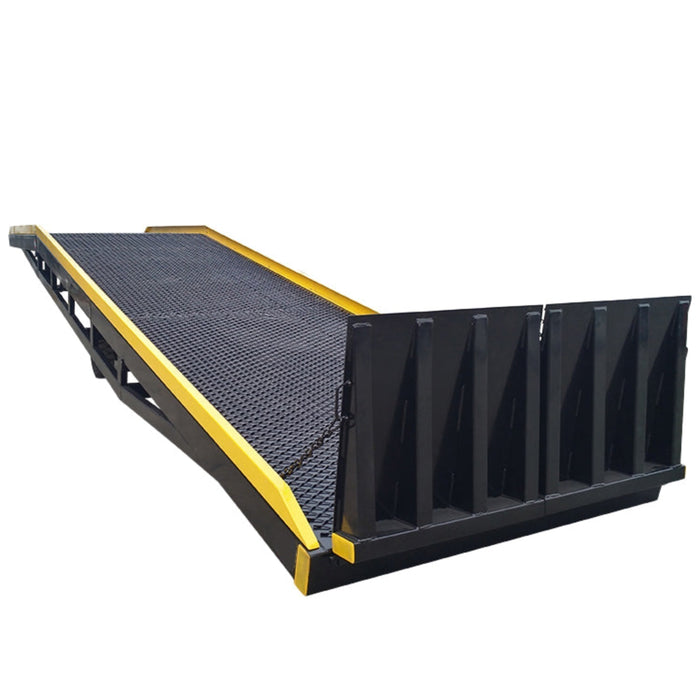

Chery Industrial Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity

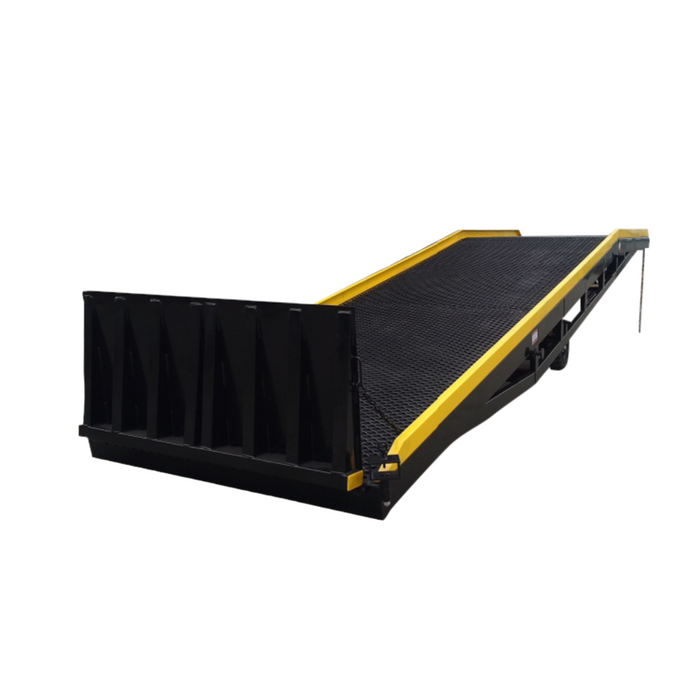

The 22,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp is a heavy‑duty steel ramp designed to transform ground‑level areas into functional loading zones when permanent dock access isn’t available. Built to support up to 22,000 lbs of load, this yard ramp makes it simple to drive forklifts and material handling equipment from the ground into trucks, trailers, and rail cars. Its rugged construction ensures dependable performance for warehouses, distribution centers, farms, and industrial facilities where efficient loading and unloading operations are essential.

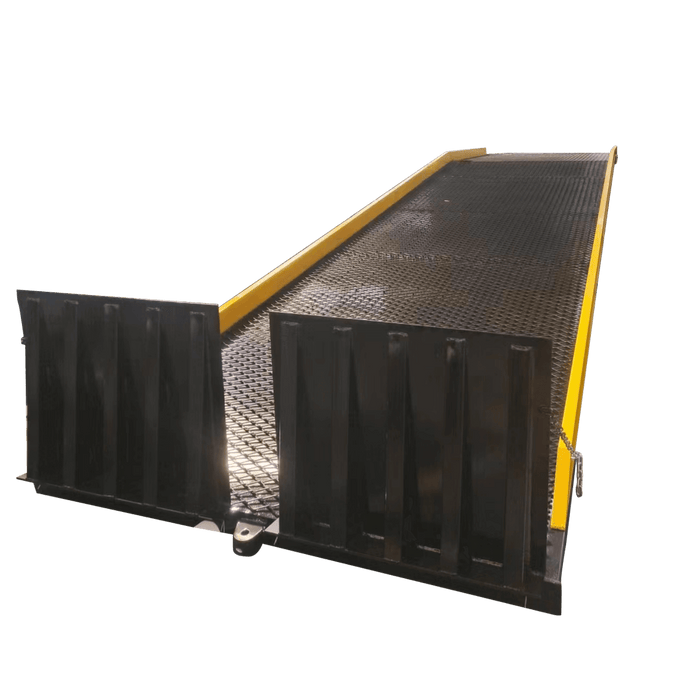

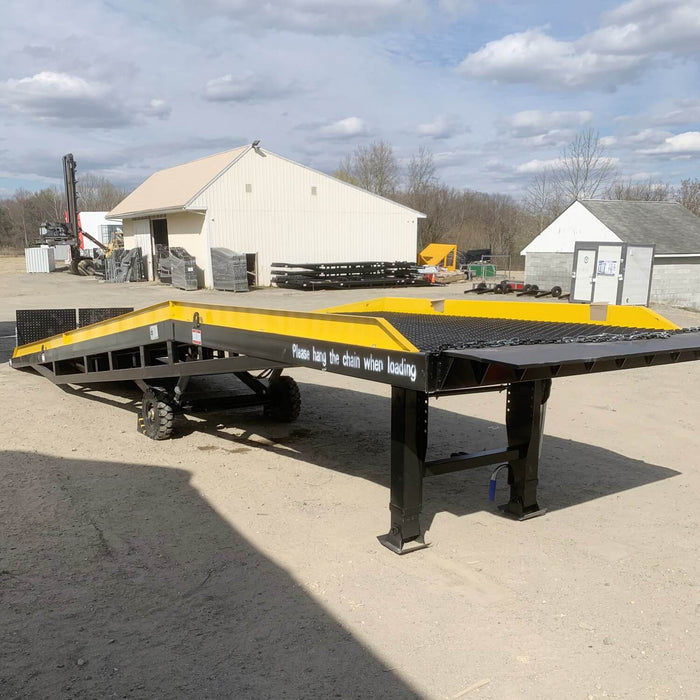

This ramp measures 37.1 ft long and 82.7″ wide, providing a generous surface for safe and stable traffic of heavy equipment. Side rails on both edges help prevent forklifts from accidentally driving off the ramp, while dual safety chains attach to trailers or loading surfaces to secure the ramp in place and reduce the risk of kick‑outs. The non‑slip checkered steel surface also improves tire traction in both dry and moderate wet conditions, helping protect workers and goods during handling tasks.

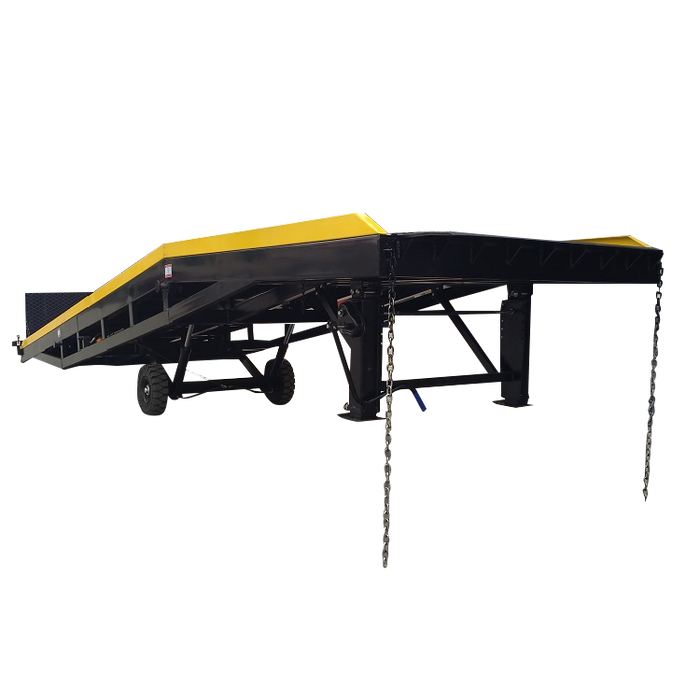

Height adjustability is a key feature, with the ramp capable of extending from about 43.3″ to 71″ to match a variety of truck bed and dock heights — reducing setup time and making operations more flexible. Built‑in 600‑9 solid tires allow the ramp to be repositioned easily without the need for extra equipment, and the durable steel frame delivers long‑lasting strength even under rigorous industrial use.
Whether you’re setting up temporary loading sites or expanding material handling capabilities without permanent infrastructure, this portable yard ramp provides a cost‑effective and reliable solution. It enhances operational efficiency, improves workflow safety, and is ready to be deployed wherever ground‑to‑dock access is needed.

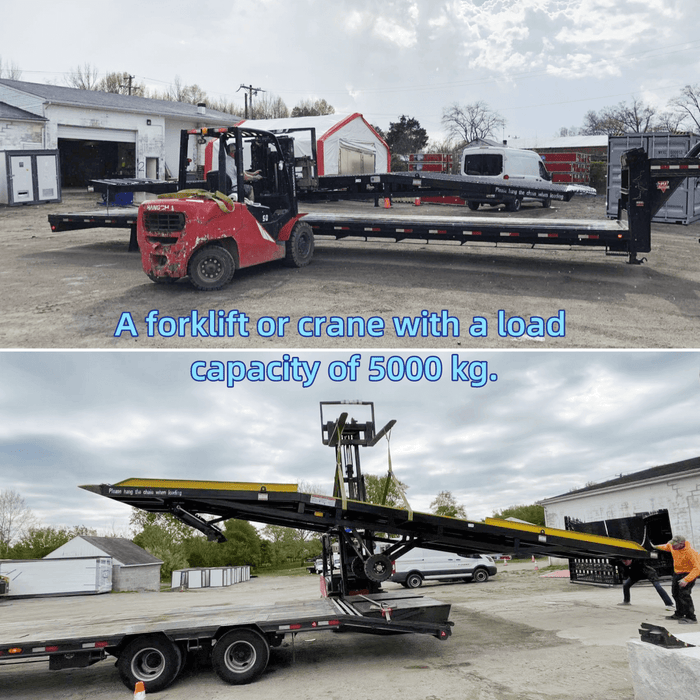

Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.
Features

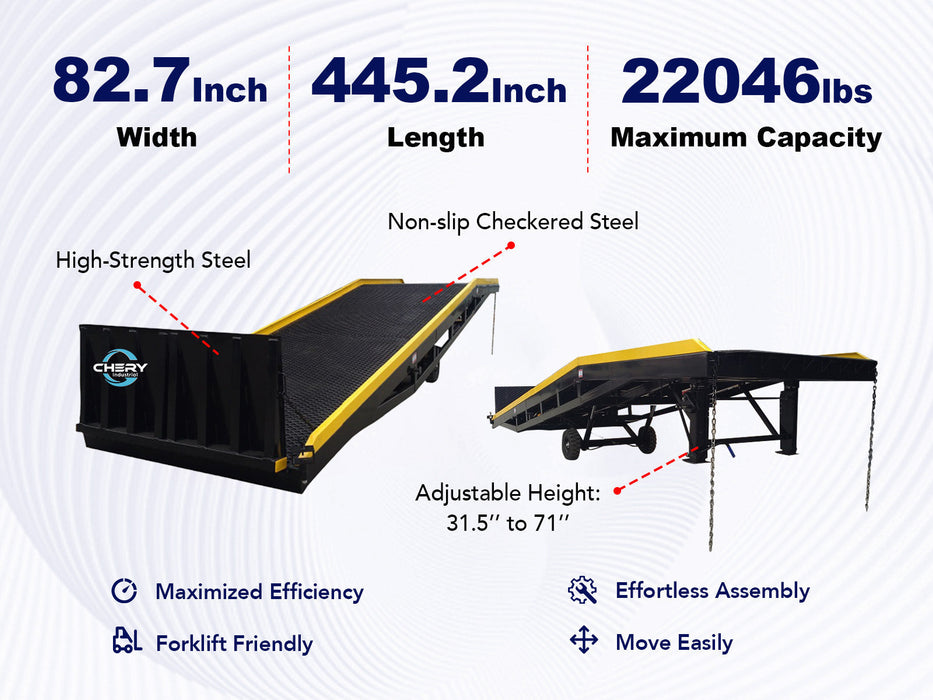

- Height Adjustment: Enjoy seamless operation with height adjustability from 43.3" to 71" (110 cm - 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.
- Unrivaled Strength: Supporting a massive 22,046 lbs (10,000 kg), this ramp provides the robust support you need for heavy-duty material handling, reducing downtime and improving productivity.

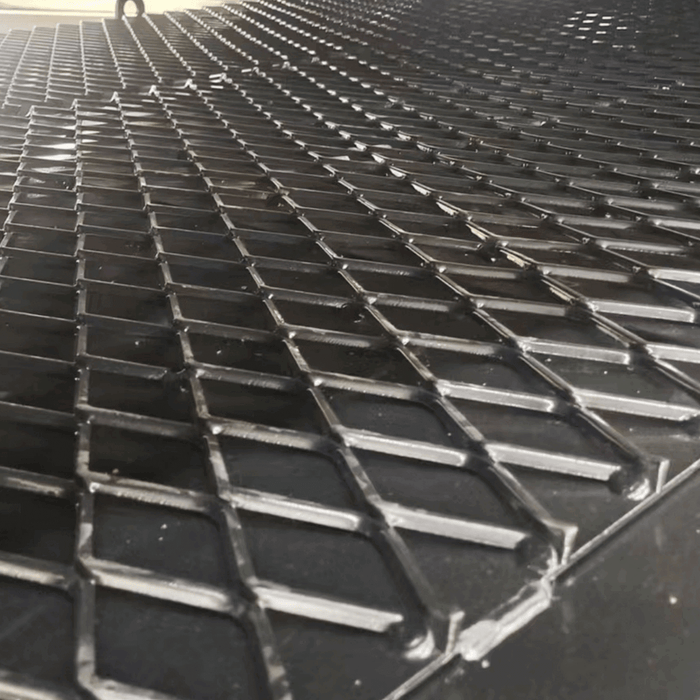

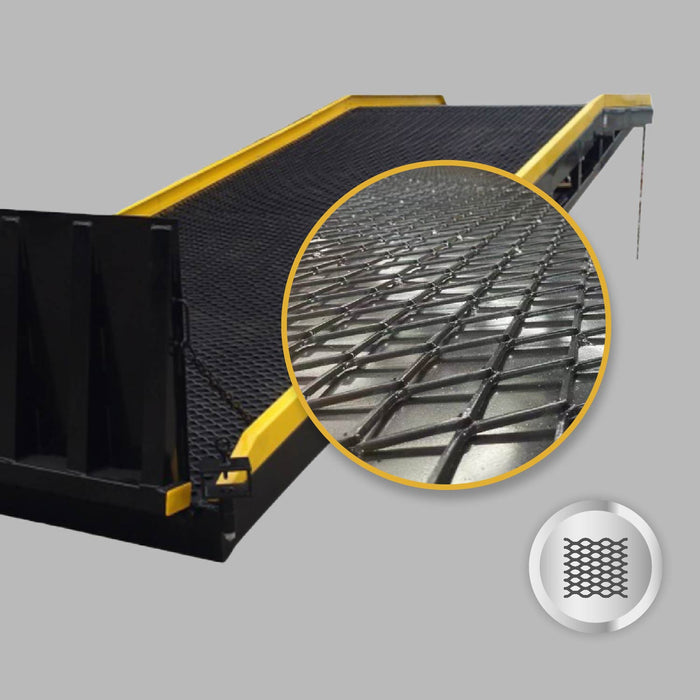

- Secure Grip: The non-slip checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.

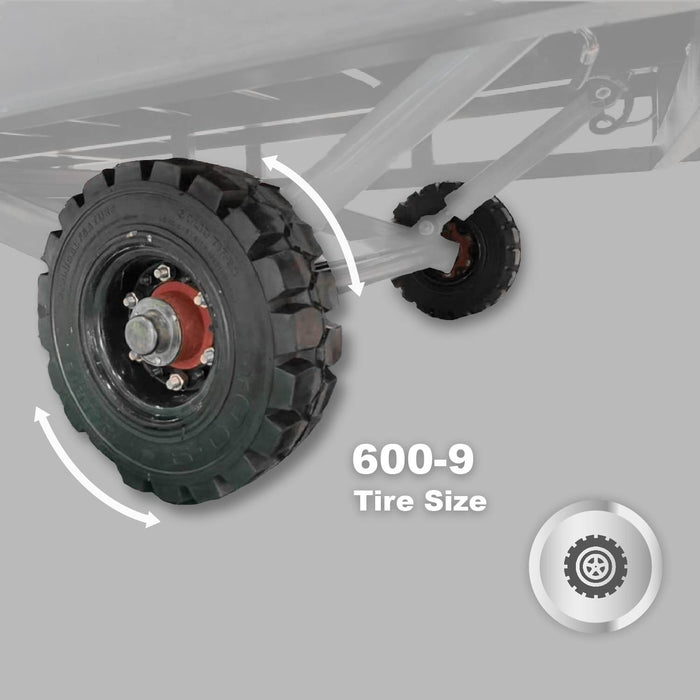

- Enhanced Mobility: For easy positioning and maneuverability, the ramps are fitted with durable 600-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.
Specifications
| Material |
Steel |

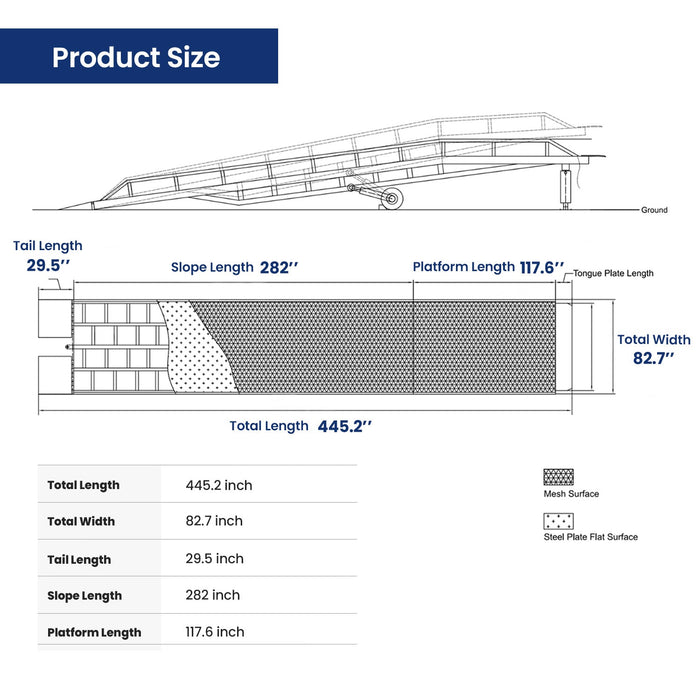

| Length |
37.1' |
| Width |
82.7" |
| Minimum Height |
43.3" |
| Maximum Height |
71" |
| Weight |
5,732 lbs |
| Maximum Capacity |
22,046 lbs |
| Slope Length |
281.5" |
| Platform Length |
118.1" |
| Tail Plate Length |
29.5" |

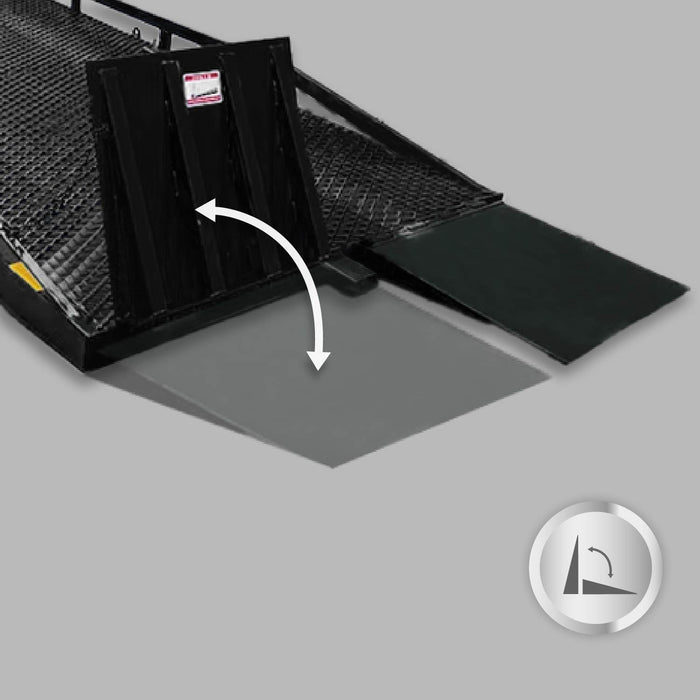

| Tip Plate Length |
15.7" |
| Steel Plate Thickness |
4 mm |
| Steel Mesh Thickness |
8 mm |
| Lip Thickness |
16 mm |
| Power |
AC(380V/220V/110V) |
| Main Beam |
160x80x4mm rectangular pipe
5 main beams |
| Vice Beam |
100x50x4mm |
| Lift Type |
Dual Cylinder Hydraulic |

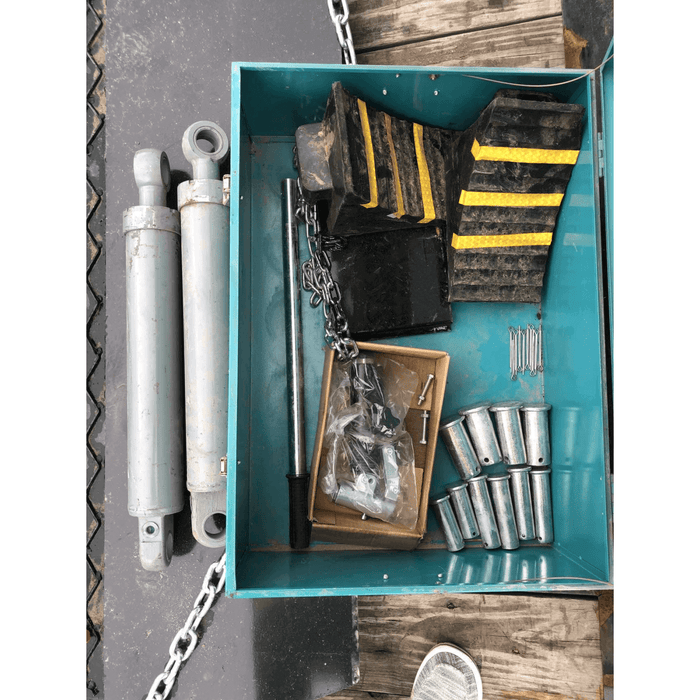

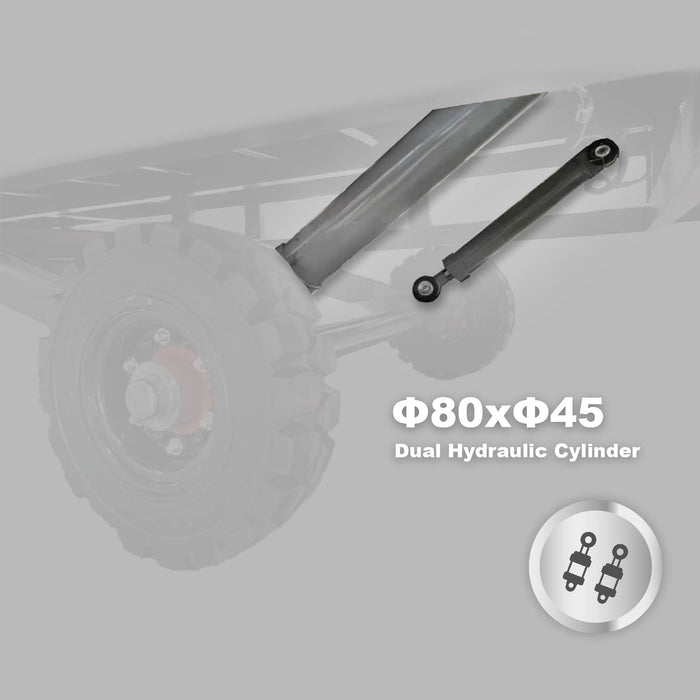

| Hydraulic Cylinder |
Φ80xΦ45（2 pcs） |
| Hydraulic Oil Pipe |
32Pma |
| Solid Tire Size |
600-9 |

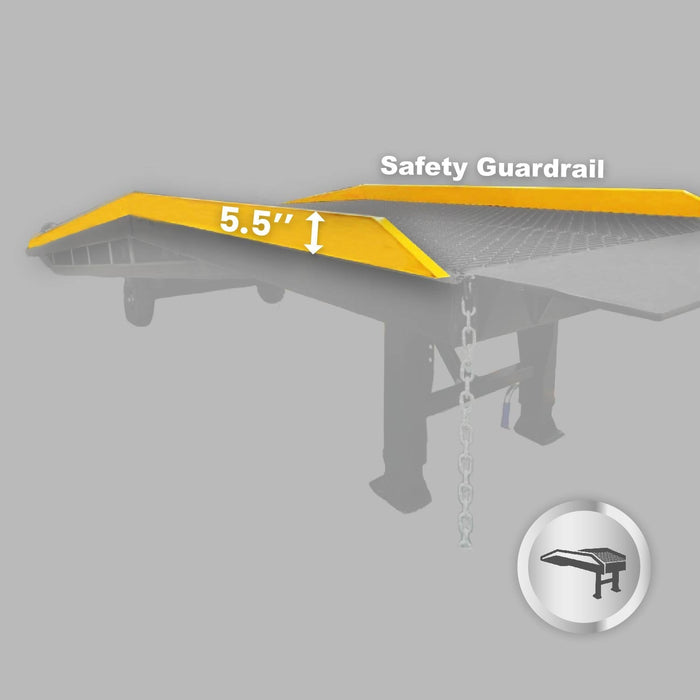

| Guard Rail Height |
5.5" |

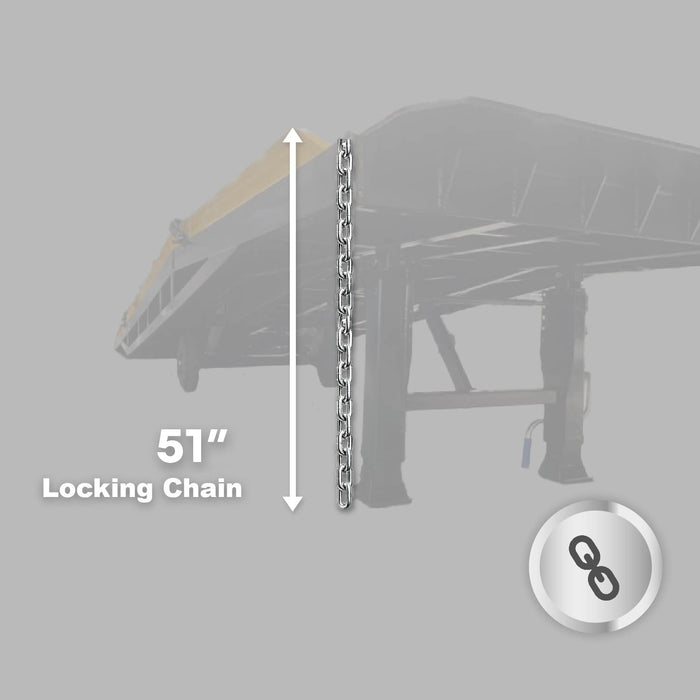

| Safety Chains |
51" |
Manuals

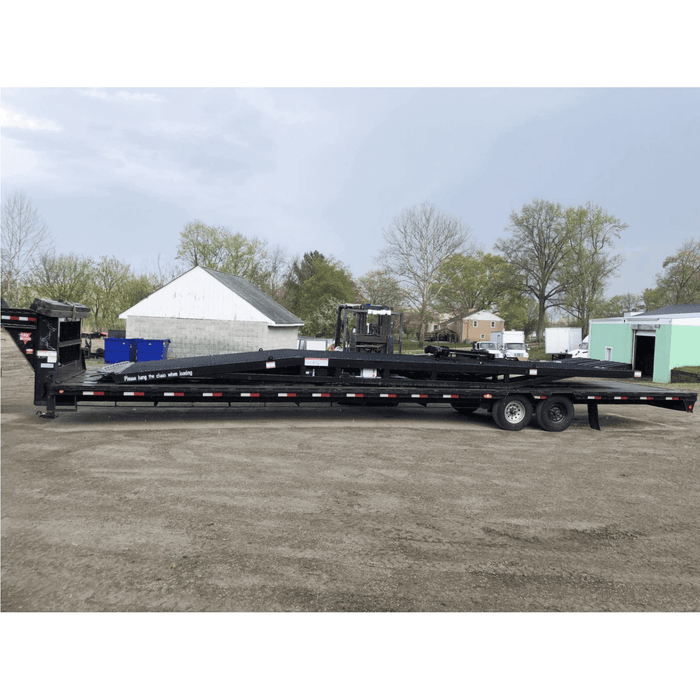

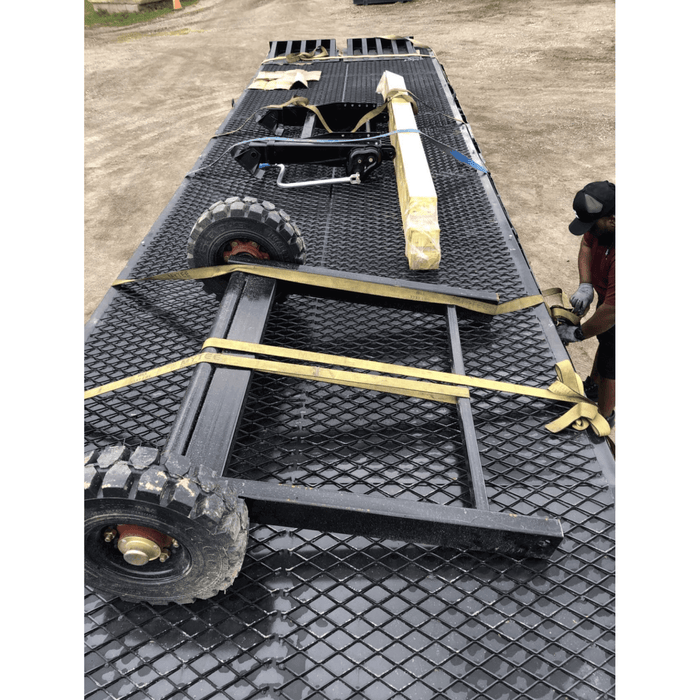

Package Size
- LxWxH (inch): 548x83x20
- Weight (lb): 5736(Manual Pump), 5957(Electric Pump)
- A forklift or equivalent is required for unloading.
