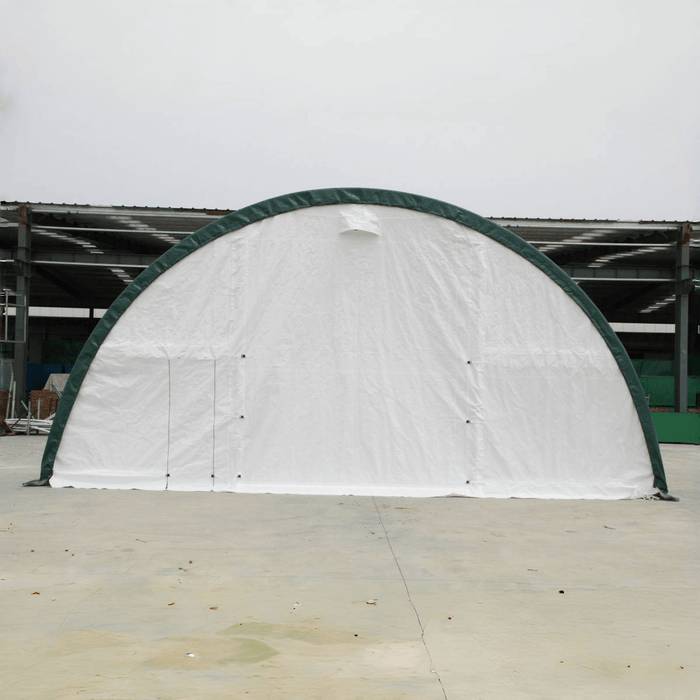

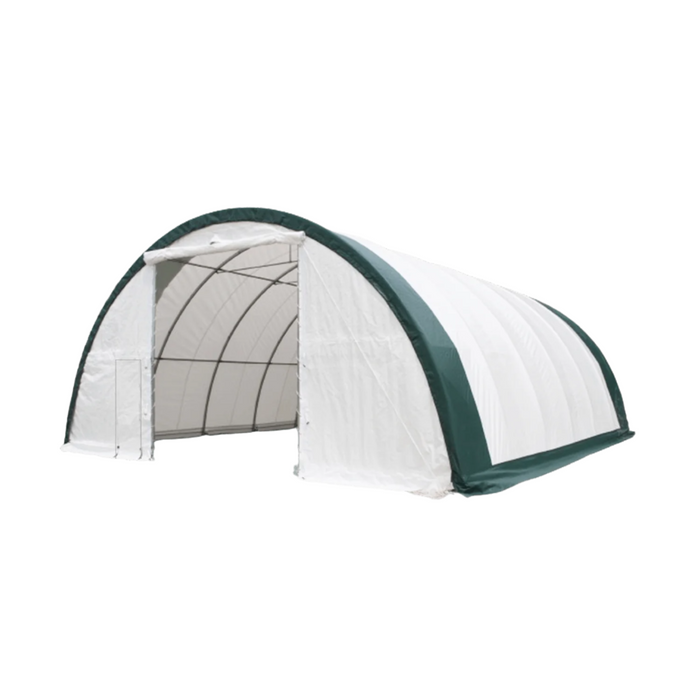

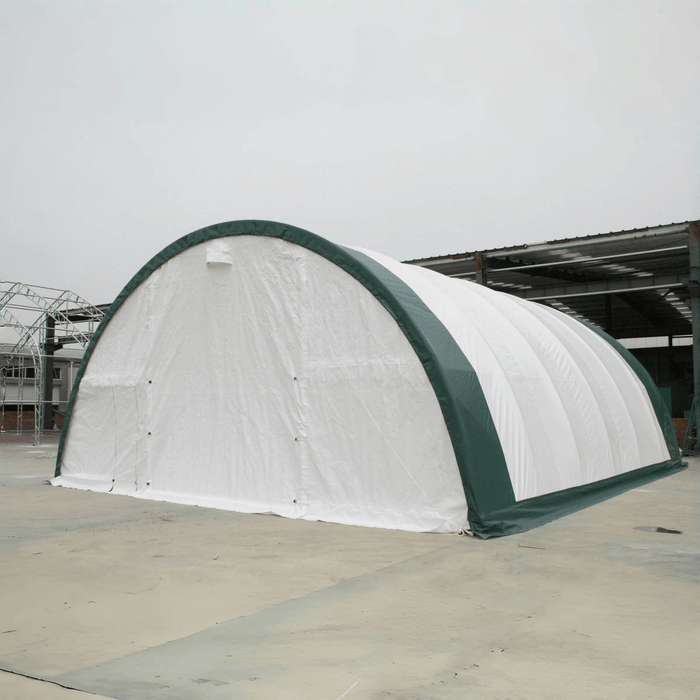

Chery Industrial Single Truss Arch Storage Shelter W30'xL40'xH15'

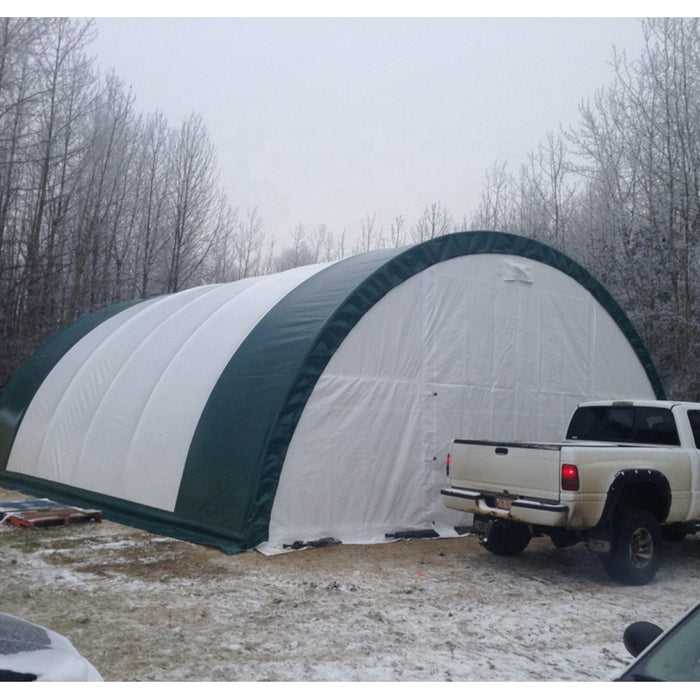

The Chery Industrial Single Truss Arch Storage Shelter W30'xL40'xH15' is a versatile and durable outdoor structure designed to protect equipment, vehicles, tools, and materials from the elements. With approximately 1,200 square feet of covered space, this shelter provides ample room for residential, industrial, agricultural, or commercial storage needs. Its arched design efficiently sheds rain, snow, and debris while maximizing usable interior space, making it a dependable solution for year-round outdoor storage.
Constructed with a sturdy 14-gauge galvanized steel truss frame, this shelter delivers long-lasting strength and resistance to corrosion. The premium PE (polyethylene) fabric canopy is waterproof and UV-resistant, helping protect stored items from water, sun exposure, and weather damage. The translucent canopy allows natural light to enter the shelter, improving interior visibility during daylight hours.

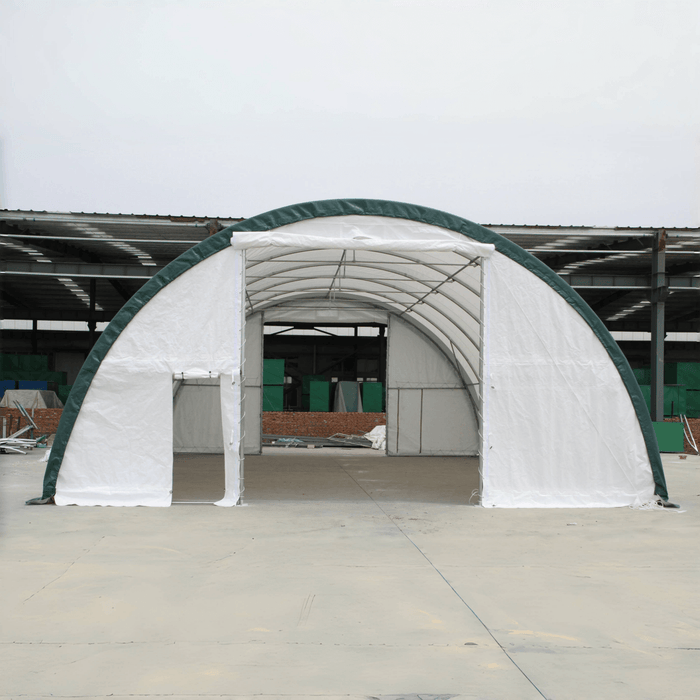

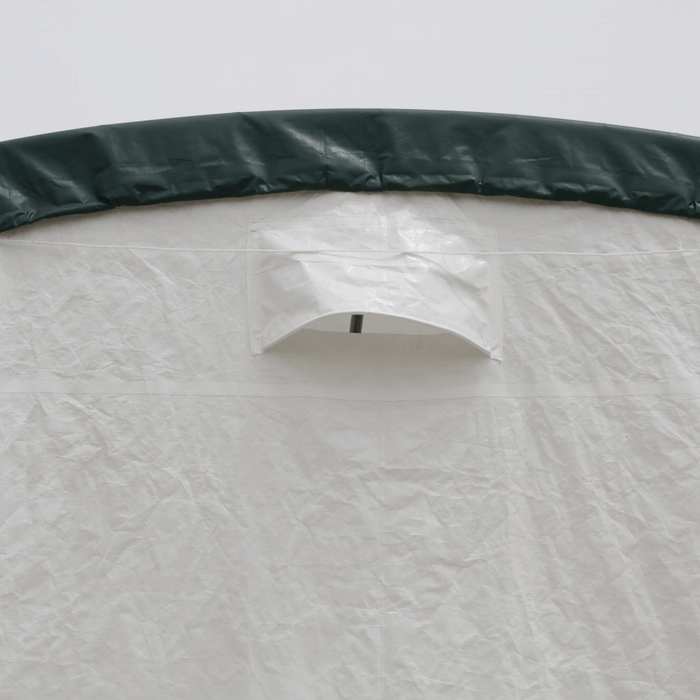

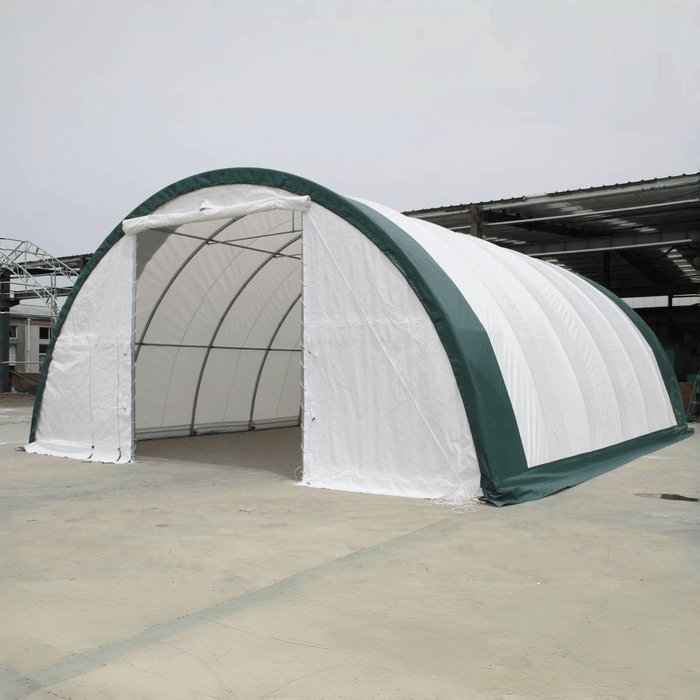

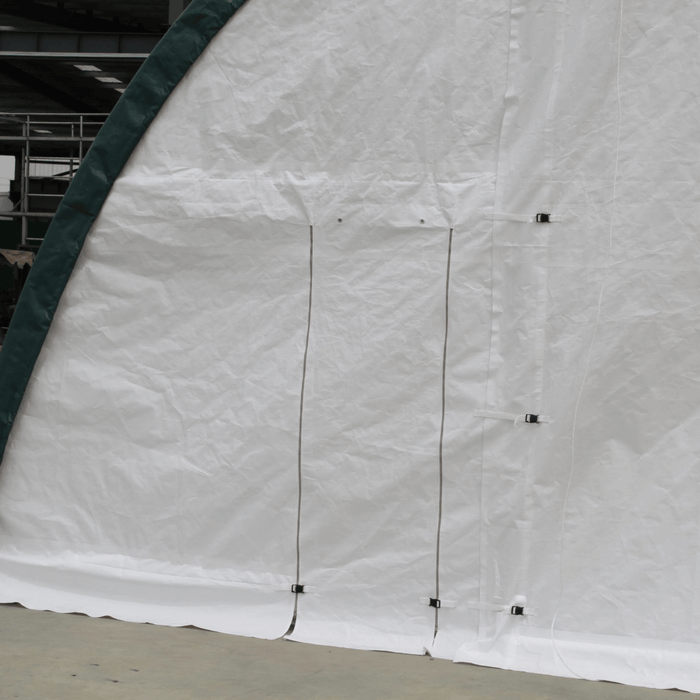

Access and usability are enhanced by large rope pull-up doors at both the front and rear, allowing vehicles and equipment to enter and exit with ease. A convenient side pedestrian door provides quick access without opening the main doors. Built-in ventilation helps improve airflow and reduce moisture buildup inside the shelter.

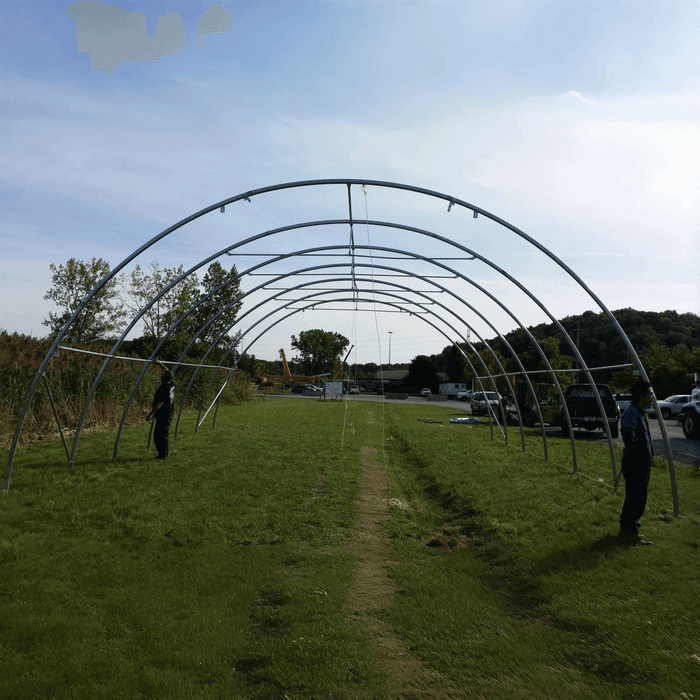

Installation is straightforward and does not require a permanent foundation. Included stake pegs allow the shelter to be securely anchored to the ground, offering flexibility for farms, construction sites, warehouses, workshops, and other outdoor storage applications where dependable protection is needed.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Features
- No building permits required*.
- Stable, durable, competitive-priced tent
- Style: Freestanding
- 100% waterproof, Self-cleaning, Tear-resistant, UV resistant
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Type: Prefabricated Building
- Certificate: SGS
- Application: warehouses, carports, Event and exhibition tents, Garages for trucks, buses, vans, and boats, Freight warehouses, Commercial tents

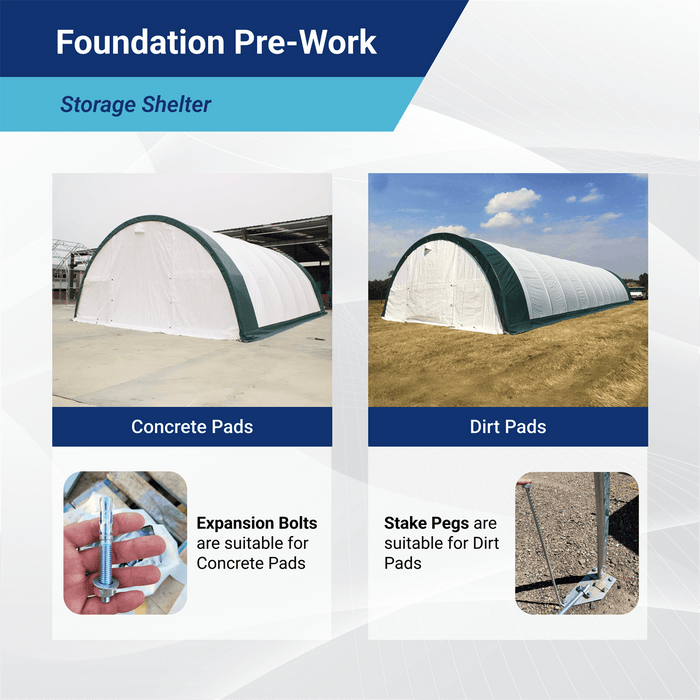

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specifications
|

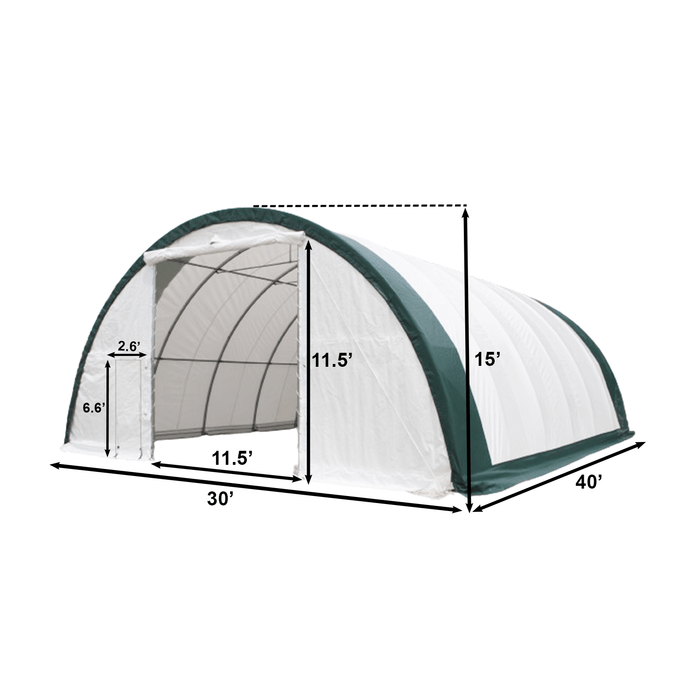

| Dimensions (WxLxH)
|
30'x40'x15' |
| Door size (WxH) (Front & Rear) |
11.5'x11.5' |
| Door Type |
Rope Pullup Door |
| Man Door (WxH) |
2.6'x6.6' |

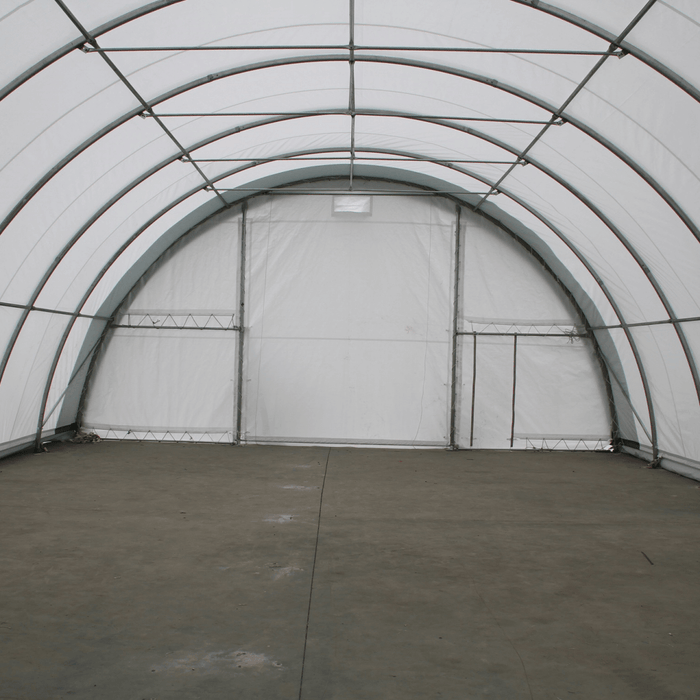

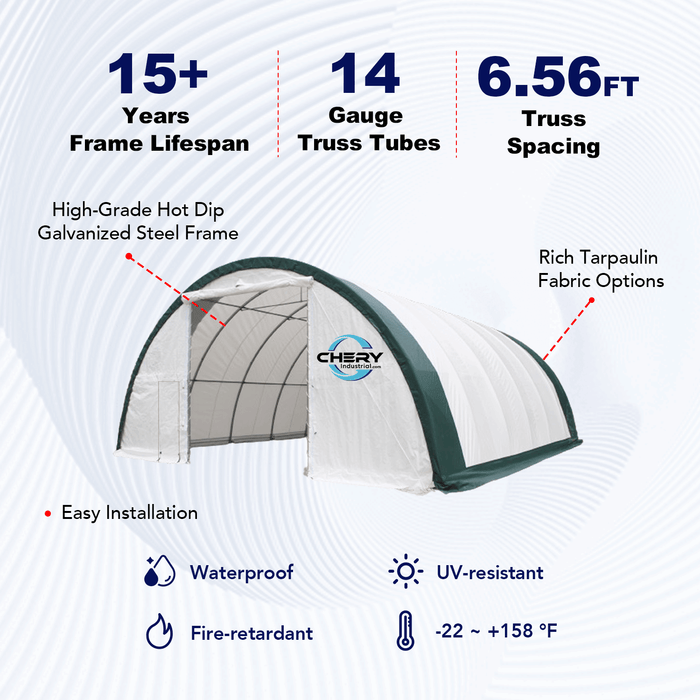

| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
14 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 70x42x2mm |
| Purlin Ø |
Φ 40x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
7 |

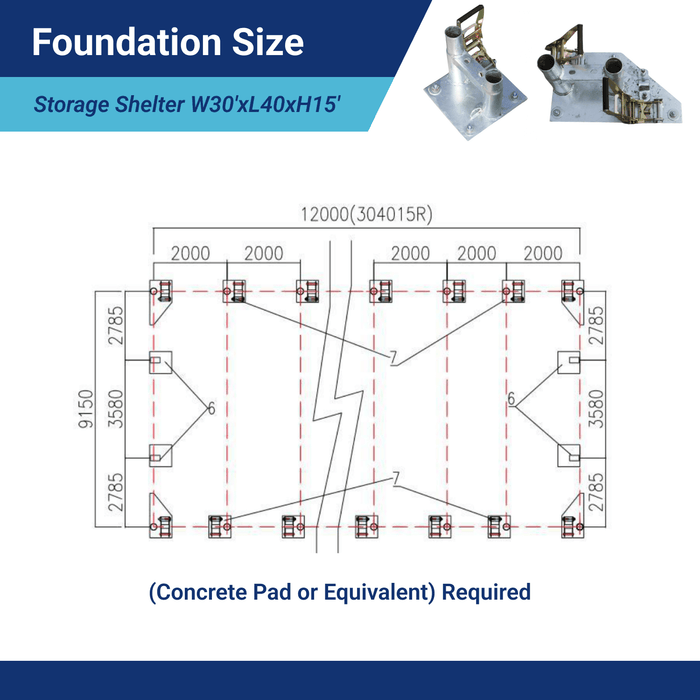

| Number of Anchor plates |
14 |

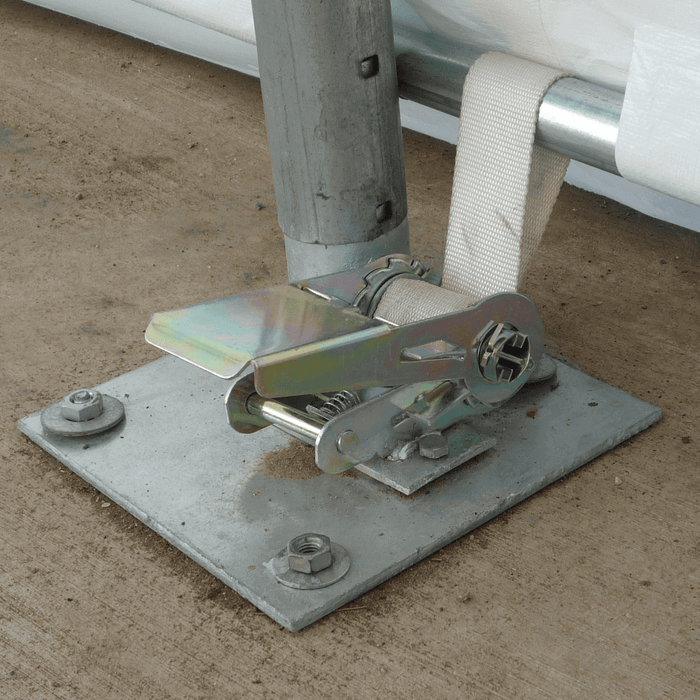

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
3 Days |
| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 114.2x28.4x25.2
- Weight (lb): 1903
- A forklift or equivalent is required for unloading.

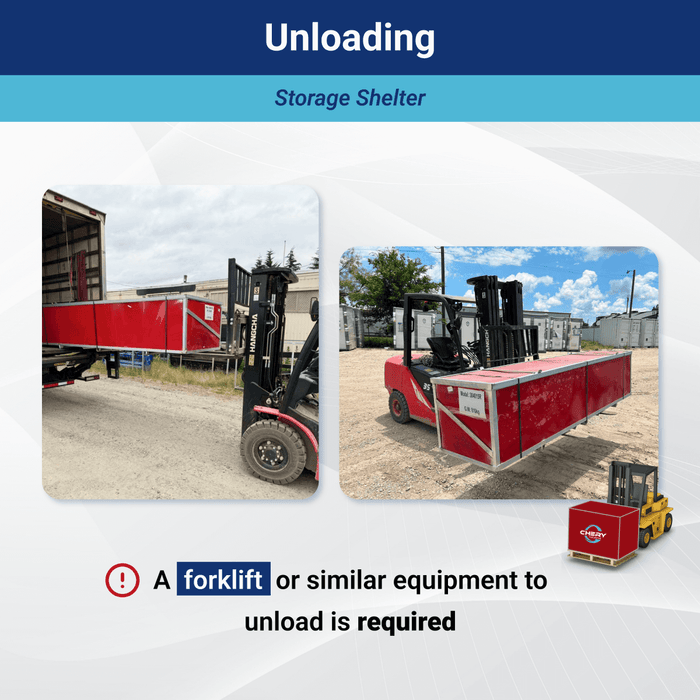

Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
