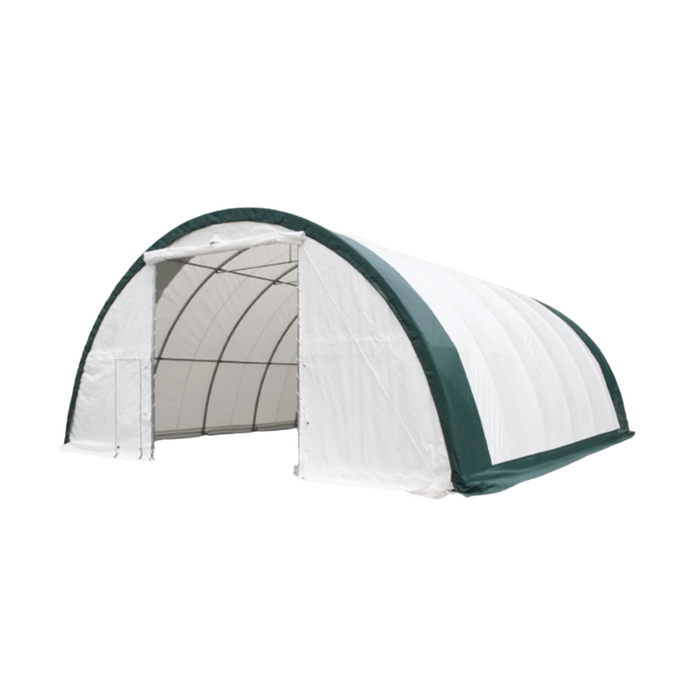

Chery Industrial Single Truss Arch Storage Shelter W30'xL65'xH15'

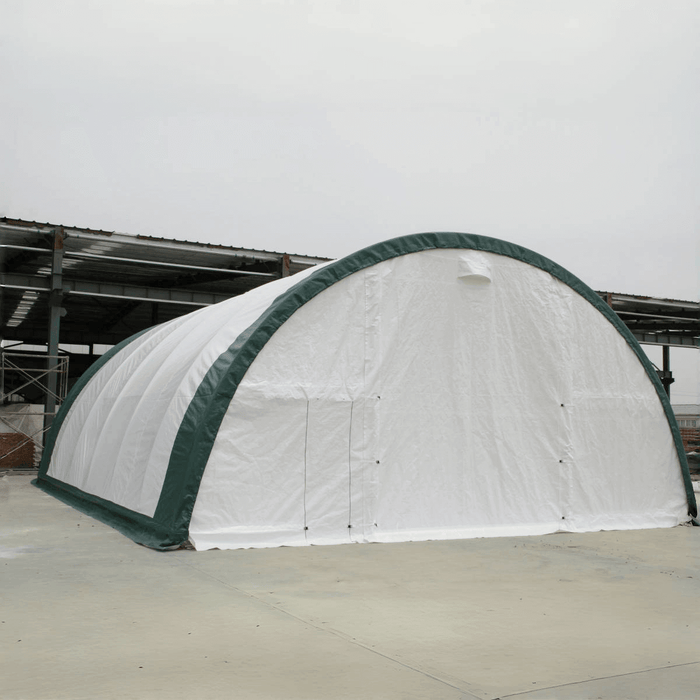

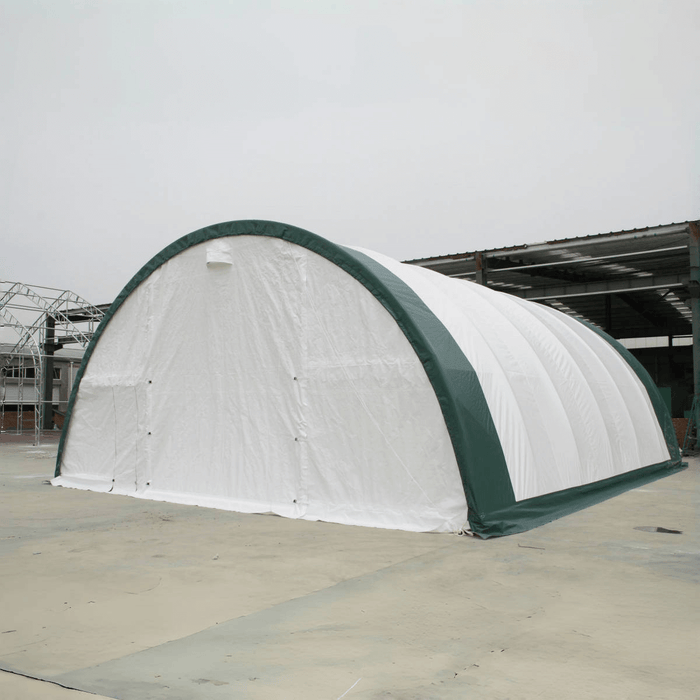

The Chery Industrial Single Truss Arch Storage Shelter W30'xL65'xH15' provides a spacious and reliable outdoor storage solution for equipment, vehicles, and materials. With approximately 1,950 square feet of covered space, this shelter is well suited for agricultural, commercial, and industrial use. Its arch-style design maximizes interior clearance, allowing easy access for large machinery and tall equipment.

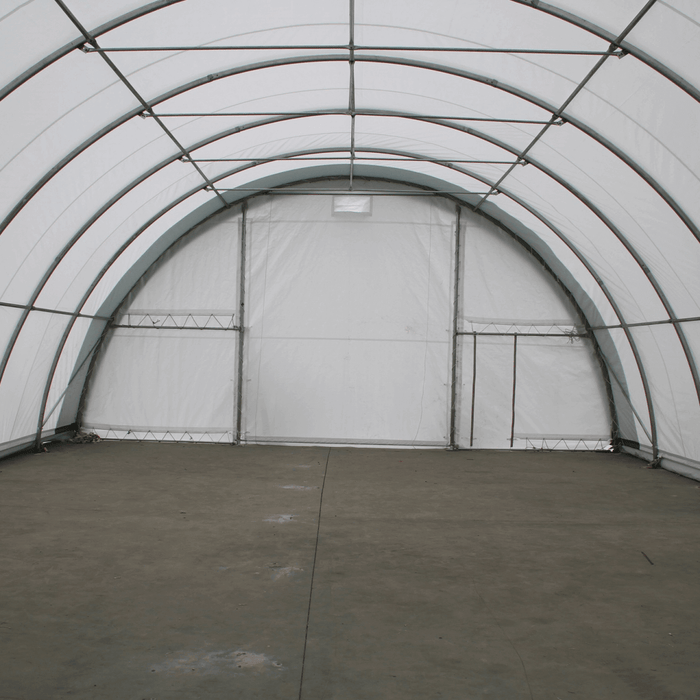

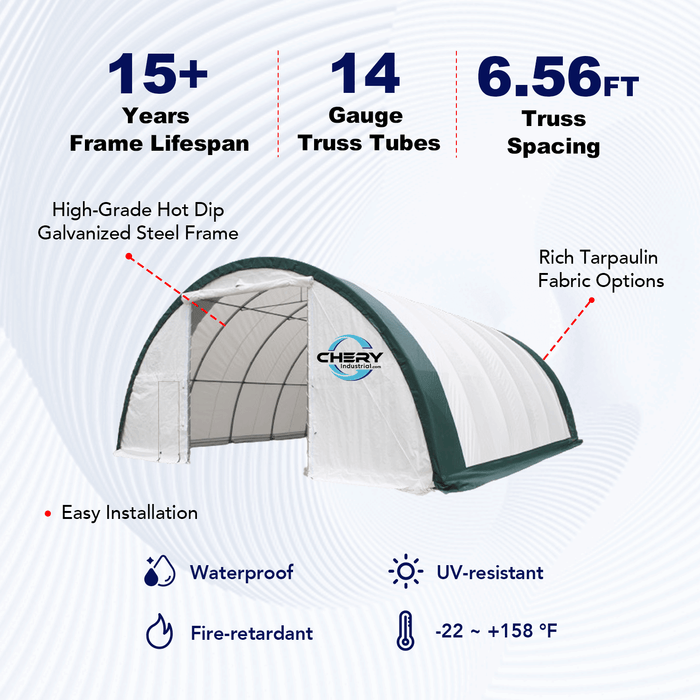

Built with a single truss galvanized steel frame, the structure offers dependable strength and corrosion resistance for long-term outdoor use. The durable PE fabric cover is waterproof and UV-resistant, helping protect stored items from rain, sun exposure, and harsh weather conditions. The translucent canopy also allows natural light to enter the shelter, improving visibility inside during daytime use.

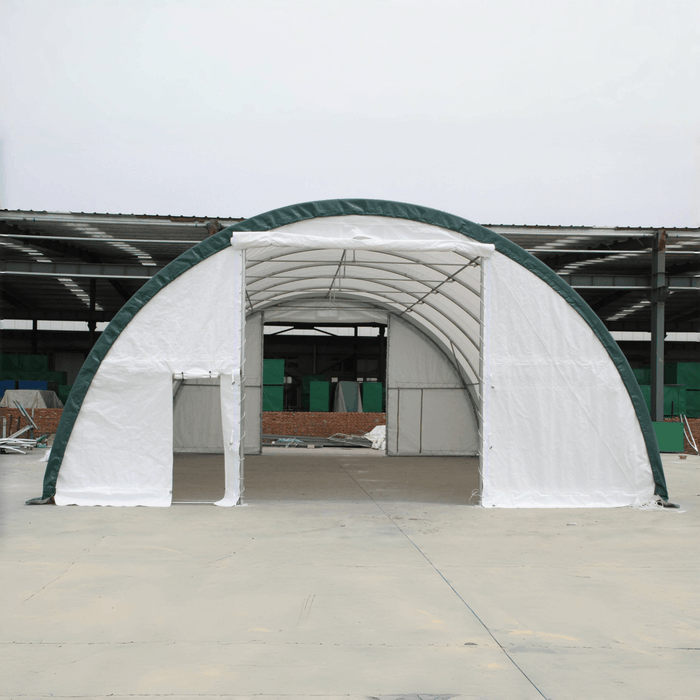

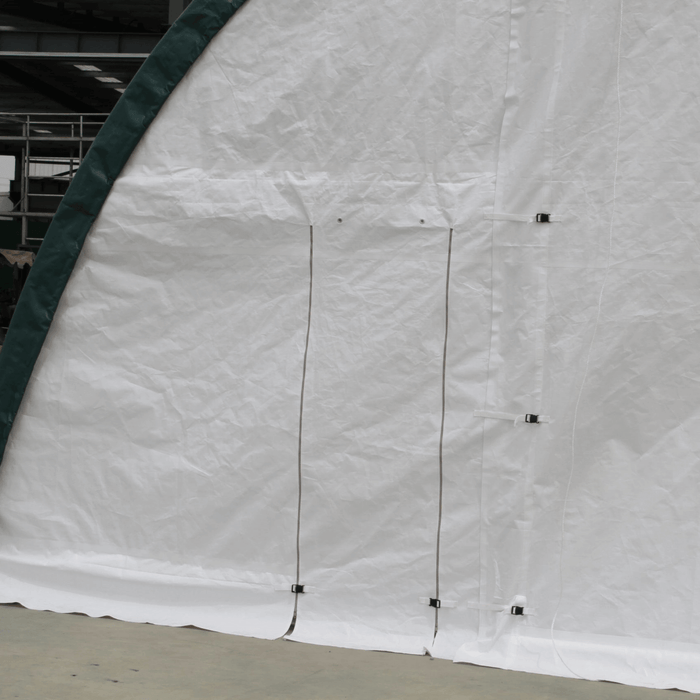

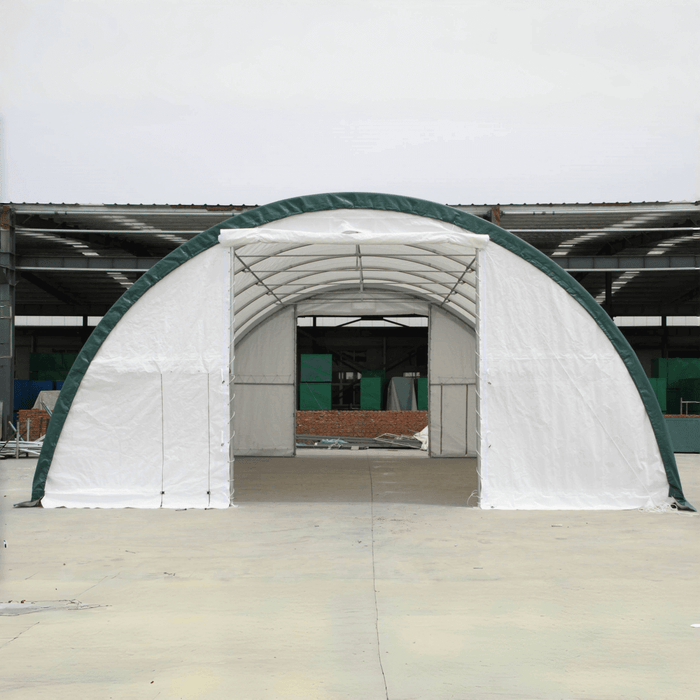

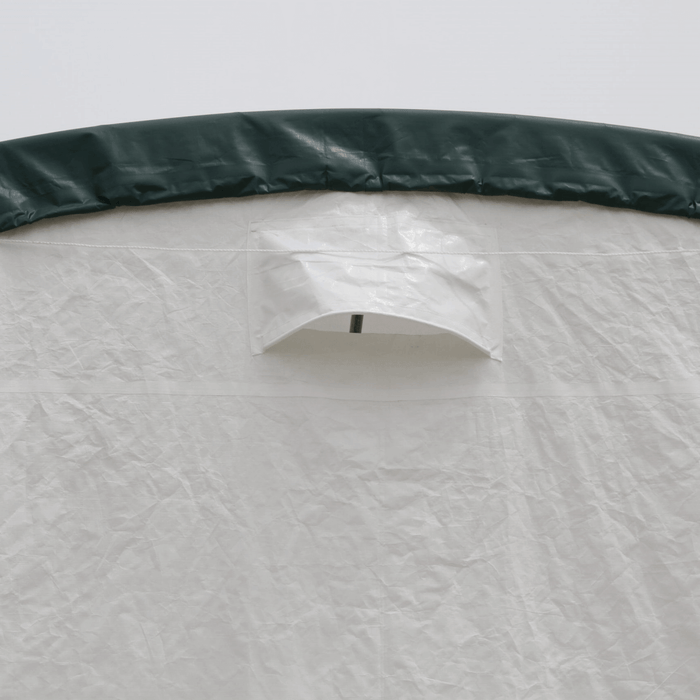

Designed for convenience, the shelter includes large rope pull-up doors on both the front and rear, enabling smooth drive-through access for vehicles and equipment. A side access door allows quick entry without opening the main doors, while built-in ventilation helps reduce moisture buildup and improve airflow inside the structure.
Installation is straightforward and does not require a permanent foundation. Stake pegs are included for ground anchoring, allowing flexible placement across different job sites or properties. Whether used for farm equipment, inventory storage, or workshop coverage, this storage shelter delivers a practical and durable solution for year-round protection
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Features
- No building permits required*.
- Resistant toward water, UV and fading
- Style: Freestanding
- A huge capacity for trucks, automobiles, and more bulk storage
- Protect belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Certificate: SGS
- There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.

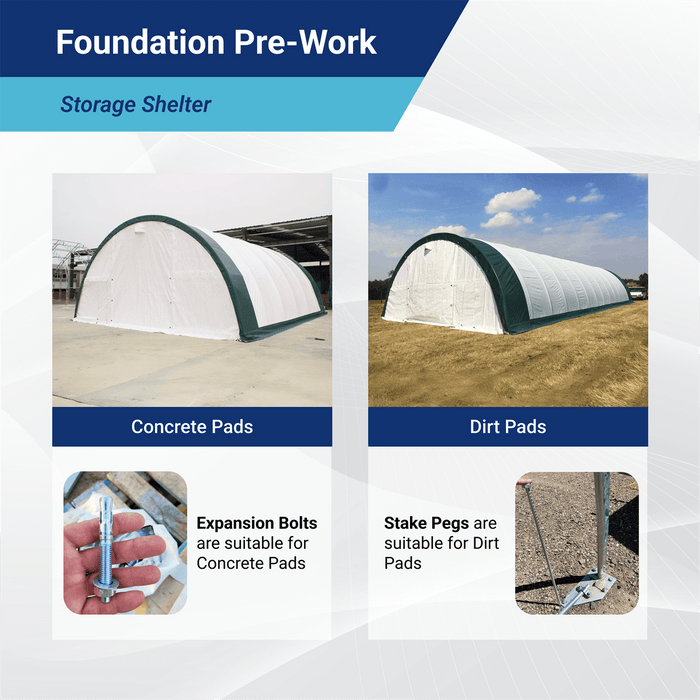

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specifications
|

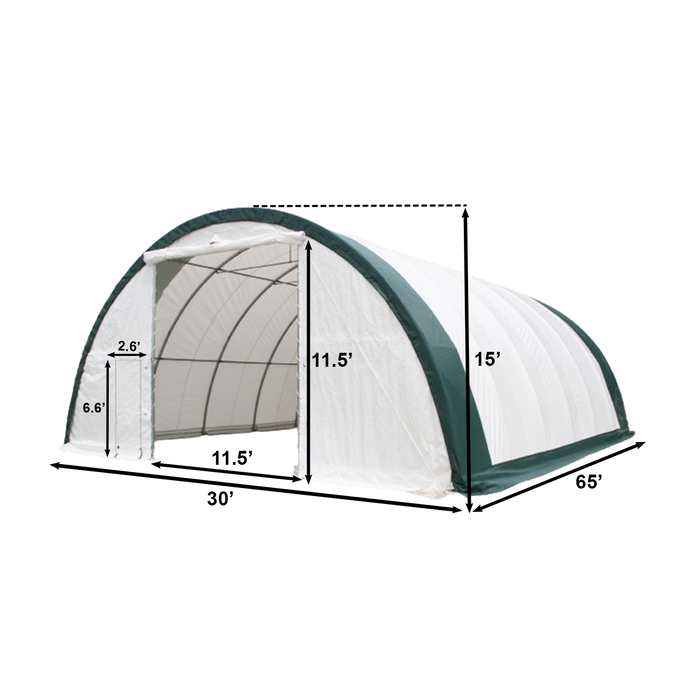

| Dimensions (WxLxH)
|
30'x65'x15' |
| Door size (WxH) (Front & Rear) |
11.5'x11.5' |
| Door Type |
Rope Pullup Door |
| Man Door (WxH) |
2.6'x6.6' |

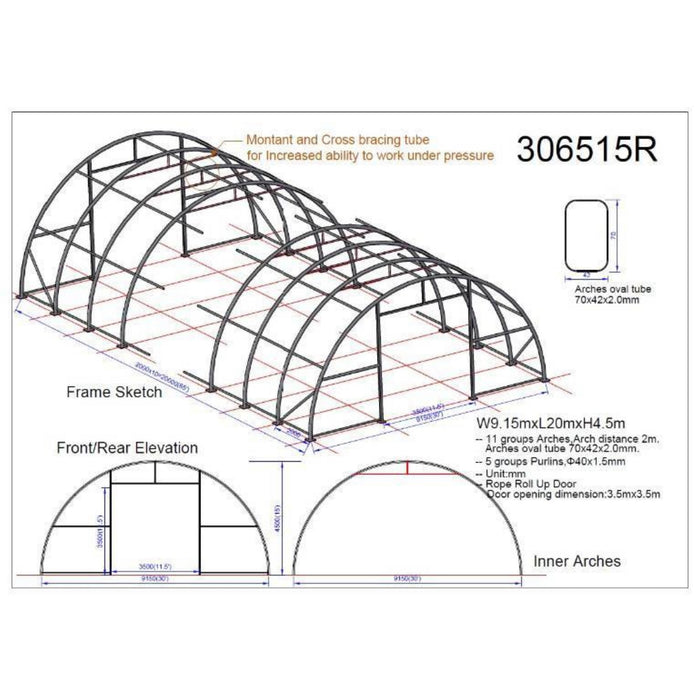

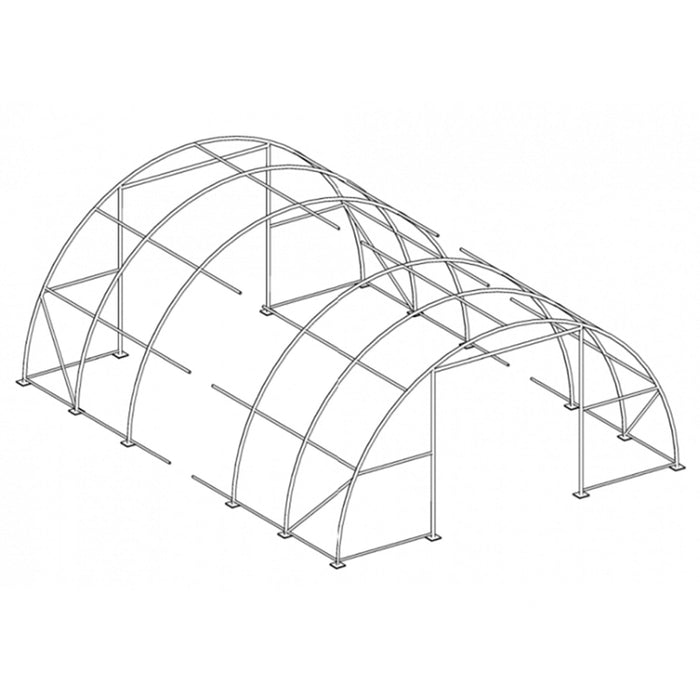

| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
14 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 70x42x2mm |
| Purlin Ø |
Φ 40x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
11 |

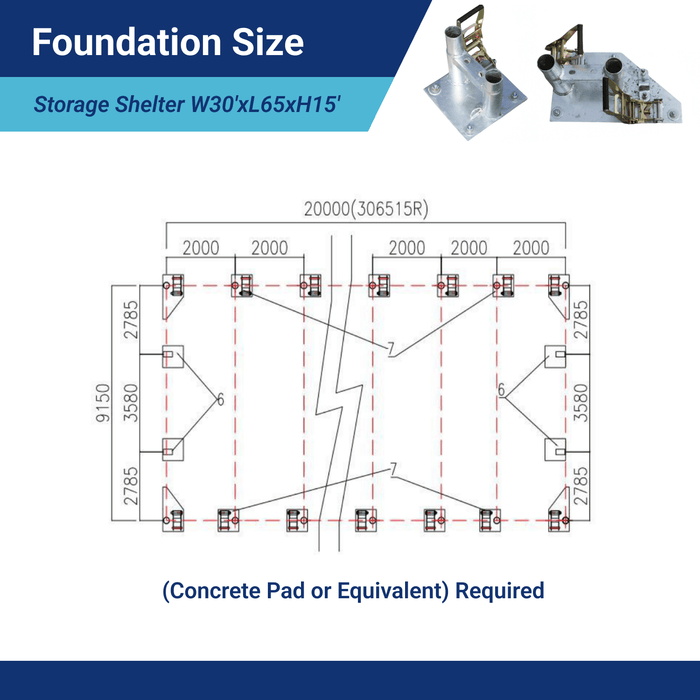

| Number of Anchor plates |
22 |

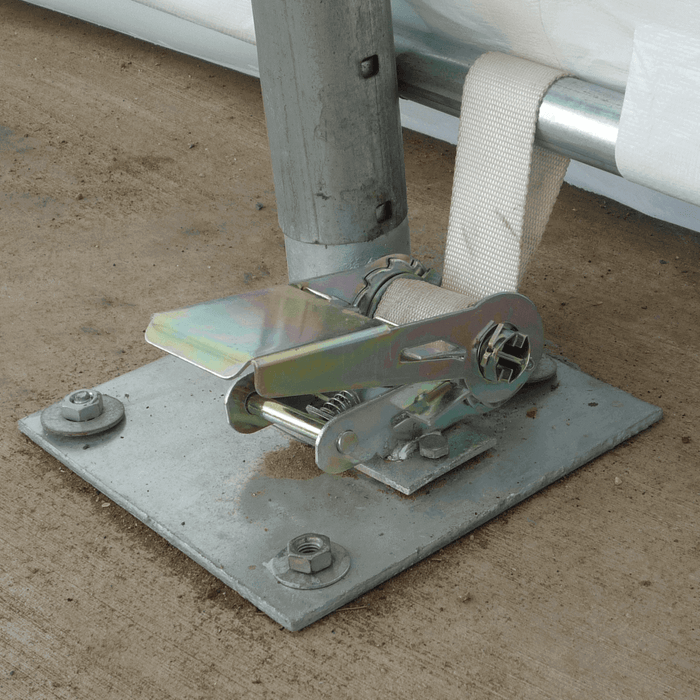

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
3 Days |
| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

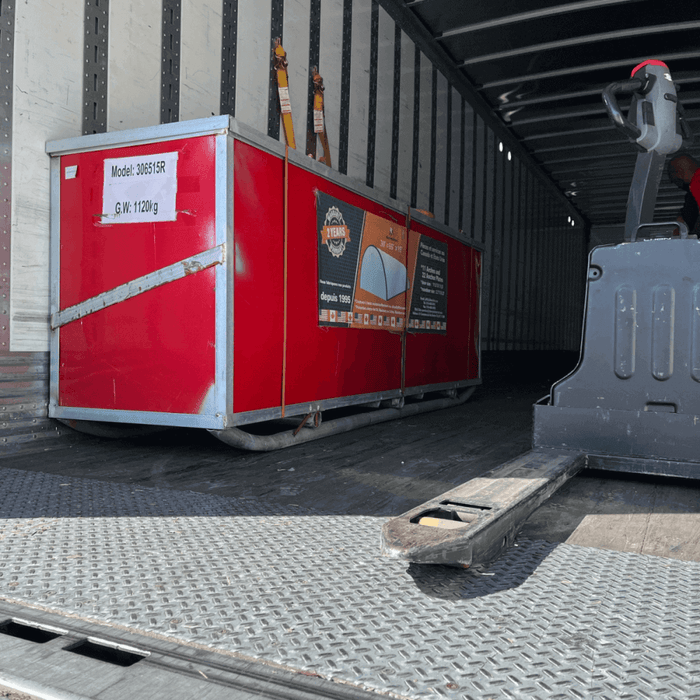

Package Size
- LxWxH (inch): 114.2x28.4x35.4
- Weight (lb): 2447 (11oz); 2580 (16oz)
- A forklift or equivalent is required for unloading.

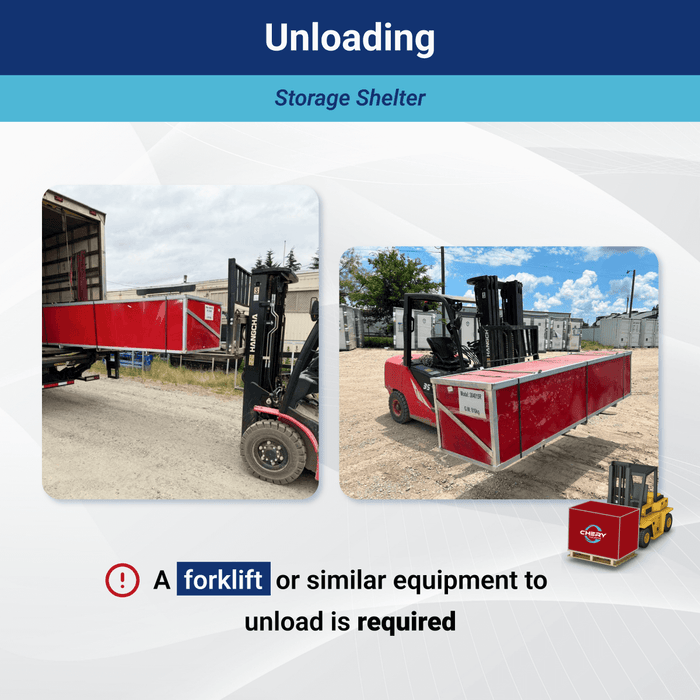

Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
