Chery Industrial Single Truss Arch Storage Shelter W40'xL80'xH20'
The Chery Industrial Single Truss Arch Storage Shelter W40'xL80'xH20' is a spacious and durable outdoor storage solution designed to protect large equipment, materials, vehicles, and more from weather and environmental exposure. With an expansive 3,200 sq ft of covered area, this shelter offers ample room for agricultural, industrial, construction, and commercial storage needs. Its robust single truss galvanized steel frame delivers superior strength and long‑term reliability, making it well‑suited for heavy‑duty outdoor applications.

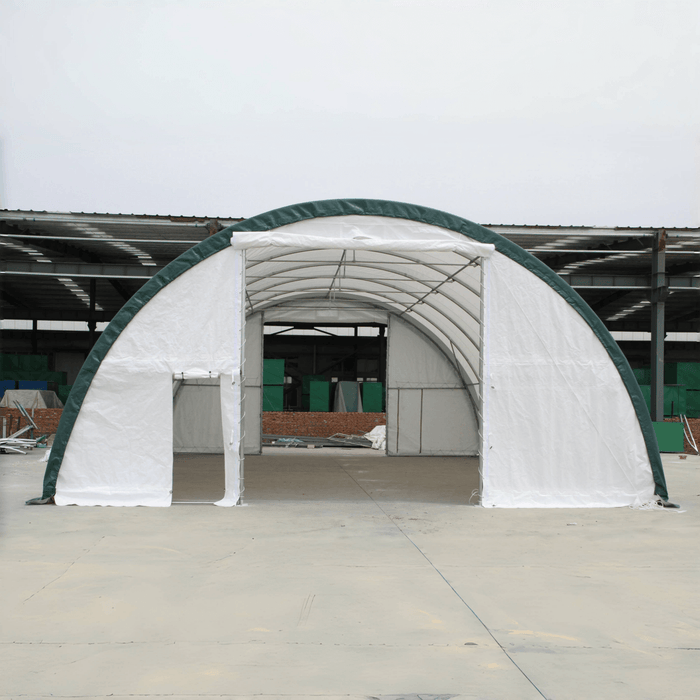

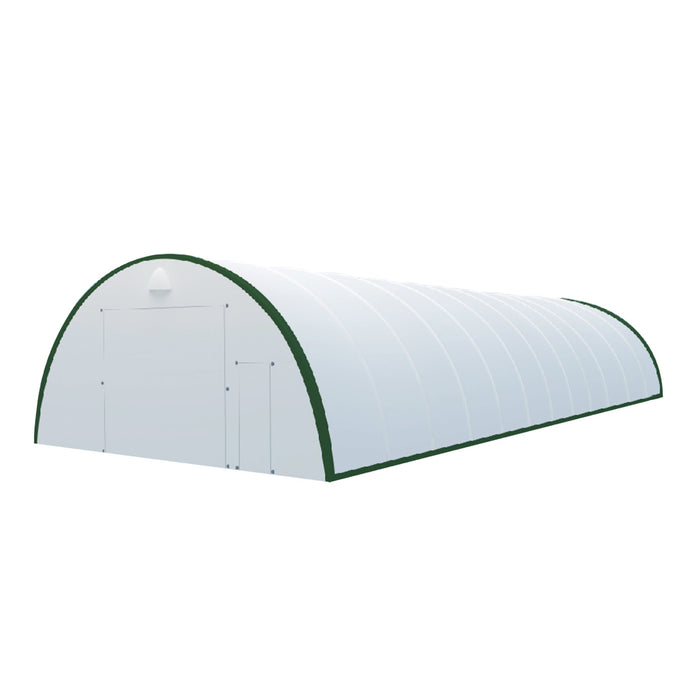

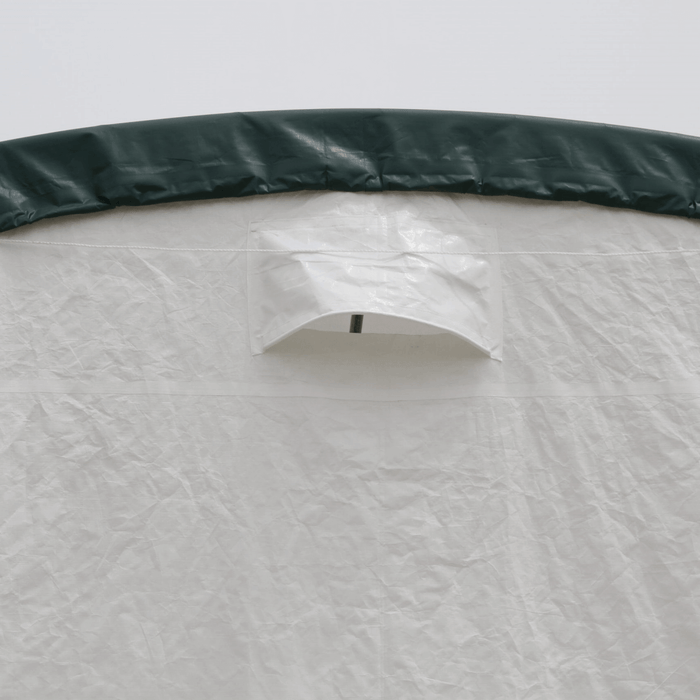

Constructed with quality polyethylene (PE) fabric, this dome‑style shelter resists water, UV damage, and tears, providing dependable all‑weather protection year‑round. The thoughtful design includes large rope pull‑up doors at both the front and rear to facilitate easy access for vehicles and equipment, as well as a man door for convenient entry without opening the main doors. Two built‑in end vents help improve interior airflow, reducing moisture build‑up and maintaining a more comfortable space inside.
Installed without a permanent foundation, this shelter gives you flexibility in placement and use. It comes with a reliable tensioning system and anchoring options, enabling secure installation on level ground. Whether you need a temporary solution or a semi‑permanent structure, the Gold Mountain storage shelter combines practicality, durability, and versatility to help protect your valuable assets effectively.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Features
- No building permits required*.
- Resistant toward water, UV, and fading
- There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
- Style: Freestanding
- Mechanical doors at two ends
- A huge capacity for trucks, automobiles, and more bulk storage
- Protect belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Certificate: SGS

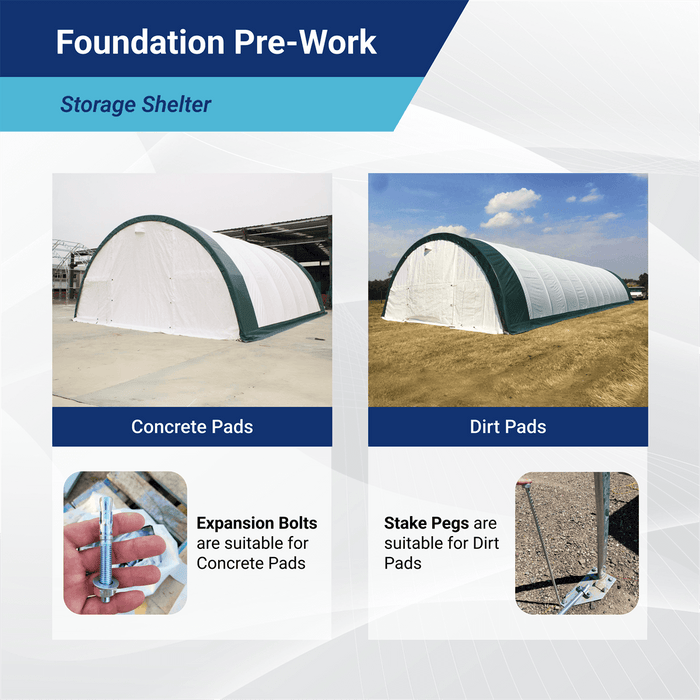

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

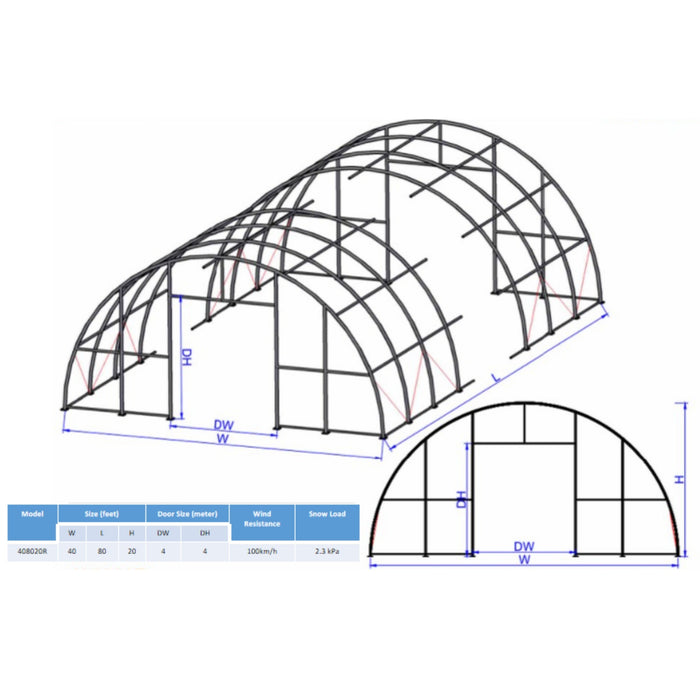

Specifications
| Description |
Specifications
|

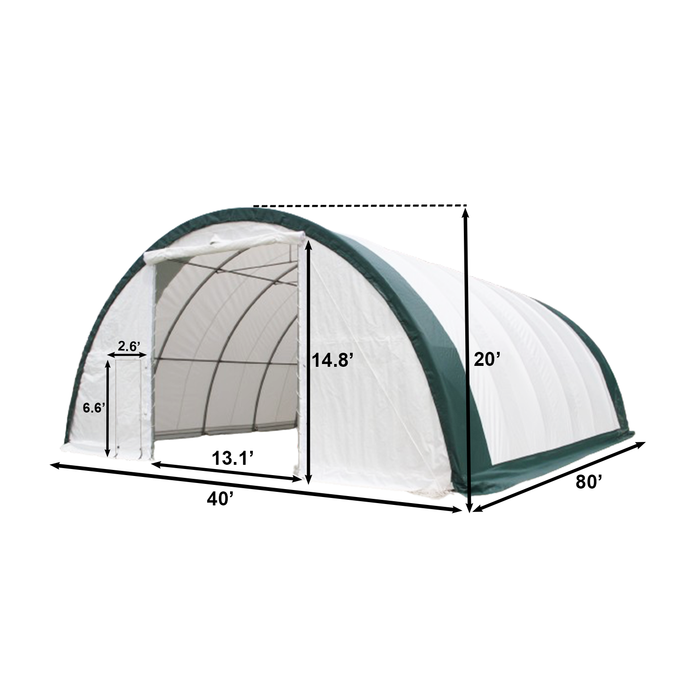

| Dimensions (WxLxH)
|
40'x80'x20' |
| Door size (WxH) (Front & Rear) |
13.1'x14.8' |
| Door Type |
Rope Pullup Door |

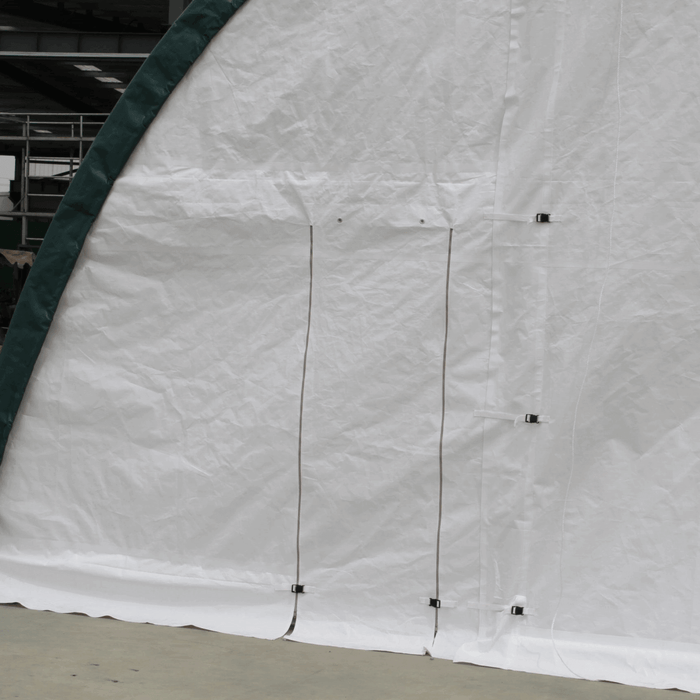

| Man Door (WxH) |
2.6'x6.6' |

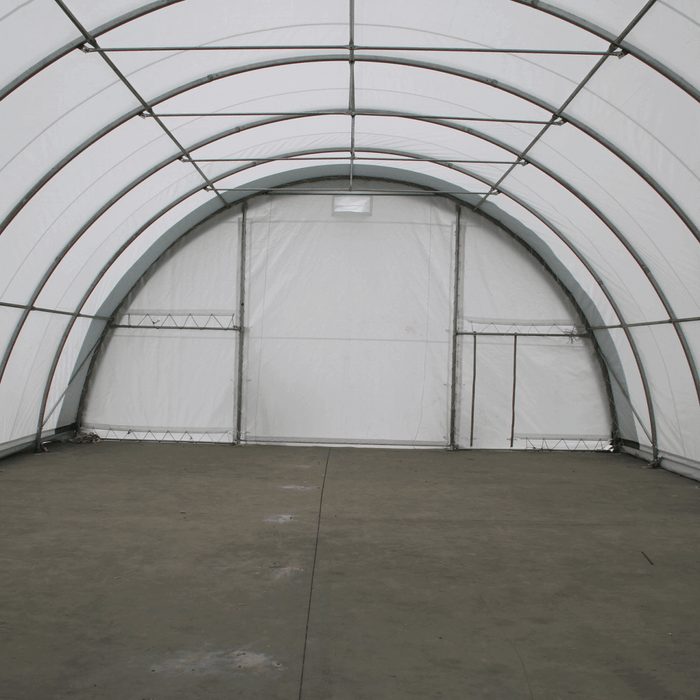

| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
14 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Ф 56x86x2mm |
| Purlin Ø |
Φ 48x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
13 |

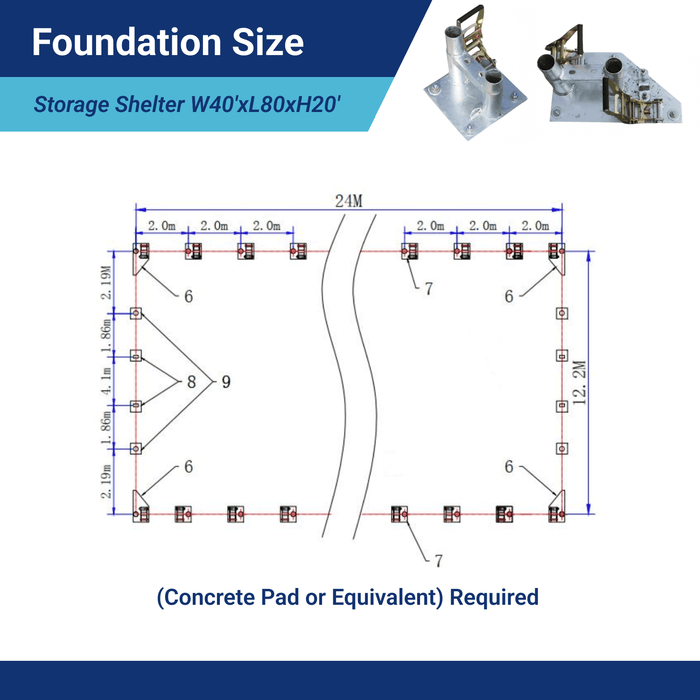

| Number of Anchor plates |
26 |

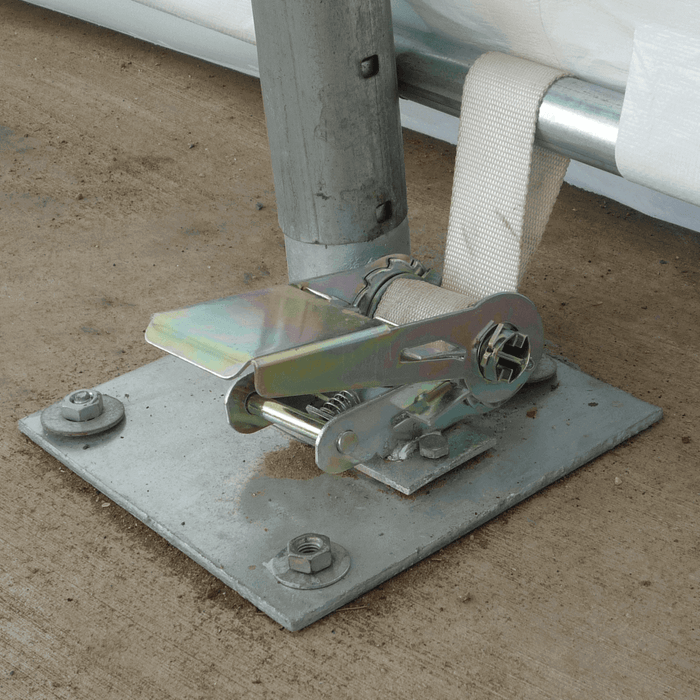

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
4 Days |
| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): Box A: 115.4x28.4x35.4; Box B: 115.4x28.4x35.4
- Weight (lb): 4895
- A forklift or equivalent is required for unloading.
Parts
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
