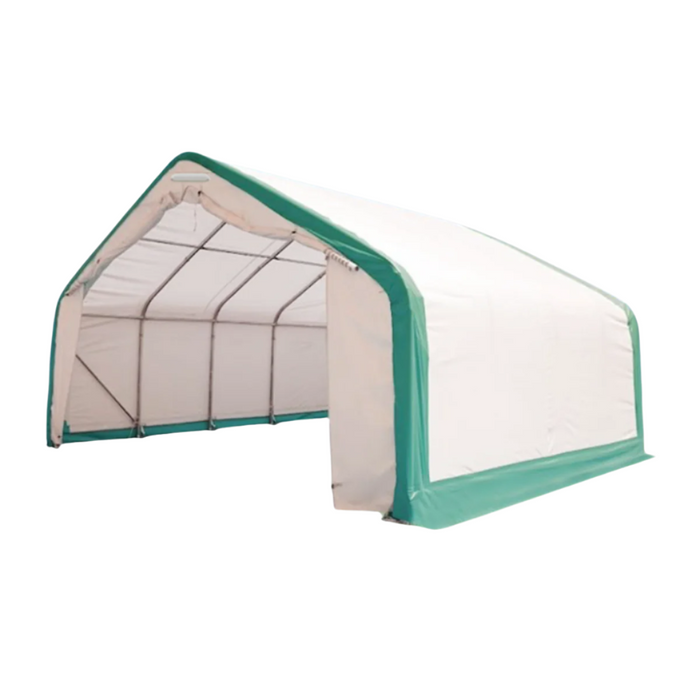

Chery Industrial Single Truss Storage Shelter W20'xL20'xH12'
The Chery Industrial Single Truss Storage Shelter W20'xL20'xH12' is a dependable and versatile outdoor storage solution engineered for superior protection and long‑lasting performance. With a spacious 400 sq ft coverage area and robust single truss galvanized steel frame, this shelter is ideal for safeguarding vehicles, equipment, tools, and materials from sun, rain, snow, and wind — making it perfect for residential, agricultural, or light commercial use. Built with a durable 15 oz PVC canopy, the shelter provides reliable all‑weather defense with UV resistance and water repellency.
Designed with usability in mind, this single truss shelter features a convenient zipper roll‑up door at both ends, allowing easy access and efficient drive‑through capability. The sturdy truss tube construction and strategic truss spacing ensure structural stability, while top‑end vents help promote airflow inside the shelter to reduce moisture build‑up. Whether you’re storing seasonal equipment, outdoor furniture, or recreational vehicles, this shelter gives you a secure, organized space that’s simple to assemble and relocate as needed.
The shelter also offers flexibility and convenience with its foundation‑free installation using stake pegs, eliminating the need for permanent groundwork. Its thoughtful design accommodates diverse uses across farming, warehousing, or hobby projects, while customizable options allow you to tailor fabric materials and sizes to match specific project demands. Backed by warranties on the frame and canopy, the Gold Mountain storage shelter is a smart investment in protecting your assets year‑round.
Features
- No building permits required*.
- Provides unlimited storage space with 20’ width, 20’ length, and 12’ height.
- Suitable for different purposes, from residential to commercial.
- The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- No need to use electricity during the day with the PVC cover providing enough natural light.
- Easy entry and exit with double doors, which are placed at both ends.

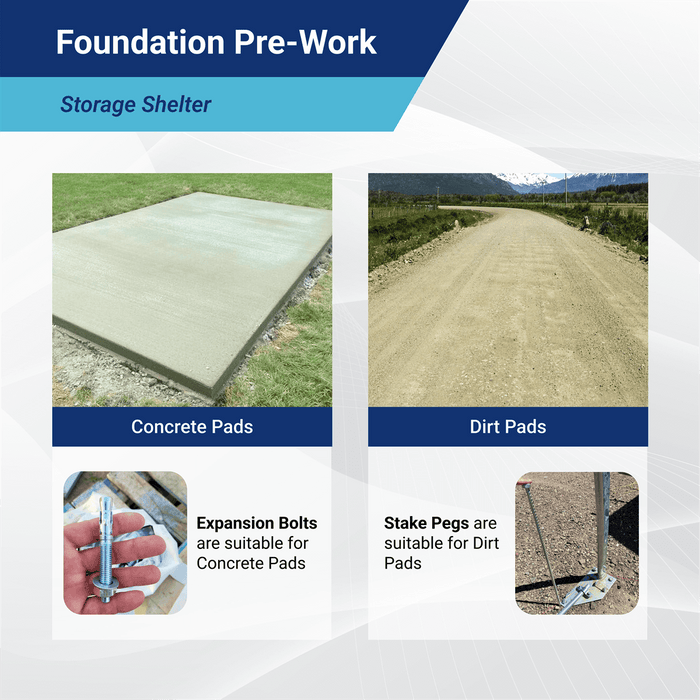

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specifications
|

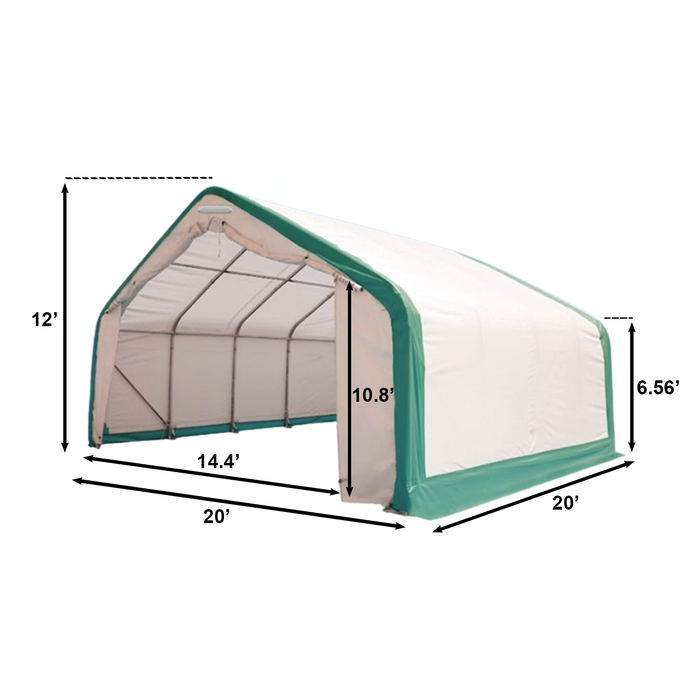

| Dimensions (WxLxH)
|
20’x20’x12’ |
| Side-wall Height |
6.56 ft |
| Door size (WxH) (Front & Rear) |
14.4’x10.8’ |
| Door Type |
Zipper Rollup Door |
| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 70x42x1.5mm |
| Purlin Ø |
Φ 40x1.2mm |
| Arch Spacing |
5 ft |
| Number of Arch |
5 |

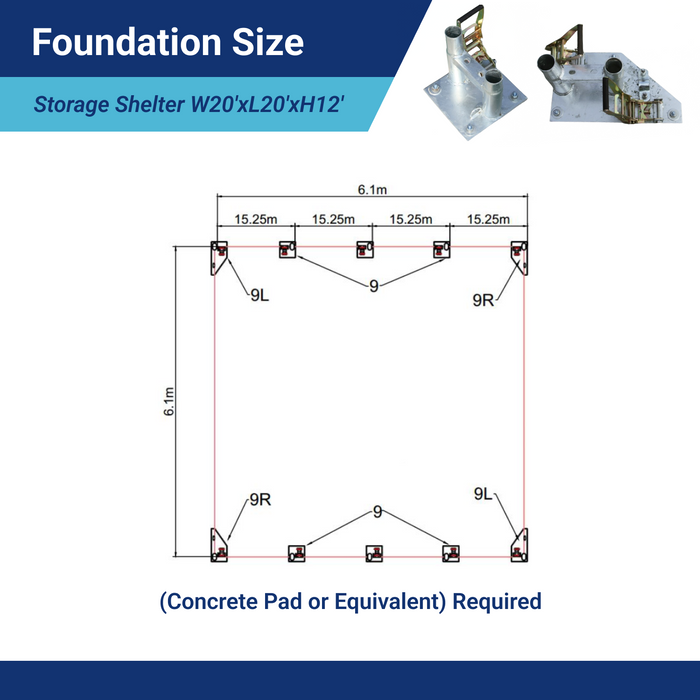

| Number of Anchor plates |
10 |

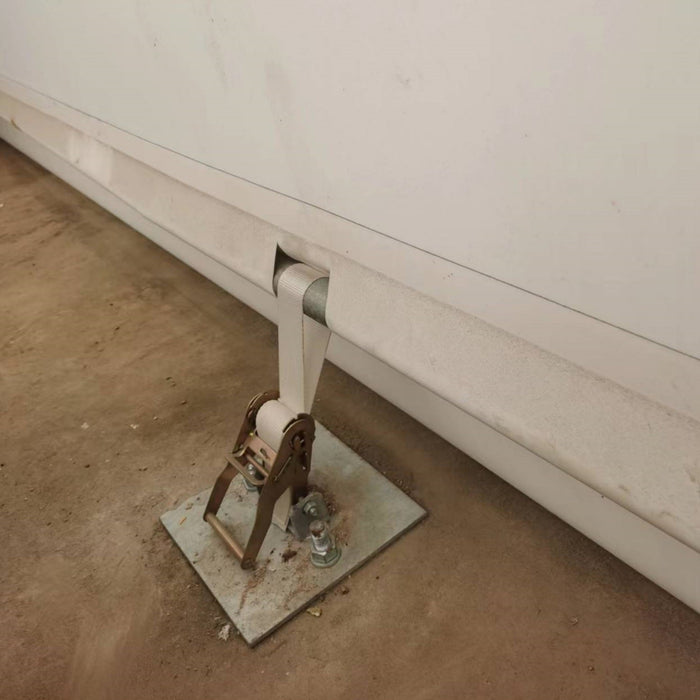

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
1 Day |

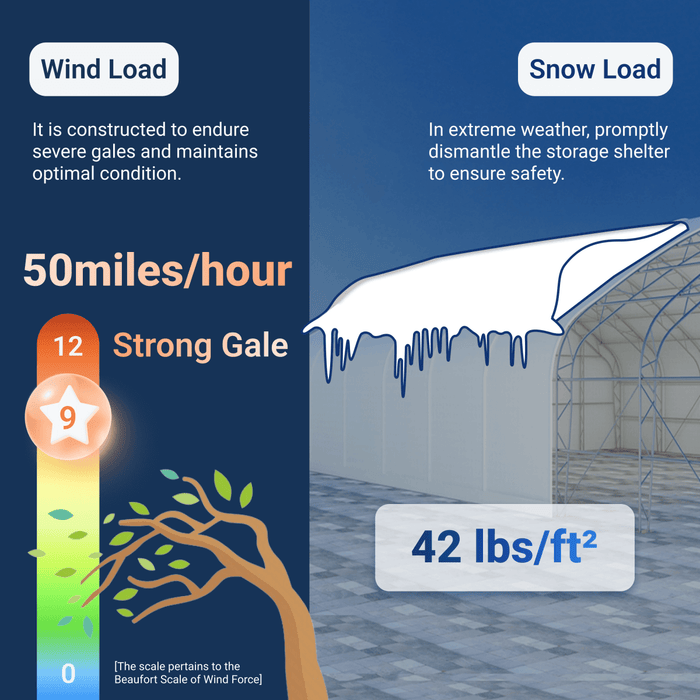

| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|

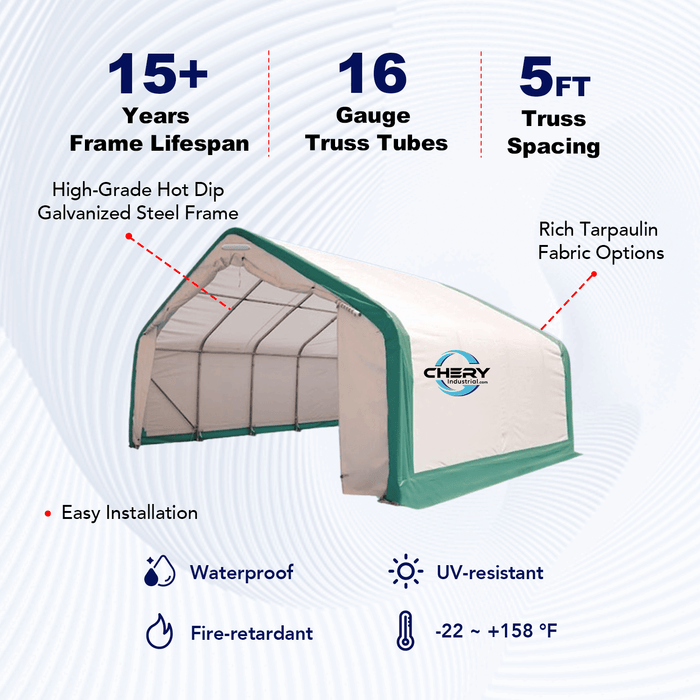

Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 85.8x29.5x19.7
- Weight (lb): 1672
- A forklift or equivalent is required for unloading.

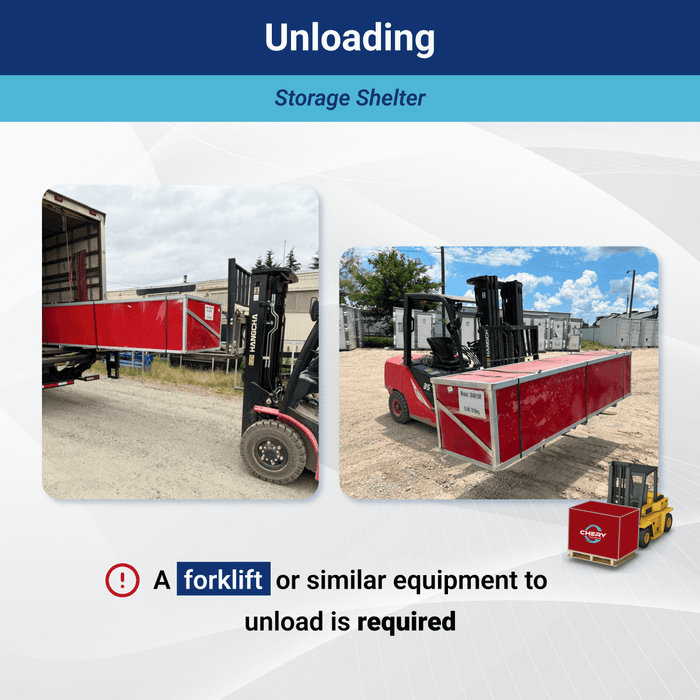

Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
