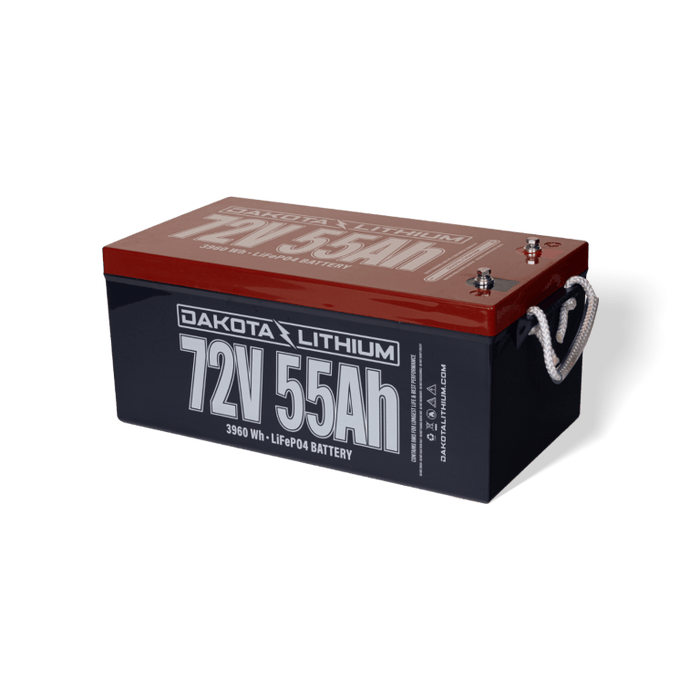

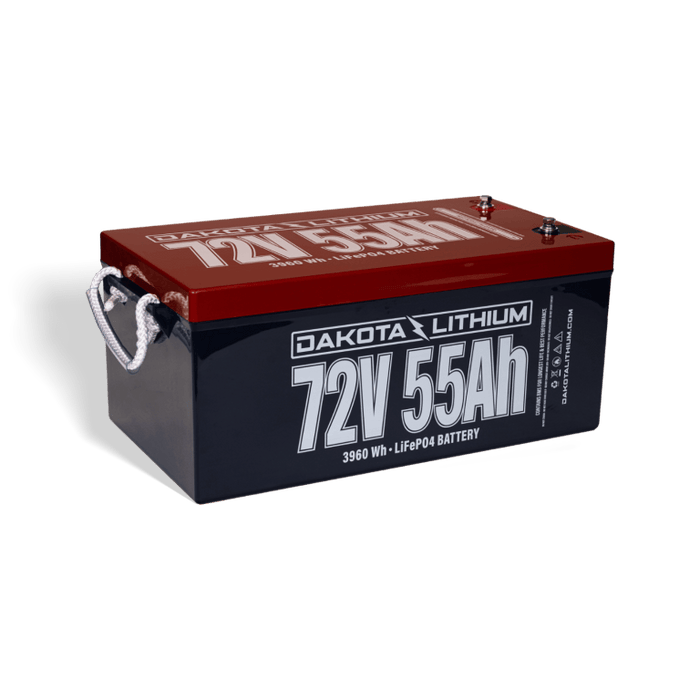

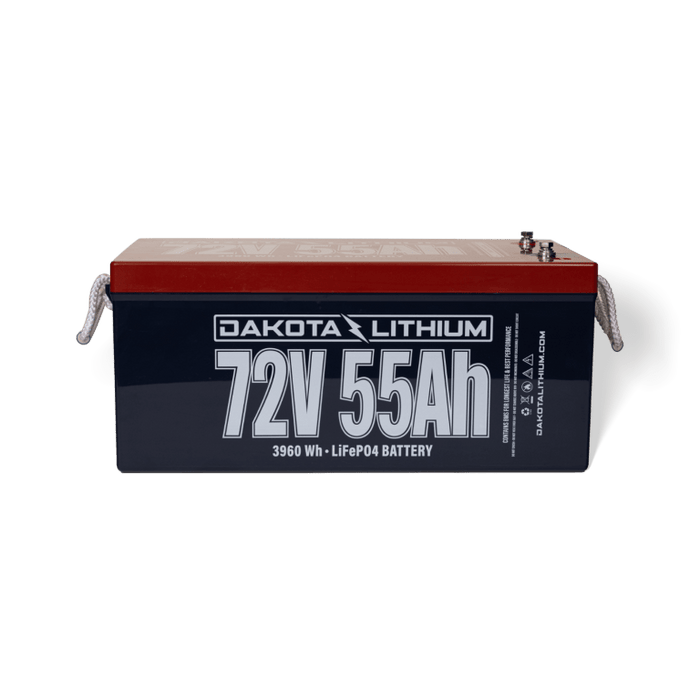

Dakota Lithium 72V 55Ah Deep Cycle LiFePO4 Battery

The Dakota Lithium 72V 55Ah Deep Cycle LiFePO4 Battery is built for high-performance 72V electric vehicles, golf carts, and electric outboard motors that demand reliable power, lighter weight, and longer battery life. Designed with advanced Lithium Iron Phosphate (LiFePO4) technology, this battery delivers consistent energy output, outstanding durability, and significantly improved efficiency compared to traditional lead acid alternatives.

With 3,960Wh of energy, a rugged internal active BMS protection system, and a weight that is dramatically lower than comparable lead acid battery setups, this battery is an excellent solution for users who want better speed, handling, and overall performance without sacrificing runtime. It is engineered as a 72V drop-in replacement for compatible systems and includes a 72V 10A LiFePO4 charger, making it a complete power solution right out of the box.

This battery is especially valuable for applications where weight reduction and long-term dependability matter. It provides a flat voltage curve for steady output throughout the discharge cycle, helping your vehicle or system perform consistently from start to finish. For higher amp motor controllers, multiple units can be connected in parallel to increase capacity and support greater power demands.

Backed by Dakota Lithium’s 11-year manufacturer defect warranty, this battery is built to go farther, last longer, and outperform traditional battery systems in demanding conditions.

Why Choose This Battery

The Dakota Lithium 72V 55Ah battery is ideal for users who want to upgrade from heavy, short-lived lead acid batteries to a more advanced lithium solution. It offers longer cycle life, better energy efficiency, lower overall maintenance, and a major reduction in weight. For golf carts, neighborhood electric vehicles, people movers, and electric marine applications, this translates into improved responsiveness, better handling, and dependable all-day power.

Its ability to be wired in parallel up to 10 units also gives users flexibility when configuring systems for more range or higher controller demands. Whether you need reliable power for recreational use or demanding daily operation, this battery is built to deliver long-term value and performance.

Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)

• Voltage: 72V

• Capacity: 55Ah

• Energy: 3,960Wh

• Terminals: M8 bolt size

• Maximum Torque: 15 ft. lbs.

• Dimensions: 20.5" L x 10.5" W x 8.62" H

• Metric Dimensions: 521mm x 268mm x 219mm

• Weight: 88.1 lbs. / 40 kg

• Cycle Life: Up to 5,000 cycles at 80% capacity under recommended conditions

• Operating Temperature: -20°F to 120°F

• Charging Temperature Note: Avoid charging below 32°F

• Max Continuous Discharge: 60A

• Max 30-Second Pulse Discharge: 120A

• Max Charge Current: 30A

• Recommended Max Charge Voltage: 86.4V

• Parallel Capability: Up to 10 units

• Charger Included: 72V 10A LiFePO4 charger

• Estimated Charge Time: Approximately 5.5 hours

Built-In Protection and Performance

This battery includes an active Battery Management System (BMS) designed to support safety, efficiency, and long service life. The system helps manage:

• Cell balancing

• Low voltage cutoff

• High voltage cutoff

• Short circuit protection

• High temperature protection

This advanced protection helps maintain battery health while delivering dependable performance in rugged and demanding environments.

Recommended Application Notes

This battery is intended for 72V systems only and is not designed for wiring in series. It can, however, be wired in parallel to increase driving range or meet the demands of higher amp motor controllers.

General recommendations:

• 100A to 250A motor controllers: 2 units recommended

• 250A to 350A motor controllers: 3 units recommended

For example, an EZGO 72V Freedom with a 350A motor controller requires 3 units in parallel. Before purchasing for other electric vehicles, it is recommended to measure the battery compartment and compare it to the battery dimensions for proper fitment.

Certifications

• UN 38 certified

• UL1642 certified cells

• Tested to IEC62133 standards

• Meets US and international transport regulations for air, ground, train, and marine shipping

• ISO 9001:2015 Certified

• Select models produced in ISO 14001 certified facilities

What’s Included

• Dakota Lithium 72V 55Ah Deep Cycle LiFePO4 Battery

• 72V 10A LiFePO4 compatible charger

Warranty

Dakota Lithium backs this battery with a best-in-class 11-year manufacturer defect warranty, providing long-term confidence and dependable support for your investment.
