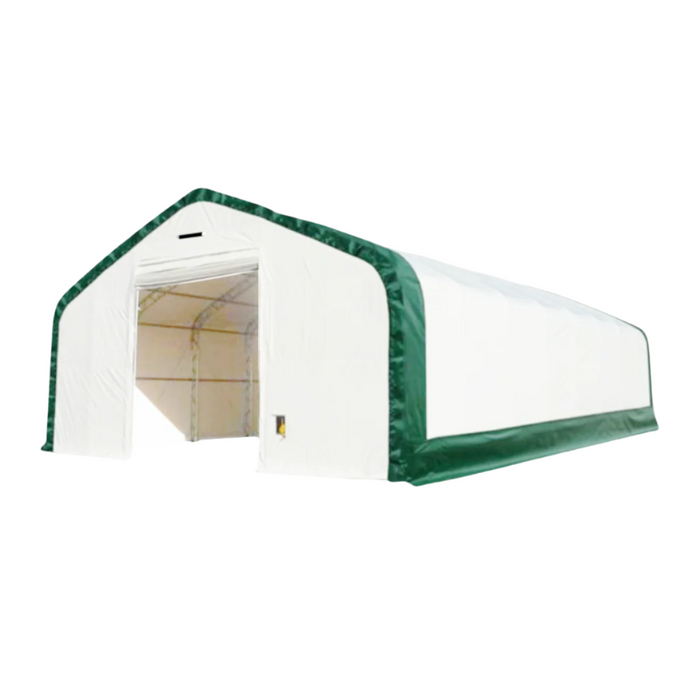

Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 20′ W × 40′ L × 16′ H
The Chery Industrial Gold Mountain Double Truss Arch Storage Shelter 20′ W × 40′ L × 16′ H is a premium, heavy-duty outdoor shelter designed to provide ample covered space and reliable protection for vehicles, equipment, materials, and machinery. Its reinforced double truss galvanized steel frame delivers enhanced strength and stability, making it ideal for withstanding snow, wind, rain, and sun exposure. This shelter maximizes interior usable space while providing versatile storage or workspace solutions for residential, agricultural, commercial, and industrial settings.

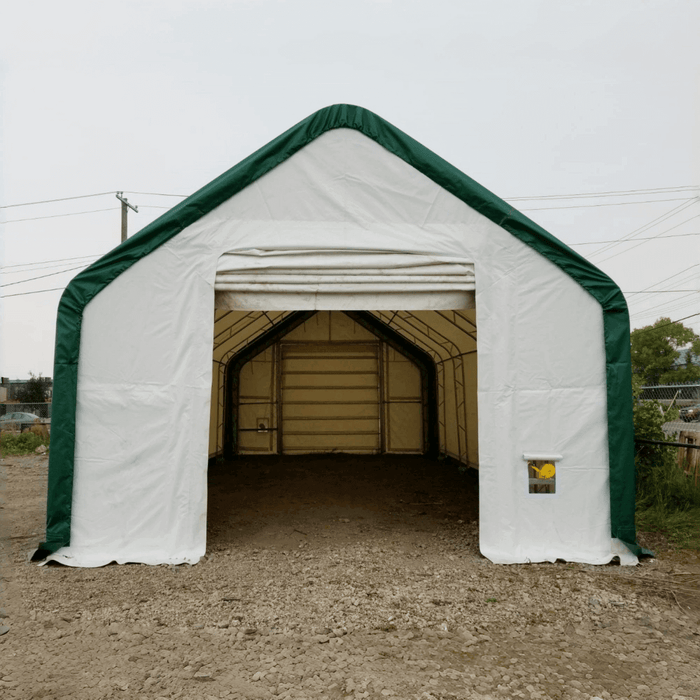

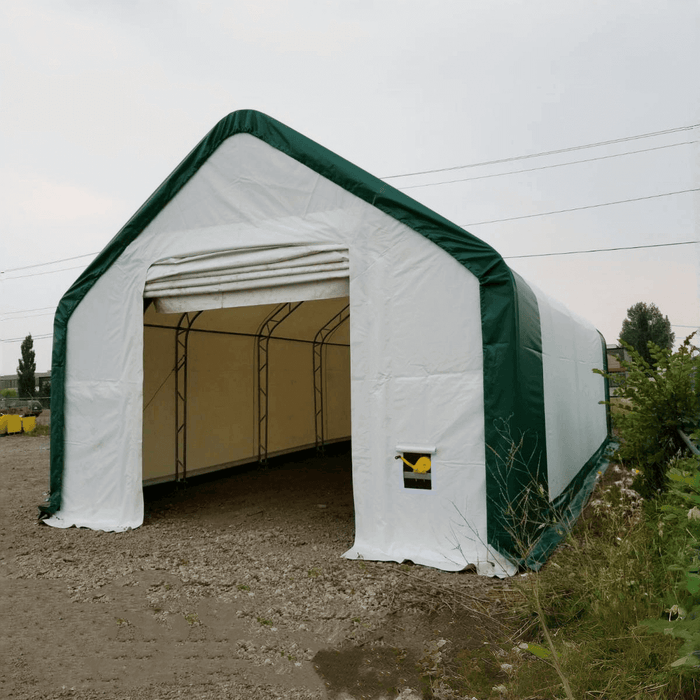

Large mechanical roll-up doors at both ends allow for easy entry and exit, even for oversized vehicles or equipment. Integrated ventilation promotes airflow, helping to reduce moisture buildup inside and keeping stored items dry and protected. No permanent foundation is required, giving you flexibility in placement and installation. This shelter is a practical solution for safeguarding valuable assets and creating a functional outdoor workspace.
Features
- No building permits required*.
- 100% waterproof, resistant to snow, and stable under storm conditions.
- Portable to install easily and dismantle quickly.
- Two large doors placed at both ends allow to facilitate entry and exit.
- PVC fabric cover blocks UV radiation and provides natural light.
- A galvanized steel frame helps the shelter to resist terrible weather conditions.
- Suitable for several purposes including industrial heavy duties, agricultural tasks, outdoor events, vehicle cover, and more.
Specifications
| Description |
Specifications
|

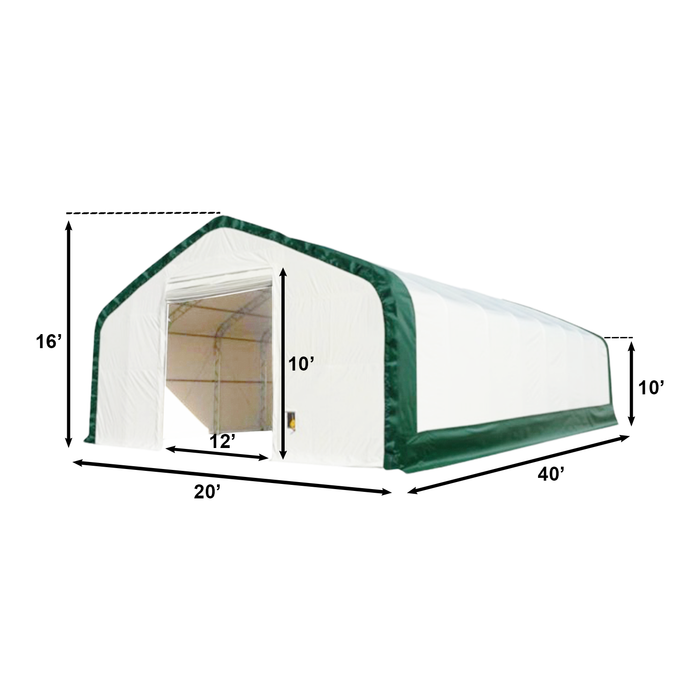

| Dimensions (WxLxH)
|
20'x40'x16' |
| Side-wall Height |
10 ft |
| Door size (WxH) (Front & Rear) |
12'x10' |

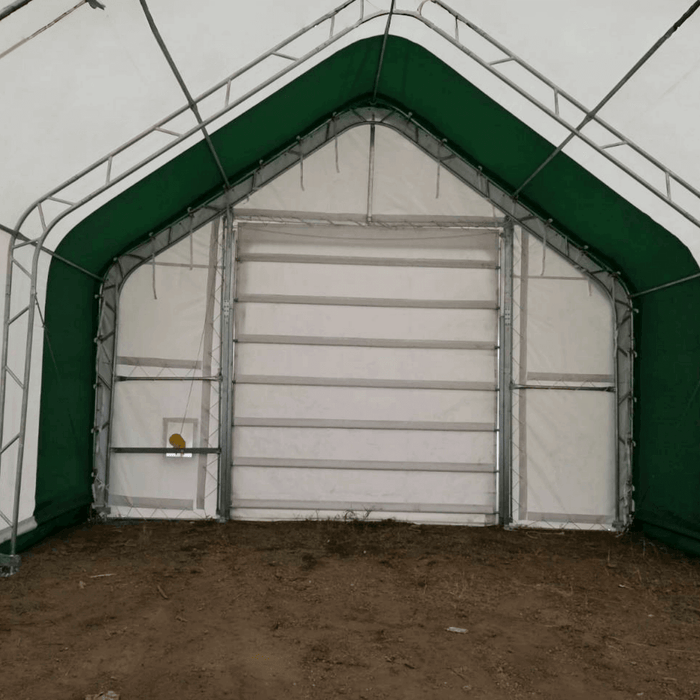

| Door Type |
Mechanical Rollup Door |

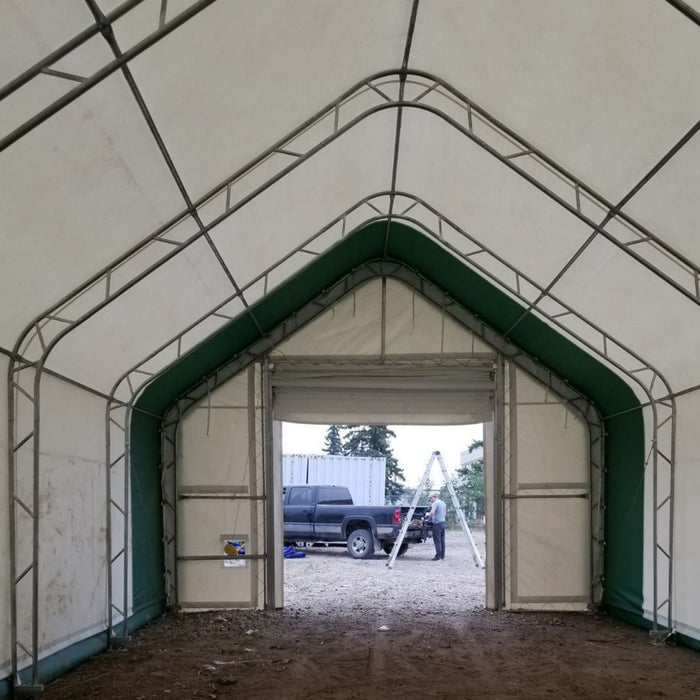

| Frame |
Double Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Ø |
Φ 40x1.5mm |
| Purlin Ø |
Φ 40x1.5mm |
| Arch Spacing |
6.56 ft |
| Number of Arch |
7 |

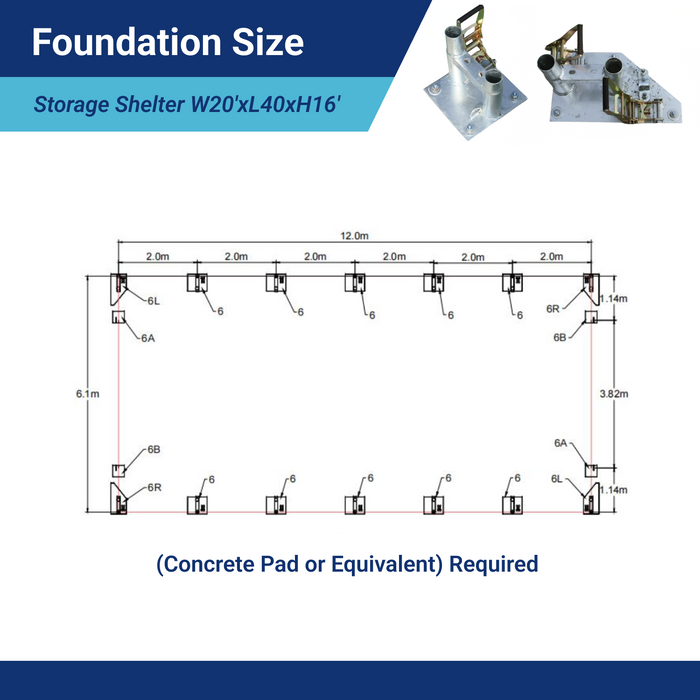

| Number of Anchor plates |
14 |

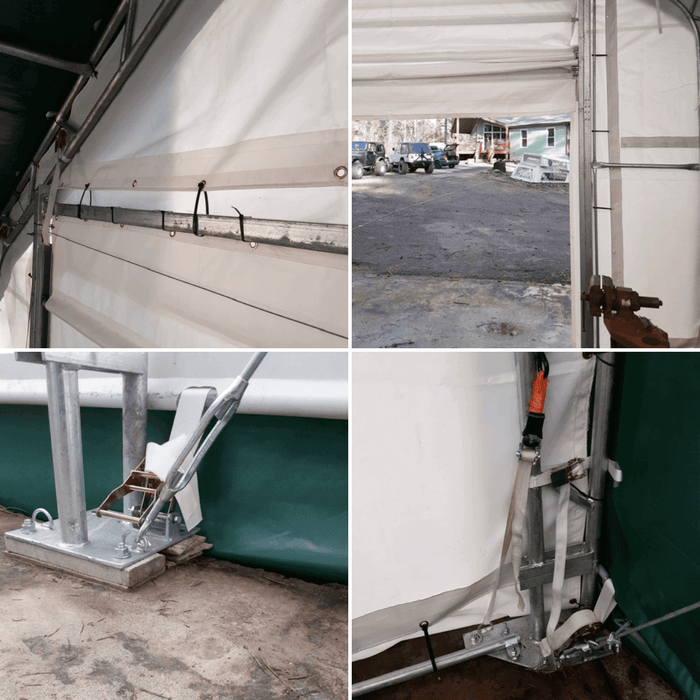

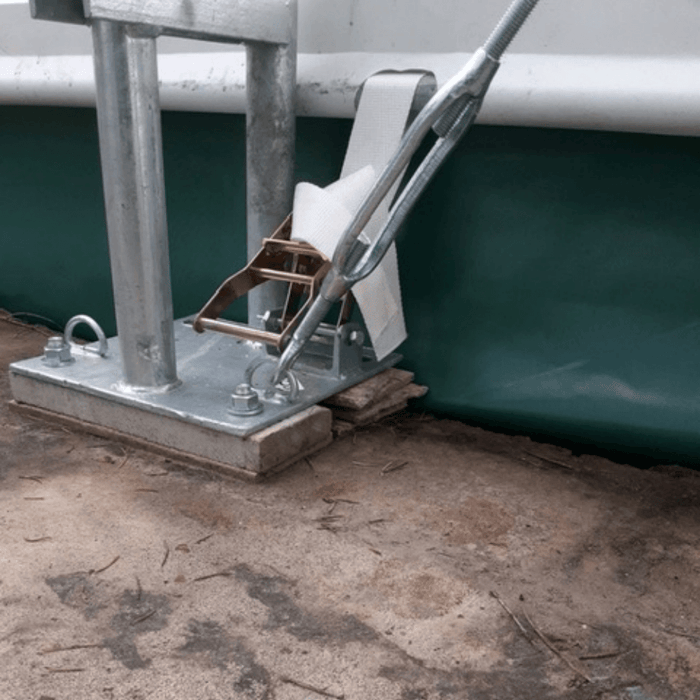

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
2 Days |

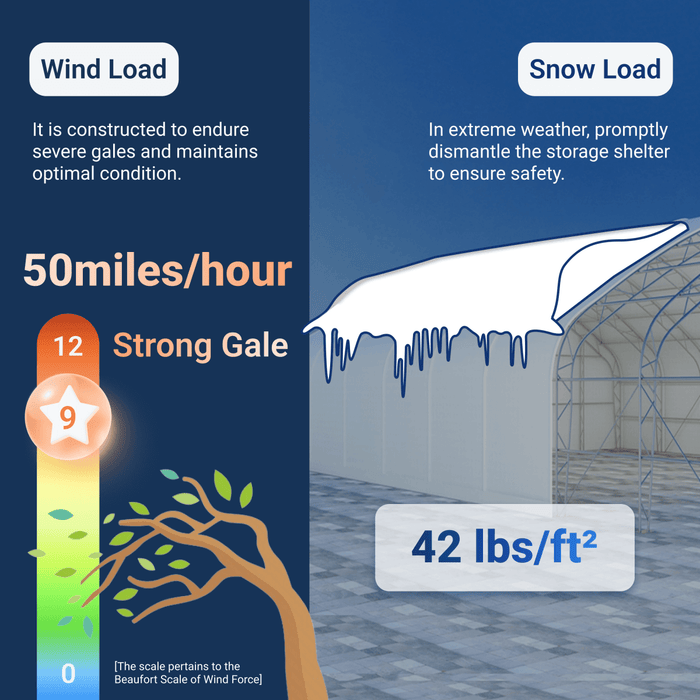

| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan
|
15+ Years |
|
Warranty
|
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
|
Fabric (Optional)
|
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
| Country of Origin |
China |

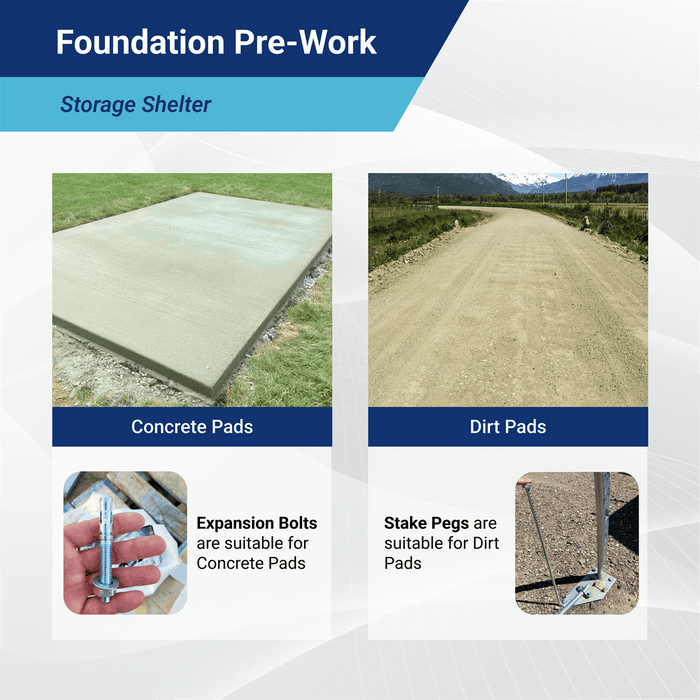

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order
Manuals
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH (inch): 87.4x43.3x40.6
- Weight (lb): 2315
- A forklift or equivalent is required for unloading
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
