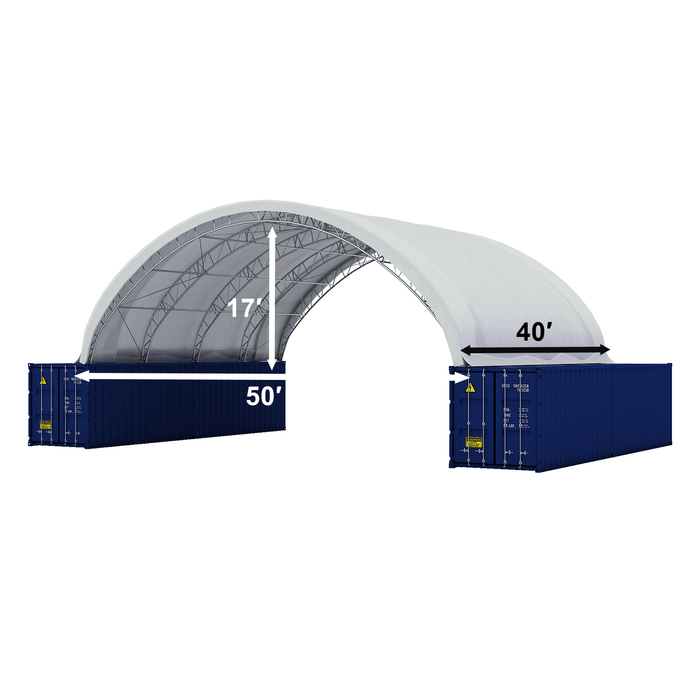

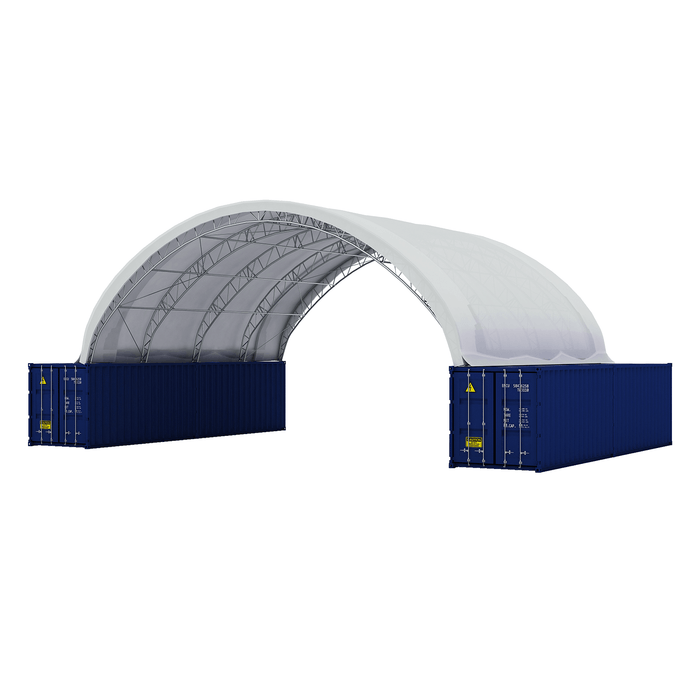

Chery Industrial Gold Mountain Fortified Double Truss Container Shelter 50′ W × 40′ L × 17′ H
The Chery Industrial Gold Mountain Fortified Double Truss Container Shelter 50′ W × 40′ L × 17′ H is a heavy-duty covered solution engineered to fit over standard 40′ shipping containers and provide expansive protection for stored equipment, machinery, materials, and workspaces. With its reinforced double truss frame and fortified design, this shelter is built to withstand challenging outdoor conditions while extending the usefulness of your storage environment. Whether used on job sites, farms, industrial yards, or other commercial settings, this container shelter enhances durability and performance where you need it most.
Constructed with a galvanized double truss steel frame, this shelter delivers exceptional strength and long-term structural integrity. The reinforced connectors and self-locking nuts help maintain tight assembly and resist loosening over time, even under heavy wind or adverse weather. Ratchet tensioners secure the canopy fabric, ensuring a snug and resilient fit that performs in tough conditions.
Designed for easy installation without a permanent foundation, the container shelter mounts directly over containers to offer reliable overhead coverage and weather protection. Its fortified PVC canopy effectively resists water, sun, and light debris, helping guard your stored assets from rain exposure and UV damage. The large footprint and peak roof design also aid in runoff and efficient protection across the container.
With a wind resistance of up to approximately 60 mph, a snow load rating of about 25 lbs/ft², and operational temperatures ranging roughly between –22 °F and +158 °F, this shelter is built for versatility and durability. The PVC canopy has an estimated lifespan of 7–10 years, while the heavy-duty steel frame is engineered for over 15 years of service life, giving you long-lasting coverage and peace of mind.
Features
-
Designed for covering standard 40′ shipping containers
-
Fortified double truss frame for enhanced strength and structural stability
-
Ratchet tensioners for tight canopy fit
-
Reinforced frame connectors with self-locking nuts
-
PVC canopy resists water, UV, and weather exposure
-
Peak roof design for efficient runoff
-
No permanent foundation required
-
Ideal for industrial, agricultural, and commercial settings
Specifications
| Description |
Specifications |
| Model |
C504017 Fortified Container Shelter |
| Dimension (ft) |
W50xL40xH17 |
| Frame |
Double Truss Galvanized Tube |
| Steel Structure |
High-Grade Hot Dip Galvanized Steel |
| Fabric |
- Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
- Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
|
| Fabric Feature |
Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature Resistance |
-22 - +158 °F |
| Front/back walls (optional) |
|
| Arch Interval |
9.8 ft |
| Arch Ø (mm) |
Ø60x1.5 |
| Purlin Ø (mm) |
Ø48x1.5 |
| Tension System |
Pipe and Ratchet Tie-Down System |
| Easy Installation |
Twist lock and clamp installation |
| Weld |
Base plates need to be welded on the Containers. |
| Average assembly time for DIY with 4 persons |
- Shelter: 3 days
- Front or back wall: ½ day per wall
|
| Safety |
The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan |
15+ years |
| Warranty |
- PE: 2 Years Warranty
- PVC: 8 Years Warranty
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
- Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading
