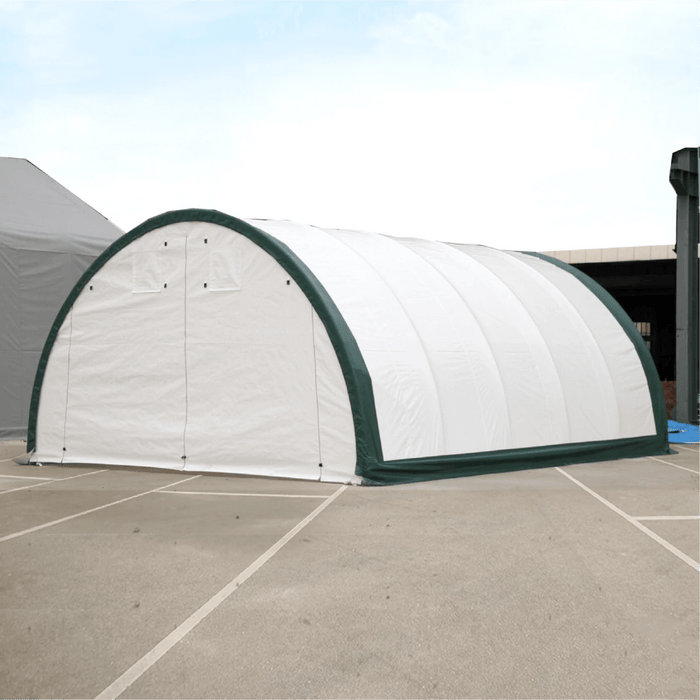

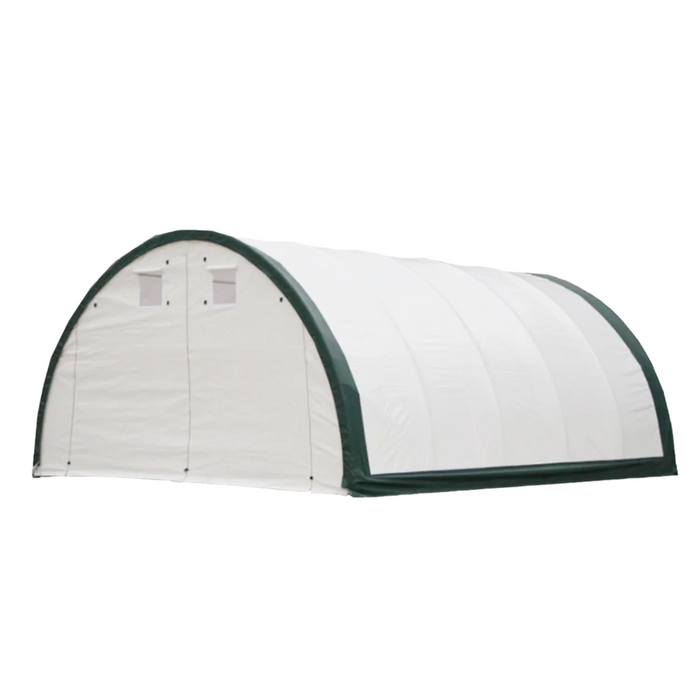

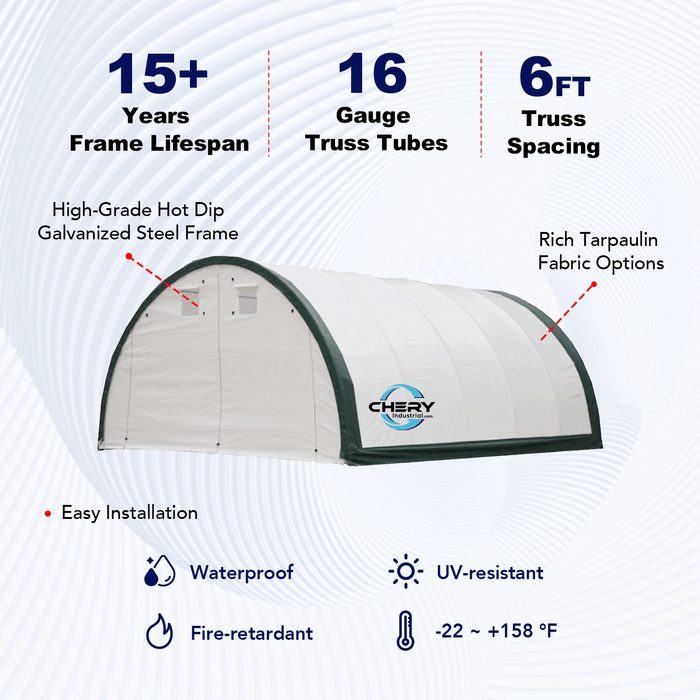

Single Truss Arch Storage Shelter W20'xL30'xH12'
The Single Truss Arch Storage Shelter W20'xL30'xH12' is a versatile and reliable outdoor structure designed to provide robust protection for equipment, vehicles, materials, and more. Offering approximately 600 sq ft of covered space, this shelter is ideal for residential, agricultural, commercial, and industrial storage needs. Its arch‑style design efficiently sheds rain, snow, and debris while maximizing usable interior clearance, making it a dependable solution for year‑round outdoor storage.
Built with a heavy‑duty 16‑gauge galvanized steel truss frame, this shelter delivers strength and long‑lasting resistance to corrosion. The premium canopy, available in durable PE or PVC fabric options, provides waterproof and UV‑resistant protection to shield contents from harsh weather conditions. The translucent cover also allows natural daylight into the space, enhancing visibility inside during daytime use.

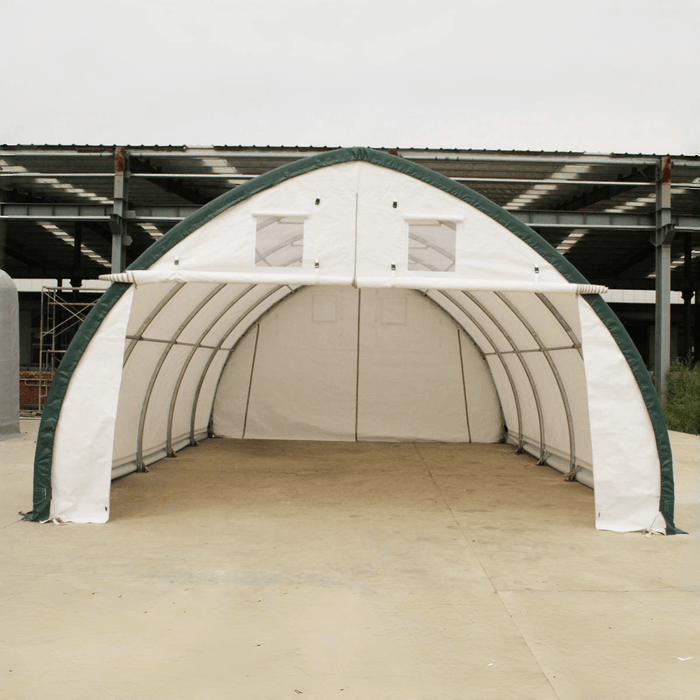

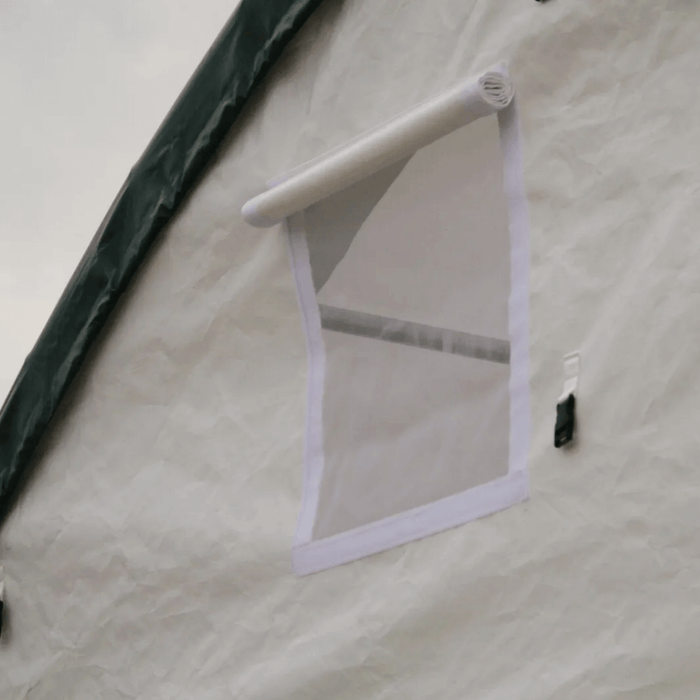

Access is made easy with large zipper roll‑up doors on both the front and rear, allowing vehicles and equipment to drive through or be positioned quickly. The built‑in ventilation system promotes airflow and helps reduce moisture buildup, preserving the condition of stored items. This shelter can be set up without a permanent foundation using the included stake pegs, offering flexible placement on sites like farms, worksites, or residential properties.
Designed for easy assembly and relocation, the 20′ × 30′ × 12′ storage shelter combines practicality, durability, and weather protection to help keep your belongings safe outdoors. Its thoughtful engineering makes it suitable for a wide range of storage and canopy applications year‑round.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
Features
- No building permits required*.
- 12ft drive through the front door to end door
- An average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
- Style: Freestanding
- Commercial-grade galvanized steel tubes
- 100% waterproof, fire retardant, UV inhibitor
- Simple assembly, super easy to install
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Type: Prefabricated Building

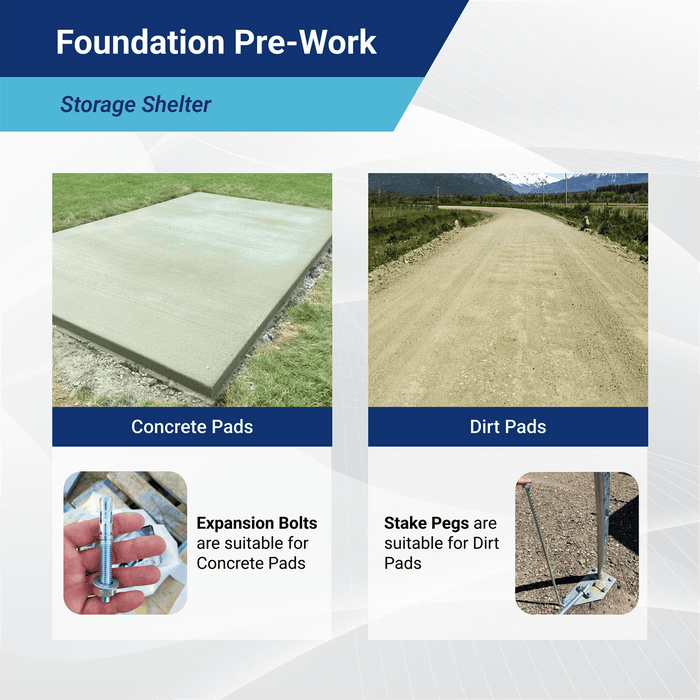

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specification |

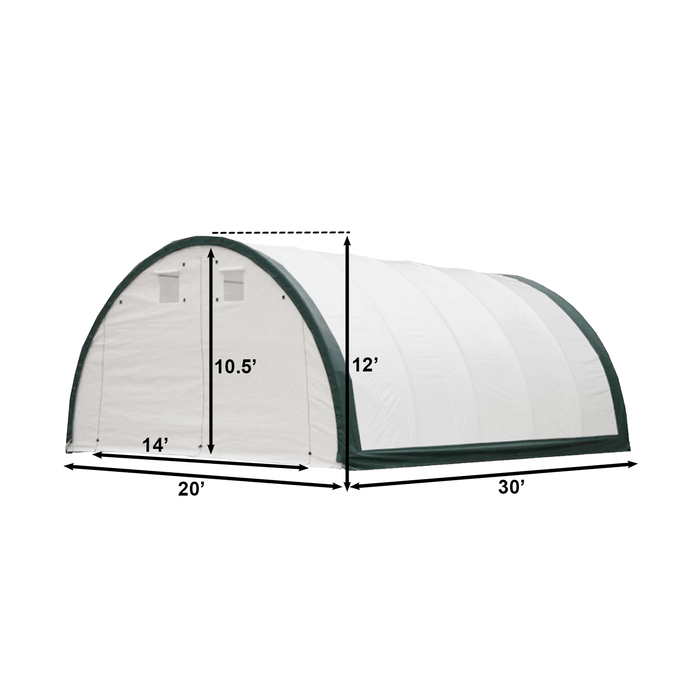

| Dimensions(WxLxH) |
20'x30'x12' |
| Door size (WxH) (Front & Rear) |
14'x10.5' |
| Door Type |
Zipper Rollup Door |
| Frame |
Single Truss Galvanized Tube |
| Steel Frame |
Hot Dip Galvanized Steel |
| Truss tube |
16 Gauge |
| Tarp Fabric |
PE or PVC |
| Tarp Color (customizable) |
White with Green/Red Edge |
| Temperature resistance |
-22 - +158 °F |
| Arch Φ |
Φ 70x42x1.5mm |
| Purlin Φ |
Φ 40x1.2mm |
| Arch Spacing |
6 ft |
| Number of Arch |
6 |

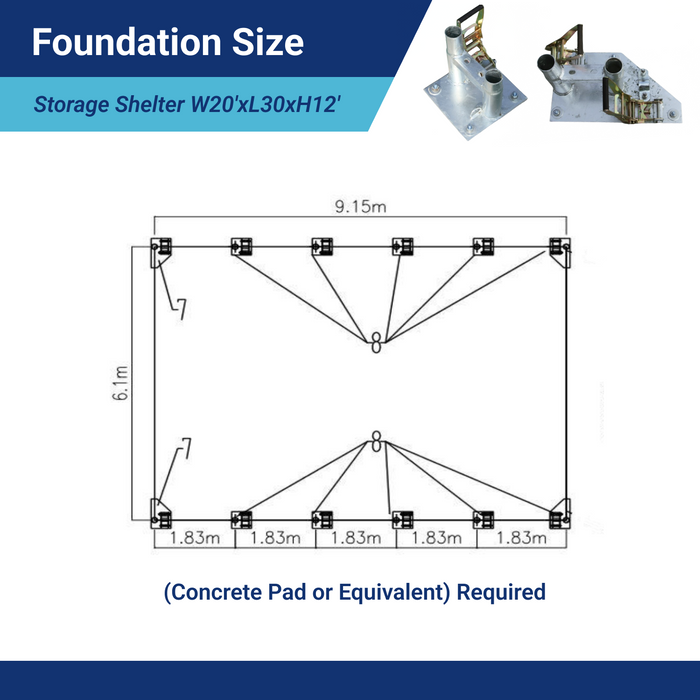

| Number of Anchor plates |
12 |

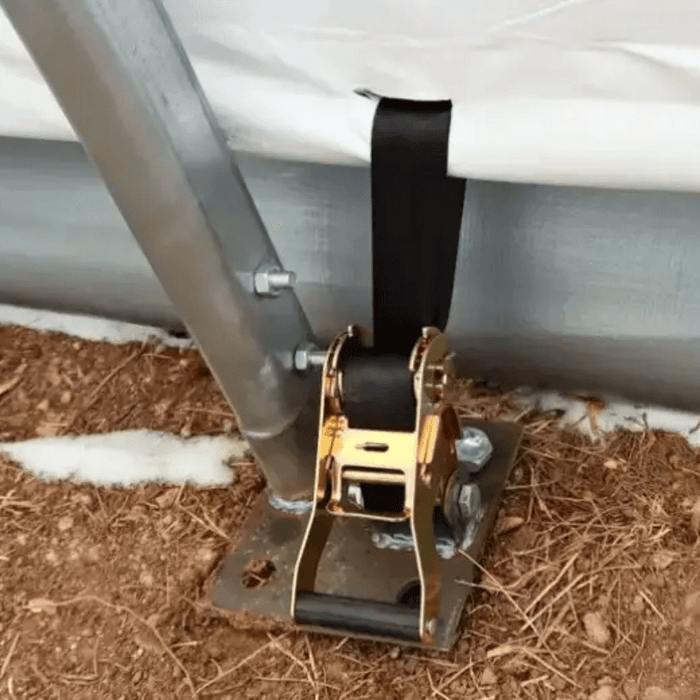

| Tension System |
Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons |
1 Day |

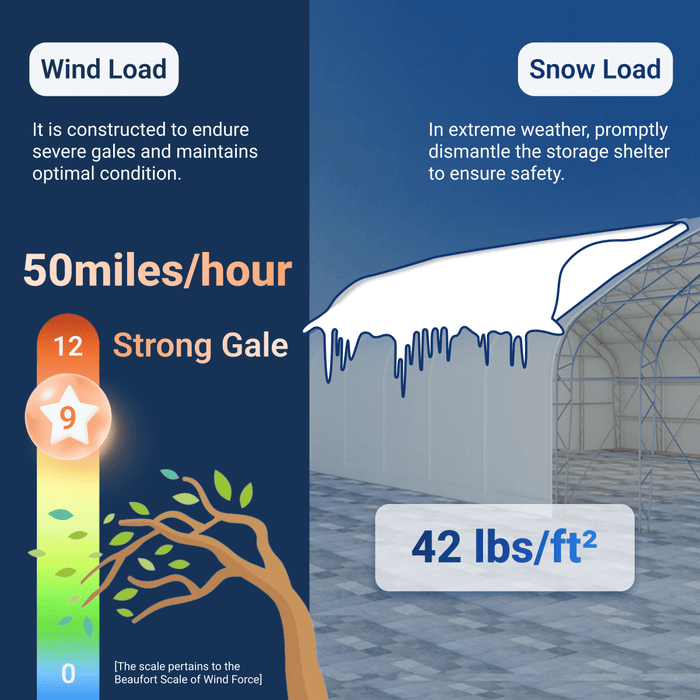

| Snow Load |
42 lbs/ft² |
| Wind Load |
50 miles/h |
| Tarp lifespan |
7-10 years, depending on the type of fabric and environmental conditions. |
| Frame lifespan |
15+ Years |
| Warranty |
- PE: 2 Years Warranty.
- PVC: 8 Years Warranty. |
| Fabric (Optional) |
- Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
- Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
- Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
- Please contact us to order.
|
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Package Size
- LxWxH(inch): 85.8x29.5x19.7
- Weight(lb): 794
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
