Description
This product only includes an air handler.
The MRCOOL VersaPro 3 Ton Central Ducted Air Handler delivers efficient and dependable heating and cooling for spaces up to 1,500 square feet. With a SEER2 rating of up to 17.4, it provides enhanced energy performance, making it an excellent replacement for older, less efficient HVAC systems.
Built for long-term durability, this air handler features a sturdy painted galvanized steel cabinet that resists wear and ensures reliable operation for years to come. Its self-diagnostics panel simplifies maintenance by quickly detecting and displaying any system errors, minimizing downtime and service interruptions.
The unit offers versatile installation options, supporting upflow, downflow, and horizontal (left or right) configurations to accommodate various home layouts. It operates using R-454B refrigerant, an environmentally friendly option that helps reduce greenhouse gas emissions while maintaining optimal performance. For added heating capacity, an optional heat kit can be installed.

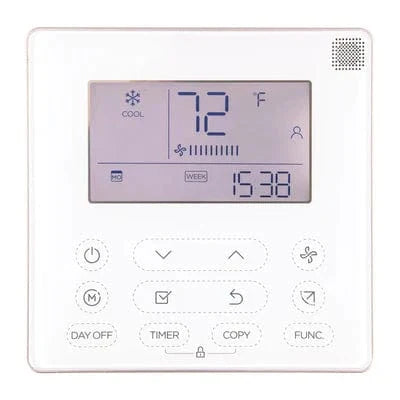

The included MRCOOL Smart Thermostat allows for precise temperature control, while compatibility with the SmartHVAC app enables remote access and adjustments directly from your smartphone or tablet. This air handler also works seamlessly with the Central Ducted Hyper Heat system, offering comprehensive year-round comfort.
Protected by a 10-year limited warranty, the MRCOOL VersaPro 3 Ton Central Ducted Air Handler combines energy efficiency, flexibility, and long-lasting reliability—making it a smart upgrade for your home's HVAC system.
Specifications
Dimensions
|
21.02" D x 49.02" H x 21.02" W
|
CFM
|
1188.97/1083.02/971.19/865.24
|
Tonnage
|
3
|
Cooling Capacity (BTU)
|
36000
|
Heating Capacity (BTU)
|
36000
|
Voltage (V)
|
115/208-230
|
Phase
|
1
|
Cycle
|
60
|
Max Fuse Breaker (A)
|
15
|
Min Circuit Ampacity (A)
|
8.0/6.0
|
Color
|
gray
|
Decibel Rating Low (DBA)
|
28
|
Decibel Rating High (DBA)
|
48
|
Number of Speeds
|
3
|
Max Lineset Length (FT)
|
246 ft
|
Liquid Line Size
|
3/8
|
Suction Line Size
|
3/4
|
Filter Type
|
Replaceable
|
Filter Size
|
19x20x1
|
Auxiliary Heater Included
|
No
|
Auxiliary Heater Available
|
Yes
|
Auxiliary Heater Sizes
|
5kW/8kW/10kW/15kW/20kW
|
Adjustable Thermostat
|
Yes
|
WIFI Compatibility
|
Yes
|
APP Compatibility
|
Yes
|
ETL Certified
|
Yes
|
Energy Star Certified
|
Yes
|
AHRI Certified
|
Yes
|
Base Parts Warranty
|
10 Years
|
Base Compressor Warranty
|
10 Years
|
Contains Electronics
|
Yes
|
Contains Chemicals |
Yes
|
Contains Compressed gas
|
Yes
|
Net Weight (Lbs)
|
129.41
|
Gross Depth (In)
|
24.41
|
Gross Height (In)
|
52.56
|
Gross Width (In)
|
26.57
|
Gross Weight (Lbs)
|
153.88
|
Product Warranty
MRCOOL Limited Lifetime Warranty
LIMITATIONS OF WARRANTIES
Q1 How do I register my warranty?
Answer: Go to here to file your warranty.
Q2 How do I find the AHRI number of my unit?
Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
