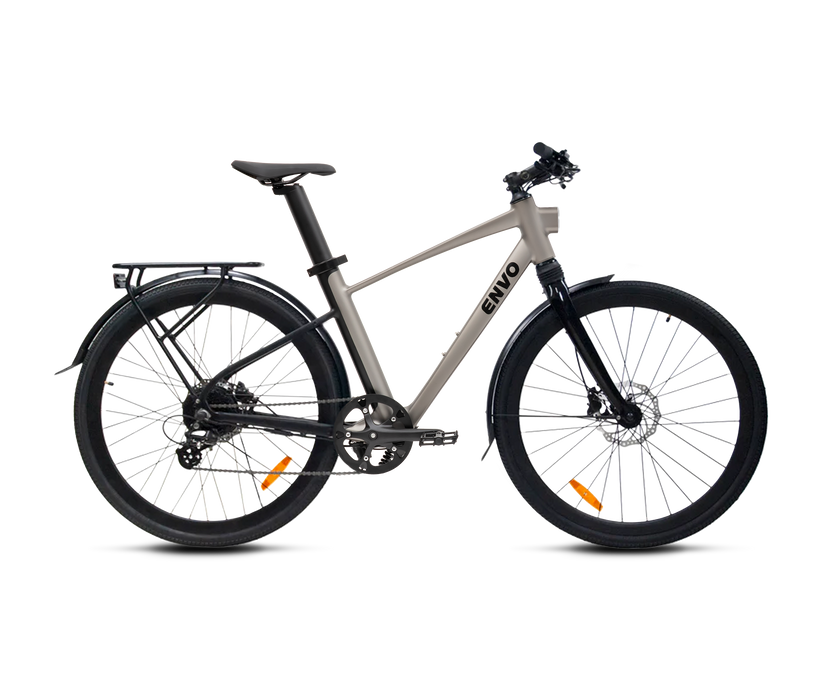

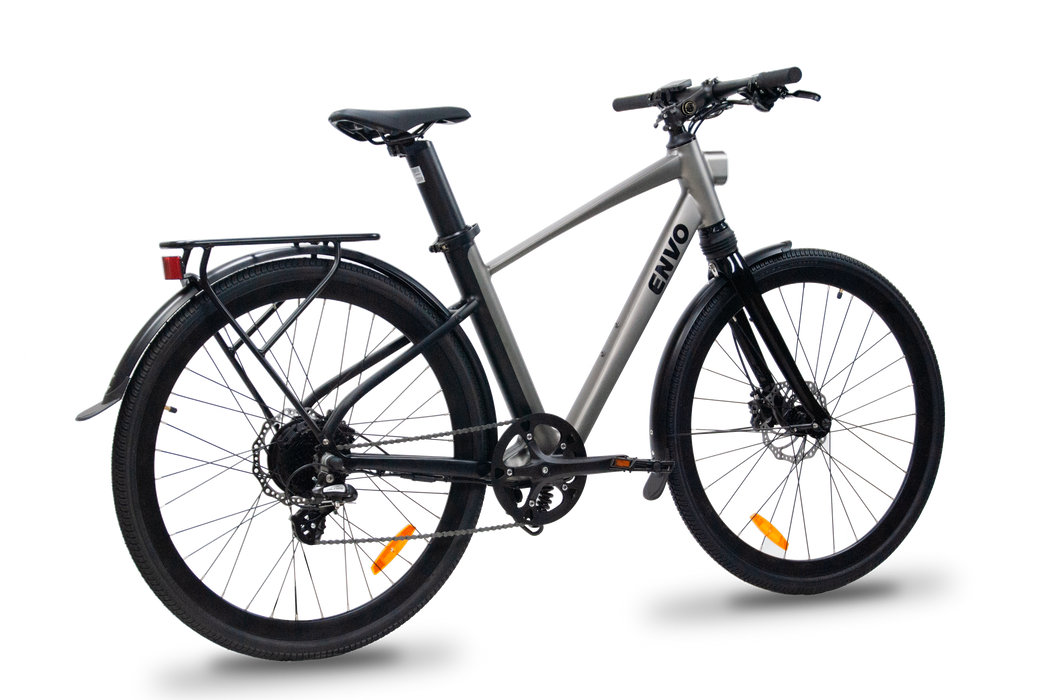

The ENVO Stax pro is an electric bicycle that offers premium features and specifications, yet is priced affordably, making it accessible to a wider range of riders. Despite its affordable price point, the ENVO Stax pro boasts a high-quality build, advanced components, and exceptional performance. It provides riders with a comfortable, efficient, and enjoyable riding experience that rivals that of much more expensive e-bikes.
ENVO Stax pro is designed to stylish and streamlined, all the welds are smoothened, headlight is directly integrated in the bike frame, and all the cables are hidden and routed internally.
The ENVO Stax pro electric bike is capable of generating a whopping 500W of power, which is twice the output of an Olympic cyclist. This allows the rider to accelerate faster, tackle steeper hills, and travel longer distances with less effort.
Intelligent Display & Smart Diagnostics
The D50 features a Smart Display with Bluetooth for easy ENVO app connectivity. Real-time Battery Cell Data and Smart Charging Communication enhance safety and battery life.
42 lbs! That's it
The ENVO Stax is the lightest bike in its category, boasting a cutting-edge design and premium materials. Our engineers optimized every aspect of the bike, creating an unparalleled ride that's fast, responsive, and efficient. The bike weight only 42lbs without accessories (eg: suspension fork, rear carrier, kickstand etc.)
Size
Measurements
| A |
Effective Seat Tube Length |
18.1" |
46.0cm |
| B |
Effective Top Tube Length |
23.0" |
58.3cm |
| C |
Tire Diameter |
27.5" |
69.9cm |
| D |
Minimum Seat Height |
34.2" |
87.0cm |
| E |
Maximum Seat Height |
40.1" |
102.0cm |
| F |
Stepover Height |
27.1" |
69.0cm |
Sizing Chart
| 1. |
Height |
5'5"–6'5" |
1.65–1.95m |
| 2. |
Inseam |
30"–37" |
76–93.8cm |
Specs
-
Frame: Hydro-formed Alloy 6061 TIG welded
-
Fork: ZOOM 109D mono-shock fork, tapered from 1-1/8"to 1-1/2",with internal cable routing
-
Headsets: NZX-2 | Φ28.6xΦ56xΦ39.8,internal cable routing
-
Handlebar: MTB-AL-345BT, W=680mm*φ31.8mm,Back Sweep（9
-
Brake Set: Shimano Hydraulic Disk brakes BR-MT200,with 180mm Rotr
-
Pedal: Alloy, 9/16″ WELLGO
-
Chain: TEC,C70
-
Sensor: PAS/thumb throttle, speed sensor
-
Transmission: SHIMANO Altus SL-M315 - 8Speed
-
Tire: Kenda,27.5x1.95，K1153
-
Motor: Brushless 36V 500W rear motor
-
Battery: UL 2271 Certified 36V12.8Ah
-
Charger: Charger 36V/2A
-
Controller: LD-LS83 48V 25A Lishui Jianyu CAN
-
Display: LCD Color Display panel, with bluetooth connectivity
Stax Pro Vs Stax
Both the Stax and Stax Pro are electric road bikes that are designed to look and feel like traditional road bikes. They both have the same lightweight aluminum frame, comfortable geometry, and powerful hub motor. They also both come with a 460Wh battery that provides up to 100 km of range.
Differences
The main differences between the Stax and Stax Pro are:
Suspension: The Stax Pro comes with a suspension mono-shock fork, which can help to absorb bumps and vibrations from the road. The Stax does not have a suspension fork.
Seatpost Clamp: The Stax Pro comes with a locking seatpost clamp as standard, while the Stax requires you to purchase a locking seatpost separately.
Adjustable Handlebar: Stax Pro comes with adjustable handlebar allowing you to finetune the reach and stack.
Tire Size: Stax Pro comes with 27.5'' hydbrid tires compared to 700C road tires for Stax.
Battery: The Stax Pro allows you to use a dual battery option, which can extend the range of the bike to up to 200 km. The Stax does not have this option.
Accessories: The Stax Pro comes with all the accessories assembled, including a rear rack, throttle, fenders, and kickstand. The Stax requires you to purchase these accessories separately.
