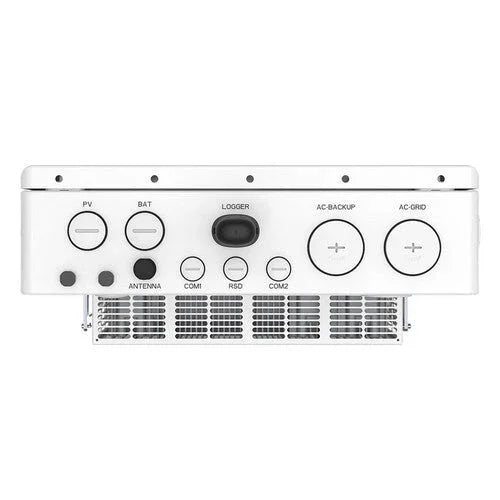

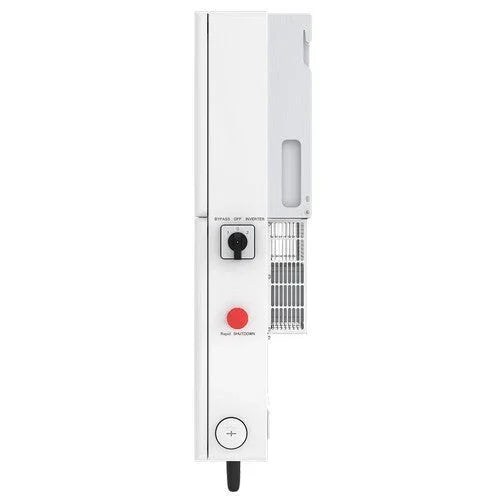

Solis S6-EH1P7.6K-H-US-RSS, 7.6kW Single Phase Four MPPT Hybrid Inverter with Tigo Transmitter
The Solis S6-EH1P7.6K-H-US-RSS is a 7.6 kW single-phase hybrid inverter from the Solis Series 6 lineup, designed for residential solar and energy storage applications. Certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, this model integrates four MPPTs, high current inputs, and Tigo-certified rapid shutdown compliance. Its advanced design allows seamless integration with lithium-ion batteries, ensuring efficient solar power conversion and reliable backup capabilities.
Key Features
• 7.6 kW single-phase hybrid inverter with integrated Tigo rapid shutdown transmitter
• Four MPPTs with up to 16A DC input current per string for high-capacity PV modules
• UL 1741 SB, IEEE 1547-2018, and California Rule 21 certified
• High DC:AC ratio of 1.6, enabling greater PV capacity per inverter
• Provides up to 50A / 11.4 kW continuous backup power from a single unit
• Fast <10 ms transfer time for reliable load protection during outages
• Split-phase backup support without requiring an external ATR
• Supports generator interconnection for grid-independent operation

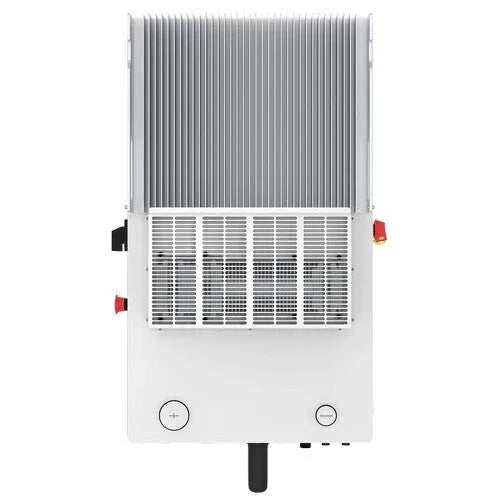

• Fanless natural convection cooling for reduced complexity and longer life
• Remote configuration and firmware updates through the Solis app
• UL 9540 certified for compatibility with multiple battery brands (up to 150 kWh)
Benefits
This hybrid inverter provides homeowners with advanced energy flexibility, combining PV generation with battery integration to maximize self-consumption and backup reliability. Its four MPPT inputs ensure maximum energy harvest across varying roof orientations and shading conditions. The built-in Tigo transmitter guarantees NEC 2017 rapid shutdown compliance, enhancing system safety. With multiple operating modes, grid-forming capabilities, and high efficiency for both PV and battery conversion, the Solis S6 delivers energy independence and long-term savings while supporting sustainability goals.
Specifications
Solis S6-EH1P7.6K-H-US-RSS, 7.6kW Single Phase Four MPPT Hybrid Inverter with Tigo Transmitter Product Specifications
| Technical Data |
S6-EH1P7.6K-H-L-US |
| Rated output power |
7.6kW |
| Max. apparent output power |
12.2 kVA, 10 sec |
| Back-up switch time |
＜10 ms |
| Phase Power |
240V Split-Phase |
| Rated output voltage(L1-L2)/(L1/L2-N) |
240 V/120 V |
| AC output voltage range |
204-276 V |
| Rated grid frequency |
60 Hz |
| Rated AC output current (continuous) |
31.7A |
| Max. output current for 10 seconds |
50.7A |
| Max. output current for 300 milliseconds |
57.06A |
| Max. allowable phase imbalance |
100% |
| Backup support configurations |
Dedicated loads and whole-home |
| Power Factor |
>0.99 (0.8 leading - 0.8 lagging) |
| THDv(@linear load) |
<3% |
| Efficiency |
|
| PV Max. efficiency |
97.6% |
| PV CEC efficiency |
97.2% |
| BAT charged by PV Max. efficiency |
98.5% |
| BAT charged/discharged to AC Max. efficiency |
97.0% |
| Protection |
|
| Ground fault detection |
Yes |
| Residual (leakage) current detection |
Yes |
| Integrated AFCI (DC arc-fault protection) |
Yes |
| DC reverse-polarity protection |
Yes (PV only) |
| Rapid Shutdown NEC 2017 |
Integrated SunSpec-certified Transmitter |
| Compatible Rapid Shutdown Receivers |
See MLRSD compatibility sheet |
| Protection class/Over voltage category |
I/II |
Warranty
Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale
Warranty Terms
The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.
The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.
The company may repair or replace faulty components at its discretion.
This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.
Warranty Extension
The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).
Warranty Limitations
The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.
The Warranty is not transferable and applies to brand new Goods only.
Defective parts replaced under Warranty become the property of the Company.
The Warranty does not cover:
- The Warranty does not cover:
- Consequential damages including but not limited to loss of revenue;
- Claims by third parties other than the Customer;
- Defects of installation. (Except where the installation is performed by the Company);
- Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
- Items ancillary to installation not supplied by the Company;
- Duties, import/export fees or costs and other general administrative costs;
- Damage to Goods caused by misuse, improper handling or unauthorized modification;
- Loss or damage occurring whilst in transit;
- Accidental or willful damage;
- Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
to cover such Goods.)
Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.
Warranty Claims Procedure
To make a warranty claim the following information needs to be provided:
- Completed RTM Inspection Form
- Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)
- Copy of the invoice for the inverter
- Copy of the installation report and installation certificate
The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.
Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
