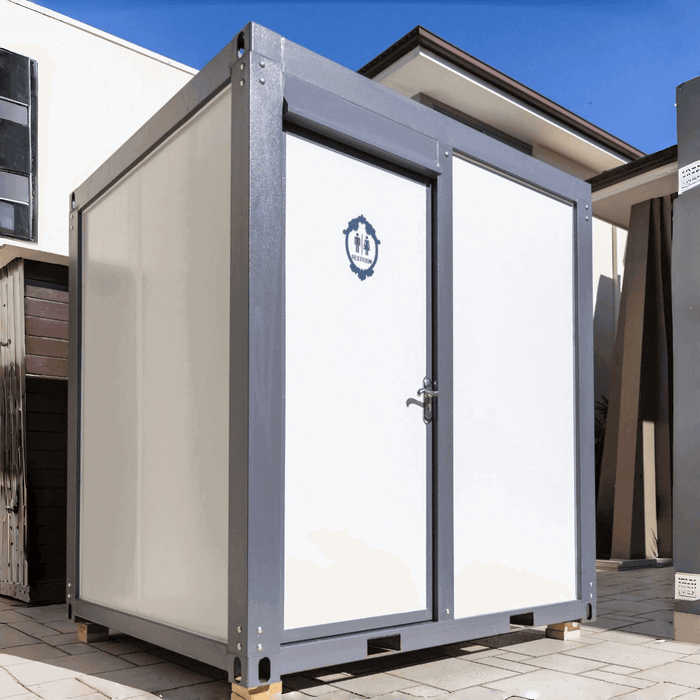

Chery Industrial Bastone Portable Toilet with Fan‑Shaped Door Shower
Please note that a forklift or equivalent equipment will be required for unloading at delivery.

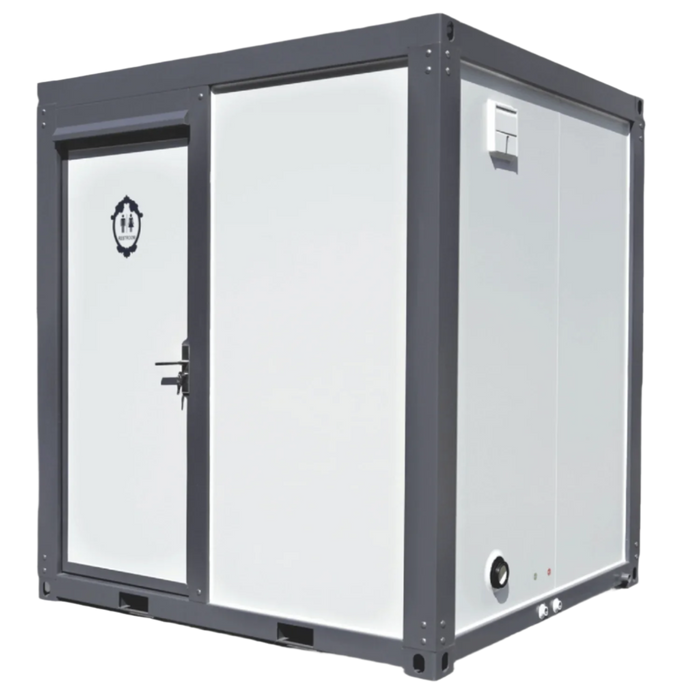

The Chery Industrial Bastone Portable Toilet with Fan‑Shaped Door Shower is a complete, standalone portable bathroom solution that brings both sanitation and bathing facilities to locations where permanent restrooms aren’t available. Designed for outdoor activities, camping, construction sites, remote events, and temporary installations, this unit combines a toilet, sink, mirror cabinet, and rain‑style shower into a compact and transportable package. Its versatile design elevates hygiene standards and user comfort in outdoor or off‑grid environments.

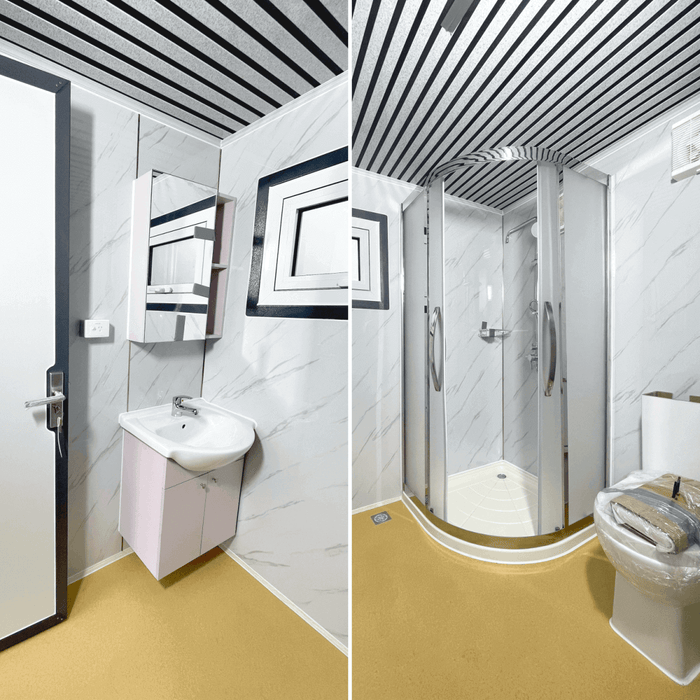

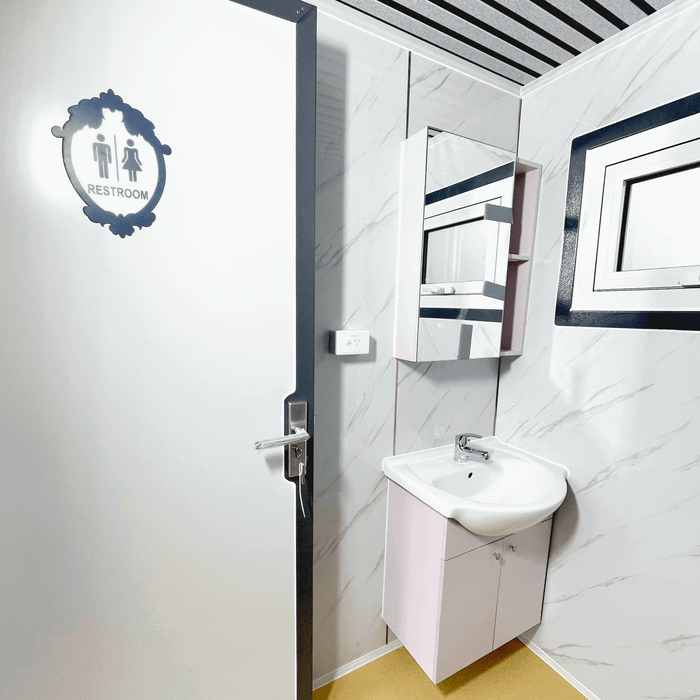

A standout feature of this unit is its acrylic fan‑shaped shower door, which isolates steam and moisture after showering, helping keep the rest of the interior cleaner and more comfortable. The rain‑style shower head with dual flow options adds resilience and comfort to every wash, while the included mirror cabinet and sink offer handy storage and functionality for toiletries and essentials. Practical interior design choices make daily use simple without sacrificing convenience or ease of maintenance.

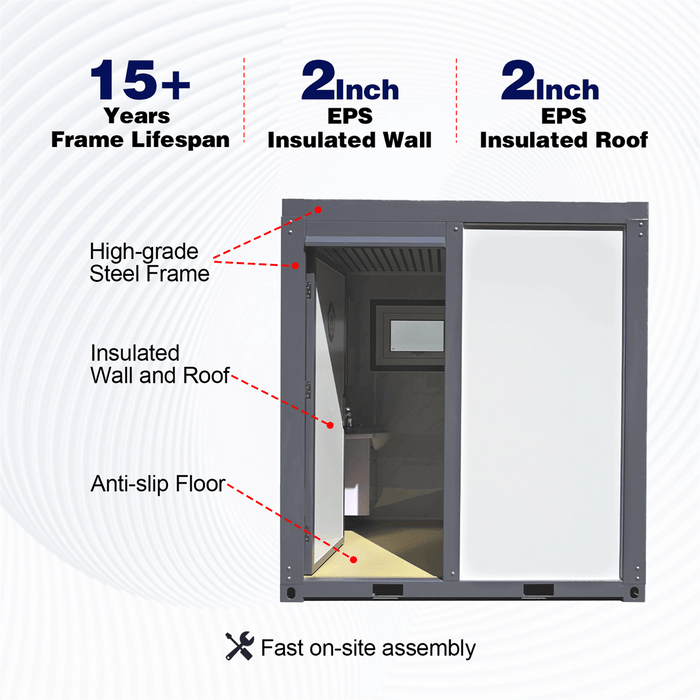

Durability is built into the structure with a steel frame and insulated EPS wall and roof panels that resist fire and weather, helping ensure reliable performance across varied outdoor conditions. Anti‑skid, wear‑resistant flooring enhances safety, and the robust build supports a 15+‑year estimated lifespan. Whether used for weekday jobsite workers or weekend campers, this portable bathroom unit makes hygiene more accessible wherever installed.

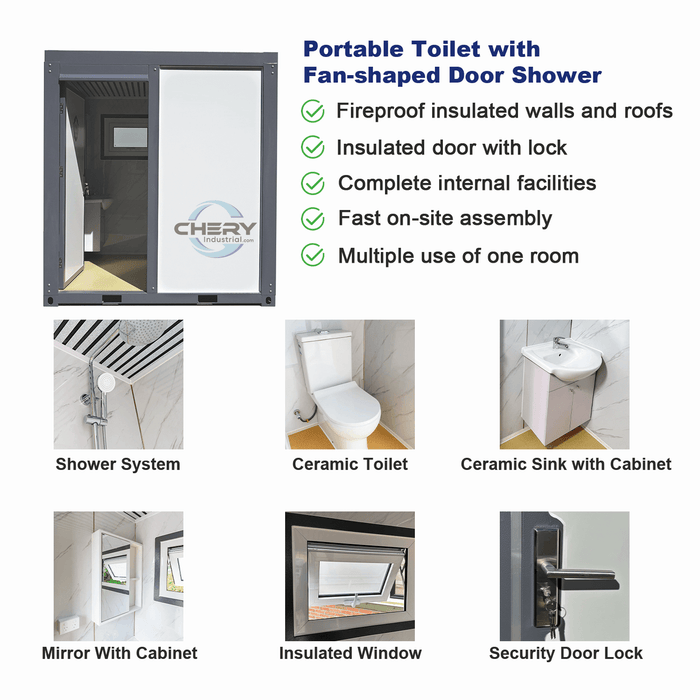

Features
- Toilet w/Ceramic Bowl & Tank, Ceramic Vanity Sink w/Faucet
- Shower Fixtures, Paper Dispenser

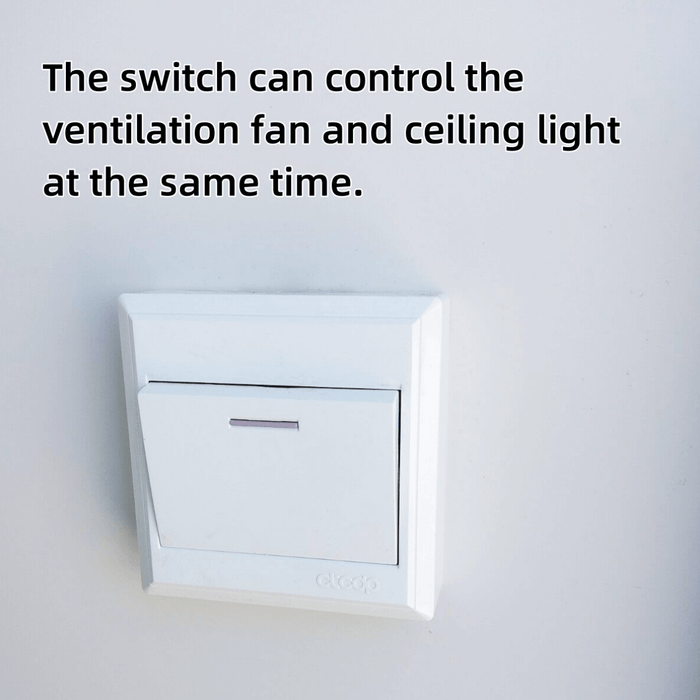

- Power Outlet w/Dual USB, 110V Electric Vent Fan, Internal Light
- 1/2" female inlet ports for hot & cold water
- 3" black water/waste exhaust flexible hose (easily slide your 3" PVC pipe onto flex fitting for waste)
- 1" PVC water outlet exhaust port (for sink & shower water)
- Power Breaker, Locking Door w/ set of keys, Hinged Window
- Visual Men / Women Signage, Lifting Eyes, Forklift Pockets
Specifications
| Description |
Specifications |
| Model |
Mobile Toilets with shower-Fan-shaped Door |

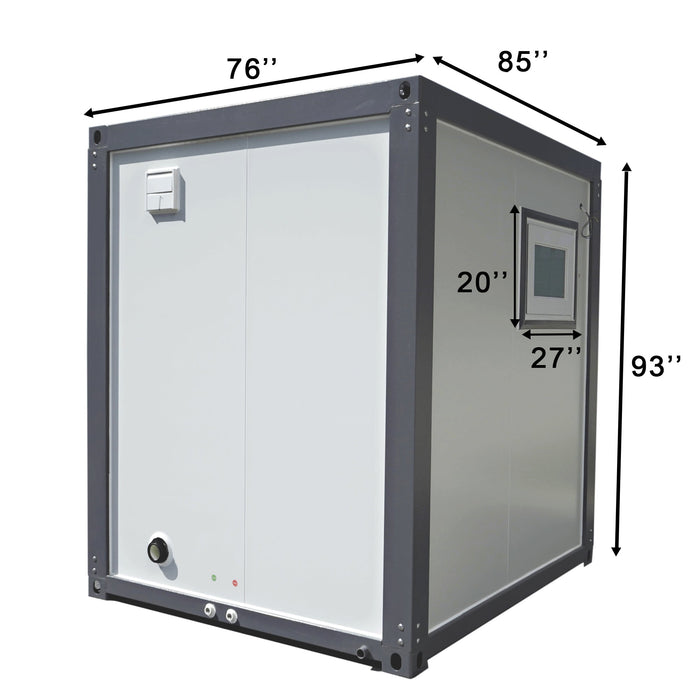

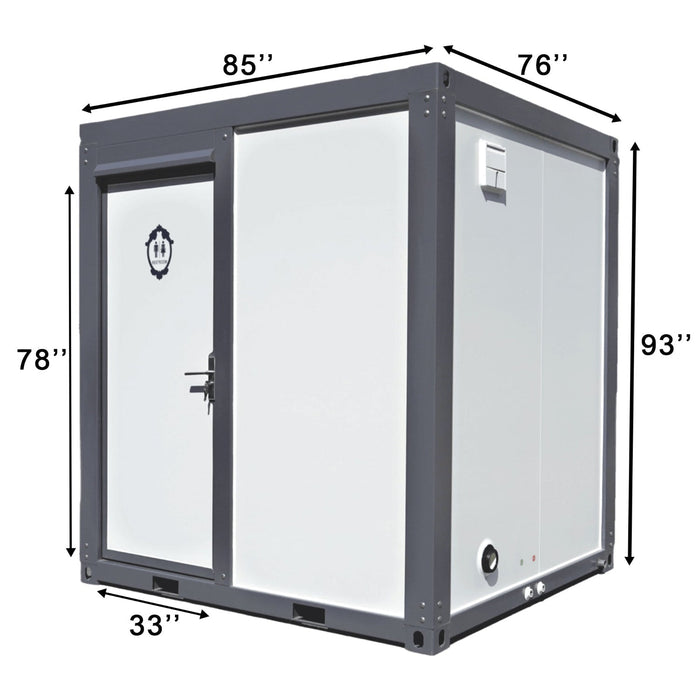

| Dimension (LxWxH) |
85"x76"x93" |

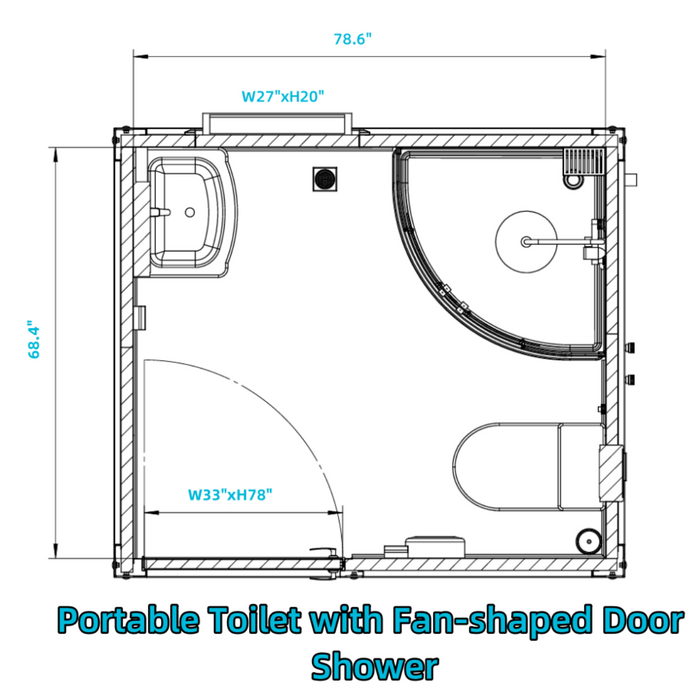

| Interior Dimension (LxW) |
78.6"x68.4" |
| Door Size |
W 33" x H 78" |
| Net Area |
37.3 ft² |
| Frame |
Steel |
| Surface Coating |
High-Temperature Resistant Paint |
| Roof Material |
2-inch EPS fire-resistant & insulated roof panels |
| Wall Material |
2-inch EPS fire-resistant & insulated wall panels |
| Floor Material |
Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value |
7.09~8.27 |
| Doors |
- EPS Composite Panel
- Inward Opening Door
|
| Circuit Breaker Spec |
13~16 Amps |
| Power Supply |
110V~220V |
| Wire info |
3 core 2.5 sqmm |

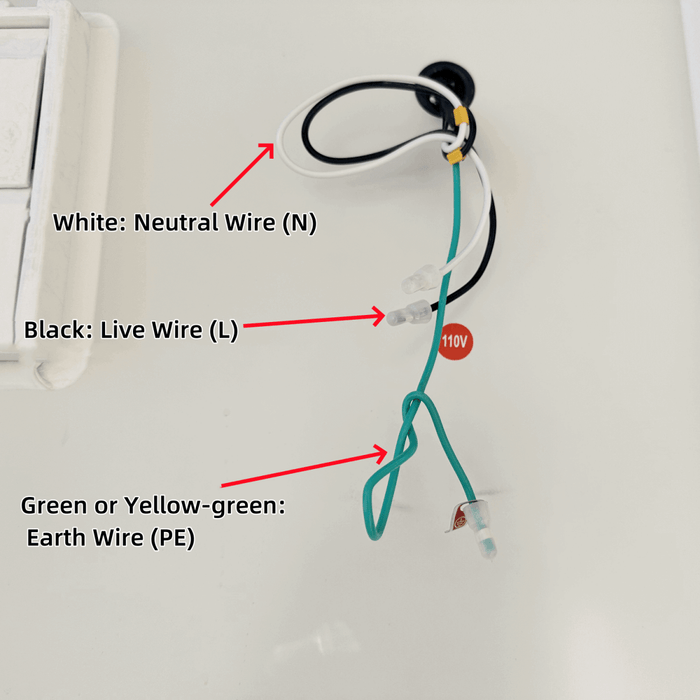

| Wiring Instructions |
White Wire: Neutral Wire
Black Wire: Live Wire
Green or Yellow-green Wire: Earth Wire |
| Flush volume |
1.6 gpf |
| Inlet Pipe Material |
PPR Pipe |
| Inlet Pipe Inner Diameter |
4/5 inch |

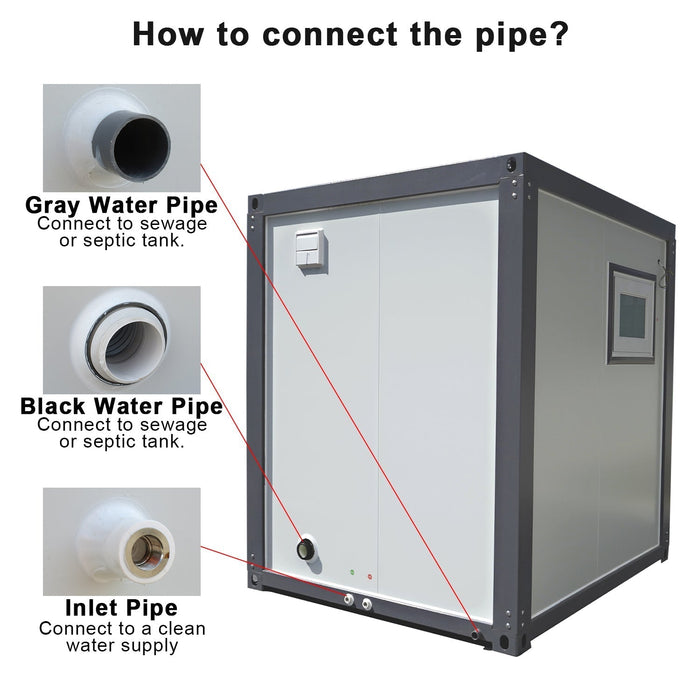

| Outlet Pipe Material |
PVC Pipe |
| Outlet Pipe Inner diameter |
- Gray Water Pipe: 1 ⅘ inch
- Black Water Pipe: 3 inch
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level |
B2 |
| Wind Load |
56 MPH |
| Snow Load |
125 lb/sqft |
| Forklift Pockets |
Dimension: W7"x H3"
Distance between forklift pockets: 28" |
| Lifespan |
15+ Years |
| Warranty |
1 Year |
Set up

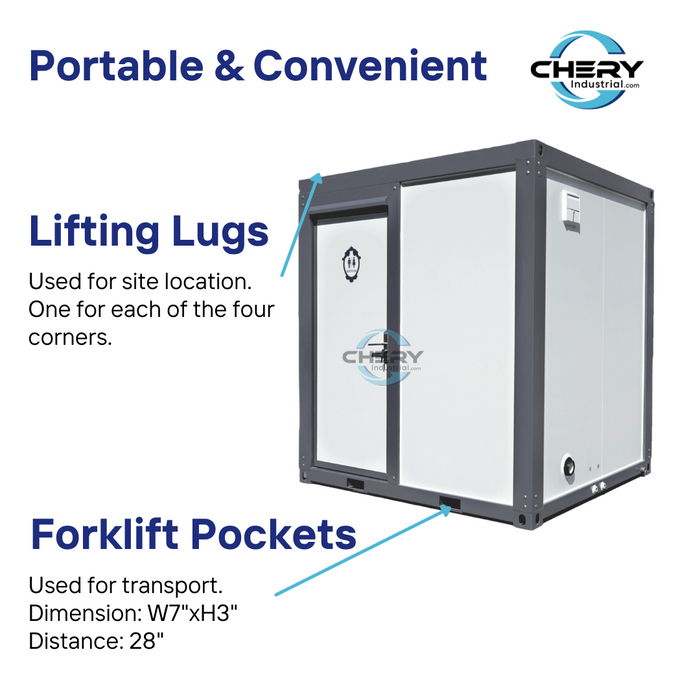

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Package Size
- L*W*H (inch): 85x76x93
- Weight (lb): 1576
- A Forklift or equivalent is required for unloading
