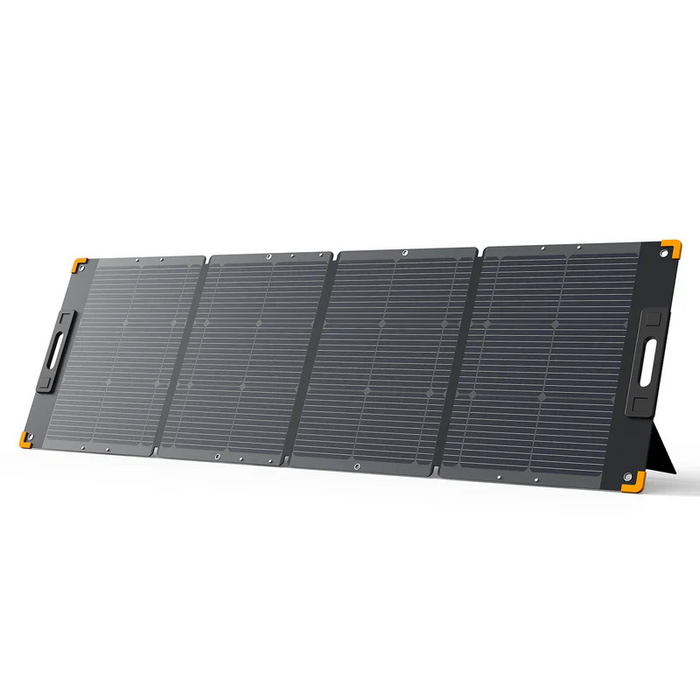

PECRON PV300 300W Portable Solar Panel Waterproof IP67
The PECRON PV300 300W solar panel is a foldable, portable, and waterproof IP67 solar charger engineered for outdoor, off-grid, and backup applications. With 23.5% conversion efficiency, rugged construction, and universal MC4 connectors, it ensures reliable clean energy for RVs, campers, cabins, boats, and emergency power setups.
Key Features
Quiet Generator & Eco-Friendly Clean Power
Build a portable solar generator system by pairing this panel with a Pecron power station (sold separately). Perfect for off-grid living, outdoor adventures, or emergency backup without the noise or fumes.
High Conversion Efficiency
Up to 23.5% efficiency—this panel converts more sunlight into usable power than conventional panels, even in hot weather conditions.
Universal Solar Charger
Equipped with standard MC4 connectors, allowing seamless integration with most solar generators, charge controllers, or battery systems.
Lightweight & Sleek Design
Weighs only 8.97 kg with a super-slim profile. Folds down compactly for easy storage and transportation in a car trunk or RV bin.
Foldable with Built-in Stand
Integrated fold-out legs let you adjust the tilt angle for optimal sun exposure. Includes cable storage pouch for neat and simple operation.
Applications
-
Camping & RVs: Power your battery stations, lights, or electronics off-grid.
-
Boating & Marine: Rugged, waterproof design supports marine and dockside charging.
-
Emergency Preparedness: A reliable backup source during power outages.
-
Remote Cabins or Tiny Homes: Charge portable stations to run essentials quietly.
-
Mobile Professionals: Keep power ready for tools, laptops, or satellite gear in the field.
Specifications
| Specification |
Details |
| Model |
PV300 |
| Rated Power |
300W ±5% |
| Cell Type |
Monocrystalline |
| Max Power Voltage (Vmp) |
34.5V ±5% |
| Max Power Current (Imp) |
8.69A ±5% |
| Open Circuit Voltage (Voc) |
43.52V ±5% |
| Short Circuit Current (Isc) |
9.56A ±5% |
| Cell Efficiency |
23.5% |
| Operating Temperature |
-20°C to +60°C |
| IP Rating |
IP67 |
| Folded Dimensions |
627 × 794 × 42 mm |
| Unfolded Dimensions |
2338 × 794 × 27 mm |
| Weight |
Approx. 8.97 kg |
| Standard Test Conditions |
1000W/m², AM1.5, 25°C |
FAQs
Can I use this panel with other brands of power stations?
Yes. The PV300 uses standard MC4 connectors, which are compatible with most third-party solar generators and battery systems.
Is the panel really waterproof?
Yes, it carries an IP67 rating, meaning it’s fully protected against dust and can withstand temporary water immersion—perfect for outdoor or marine environments.
How should I store the panel when not in use?
Store upright in a dry location. Avoid stacking heavy or sharp items on it, and do not place it where standing water may accumulate.
Do I need a separate controller to use this with batteries?
Yes, if connecting directly to a 12V/24V battery bank, a compatible MPPT or PWM charge controller is recommended for safe and efficient charging.
