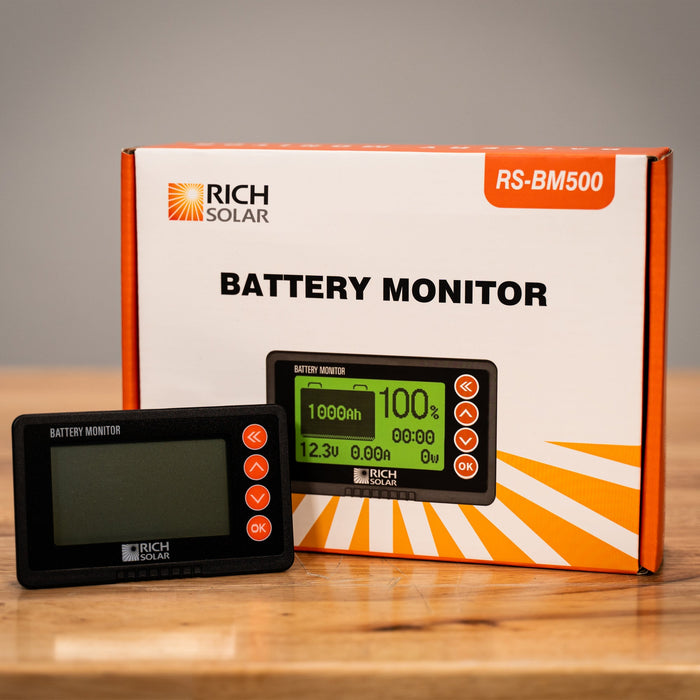

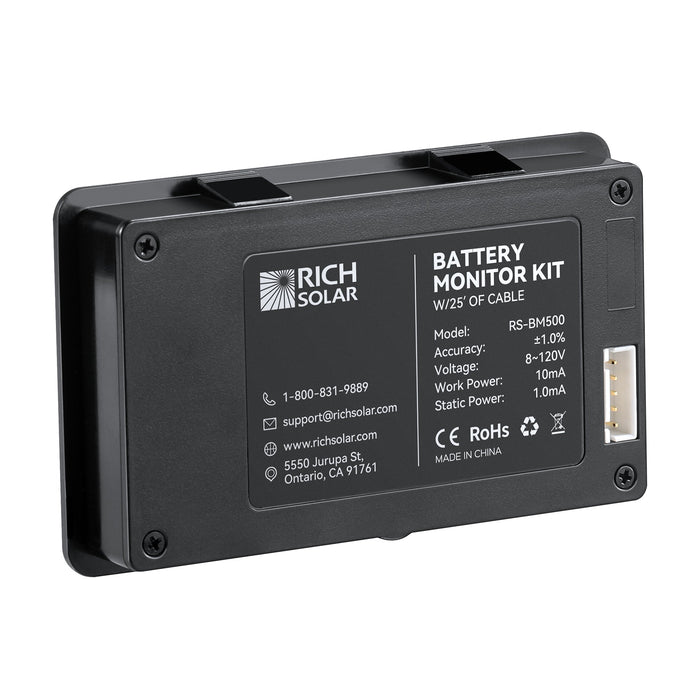

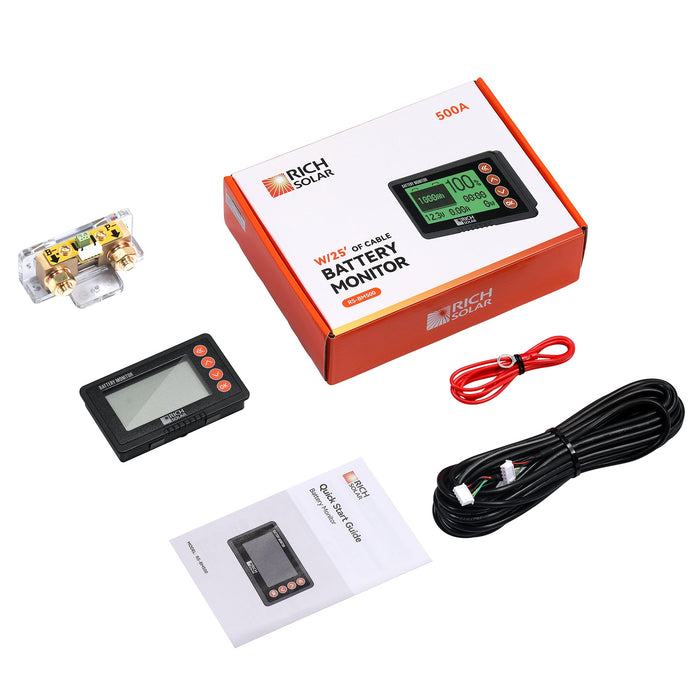

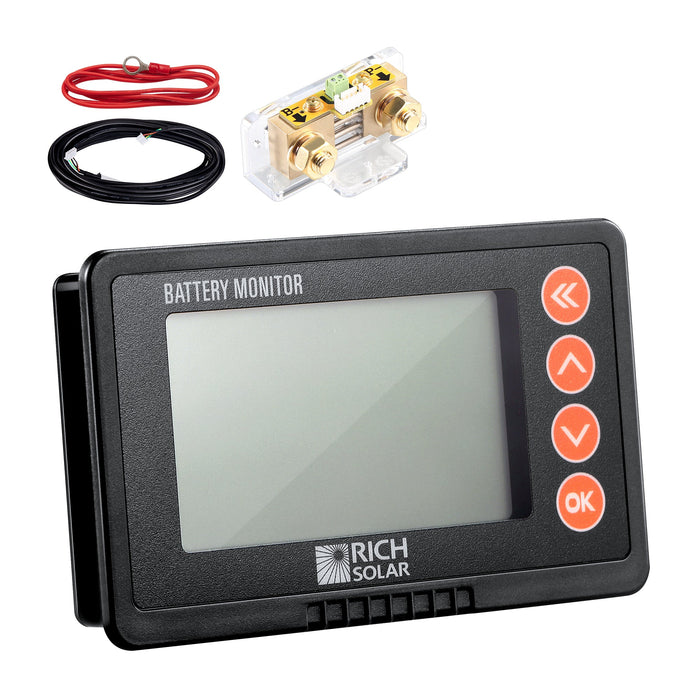

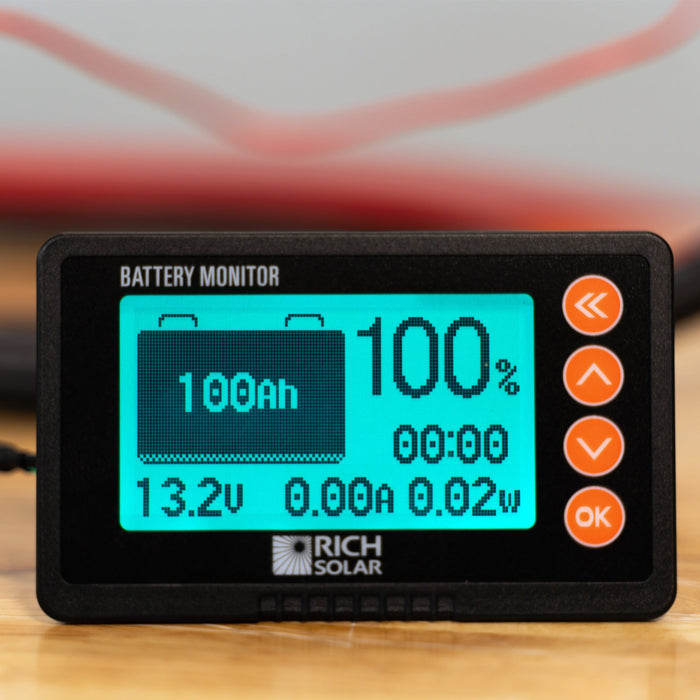

Rich Solar 500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

SKU RS-BM500
Save 23% Save 23%
Original price $129.99
Original price $25.99 - Original price $129.99
Original price $129.99
Current price $99.99
$19.99 - $99.99
Current price $99.99
  • Authorized online dealer
  • Transparent pricing. No hidden fees at checkout
  • In stock. Ships in 1 to 2 business days
  • Typical delivery 4 to 7 days*
  • Price Match Guarantee. We beat verified prices
  • 30 day returns on eligible items
  • Manufacturer warranty included
  • No sales tax in most states*

Questions? Text or call +1 (307) 248-7227

*Exclusions apply. See Shipping and Returns.

Options:: Battery Monitor
Price Match Guarantee at OffGrid Lux

At OffGrid Lux, we're committed to offering you the best prices online. That's why we have a Price Match Guarantee in place. If you find a lower price for the same product elsewhere, we'll match or beat it to ensure you get the best value.

For full details on our Price Match Guarantee, including eligibility criteria and how to request a price match, please click here to view our complete policy.

Shipping & Order Policy at OffGrid Lux

When you place an order, we confirm stock availability before charging your card. Orders typically process within 1-2 business days, and shipping is fast—most orders arrive within 4-7 days. We use reliable third-party carriers and provide tracking information promptly.

For more details, click here to view our full Shipping Policy.

Refunds & Returns at OffGrid Lux

We're committed to your happiness with every purchase. Need assistance? Just reach out. You have 30 days from delivery to return items in their original condition. We process refunds promptly, usually within 3 business days of receiving your return.

For more info, check out our full Returns & Refunds Policy here.

Installation and Wiring-Overview

The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.

Recommended Tools

  • Wrench
  • Drill
  • Jigsaw
  • 2 ring terminals of appropriate size for battery cable
  • Crimp tool for ring terminals

Wiring Diagram

The following wiring diagram will be referenced in the next section.

Installation

  1. Before doing anything, disconnect all wires from the negative side of the battery.
  2. Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above.
    Note: The negative terminal of the battery must connect directly to the “B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
    Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

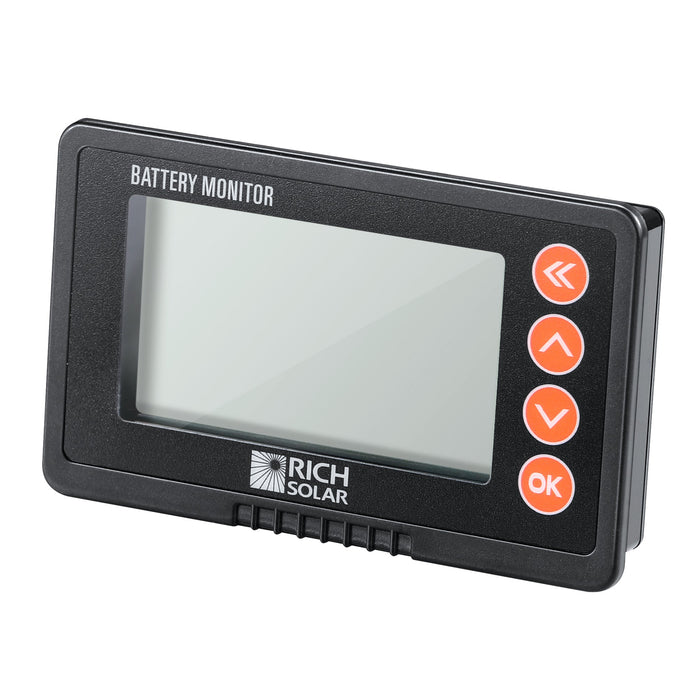

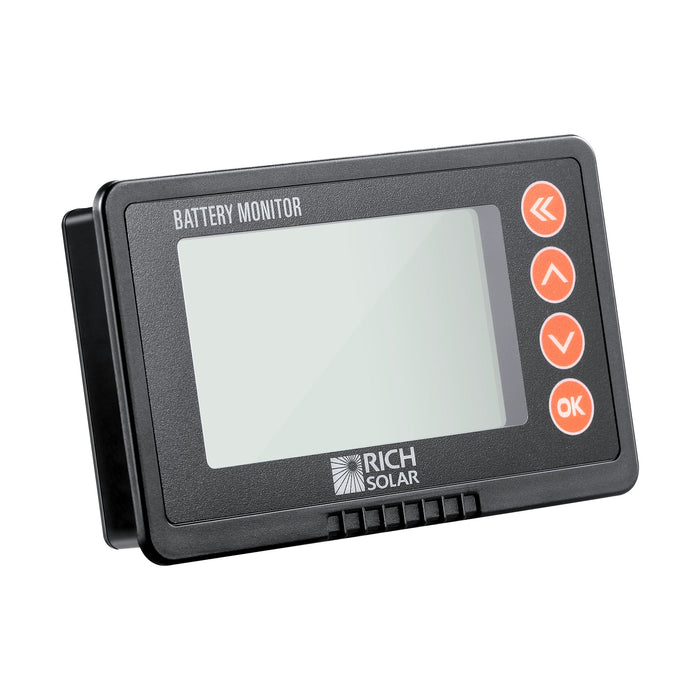

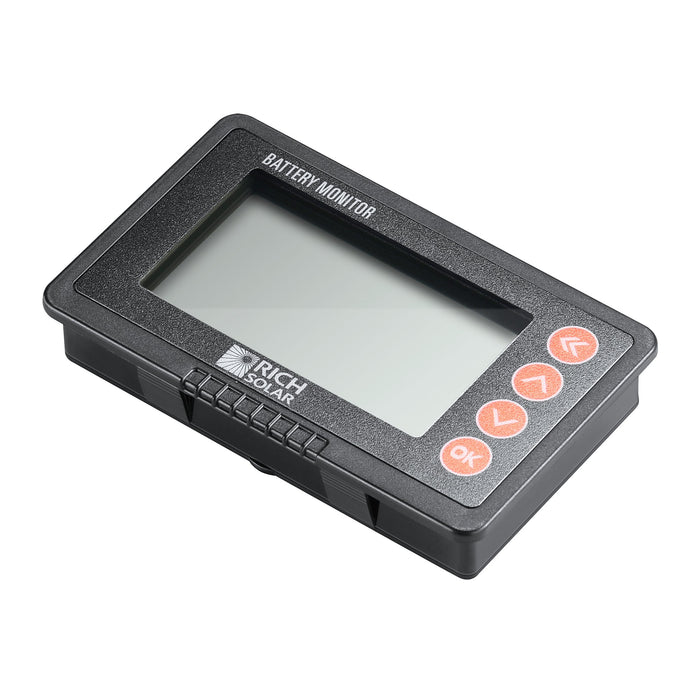

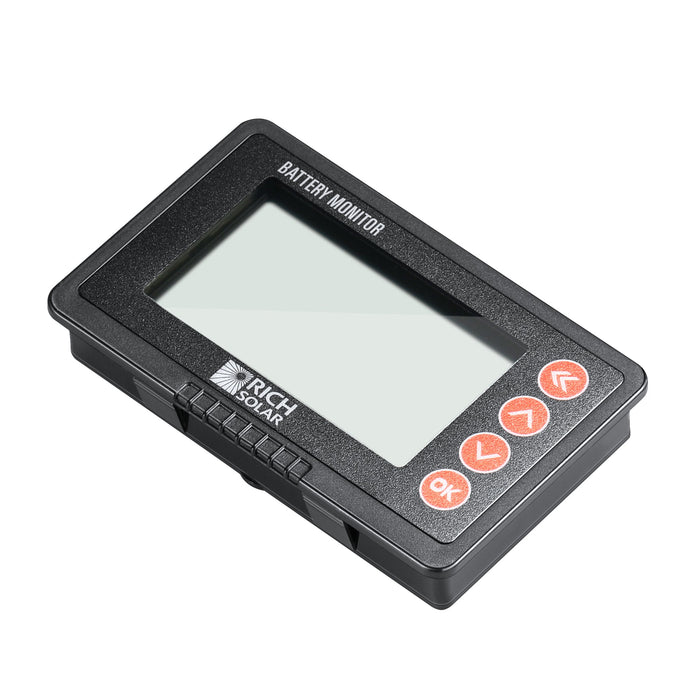

Mounting the Remote Display

  1. Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
  2. Drill a hole in the center of the planned location and use the jigsaw to cut a hole according to the following picture.
  3. Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
  4. Connect the shielded cable to the remote and snap the remote into place.

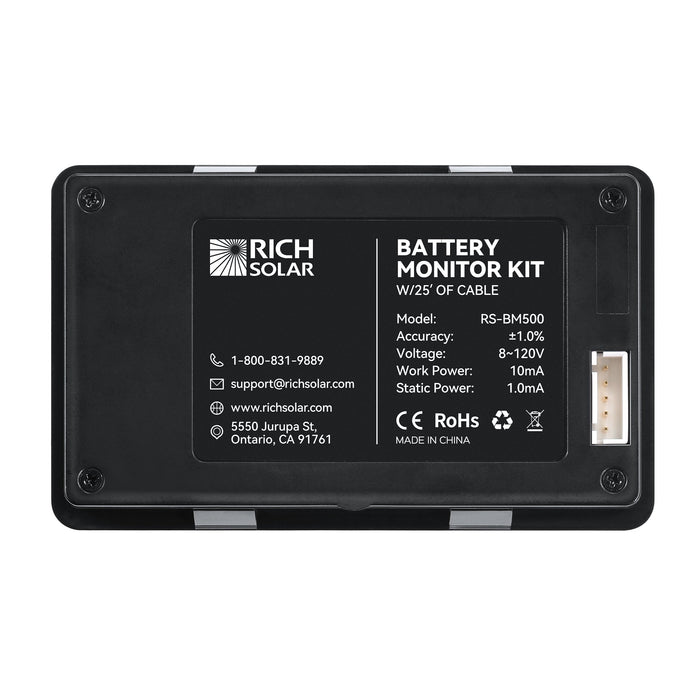

Specifications

  • Model: RS-BM500
  • Battery Voltage Range: 8-120V
  • Working Dissipation: 10mA
  • Standby Dissipation: 1mA
  • Capacity Accuracy: ±1.0%
  • Voltage Accuracy: ±1.0%
  • Current Accuracy: ±1.0%
  • Backlight On Current: 80mA
  • Capacity Setting Value: 0-500A
  • Current Range: 0.1-9999Ah
