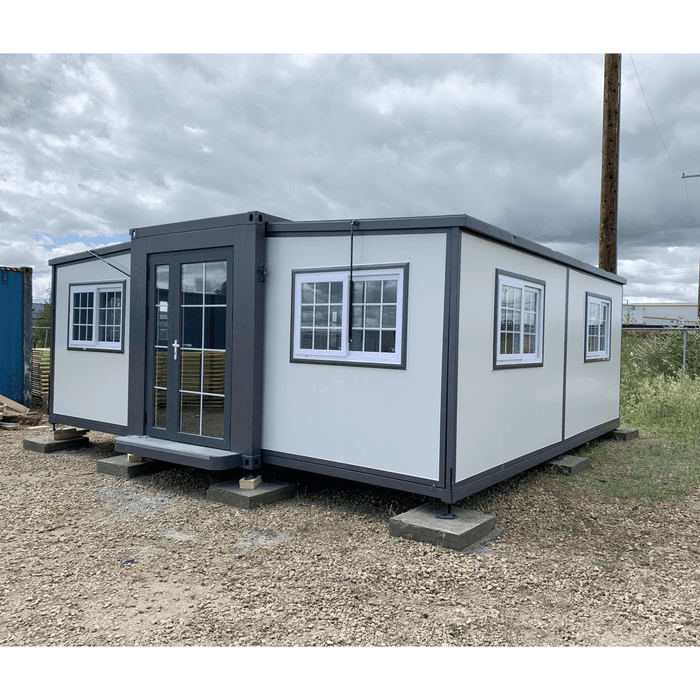

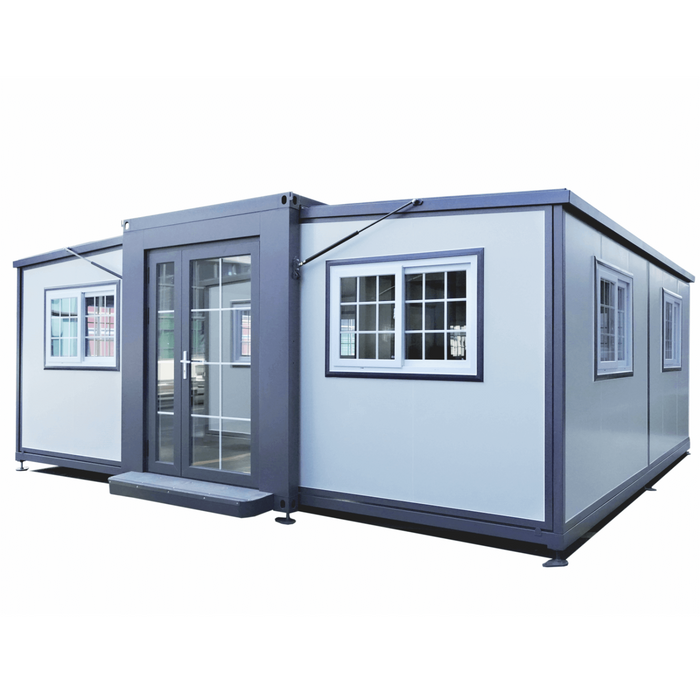

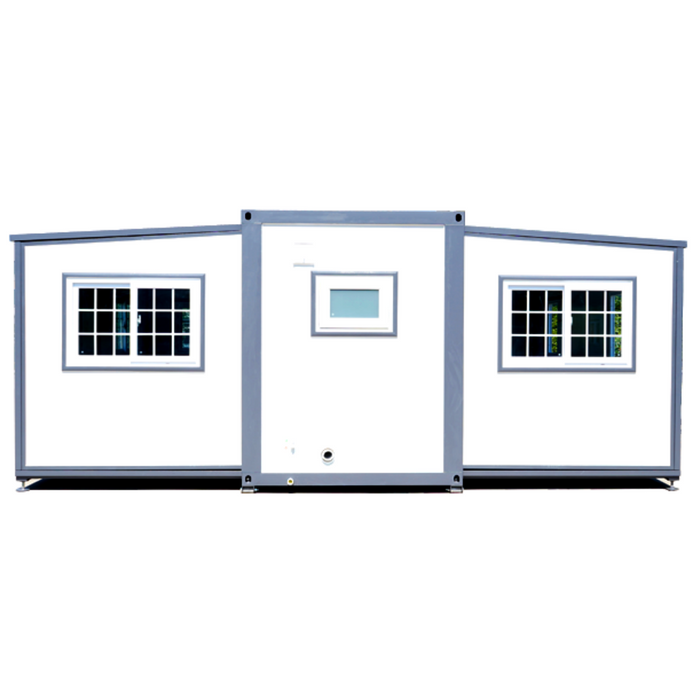

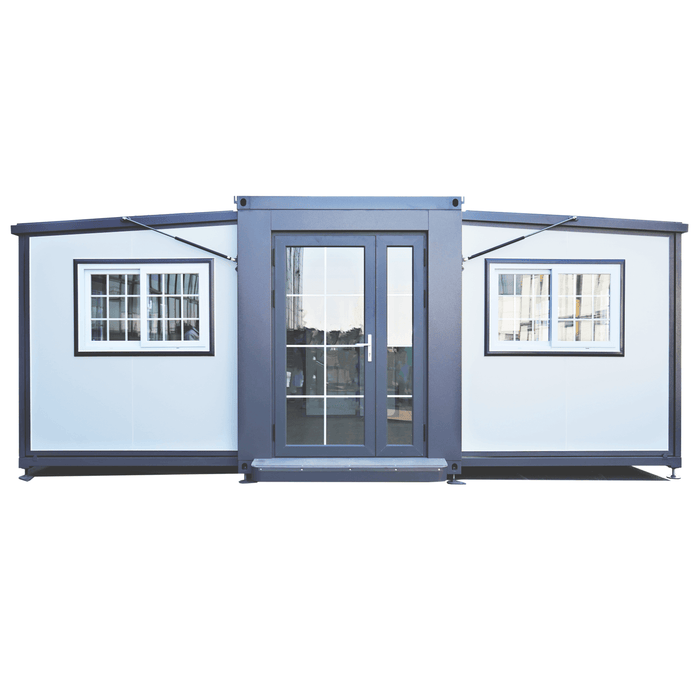

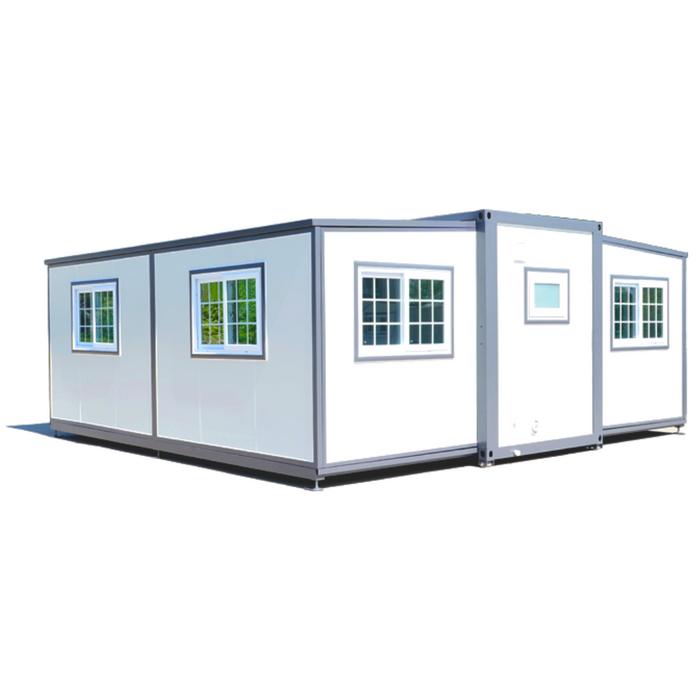

Experience the epitome of mobile living with our Mobile House 19 ft x 20 ft Type C (with Cabinet). This thoughtfully designed dwelling offers a harmonious blend of comfort and functionality, redefining the way you live on the move.

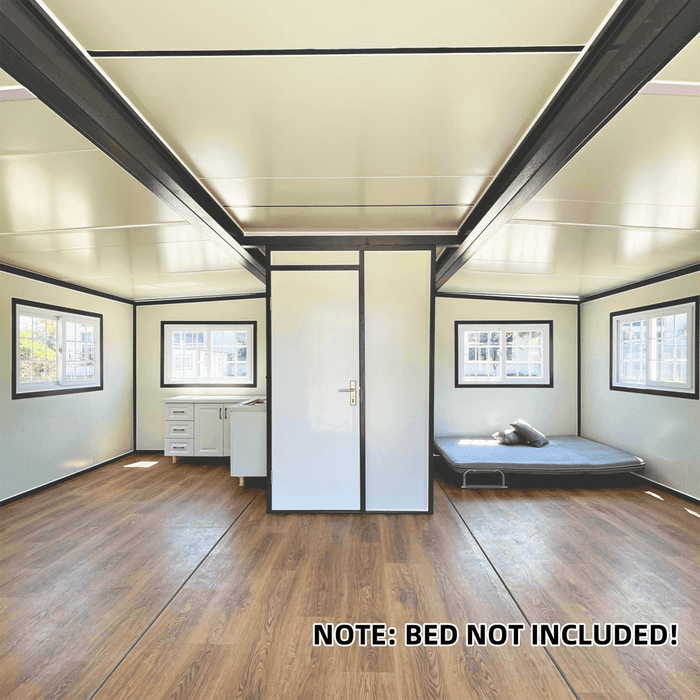

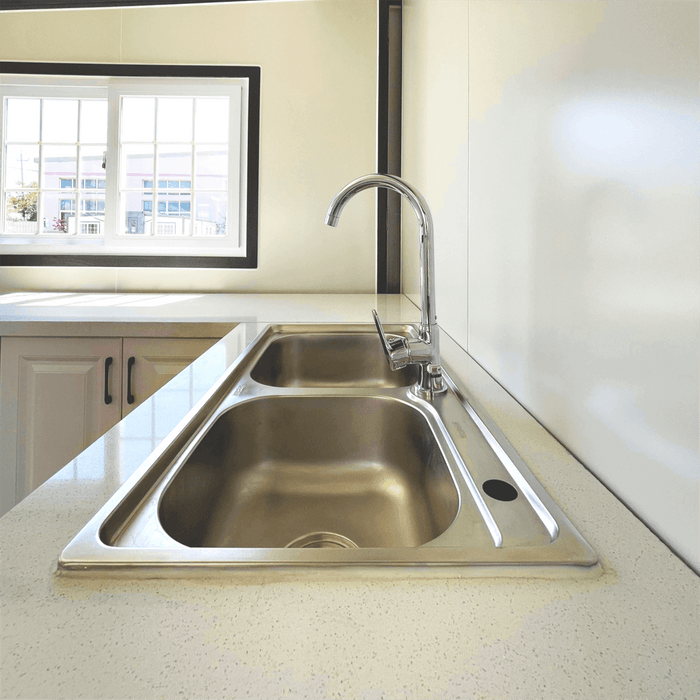

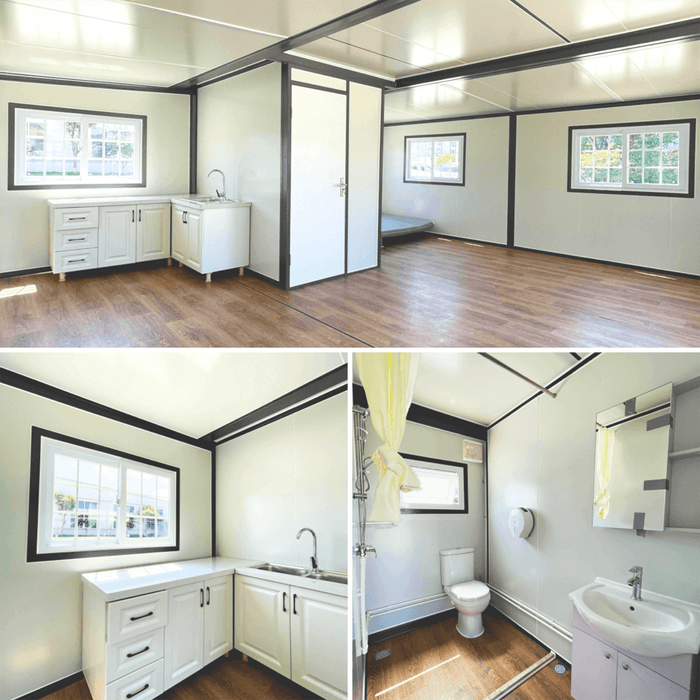

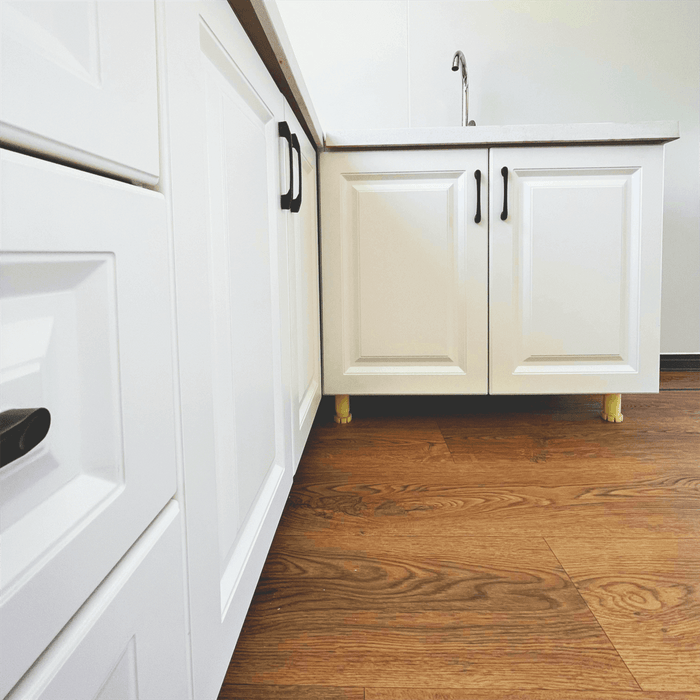

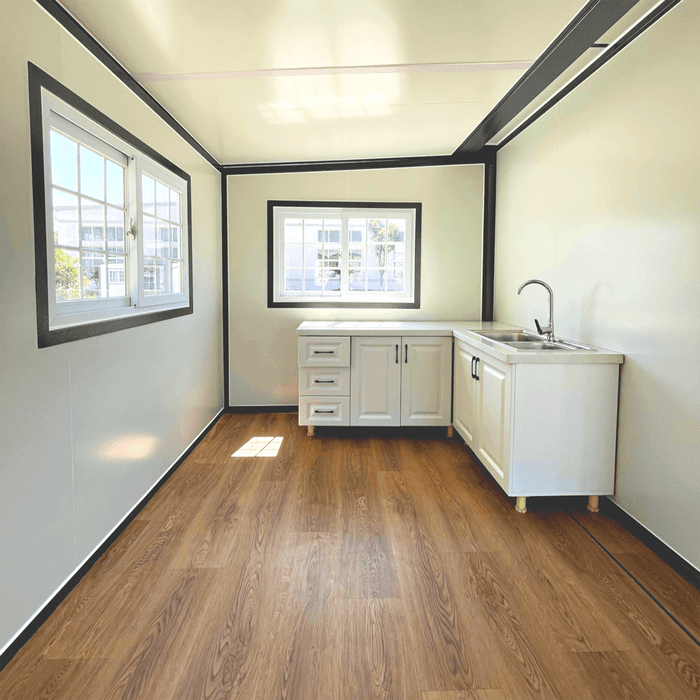

This mobile house goes beyond the ordinary, featuring a built-in bathroom, shower, and kitchen cabinets. Experience the convenience of having essential amenities at your fingertips, meticulously integrated to optimize space without sacrificing style.
Floor Plan
Designed with a built-in toilet, it is convenient for everyone. Compared to solid constitutions, prefab houses are built in a factory and it is compacted as a container size. This Tiny House does not come with furniture, fixtures or fittings such as tables, chairs, curtains, carpets, kitchen splashbacks or appliances. Any content shown is not included.
Setup
Using drywall anchors and screws through the holes reserved on the adjustable leg to the ground to strengthen the stability.
|
Description
|
Specifications
|
| Dimension |
L19xW20xH8 (after expand)，380ft2 |
|
Frame Structure
|
- Steel Frame structure
- Flame retardant foam wallboard
|
| Snow Load |
40 lbs/ft² |
| Wind Load |
70 miles/h |
|
Roof
|
Flame retardant foam aluminum magnesium manganese thermal insulation roof
|
|
Floor
|
- Glass magnesium floor
- 0.08-inch wear-resistant laminate floor leather
|
|
R-value
|
7.09~8.27 |
|
Window
|
- Double-layer tempered glass-plastic-steel sliding lattice window
- window outside bathroom: Plastic glass window
|
|

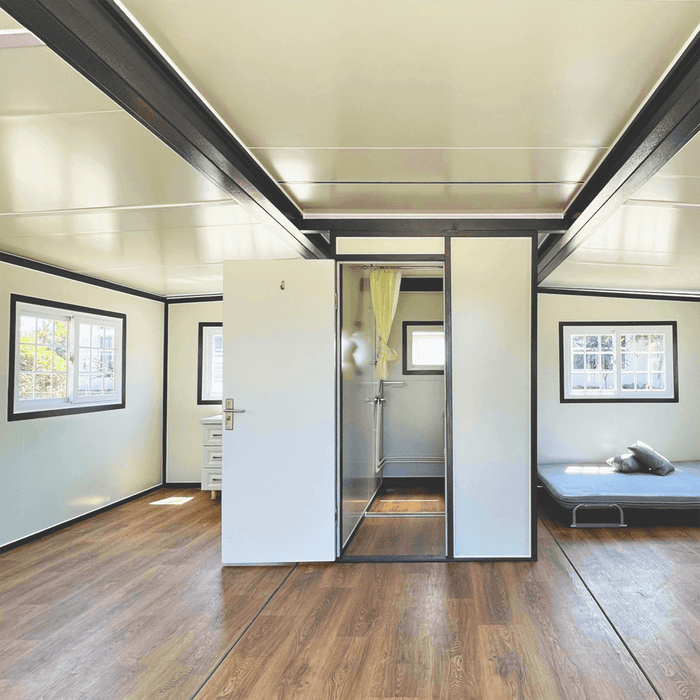

Restroom with shower
|
- shower curtain rack, Shower valve, Shower sprinkler, shower rod, floor Drain, door stopper: Stainless steel
- shower curtain: tarpaulin
- Soapdish, toilet brush: Aluminum alloy
- Water stopper, mirror box: PVC
- Silent exhaust fan
|
|
Security Doors
|
- Main door: aluminum door with lock
- Restroom door: WPC Door + Frosted Glass
|
|
Electricity
|
Need to set up additionally
|
|
Hot and cold water valve
|
Stainless steel Grade 304
|
|

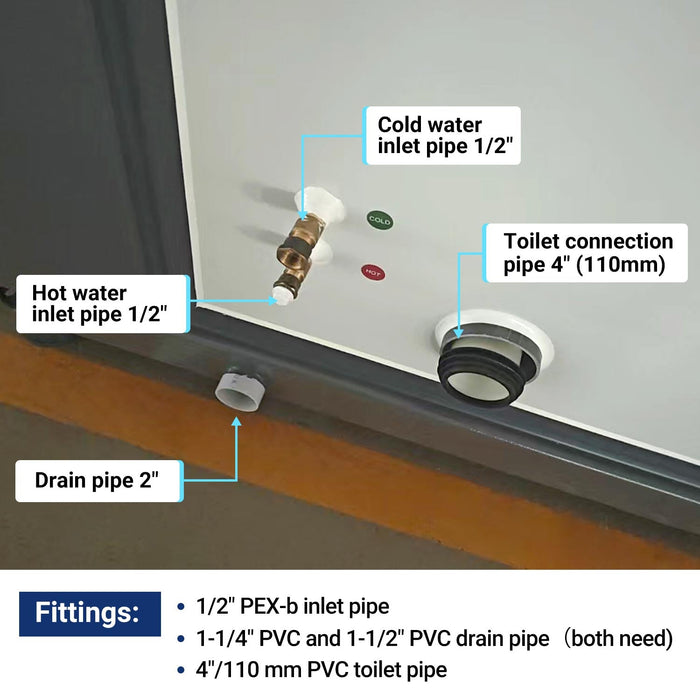

Fittings
|
- PPR hot and cold water pipe
- PVC drainage pipe
- Insulation Pipe
|
|
Installation
|
- Hydraulic brace: Pressure 3000N
- Bearing: 6204
- Hinge pulley block: 2000 lbs
- Wire rope: φ5mm
|
|
Neutral environmental protection materials
|
Neutral sealant
|
| Country of Origin |
China |

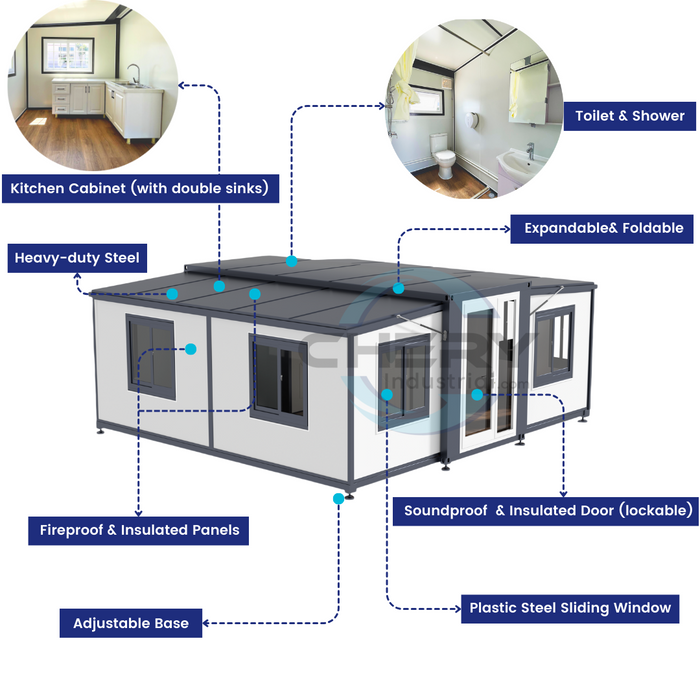

Feature
- Quick Assemble, finished interior decoration
- Condition: New
- Use: Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant
- Style: Portable, Container Home
- Wind load: Up to 70mph, depending on foundation and specific circumstances. We highly recommend pouring concrete on the legs to maximize stability. Please don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc)
FAQ
- Can I hang something on the wall? - The wallboard is composited with foam in the middle, so you cannot screw in the wall. You will need to use self-adhesive hooks for hanging, and the load capacity depends on the hook.
- Can I purchase 2 of them and combine them together without the wall? - Technically, no. There is still a gap between the two units.
- Snow Load: The unit is designed for outside usage and can withstand a heavy snow load. The unit is safe before the snow reaches 6.6ft high on the roof. However, it is recommended that you take off the snow in time and don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc)
Package Size
- L*W*H (inch): 232x80x99
- Weight (lb): 7900
- A forklift or equivalent is required for unloading.
Additional Details
Due to the extra large size, the product will be shipped via flatbed trucks, and it is customers' responsibilities to unlaod the product from the trucks. Please have forklifts or crane ready to unload. Please make sure the forklift has enough capacity to unload and balance the product when unloading. A crane is recommended.
Mobile Prefab House is not wired. Please hire an electrician for American standard wiring. Stay safe! We recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
