AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter

SKU N3H-X16US
Save 8% Save 8%
Original price $3,999.00
Original price $3,999.00 - Original price $3,999.00
Original price $3,999.00
Current price $3,698.00
$3,698.00 - $3,698.00
Current price $3,698.00
  • Authorized online dealer
  • Transparent pricing. No hidden fees at checkout
  • In stock. Ships in 1 to 2 business days
  • Typical delivery 4 to 7 days*
  • Price Match Guarantee. We beat verified prices
  • 30 day returns on eligible items
  • Manufacturer warranty included
  • No sales tax in most states*

Questions? Text or call +1 (307) 248-7227

*Exclusions apply. See Shipping and Returns.

Price Match Guarantee at OffGrid Lux

At OffGrid Lux, we're committed to offering you the best prices online. That's why we have a Price Match Guarantee in place. If you find a lower price for the same product elsewhere, we'll match or beat it to ensure you get the best value.

For full details on our Price Match Guarantee, including eligibility criteria and how to request a price match, please click here to view our complete policy.

Shipping & Order Policy at OffGrid Lux

When you place an order, we confirm stock availability before charging your card. Orders typically process within 1-2 business days, and shipping is fast—most orders arrive within 4-7 days. We use reliable third-party carriers and provide tracking information promptly.

For more details, click here to view our full Shipping Policy.

Refunds & Returns at OffGrid Lux

We're committed to your happiness with every purchase. Need assistance? Just reach out. You have 30 days from delivery to return items in their original condition. We process refunds promptly, usually within 3 business days of receiving your return.

For more info, check out our full Returns & Refunds Policy here.

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter



The AmenSolar N3H X16US 16kW Split Phase Hybrid Solar Inverter is engineered for homes and commercial systems requiring strong output capacity, grid compliance and flexible backup performance. Designed with advanced safety certifications and high efficiency power conversion, this hybrid inverter supports both grid tied operation and off grid backup capability with a wide 48V battery platform.

Built for demanding solar applications, the N3H X16US offers a powerful 24 kW PV input capacity, 4 independent MPPT trackers and a 16 kVA AC output. These features help maximize production in systems with multiple roof orientations or variable string lengths. With support for (110 to 120) / (220 to 240V) split phase as well as 240V single phase, the inverter integrates easily with residential and light commercial electrical systems.

Certified to UL1741, UL1699B, CSA and IEEE standards, the N3H X16US meets strict requirements for grid connection, arc fault protection and rapid shutdown. Its IP65 rated enclosure provides robust weather protection for indoor and outdoor installations.



1) Certificate: UL1741 UL1699B CSA IEEE Hawaiia
2) Inverter power: 16KW
3) Maximum number of parallel inverters: 4
4) Communication: Can,Rs485
5) Support (110~120)/(220~240V) split phase ,240V single phase voltage.
6) Support OEM for customers with their own brand.
7) Support customer to do UL multiple listing.
8) Support parallel and generator function.
9) Support peak shifting function for customer to use extral electricity to earn money .
10) Max grid pass though current(A): 200
11) Mainly recommended models: N3H-X16US

AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living
AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living
solar inverter
AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living
AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living
AmenSolar N3H-X16US 16KW Split Phase Hybrid Solar Inverter - Green Vista Living

High Capacity Hybrid System

The hybrid architecture allows seamless integration of solar, batteries and the grid:

  • 16 kW continuous AC output

  • Up to 24 kW PV input

  • 48V battery compatibility with lithium or lead acid options

  • 260A charging and 280A discharging capability

  • Peak shifting support for energy cost optimization

  • Generator compatibility for backup systems

With efficient charge and discharge pathways, the N3H X16US can prioritize solar production, load support or battery storage depending on user configuration.


Four MPPT Trackers for Maximum Flexibility

The inverter includes 4 independent MPPTs with:

  • 120 to 430V operating range

  • 500V maximum DC input

  • 20A input current per tracker

  • 25A short circuit rating per tracker

This design allows installers to connect multiple arrays facing different directions or with varying string lengths while maintaining strong MPPT performance.


Backup Power Performance

In backup mode, the inverter delivers:

  • 13 kVA nominal output

  • 13.2 kVA maximum output (with or without PV)

  • 120/240V split phase output for whole home backup

  • Fast transfer and stable sine wave output

  • Output THDu less than 2 percent for clean power to loads

These capabilities help support essential circuits or whole home loads depending on system design and battery capacity.



Grid Compliance and Safety

The N3H X16US includes extensive safety and compliance features:

  • Ground detection

  • Arc fault protection

  • Islanding protection

  • Residual current monitoring

  • Insulation resistance detection

  • Over voltage and under voltage protections

  • Over current and short circuit protections

It complies with:

  • UL1741, UL1741SA and UL1741SB

  • UL1699B

  • CSA C22.2 No.107.1-01

  • NEC rapid shutdown requirements

  • IEEE 1547, IEEE 2030.5 and multiple state level interconnection rules

This ensures compatibility with utilities across the United States, including Hawaii and California.





High Efficiency Power Conversion

The inverter is engineered for efficient performance across PV, grid and battery modes:

  • 99.9 percent MPPT efficiency

  • 96.5 percent maximum PV to grid conversion efficiency

  • 95.8 percent maximum PV to battery charging efficiency

  • 94.6 percent maximum battery to load efficiency

  • 94.5 percent grid to battery charging efficiency

These high values help maximize energy harvest and reduce conversion losses.





Specifications


Model

N3H-X16US

PV input
Max.DC input power (kW) 24
No. of MPPT trackers 4
MPPT voltage range (V) 120~430
MAX. DC input voltage (V) 500
MAX. input current per MPPT (A) 20/20/20/20
MAX. short current per MPPT (A) 25/25/25/25

Battery input

Nominal voltage (V) 48
MAX.charging/discharging current (A) 260/280
Battery voltage range (V) 40-58
Battery type Lithium /Lead-acid
Charging controller 3-Stage with equalization

AC output(on-grid)

Nominal output power output to grid (kVA) 16
MAX. apparent power output to grid (kVA) 16
Nominal AC voltage(L-N/L1-L2) (V) 110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase)
Nominal AC frequency(Hz) 50/60
Nominal AC current (A) 66.7
Max. AC current (A) 73.7
Max. grid passthrough current (A) 200
Output THDi <3%

AC output(back-up)

Nominal. apparent power (kVA) 13
Max. apparent power(no PV) (kVA) 13.2
Max. apparent power(wtih PV) (kVA) 13.2
Nominal output voltage(V) 120/240
Nominal output frequency (Hz) 60
Output power factor 0.8leading~0.8lagging
Output THDu <2%
Protection
Ground detection Yes
Arc fault protection Yes
Island protection Yes
Insulation resistor detection Yes
Residual current monitoring unit Yes
Output over current protection Yes
Back-up output short protection Yes
Output over voltage protection Yes
Output under voltage protection Yes

General data

Mppt efficency 99.9%
Europe efficiency(PV) 96.2%
Max. PV to grid efficiency(PV) 96.5%
Max. battery to load efficiency 94.6%
Max. PV to battery charing efficiency 95.8%
Max. grid to battery charing efficiency 94.5%
Operating temperature range (℃) -25~+60
Relative humidity 0-95%
Operating altitude 0~4,000m(Derating above 2,000m altitude)
Ingress protection IP65/NEMA 3R
Weight (kg) 53
Weight (with breaker) (kg) 56

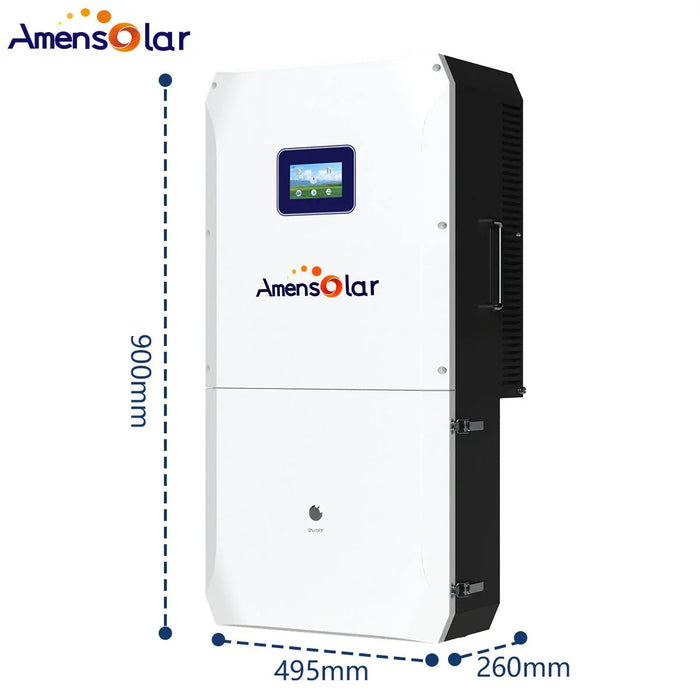

Dimensions W*H*D (mm) 495 x 900 x 260
Cooling Air Cooling
Noise emission (dB) 38
Display LCD
Communication with BMS/Meter/EMS RS485, CAN
Supported communication interface RS485, 4G (optional), Wi-Fi
Self-consumption <25W
Safety UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12),
EMC FCC part 15 classB
Grid connection standards IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65
