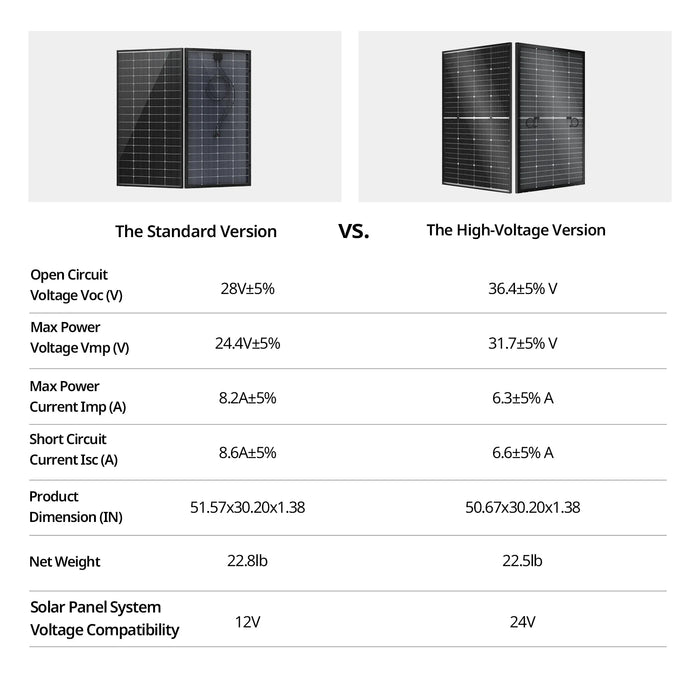

Distinguishing Features of the Standard Version vs. The High-Voltage Version
|
| Options |
Standard Version
(12V Standard Voltage)
|
High-Voltage Version
(24V High-Voltage)
|
| SKU |
ISE251 |
ISE237 |
| Open Circuit Voltage Voc (V) |
28±5% V |
36.4±5% V |
| Max Power Voltage Vmp (V) |
24.4±5% V |
31.7±5% V |
| Max Power Current Imp (A) |
8.2±5% A |
6.3±5% A |
| Short Circuit Current Isc (A) |
8.6±5% A |
6.6±5% A |
| Product Dimension (IN) |
51.57×30.20×1.38 |
50.67×30.20×1.38 |
| Net Weight |
22.8 lb |
22.5 lb |
| Solar Cells Efficiency |
25% |
|
| Product Warranty |
10 Years |
|

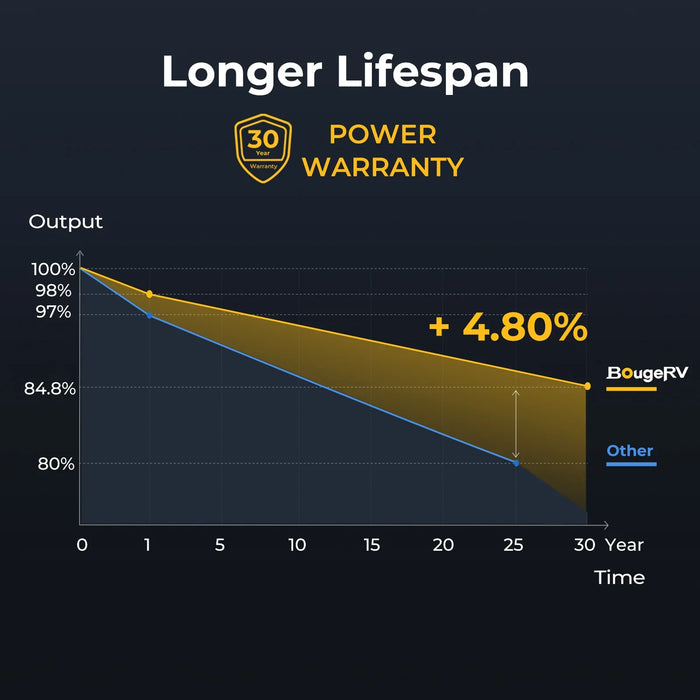

| Performance Warranty |
30 years |
|
| Max Static Load (front) |
2400 Pa |
|
| Max Static Load (back) |
2400 pa |
|
| Series Fuse Rating |
15A |
|
| Application Class |
Class A |
|
Manual
12V 200W Standard Voltage
24V 200W High-Voltage
FAQ

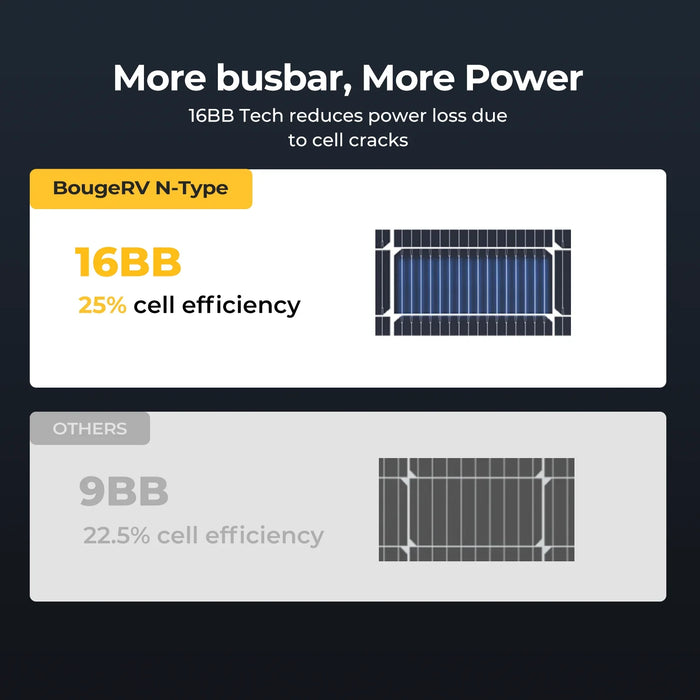

What are 16BB solar panels?
16BB solar panels use 16 busbars to collect and conduct electricity, resulting in higher efficiency, better performance, and reduced power loss compared to panels with fewer busbars. The increased number of busbars helps to minimize resistance and enhance the panel's durability and energy output.

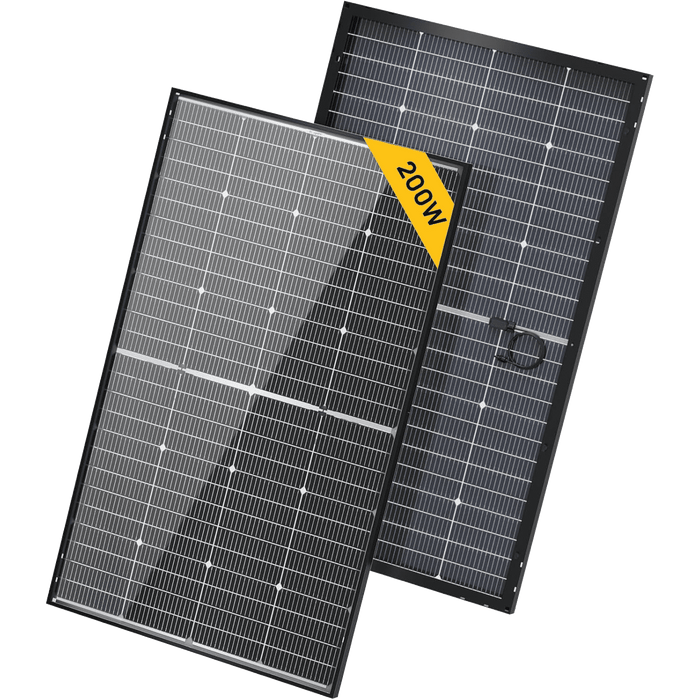

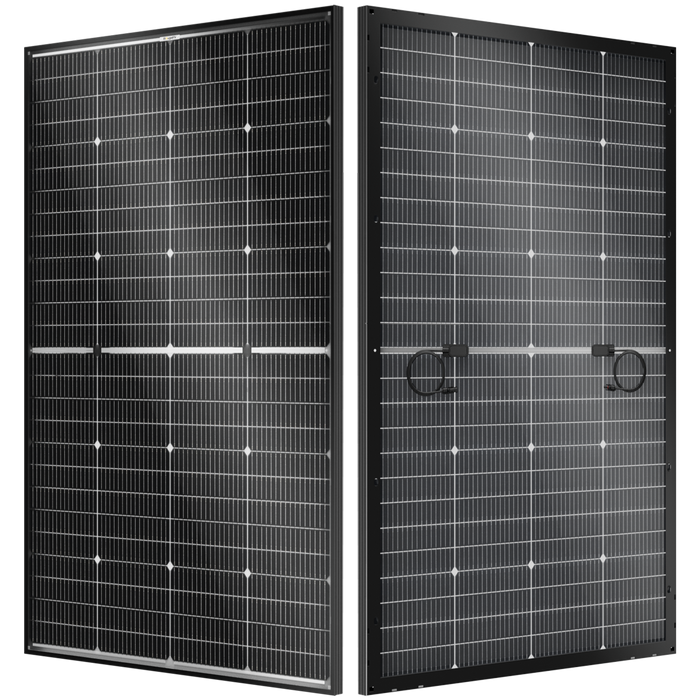

What are the benefits of 200W bifacial solar panels?
Bifacial solar panels are more efficient and generate more energy compared to monofacial solar panels, because they can produce power from both sides of the panel.

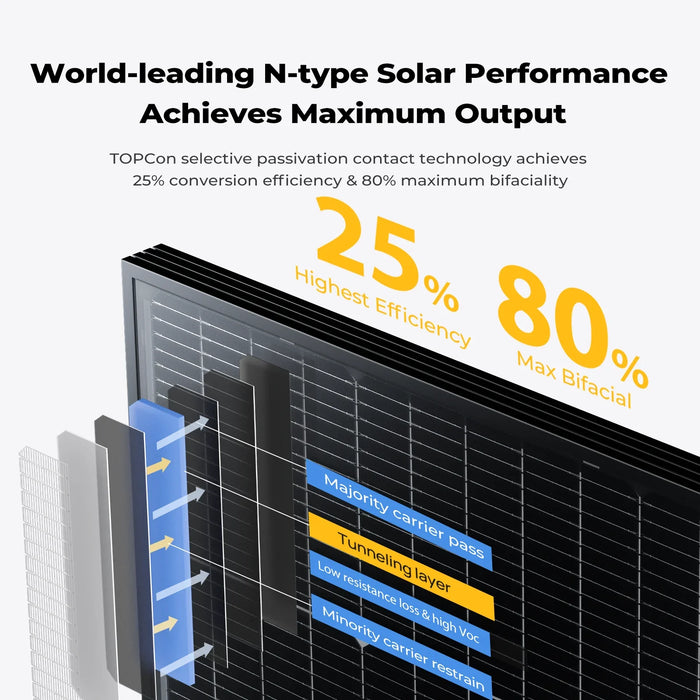

How do N-type TOPCon solar panels work?
N-type TOPCon solar panels use a thin tunnel oxide layer and passivated contacts on n-type silicon wafers to reduce electron recombination, leading to higher efficiency and better performance in low-light conditions. This design enhances energy conversion and durability compared to traditional panels.
If I order two 200 watt solar panels, will they come in one or two packages?
If you order two 200 watt bifacial solar panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.
Are 200 watt Topcon solar panels more efficient than traditional panels?
Yes, TOPCon solar panels typically have higher efficiency rates compared to traditional polycrystalline and monocrystalline panels, making them a preferred choice for maximizing energy output.
How do TOPCon solar panels compare to PERC panels in efficiency?
TOPCon solar panels generally offer higher efficiency compared to PERC (Passivated Emitter Rear Cell) panels. The advanced TOPCon technology uses a tunnel oxide layer and passivated contacts to reduce electron recombination, leading to better energy conversion. PERC panels also improve efficiency over traditional cells but typically do not reach the same efficiency levels as TOPCon panels.
Are BougeRV 200 watt bifacial solar panels mono?
No, BougeRV 200 watt bifacial differ from traditional solar panels by having solar cells on both sides instead of just one side.
How to install the 200 watt bifacial solar panel?
We suggest using a tilt mount bracket with these 200 watt bifacial solar panels, as they can absorb sunlight efficiently regardless of the sun's movement, eliminating the need for constant adjustment.
