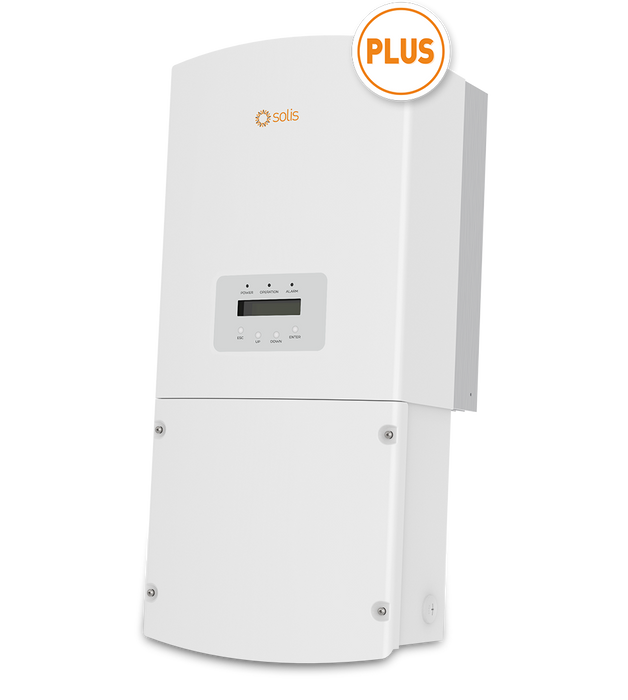

Solis-1P10K-4G-US-APST US Plus Single Phase String Inverters
The Solis-1P10K-4G-US-APST US Plus Single Phase String Inverter is designed to deliver exceptional performance and reliability for residential and small-scale commercial solar systems. With up to 97.8% maximum efficiency and advanced MPPT technology, this inverter optimizes solar energy conversion under varying sunlight conditions. Built with integrated rapid shutdown capability and module-level monitoring support, it combines safety, compliance, and high efficiency in one powerful unit.
- Max. efficiency of 97.8% with CEC efficiency at 97.5%, ensuring high power output.
- Supports up to 14A string current, accommodating various solar panel configurations.
- Compliant with CA Rule 21 and UL 1741 SB Certified, meeting strict safety standards.
- Features integrated module level rapid shutdown and supports module level monitoring.
- Comes with an industry-leading warranty of 10 years, extendable for added assurance.
Key Features
• 10 kW single-phase string inverter from the Solis US Plus series
• Maximum efficiency of 97.8% and CEC efficiency of 97.5%
• Supports up to 14A string current for flexible solar panel compatibility
• Four MPPT trackers for maximum energy harvesting across complex rooftops
• Integrated rapid shutdown transmitter and module-level monitoring support
• Certified to UL 1741 SB and CA Rule 21 for safety and compliance
• Transformerless design for higher performance and reduced system weight
• Backed by a standard 10-year warranty with extension options available
Benefits
The Solis-1P10K-4G-US-APST inverter helps maximize solar investment by efficiently converting solar power into usable electricity with minimal energy loss. Its four independent MPPT trackers allow the system to adapt to variable panel orientations and shading, ensuring optimal energy production. Safety is enhanced with built-in module-level rapid shutdown and advanced protection features, while compliance with industry standards ensures reliable integration into modern solar systems. Its high efficiency ratings contribute to lower electricity costs, reduced grid dependence, and a cleaner energy footprint.
Specification
| Specification |
Value |
| Max. Efficiency |
97.8% |
| CEC Efficiency |
97.5% |
| Max. Input Voltage |
600V |
| MPPT Voltage Range |
100 - 500V |
| Max. input current |
14 A / 14 A / 14 A |
| Max. short circuit current |
22 A / 22 A / 22 A |
| MPPT number/Max. input strings number |
4/4 |
| Rated output power |
10 kW |
| Max. output current for 240 V / 208 V grid |
41.7 A / 43.3 A |
| Topology |
Transformerless |
| Warranty |
10 years, extendable |
Why Choose Solis Solar Inverters?
Solis has become a trusted name in solar inverter technology since its inception in 2005 in Ningbo, China. Backed by more than 18 years of industry expertise, Solis offers a broad selection of inverters tailored for residential, commercial, and utility-scale solar applications. Their range includes single-phase and three-phase string inverters, as well as energy storage solutions, all recognized for exceptional efficiency and dependability. Solis stands out with its advanced grid support and remote monitoring features, enabling users to easily oversee and enhance system performance. With warranties up to 10 years, Solis ensures lasting quality and peace of mind.
Awards & Recognitions:
Awarded the PV Inverter Reliability Award by TÜV Rheinland
Named one of the Top Inverter Brands by EuPD Research
