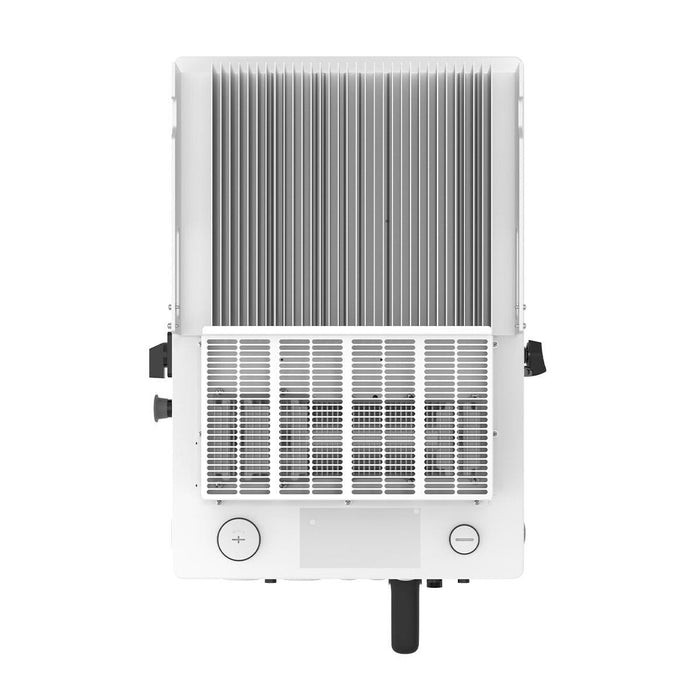

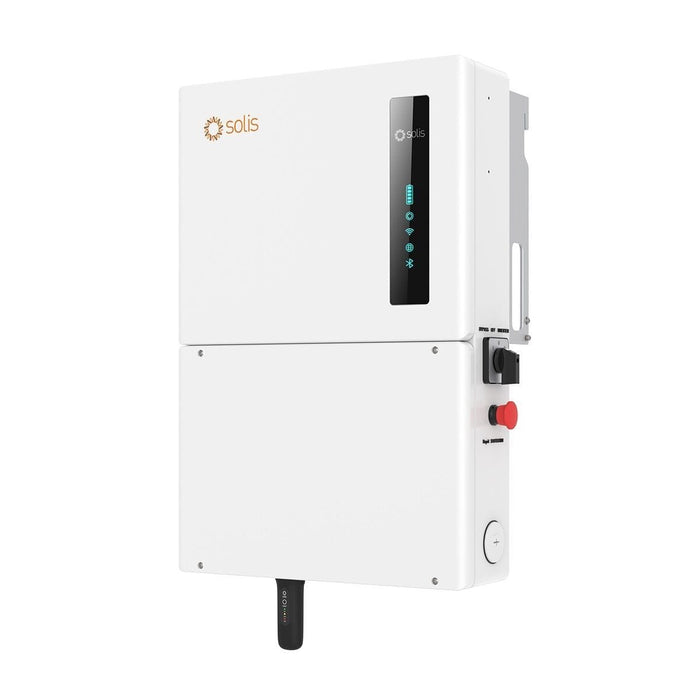

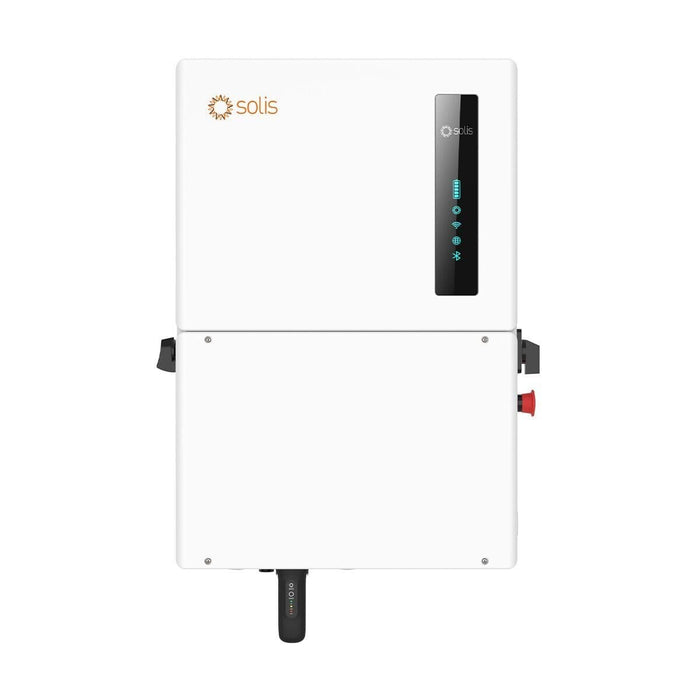

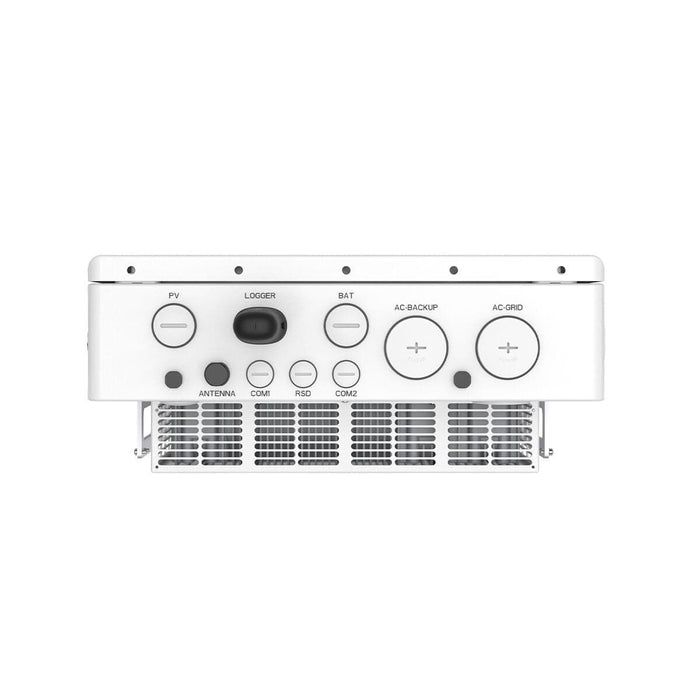

Solis S6-EH1P11.4K-H-US-RSS, 11.4kW Single Phase Four MPPT Hybrid Inverter with Tigo Transmitter
The S6 (Series 6) hybrid energy storage string inverter is Solis US’s latest model, fully certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus standards. This highly efficient PV string inverter provides affordable, clean energy and is built to endure extreme weather conditions with a Type 4X / IP 66 rating. It works seamlessly with various DC-coupled batteries, making it ideal for both off-grid and on-grid applications. Featuring 16A DC inputs at each MPPT, the S6 supports cutting-edge high-power PV modules, delivering dependable energy, flexibility, and lasting protection for your investment.
Highly Flexible:
- Able to supply a wide range of continuous backup power in the event of a grid outage
- Generates 120/240V backup power without an external auto-transformer
- Compatible with multiple battery brands, providing up to 150 kWh of storage capacity per inverter
- Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility
Intelligent Design:
- Supports operation in parallel with a generator and allows the generator to function as the grid source if utility power is lost
- Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control
- SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
Safe and Reliable:
- UL 1741 SA/SB and UL 9540 certified
- California Rule 21 and HECO Rule 14H compliant
- NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown
- External RSD & emergency power off switch options are also available
Efficient Performance:
- Maximum PV input current up to 16A per string
- Generates up to 50A/114kW of continuous backup power with up to 76A for ten seconds
- Backup transfer (switch) time is < 10ms
- DC to DC battery charging for optimal use of PV-generated energy
Specifications
Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter with 10 years warranty (S) Product Specifications
| Max. input voltage |
600V |
| Rated voltage: |
380V |
| Number of MPPTs/Number of strings per MPPT: |
4/1 |
| Max. input current per string: |
16A |
| Max. short circuit current per string: |
25.6A |
| Rated output power: |
11.4kW |
| Max. apparent output power: |
11.4kVA |
| Rated output voltage: |
240V |
| Rated grid frequency: |
60 Hz |
| Rated output current: |
47.5A |
| Max. output current: |
47.5A |
| PV Max. efficiency: |
97.6% |
| Dimensions: |
22.05in x 29.53in x 8.66 in |
| Weight: |
71.74 lbs (32.54 kgs) |
Manual
Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter with 10 years warranty (S) Manual
Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter with 10 years warranty (S) Data Sheet
Warranty
Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale
Warranty Terms
The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.
The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.
The company may repair or replace faulty components at its discretion.
This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.
Warranty Extension
The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).
Warranty Limitations
The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.
The Warranty is not transferable and applies to brand new Goods only.
Defective parts replaced under Warranty become the property of the Company.
The Warranty does not cover:
- The Warranty does not cover:
- Consequential damages including but not limited to loss of revenue;
- Claims by third parties other than the Customer;
- Defects of installation. (Except where the installation is performed by the Company);
- Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
- Items ancillary to installation not supplied by the Company;
- Duties, import/export fees or costs and other general administrative costs;
- Damage to Goods caused by misuse, improper handling or unauthorized modification;
- Loss or damage occurring whilst in transit;
- Accidental or willful damage;
- Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
to cover such Goods.)
Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.
Warranty Claims Procedure
To make a warranty claim the following information needs to be provided:
- Completed RTM Inspection Form
- Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)
- Copy of the invoice for the inverter
- Copy of the installation report and installation certificate
The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.
Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
