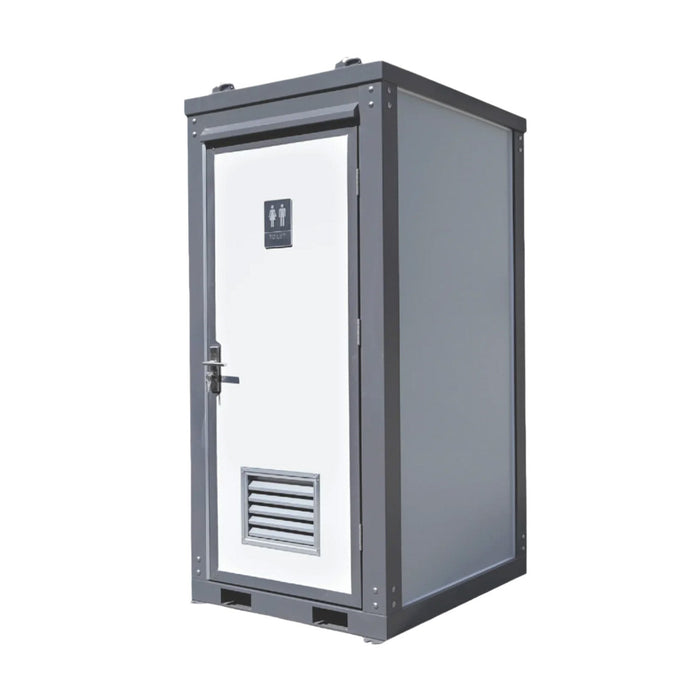

Bastone Portable Restroom with Sink
The Bastone Portable Restroom with Sink is a compact yet fully functional outdoor sanitation solution designed for outdoor events, special gatherings, construction sites, and locations without permanent bathroom facilities. This unit combines a flush toilet with a built-in sink and handwashing area, offering users a clean and practical restroom experience that elevates convenience and hygiene in outdoor settings.

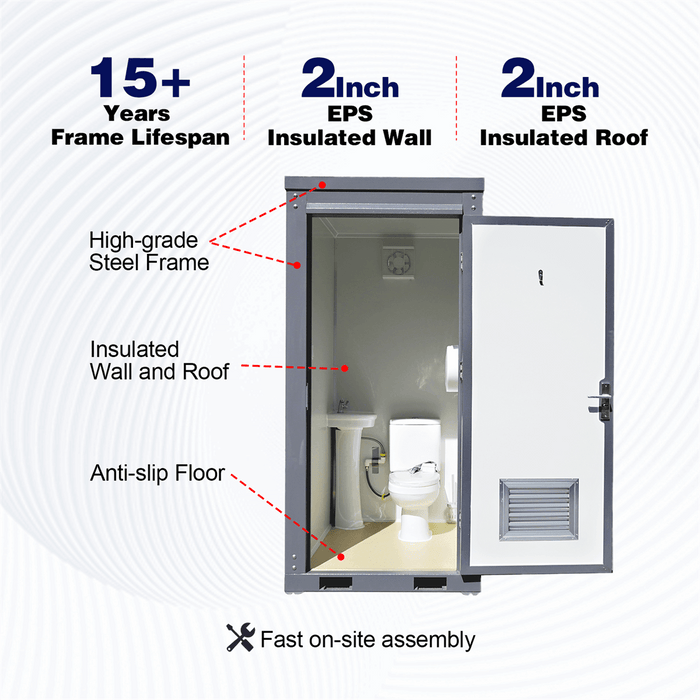

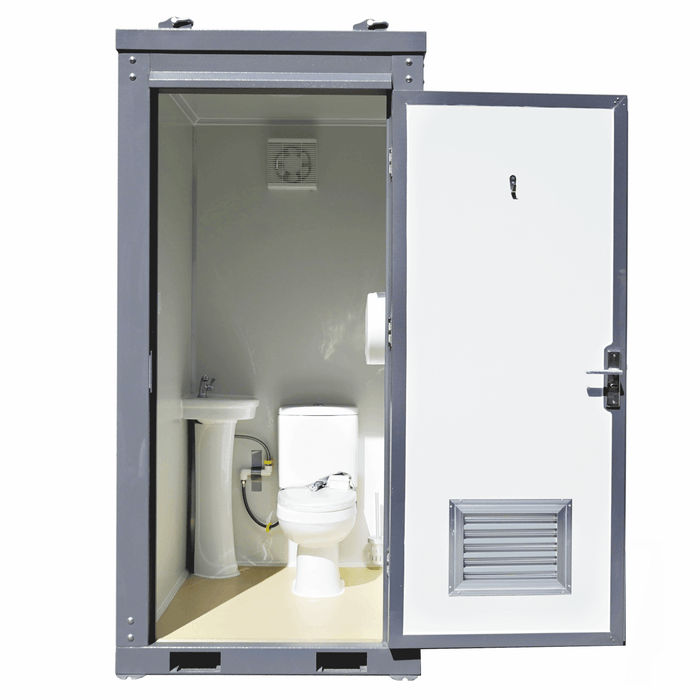

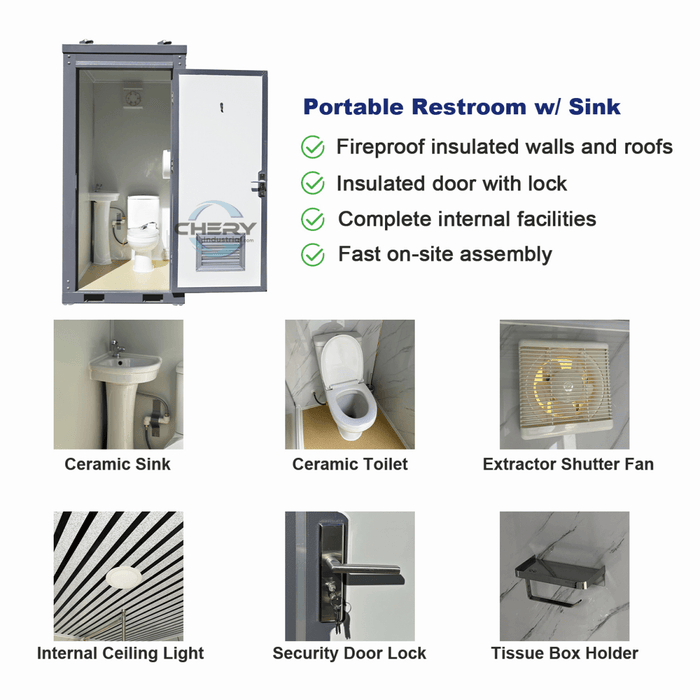

Thoughtfully engineered to maximize interior space, the unit includes a flush toilet, an integrated sink, a ventilation fan to maintain airflow, and a paper towel dispenser for added convenience. The exhaust fan ensures continuous circulation of fresh air, preventing stuffiness and helping maintain a comfortable interior environment.
Constructed with a robust welded steel frame and insulated panels, this portable restroom delivers durability and weather resistance for year-round outdoor performance. Its fresh style and quality finish make it a welcoming facility for guests, crew, or workers, making it suitable for weddings, parties, parks, job sites, and more.
Equipped with lifting lugs for easy transport and placement, the Bastone Portable Restroom with Sink is also designed for efficient handling when relocating or unloading. This practical, standalone unit provides reliable sanitation wherever you need it without requiring complex installation.
Features
- Portable Toilets / Porta Potty with Sink
- Toilet booth, toilet kiosk, mobile toilet
- Material: High-Temperature Resistant Paint
- Door: Security Door
- No water tank reserve comes with this unit
Specifications
| Description |
Specifications |
| Model |
Portable Restroom w/ Sink |

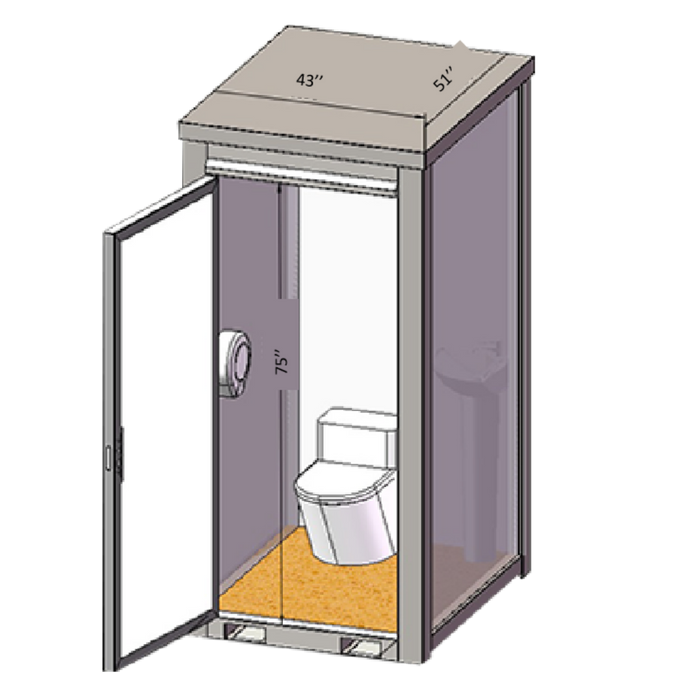

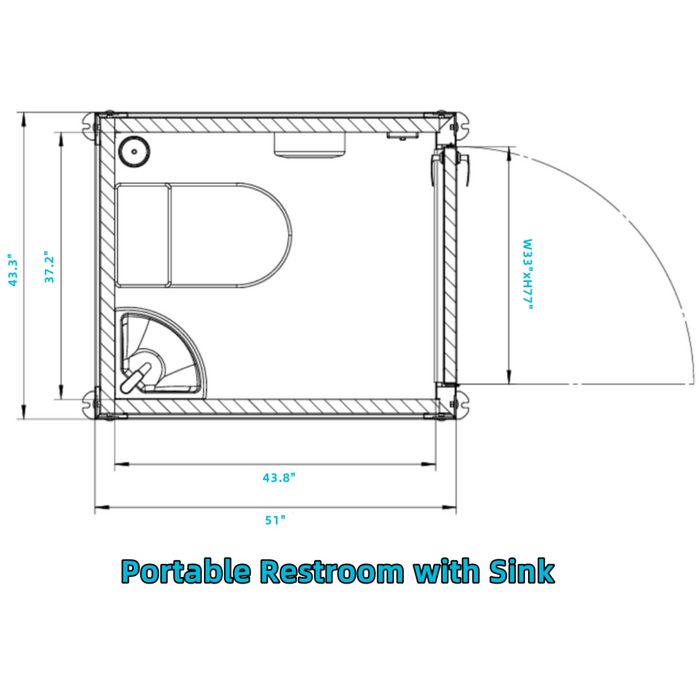

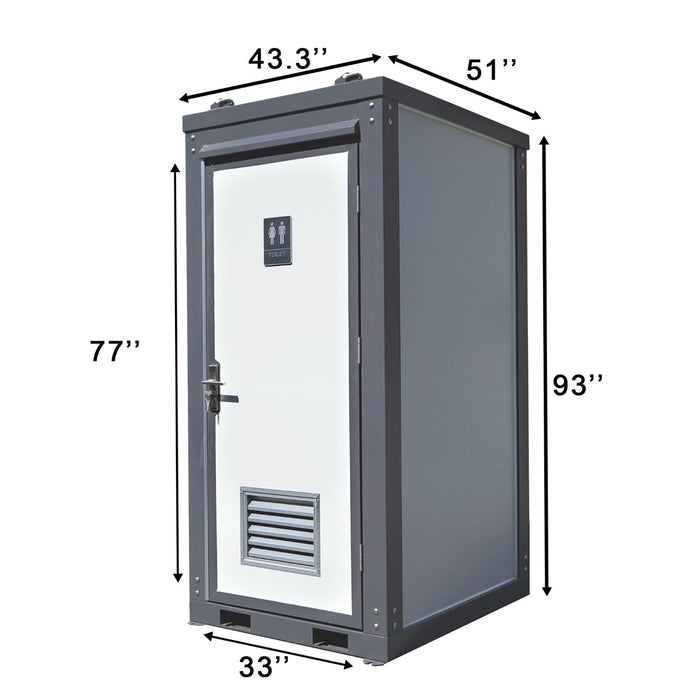

| Dimension (LxWxH) |
43.3"x51"x93" |
| Interior Dimension (LxWxH) |
37.2"x43.8"x 83" |
| Door Size |
W 33" x H 77" |
| Net Area |
11.3 ft² |
| Frame |
Steel |
| Surface Coating |
High-Temperature Resistant Paint |
| Roof Material |
2-inch EPS fire-resistant & insulated roof panels |
| Wall Material |
2-inch EPS fire-resistant & insulated wall panels |
| Floor Material |
Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value |
7.09~8.27 |
| Doors |
- EPS Composite Panel
- Outward Opening Door
|
| Circuit Breaker Spec |
13~16 Amps |
| Power Supply |
110V~220V |
| Wire info |
3 core 2.5 sqmm |

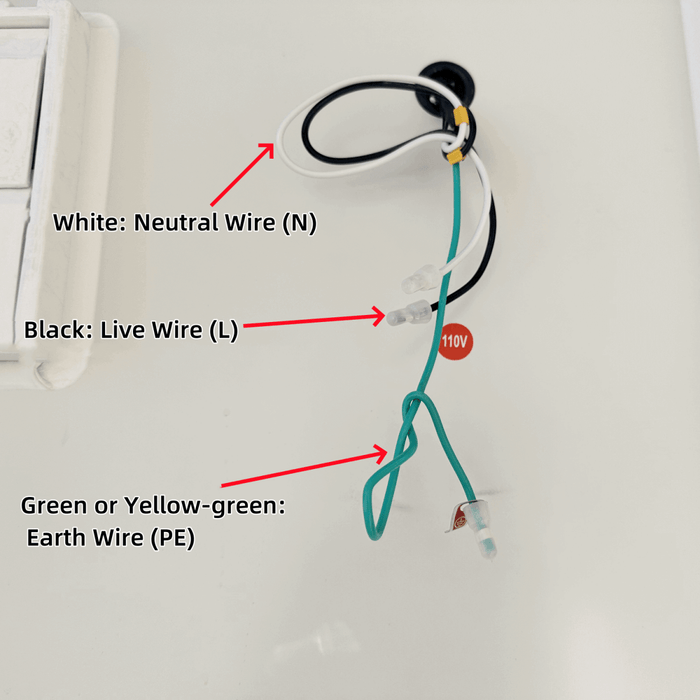

| Wiring Instructions |
White Wire: Neutral Wire
Black Wire: Live Wire
Green or Yellow-green Wire: Earth Wire |
| Flush volume |
1.6 gpf |

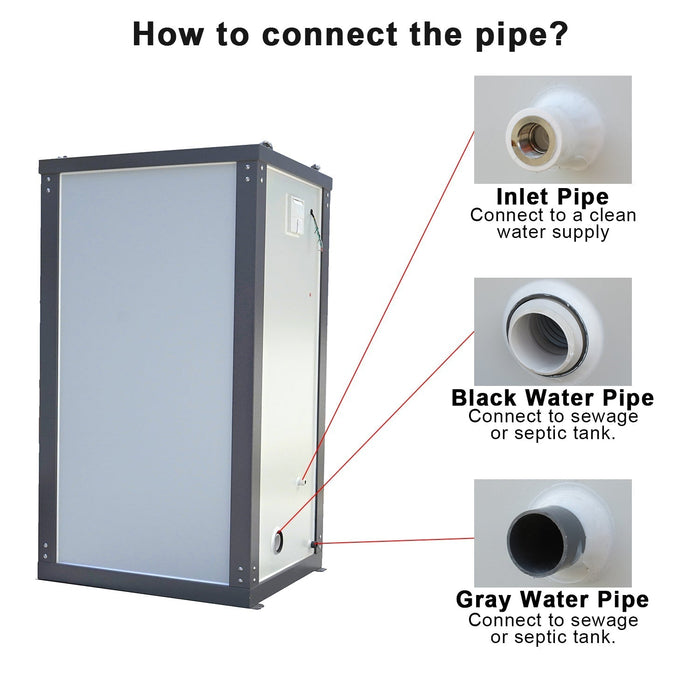

| Inlet Pipe Material |
PPR Pipe |
| Inlet Pipe Inner diameter |
4/5 inch |
| Outlet Pipe Material |
PVC Pipe |
| Outlet Pipe Inner diameter |
- Gray Water Pipe: 1 ⅘ inch
- Black Water Pipe: 3 inch
|
Lowest Pipe Working Temperature
|
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level |
B2 |
| Wind Load |
56 MPH |
| Snow Load |
125 lb/sqft |
| Forklift Pockets |
Dimension: W7"x H3"
Distance between forklift pocket: 13.5" |
| Lifespan |
15+ Years |
| Warranty |
1 Year |
Set up

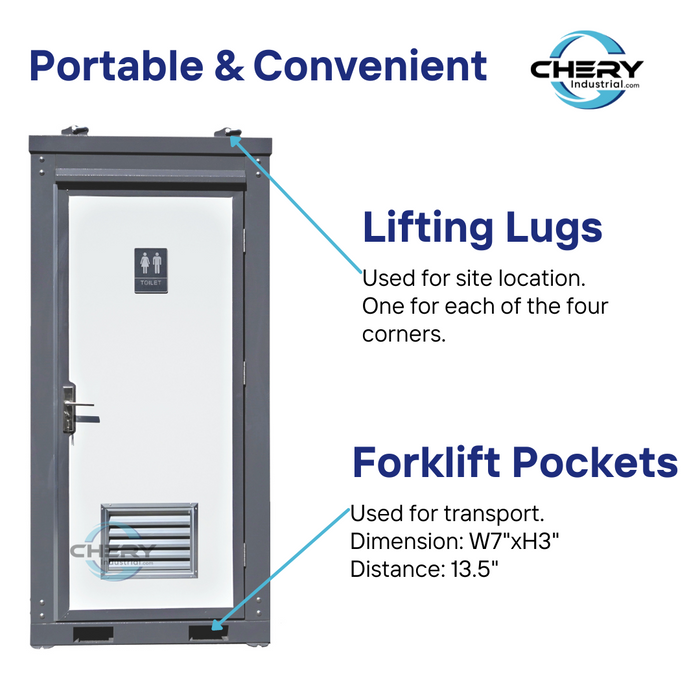

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Bastone Portable Restroom w/ Sink is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Package Size
- LxWxH (inch): 51x43x93
-
Weight (lb): 829
- A forklift or equivalent is required for unloading
