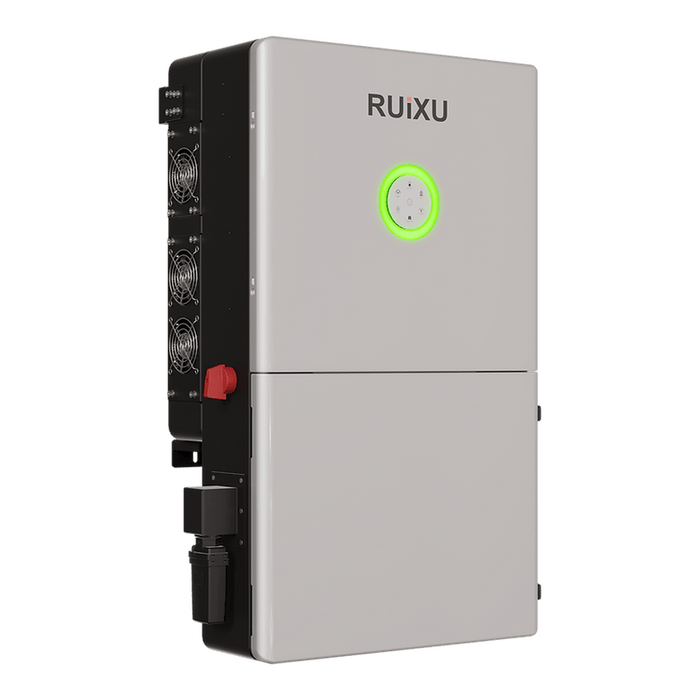

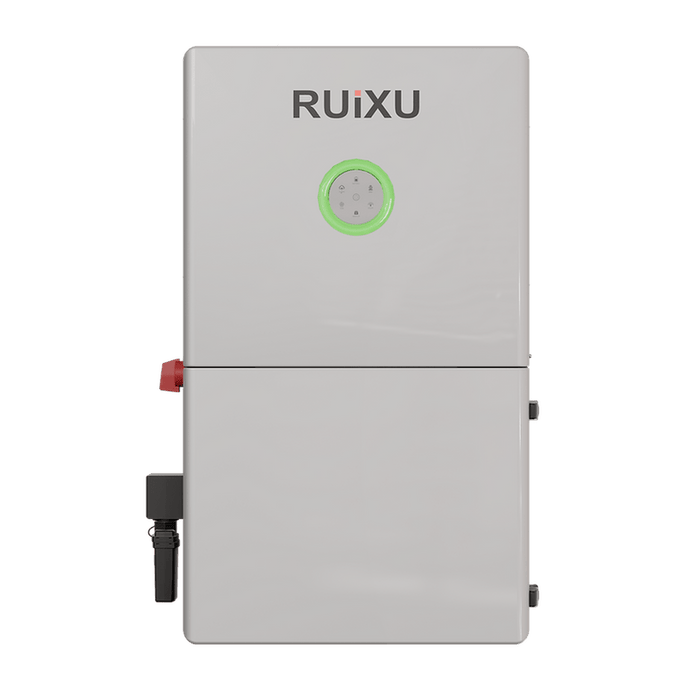

RUiXU RX-12K: All-in-One Hybrid Inverter
The RUiXU RX-12K is a high performance, all in one hybrid inverter engineered for the U.S. split phase grid. It supports 48V battery systems with a 40 to 60V battery range, accepts PV input from 90 to 550V, and delivers up to 11.4kW of output power.
With an integrated 200A transfer relay, AC coupling compatibility, generator support, and 4 MPPT inputs, the RX-12K is designed for whole home backup, solar self consumption, and flexible hybrid energy storage systems.
Key Features
-
AC Coupling Compatibility
Retrofit existing grid-tied or off-grid systems with ease.
-
All-in-One Hybrid Inverter
Operates in grid-tied, off-grid, or hybrid modes and supports energy export.
-
Split-Phase Output
Supports 120/240V for single-unit or 120/208V for multi-unit setups.
-
Generator-Compatible
Dedicated ports for grid and diesel generators enable diversified backup options.
-
High Output Power
Delivers up to 11.4 kW continuous output with integrated 200A transfer relay for whole-home power.
-
Rapid Shutdown Function
Ensures safety and meets regulatory standards with fast system deactivation.
-
IP65 Protection
Weather-resistant enclosure for indoor or outdoor installation.
-
Multiple Battery Compatibility
Works with both lithium and lead-acid battery chemistries.
-
4 MPPT Inputs
Maximizes solar harvest with independent tracking across four PV strings.
-
UPS Functionality
< 20ms transfer time keeps essential loads powered without interruption.
Applications
The RX-12K is ideal for homeowners who need:
-
Reliable off grid or backup power for the whole home
-
Seamless solar energy integration with batteries
-
A future ready platform that can expand as energy needs grow
Whether you are upgrading an existing system or building a new solar and storage installation, the RX-12K provides powerful, safe, and intelligent energy control.
What's Included
- Inverter x 1
- Mounting plate x 1
- Communication module x 1
- Flathead tool x 1
- Key x4
- Allen wrench x 1
- M6*50 screw x 8
- Expansion tube x 8
- Hex wrench x 1
- Current transformer x2
- Printed documents x 1
Specifications
![]()
![]()
Manual and Downloads
Warranty
OffGridLux (“the Seller”) warrants each RUIXU branded battery (“the Product”), as listed below, sold by RUIXU or any of its authorized distributors or dealers, to be free of defects for the period as listed in the table below (“the Warranty Period”), from the date of sale as determined by either the customers’ sale receipt, the shipping invoice and/or the battery serial number, with proof of purchase. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will credit, replace or repair, if serviceable, the Product and/or parts of the Product, if the components in question are determined to be defective in material or workmanship.
The Warranty Period for Physical Goods purchased from RUiXU Battery or authorized distributors or dealers is 10 Years.
RUiXU Battery will replace or repair the product at no charge, using new or refurbished replacement parts.
The Seller has no obligation under this limited warranty for product subjected to the following conditions (including but not limited to):
*Damage caused during shipping or mishandling of the Product
*Damage due to improper installation:loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections, or insufficient space for airflow
*Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact, or collision
*Damage due to improper operation or maintenance such as under- or over-charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels, or chemicals on the Product casing
*Improper use of CAN cables such as improper connections or not connecting them
*Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the Manufacturer
*Product that has been opened, modified, or tampered with Tampering or removal of manufacture date codes.
*Product that was used for applications other than which it was designed and intended for by the Manufacturer
*Product that was under-sized for the application.
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
Submitting A Warranty Claim
To submit a warranty claim, please contact the original place of purchase. The Product may be required to be shipped back to the Seller for further inspection. The Product must be shipped in compliance with UN38.3. Please note that DOT requires all persons’ shipping batteries to be Hazmat certified.
