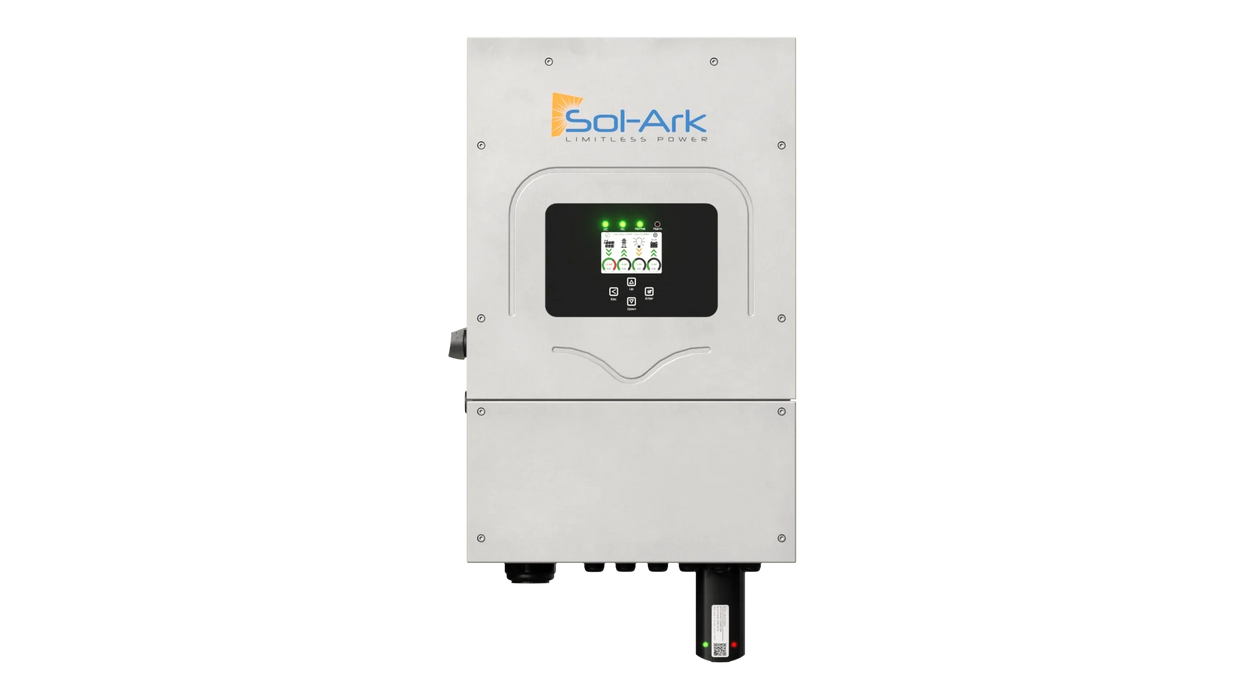

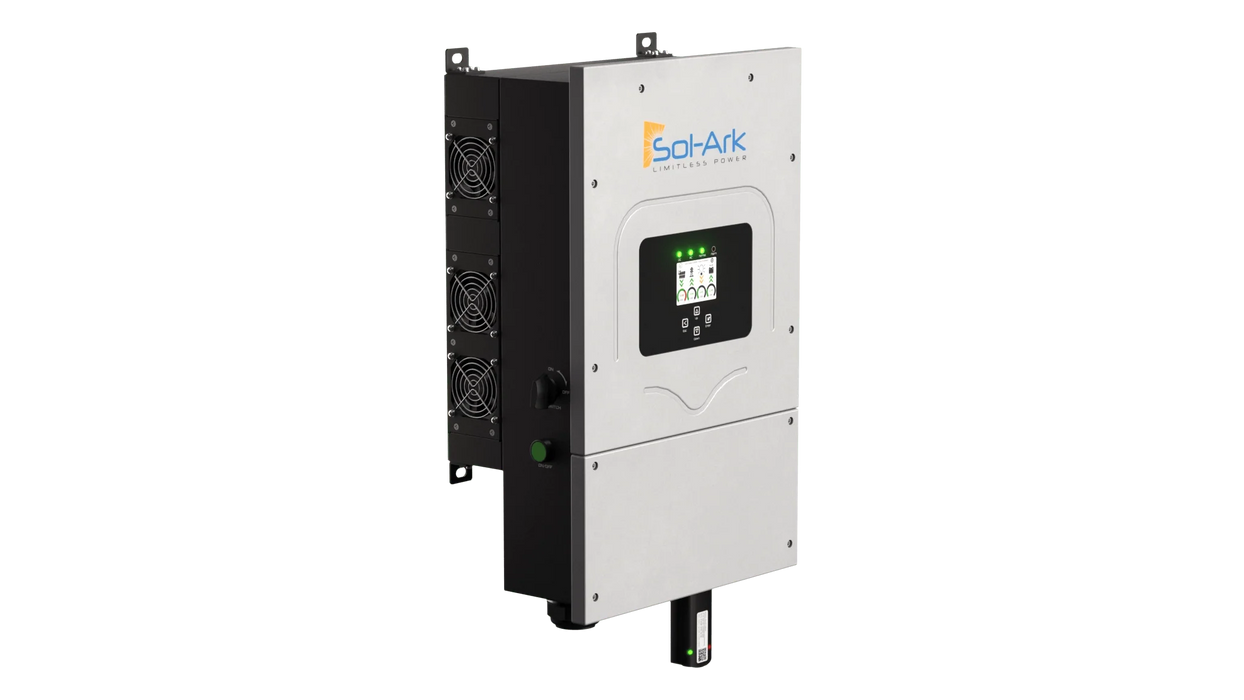

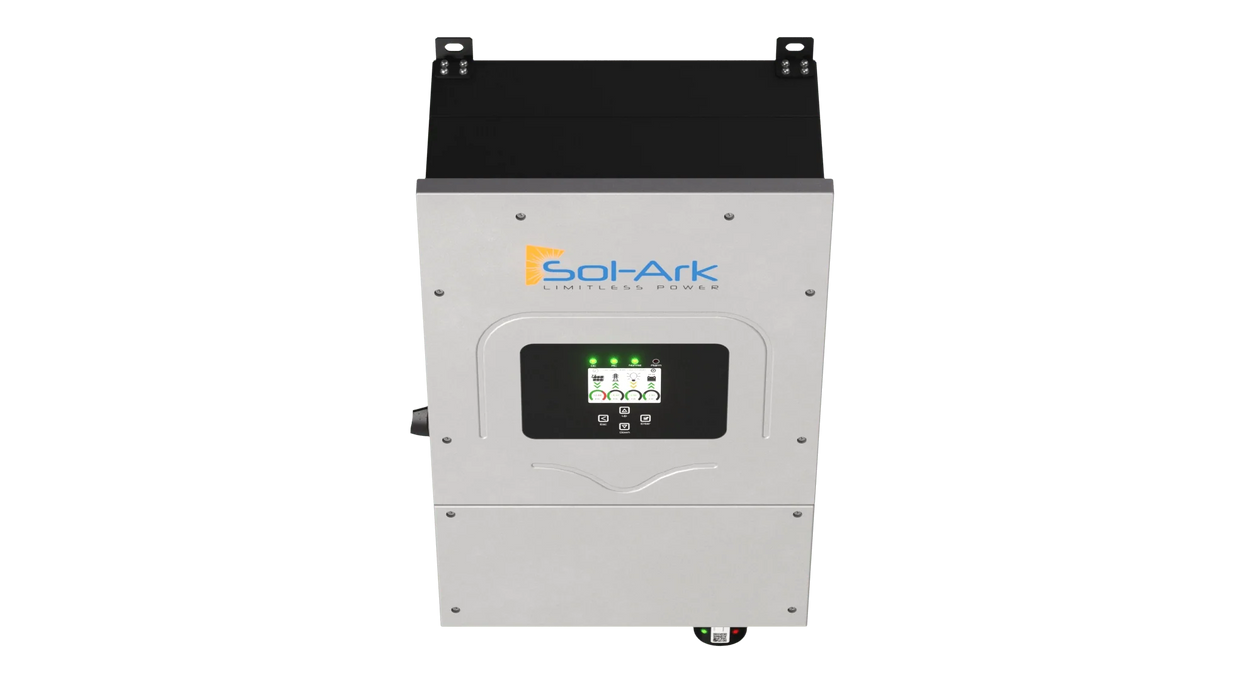

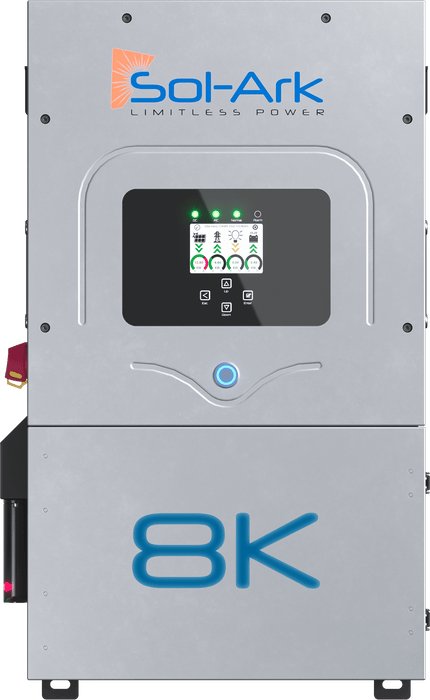

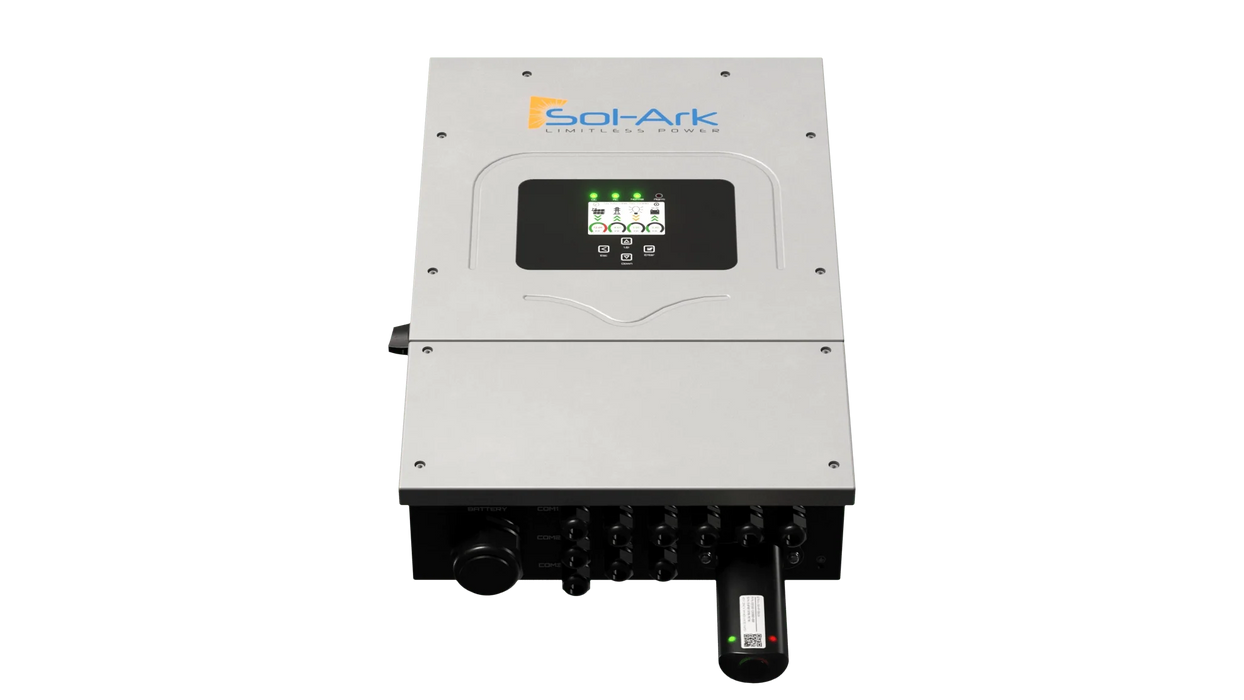

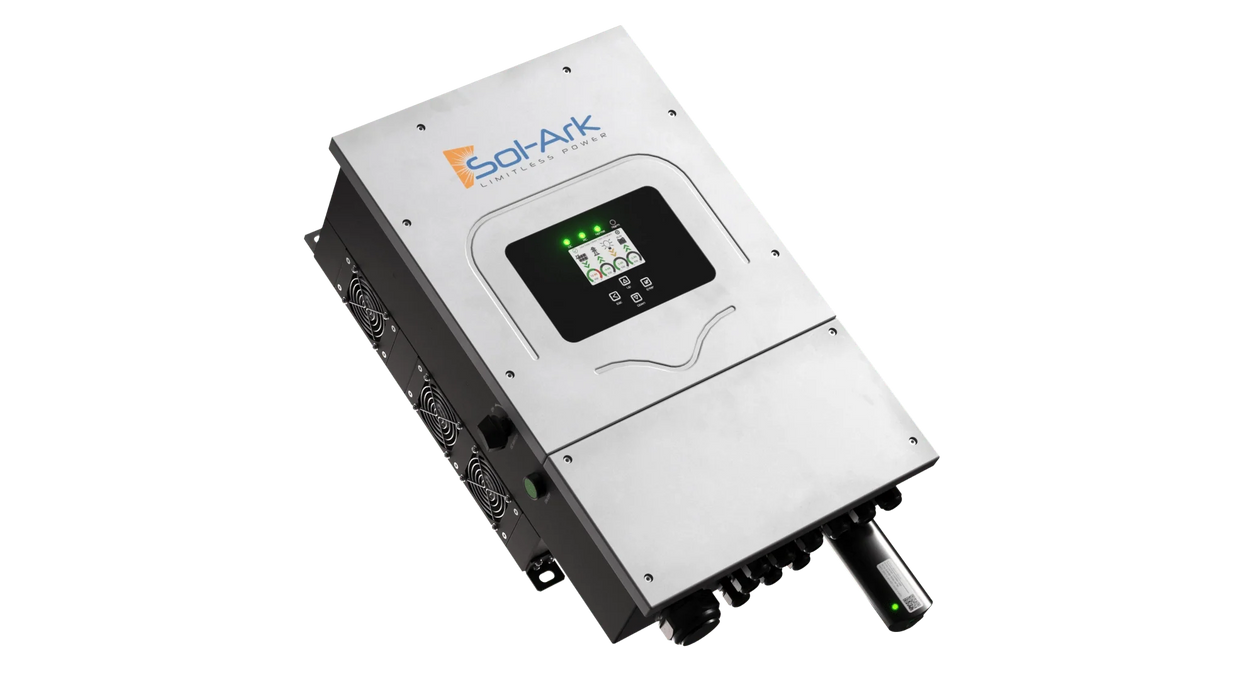

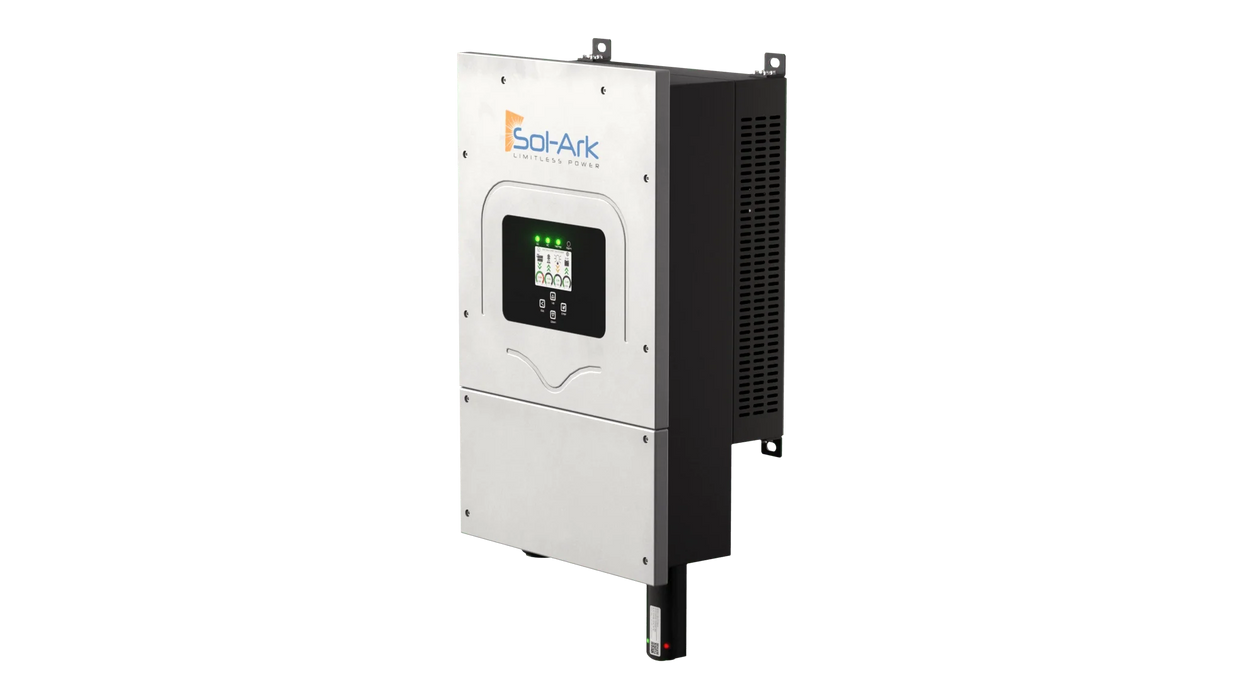

Sol-Ark 8K-2P | 8kW All-in-One Hybrid Inverter | 120/240VAC Split Phase | 48VDC | Indoor/Outdoor | NEMA-3R
The Sol-Ark 8K Hybrid Inverter supports up to 11,000W of solar input and features a 63A transfer switch for seamless power management. Equipped with two MPPT trackers, it handles up to 500 VDC with a minimum starting voltage of 125 VDC. Its NEMA 3R rating ensures durability and reliable performance both indoors and outdoors, making installation quick and hassle-free.
The Sol-Ark 8kW inverter supports a 500V DC solar input, enabling up to 11,000W of solar power. Its versatile operation modes make it ideal for both off-grid and on-grid use. You can easily add batteries anytime, compatible with FLA, AGM, or Lithium types—all while supporting closed-loop communication for seamless integration. Designed as an all-in-one system, the Sol-Ark eliminates the need for extra breakers, fuses, combiner boxes, or rapid shutdown devices, simplifying installation and boosting reliability.
Features:
- 63A built-in transfer switch
- Capable of different modes, including grid sell, limited power to the home, limited power to load, and time of use
- Able to turn on loads when excess power is available
- NEMA 3R rated, allowing outdoor installation
- Has Closed-Loop Communication, able to work with any LiFePO4 batteries requiring communication
- It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
- Built-in Rapid shutdown and emergency stop
- Built-in remote monitoring system
Applications:
- Off-grid housing, on-grid housing
- 48V Lithium or Lead Acid charging
Specifications
Sol-Ark 8K-2P | 8kW All-in-One Hybrid Inverter | 120/240VAC Split Phase | 48VDC | Indoor/Outdoor | NEMA-3R Product Specifications
- Max Allowed PV Power: 11,000W
- Max DC Voltage (Voc): 500V @ 18A
- Startup Voltage: 125V
- Number of MPPTs: 2
- Connections: 120/240/208V Split-Phase
- Zero Load Consumption: 60W
- 63A Feedthrough for critical loads
- Weight: 78 lbs.
- Dimensions (HxWxD): 30 x 18.3 x 10 inches
- NEMA 3R Certified
Manuals
Warranty
Limited Warranty: Sol-Ark 8K-2P-N
10-Year Limited Warranty for Sol-Ark LLC Products. Sol-Ark LLC provides a Ten-year (10) limited
Warranty ("Warranty") against defects in materials and workmanship for its Sol-Ark LLC products
("Product"). The term of this warranty begins on the Product(s) initial purchase date, or the date
of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the
invoice, bill of sale from your installer. This warranty applies to the original Sol-Ark LLC Product
purchaser and is transferable only if the Product remains installed in the original use location.
Please call Sol-Ark LLC to let us know if you are selling your Home and give us name and contact
of the new owner.
The warranty does not apply to any Product or Product part that has been modified or damaged by the following:
• Installation or Removal (examples: wrong voltage batteries, connecting batteries backward, damage due to water/rain to
electronics, preventable damage to solar wires.)
• Alteration or Disassembly.
• Normal Wear and Tear.
• Accident or Abuse.
• Unauthorized Firmware updates/software updates or alterations to the software code.
• Corrosion.
• Lightning: unless using EMP hardened system, then Sol-Ark LLC will repair the product.
• Repair or service provided by an unauthorized repair facility.
• Operation or installation contrary to manufacturer product instructions.
• Fire, Floods, or Acts of Nature.
• Shipping or Transportation.
• Incidental or consequential damage caused by other components of the power system.
• Any product whose serial number has been altered, defaced, or removed.
• Any other event not foreseeable by Sol-Ark LLC
Sol-Ark LLC liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Sol-Ark
LLC discretion. Sol-Ark LLC does not warrant or guarantee workmanship performed by any person or firm installing its Products. This warranty
does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products. LCD
screen and fans are covered for 5 years from date of purchase.
THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY APPLICABLE TO SOL-ARK LLC PRODUCTS. SOL-ARK LLC EXPRESSLY DISCLAIMS
ANY OTHER EXPRESS OR IMPLIED WARRANTIES OF ITS PRODUCTS. SOL-ARK LLC ALSO EXPRESSLY LIMITS ITS LIABILITY IN THE EVENT
OF A PRODUCT DEFECT TO REPAIR OR REPLACEMENT IN ACCORDANCE WITH THE TERMS OF THIS LIMITED WARRANTY AND
EXCLUDES ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR
PRODUCTS NOT BEING AVAILABLE FOR USE OR LOST REVENUES OR PROFITS, EVEN IF IT IS MADE AWARE OF SUCH POTENTIAL
DAMAGES.
