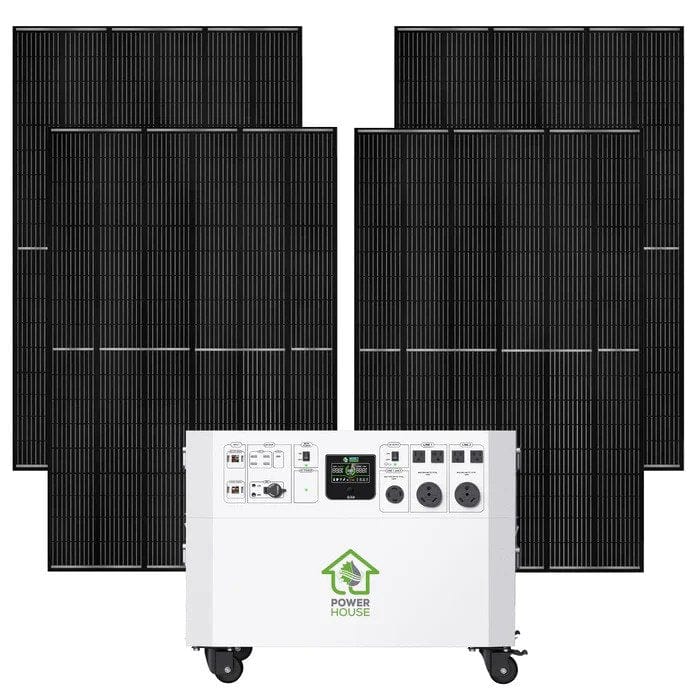

Nature’s Generator Powerhouse 7200W Gold Plus System Solar Kit
Nature’s Generator Powerhouse Gold Plus System consists of the Powerhouse and four 410W Power Panels, offering you to the ability to absorb more energy from the sun.
•120VAC and 240VAC up to 7200W Pure Sine Wave
•4800Wh Batteries Included
•5V USB, 12V DC, and 48V DC Output
•4x 410W Mono PERC Solar Panel Set
*Disclaimer: Our solar panels include the necessary connectors and wires but do not include any tools, hardware, etc. We highly recommend having the solar panels professionally installed by a certified installer.

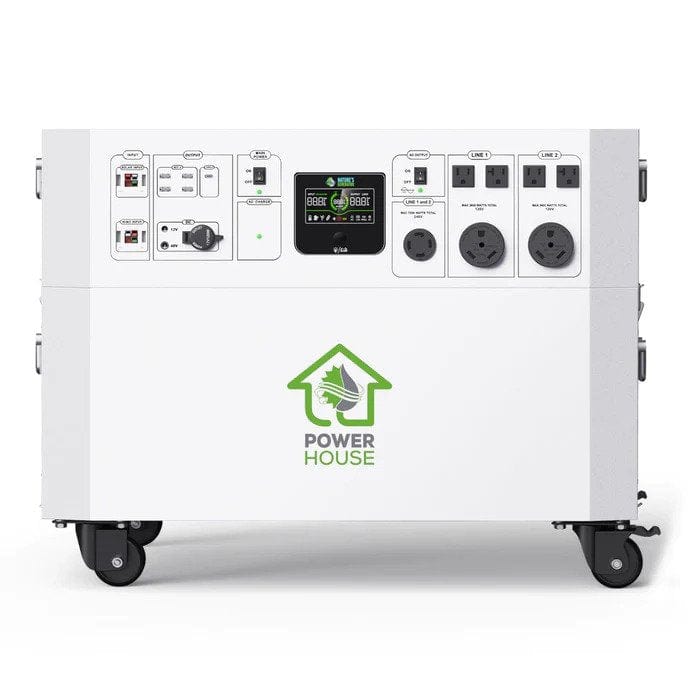

Get To Know The Nature's Generator Powerhouse
Nature's Generators' Powerhouse can single-handedly address all your home power requirements because of its split phase 240V/7200W or single phase 120V/7200W (combined) pure sine wave inverter!
Your All-in-One Expandable Home Power Eco-System
Nature's Generator understands the importance of being able to expand your system. The Powerhouse can add Solar Panels, Wind Turbines, Power Pods, Transfer Switch, Security Camera System, etc. You have the ability to customize your eco-system and MAKE IT FIT WHAT YOU NEED!

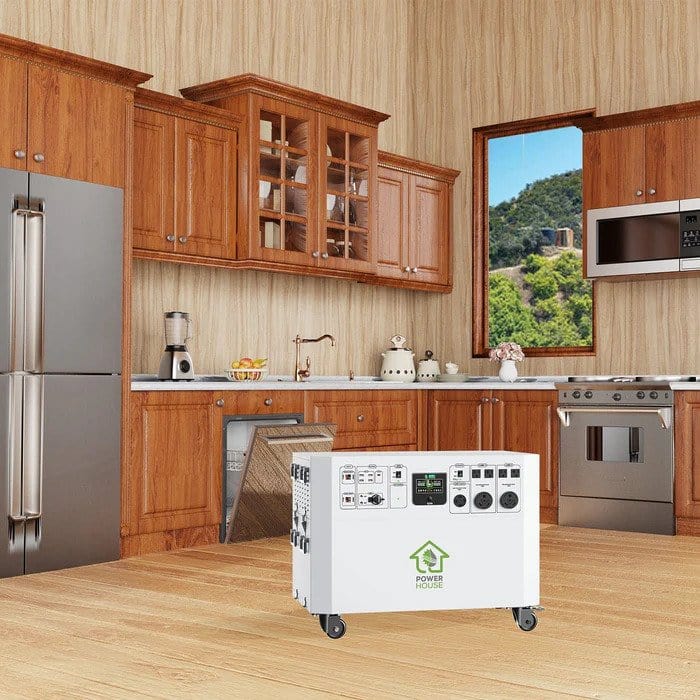

What can the Nature's Generator Powerhouse power?
Powerhouse Power Panel
The Nature's Generator Powerhouse Power Panel uses MONO PERC solar cell. A new solar cell technology that improves efficiency to harness more free energy from the sun.
Product Specifications
Nature's Generator Powerhouse Product Specifications
Battery
Type: AGM Sealed Lead Acid
Capacity: 48V 100Ah (4800Wh)
Self-discharge: Recommend to recharge every 4 months

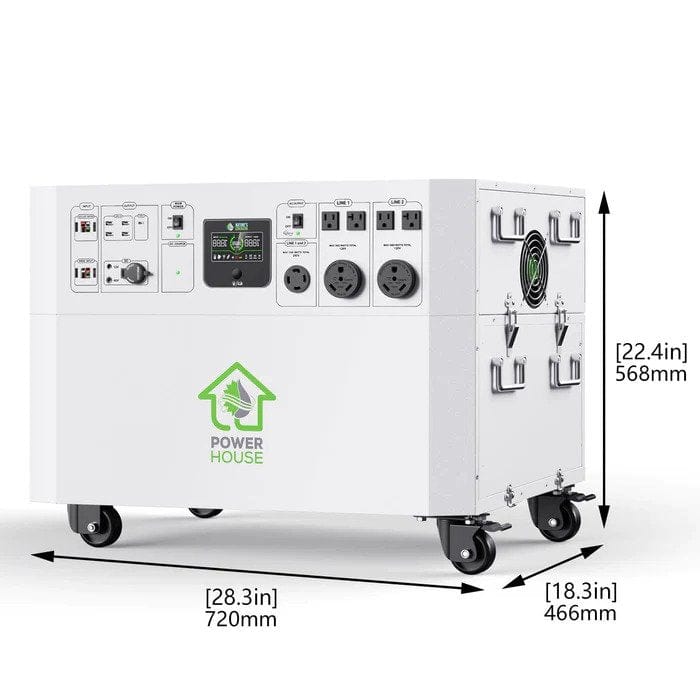

Dimensions
Power house : 28 x 18 x 19 inches (720*466*472.8mm)
Power house with wheel: 28 x 18 x 22.36 inches (720*466*568mm)
Inverter
Output Power: 7200 watt max
Output voltage: 240V Split Phase
Output voltage: 120V Single Phase
Output frequency: 60Hz
Output Sine Wave: Pure sine wave
Output Phase: Split phase
Operating temperature
32-104 °F (0-40 °C)
Ports
USB -A Port: 5V, up to 3A (15W)
12V DC Port: up to 20A (240W max)
Expansion Port: 350A fuse
Storage Temperature
23–111 °F (-5–45 °C)
Charges
AC Charger: 1300W, 120V AC
AC Charger Indicator: red (charging) and green (charged)
Solar Charger: 2000W
Wind Charger: 1000W
Weight
434 lbs (197 kg)
Nature's Generator Powerhouse Power Panel Product Specifications
Power Rating
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%
Dimensions & Characteristics
1724×1134×35mm (67.87×44.64×1.37 inch)
Cell Type: Mono PERC 182×91mm
No. of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
TUV1x4.0mm2 , 450mm / 1200mm
Fire rating
UL: Type 1, IEC: Class C
Weight
21.5 kg (47.4 lbs)
What's in the Box
Nature's Generator Powerhouse
- 1 x Nature's Generator Powerhouse Generator
- 1 x Nature’s Generator Powerhouse Battery Storage
- 1 x AC Power Cord

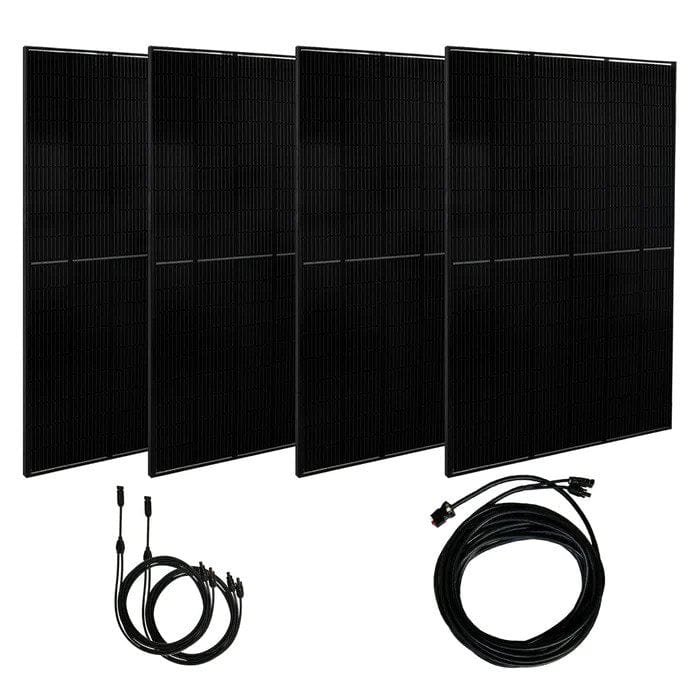

Nature’s Generator Powerhouse Power Panels
- 4 x Nature’s Generator Powerhouse Power Panels
- 1 x Branch Connector
- 1 x 50ft Nature's Generator Power Panel Cable
Manual
Warranty, Return & Refund Policy
Nature's Generator Product Warranty, Return & Refund
LIMITED WARRANTY
One Year Limited Warranty
Natures Generator Inc. warrants to you, the original purchaser of this new product, that the product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the original date of your purchase of the product (“Warranty Period”). This product must be purchased from an authorized dealer and packaged with this warranty statement. This warranty does not cover refurbished product.
What does this Warranty Cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the product is determined to be defective by an authorized dealer, Natures Generator Inc. will (at its sole option): (1) repair the product with new or rebuilt parts; or (2) replace the product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Nature's Generator Inc. and are not returned to you. If service of products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the product.
How to Obtain Warranty Service?
Please call 1-800-975-7909 Monday through Friday, 9:00AM to 5:00PM PST. You will be provided
with a Return Merchandise Authorization (RMA) number and return instructions. Send product to:
Natures Generator Inc.
3130 Paseo Mercado Suite 106
Oxnard, CA 93036
Please include the RMA number prominently displayed on the shipping box and include your name, phone number and address with the product inside the box.
Please note that the 1 year warranty does not cover the following:
• Cosmetic damage
• Damage due to force majeure, such as lightning strikes, fire, flood, etc..
• Accident
• Misuse
• Abuse
• Negligence
• Modification of any part of the product
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Products sold as is or with all faults
• Consumables, such as batteries
• Products where the factory applied serial number has been altered or removed
For these cases, repair fee plus the amount of the part(s) that needs to be replaced will be charged to the customer.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. NATURES GENERATOR INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. NATURES GENERATOR INC. PRODUCT MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Natures Generator Inc:
For customer service please call 1-800-975-7909
Natures Generator Inc.
3130 Paseo Mercado Suite 106
Oxnard, CA 93036
RETURNS:
Within the First 30 days of Purchase:
Any unopened/unused and non-defective product purchased on naturesgenerator.com can be returned to us within 30 days of the original ship date. The item(s) can be returned back to us but can be subject 15% restocking fee if the item has been opened or unboxed. In addition there is a one-time online merchant processing fee of 3% that cannot be refunded. Please contact us via email at support@naturesgenerator.com or via telephone at (800) 975-7909 before any product is returned to us.
When you contact us we will provide you with an RMA number and confirm the return address to you. You can then arrange to send back the product. The shipping cost associated with any unopened/unused and non-defective product is the purchaser's responsibility.
Outside of 30 Days:
We will be unable to accept any returns after 30 days from the date of purchase.
PRE-ORDERS:
Any pre-orders placed can be cancelled and refunded. There is a one-time online merchant processing of 3% that cannot be refunded for cancellations.
If your order includes an item that is on pre-order, we will fulfill the order in full when those items become available.
DAMAGES:
If for any reason your product is damaged upon receipt, please contact us immediately via email at support@naturesgenerator.com or via telephone at (800) 975-7909 so that we can work with you on getting a replacement.
FAQs
Frequently Asked Questions
Why is my Nature's Generator not being charged when I connect the power cord to the Nature's Generator?
If you connect the power cord from the wall to the AC input port of Nature's Generator and the AC input LED and main LCD screen do not light up, it’s likely because the battery is too low to recharge. Use the jumpstart cable or jumpstart cable Elite to jump start the battery by connecting the jumpstart cable to the expansion port, clamps to the car battery, then immediately connect the AC power cord. The LED should light up red.
What kind of batteries do Nature's Generators use and why?
Nature’s Generator uses sealed lead-acid (SLA) batteries due to their safety, affordability, proven longevity, and ability to daisy-chain power pods to expand your system—features not available with other technologies.
How long does the charge last?
It’s recommended to fully charge Nature’s Generator once every four months.
What should I do if the battery is completely depleted?
Use regular jump cables or purchase the proprietary jumper cable. For regular cables, remove bolts to open the top case and connect the battery to a car battery like jump-starting a car. For proprietary cables, connect the gray Anderson connector to the expansion port and clamps to the car battery. After connection, the LCD display will light up, allowing charging by solar panel or wall.
What is the best way to maintain the battery?
Charge the Nature’s Generator for at least 24 hours on first use. When not in use, charge to 100% before storage and recharge at least once every four months to keep the battery active and performing optimally.
What is the typical lifespan of the sealed lead-acid battery?
SLA batteries typically last between 500 and 800 full charge cycles.
How easy is it to replace my battery?
Battery replacement is simple: remove a few bolts, open the top case, and swap the battery. The battery is easily accessible. For details, please refer to the replacement battery information.
Can Nature's Generators be expanded?
Yes. You can expand your system by connecting Nature’s Generator Power Pods or Power Pod Elites, each providing an additional 100Ah (1200Wh) battery capacity.
How many Power Pods can be connected?
You can chain unlimited Power Pods, each with an expansion port to connect more pods. Each pod also has a solar input port for adding additional Nature’s Generator Power Panels to speed recharge.
How much run time does one Power Pod add?
Each Power Pod adds 167% run time to the Nature’s Generator; two pods add 334%, and so forth. For the Elite version, one pod adds 200%, two add 300%, etc.
How can I charge Power Pods?
Power Pods include solar charge controllers (200A for Power Pod, 300A for Power Pod Elite). They can be charged via Nature’s Generator Power Panels or by the Nature’s Generator charger. You may also buy a separate charger/maintainer for independent charging.
How do I know when Power Pods are fully charged?
Press the battery level button with nothing attached. All 5 LEDs lighting indicates full charge; each LED represents 20% charge.
How can I check Power Pod battery levels?
Press and hold the battery button on the Power Pod to view the current battery level.
Where should I place Power Pods?
Power Pods are designed to sit securely on top of the Nature’s Generator. Hardware and brackets are included for attaching pods to the Heavy Duty Cart.
How do I transport Power Pods?
We recommend placing Power Pods on top of the Nature’s Generator. The Heavy Duty Cart is strong enough to move both together.
How long will it take to recharge my Nature’s Generator with solar panels?
Each 100W Nature’s Generator Power Panel can recharge at 100 watts under optimal sunlight. Always position panels to face the sun and avoid shade.
If I connect Power Panels and Wind Turbines simultaneously, will it overcharge?
No. Nature’s Generators have built-in charge controllers to prevent overcharging.
Can I use other manufacturers’ solar panels?
Nature’s Generator is optimized for its own 100W Power Panels. Other panels may or may not work depending on output voltage and current. Contact us for verification if using third-party panels.
How many Power Panels can I connect?
The Nature’s Generator and Power Pod can handle up to 200 watts (2 Power Panels). The Elite versions handle up to 300 watts (3 Power Panels).
Can I charge on cloudy days?
Yes, solar charging works on cloudy days due to ultraviolet light reaching the earth, though performance is reduced.
What is the cable length from Power Panel to Generator?
The included cable length is 50 feet.
Can I extend the cable length?
Yes, a separate 50-foot Power Panel Extension Cable is available, allowing up to 100 feet total length.
What are the Power Panel dimensions?
Dimensions are 33” L x 26.4” W x 1.4” H.
Can the Generator be charged by Wind Turbine and Power Panels at the same time?
Yes. Both charge simultaneously with built-in controllers preventing overcharge.
What tower is recommended for the Wind Turbine?
Use nominal 1.5 inch schedule 40 steel tubing (1.875–1.900 inch outside diameter). Avoid plastic pipes. The tower must withstand 160 pounds horizontally at the turbine.
How high should the Wind Turbine be installed?
Mount at least 20–30 feet above nearby obstructions.
What else is needed to use the Wind Turbine besides the tower?
Nothing else. The Wind Turbine is a complete system; just connect the cable to the Nature’s Generator.
What wind speed is needed for charging?
A consistent 10 mph wind is recommended. Variable wind direction or gusts may reduce power generation.
Why are there red tips on each blade?
For safety. Red tips warn users of rotating blades to prevent accidents.
