RUiXU | Lithium Battery Kits | 15kWH, 20kWH, 25kWH, 30kWH | Self-Heating

RUIXU Lithium Battery Kits with Self-Heating

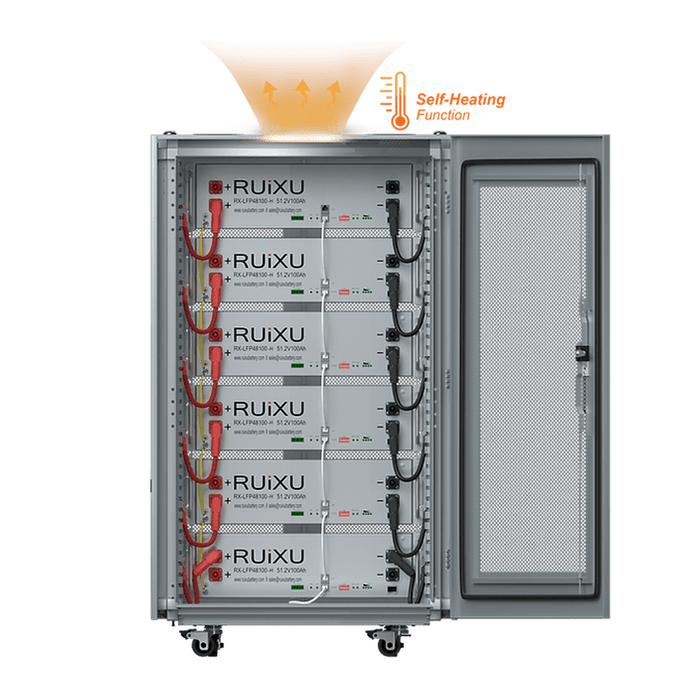

RUiXU Lithium Battery Kits provide dependable 48V LiFePO4 energy storage for home backup, off grid solar systems, and small commercial projects. Each kit is built around a compact 19 inch rack mounted battery module that delivers stable power, intelligent self heating for cold climates, and broad compatibility with leading hybrid inverters.

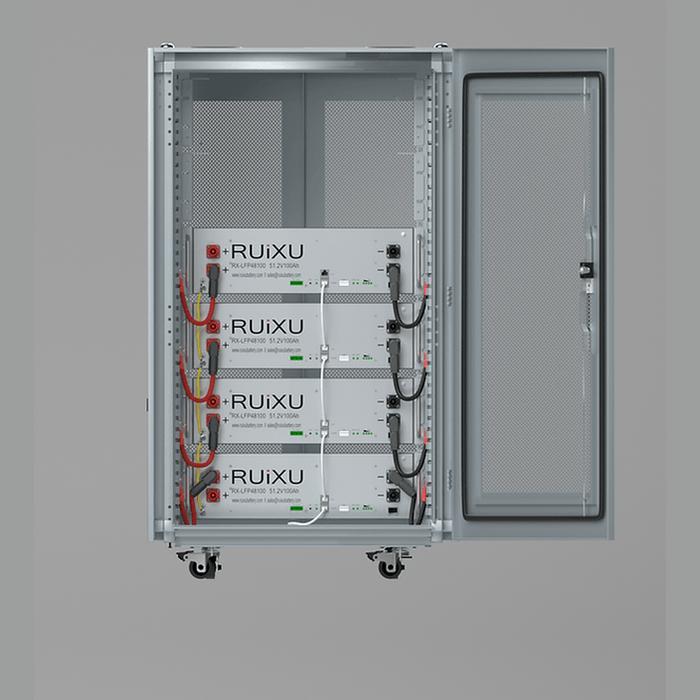

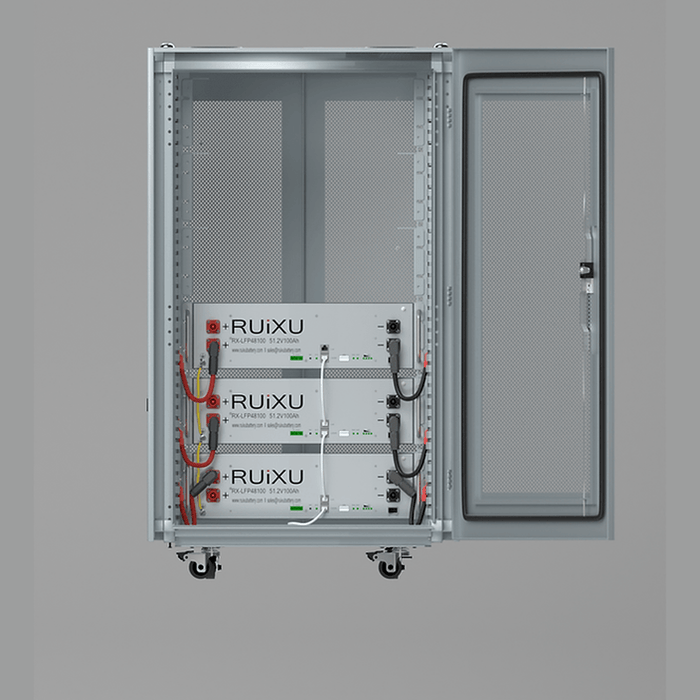

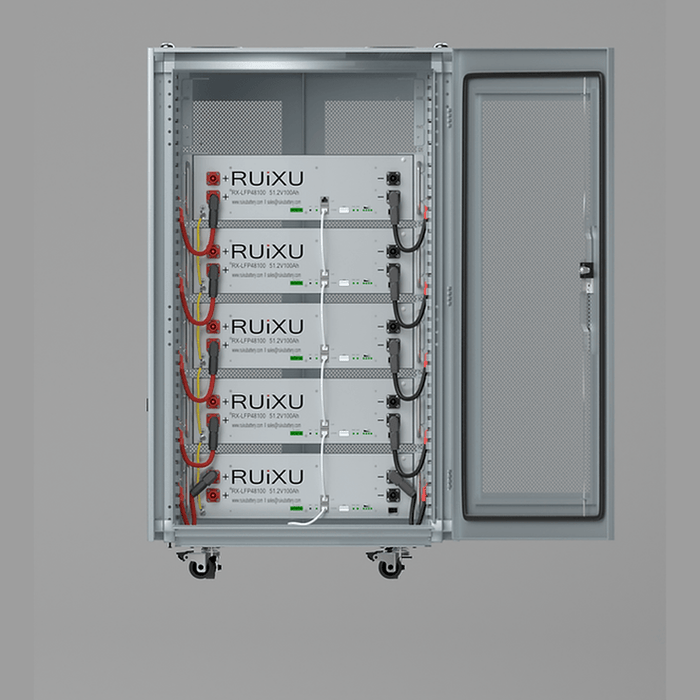

Start with a single 5.12 kWh module and configure your system into larger kits that reach approximately 15 kWh, 20 kWh, 25 kWh, or 30 kWh of usable storage, depending on how many batteries you select. This flexibility makes RUiXU kits ideal for whole home backup, cabins, and scalable solar energy storage.

Key Features & Benefits

• 48V LiFePO4 server rack battery for home and commercial energy storage

• Integrated self heating function that supports reliable performance in low temperature environments

• Modular 19 inch 3U rack format that fits standard battery cabinets and server racks

• Scalable design that supports up to 32 modules in parallel for systems up to about 160 kWh

• Compatible with many leading inverter brands via CANBus and RS485 communication

• Built in battery management system that helps protect against over voltage, over current, and short circuit conditions

• Ideal for solar energy storage, whole home backup, and hybrid on grid or off grid power systems

What’s Included

• (1) RUiXU 48V server rack battery (RX-LFP48100-H)

• (1) RJ45 / CAT5e patch cable

• (1) Ground cable

• (1) Set of parallel 4 AWG cables per battery

Specifications

Battery Module

• Brand: RUiXU

• Model: RX-LFP48100-H

• Format: 19 inch rack mounted module, 3U height

• Chemistry: LiFePO4 (lithium iron phosphate)

Electrical Characteristics

• Nominal voltage: 51.2 V

• Nominal capacity (0.2C): 100 Ah

• Minimum capacity (0.2C): 100 Ah

• Nominal energy: 5.12 kWh (5120 Wh)

• System scalability: up to 32 modules in parallel, approximately 160 kWh total storage

Communications and Integration

• Communication interfaces: CANBus, RS485

• CANBus compatible inverter brands: Victron, SMA, Studer Innotec, Sofar, SolArk, Solis, GoodWe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider

• RS485 compatible inverter brands: MPP, Voltronic, RCT, Alpha, Outback

Mechanical

• Dimensions (W x D x H): 482.6 x 460 x 133 mm

  • Approx 19 x 18.1 x 5.23 inches

• Approx weight: 47 kg

  • Approx 103.6 lb

• Mounting style: 19 inch rack or cabinet mount

Environmental and Features

• Integrated self heating design to support operation and charging in low temperature conditions

• Designed for residential and light commercial energy storage applications

Manual and Downloads

• Spec Sheet
• User Manual

Warranty

OffGridLux (“the Seller”) warrants each RUIXU branded battery (“the Product”), as listed below, sold by RUIXU or any of its authorized distributors or dealers, to be free of defects for the period as listed in the table below (“the Warranty Period”), from the date of sale as determined by either the customers’ sale receipt, the shipping invoice and/or the battery serial number, with proof of purchase. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will credit, replace or repair, if serviceable, the Product and/or parts of the Product, if the components in question are determined to be defective in material or workmanship.

The Warranty Period for Physical Goods purchased from RUiXU  Battery or authorized distributors or dealers is 10 Years.

RUiXU Battery will replace or repair the product at no charge, using new or refurbished replacement parts.

The Seller has no obligation under this limited warranty for product subjected to the following conditions (including but not limited to):

*Damage caused during shipping or mishandling of the Product

*Damage due to improper installation:loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections, or insufficient space for airflow

*Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact, or collision

*Damage due to improper operation or maintenance such as under- or over-charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels, or chemicals on the Product casing

*Improper use of CAN cables such as improper connections or not connecting them

*Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the Manufacturer

*Product that has been opened, modified, or tampered with Tampering or removal of manufacture date codes.

*Product that was used for applications other than which it was designed and intended for by the Manufacturer

*Product that was under-sized for the application.

This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.

Submitting A Warranty Claim

To submit a warranty claim, please contact the original place of purchase. The Product may be required to be shipped back to the Seller for further inspection. The Product must be shipped in compliance with UN38.3. Please note that DOT requires all persons’ shipping batteries to be Hazmat certified.

Technical Support

If you have technical questions about the Product, please contact us
