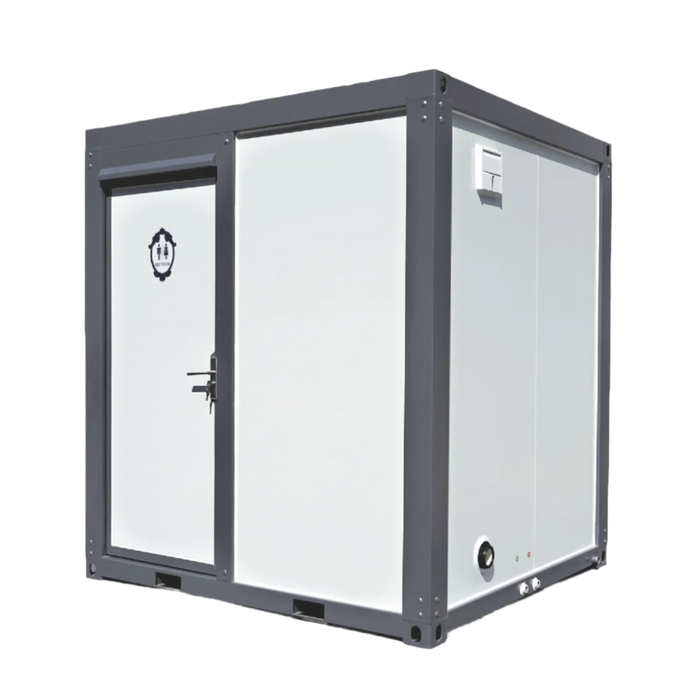

Bastone Portable Restroom with Shower
The Bastone Portable Restroom with Shower is a complete mobile sanitation solution designed for outdoor events, construction sites, camping areas, and remote locations where permanent bathroom facilities are not available. This all-in-one unit combines a toilet, sink, and shower into a single compact structure, providing users with a comfortable and practical bathroom experience wherever it is needed.

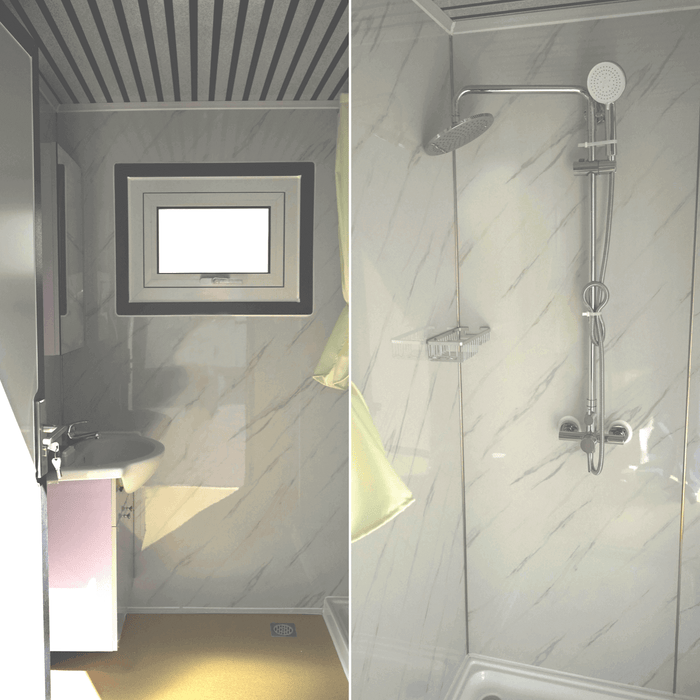

Built with a durable steel frame and insulated wall panels, the unit is designed to withstand frequent outdoor use while maintaining a comfortable interior environment. The shower features a dual rain-style shower head with adjustable direction and water flow, offering added comfort compared to standard portable restroom solutions. Integrated cabinetry with a mirror provides convenient storage for toiletries and personal items.

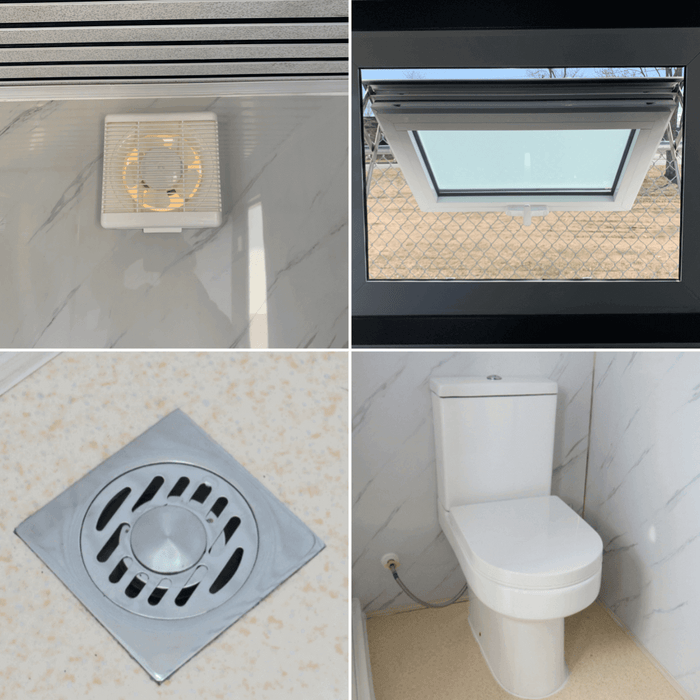

An exhaust fan helps maintain proper ventilation inside the unit, reducing moisture buildup and odors. The restroom also includes a functional sink and vanity area, making it suitable for longer-term use. Designed for easy setup, the unit requires a standard power source, water supply, and waste or septic connection for full operation.
Ideal for job sites, outdoor gatherings, emergency use, or recreational activities, the Bastone Portable Restroom with Shower delivers a dependable and hygienic solution. Its multifunctional design simplifies sanitation needs by combining essential bathroom features into one self-contained unit.
Features

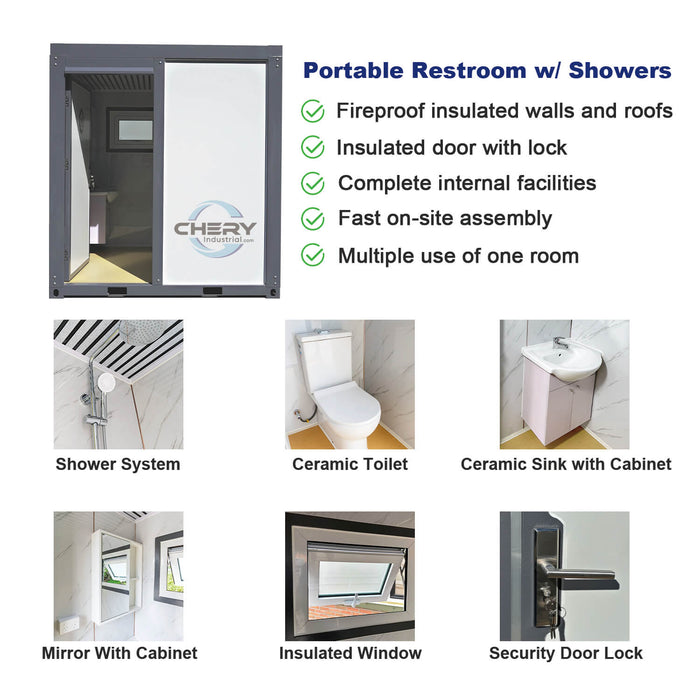

- Toilet w/Ceramic Bowl & Tank, Ceramic Vanity Sink w/Faucet
- Shower Fixtures, Shower Curtain, Paper Dispenser

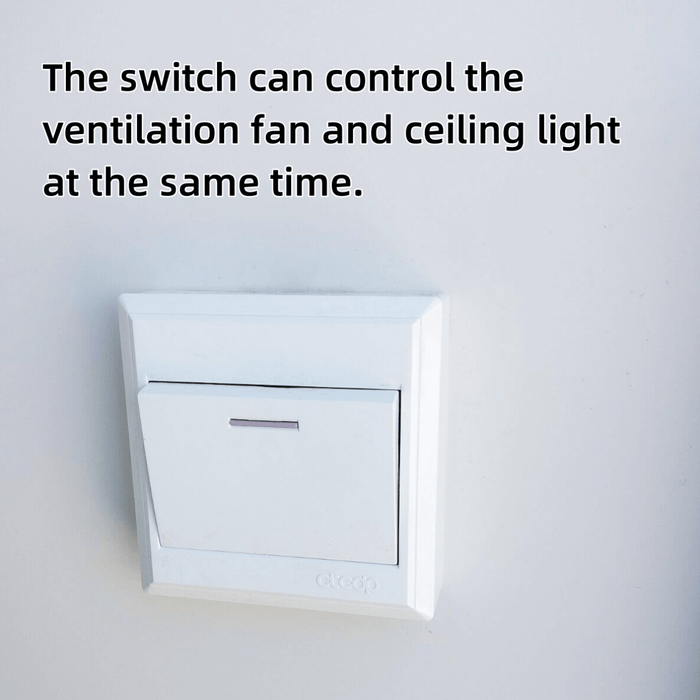

- Power Outlet w/Dual USB, 110V Electric Vent Fan, Internal Light

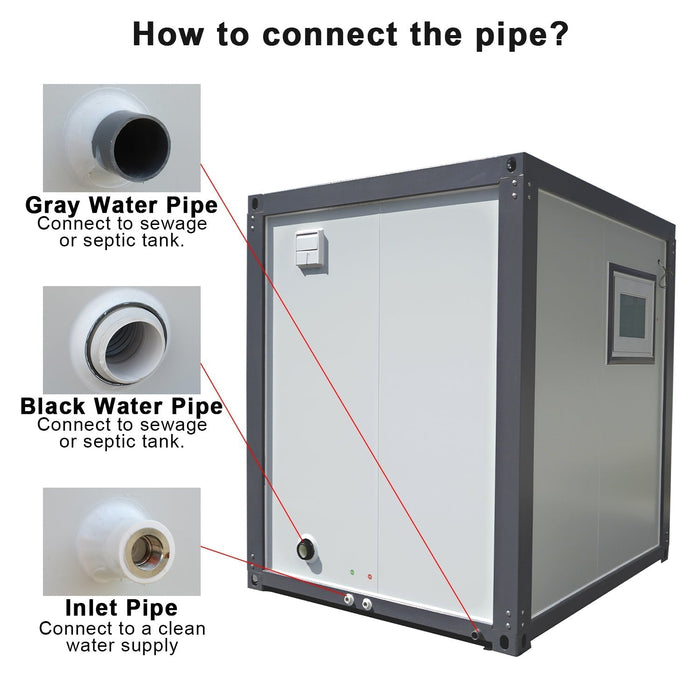

- 1/2" female inlet ports for hot & cold water
- 3" black water/waste exhaust flexible hose (easily slide your 3" PVC pipe onto flex fitting for waste)
- 1" PVC water outlet exhaust port (for sink & shower water)
- Power Breaker, Locking Door w/ set of keys, Hinged Window
- Visual Men / Women Signage, Lifting Eyes, Forklift Pockets
Specifications
| Description |
Specifications |
| Model |
Portable Restroom w/ Showers |

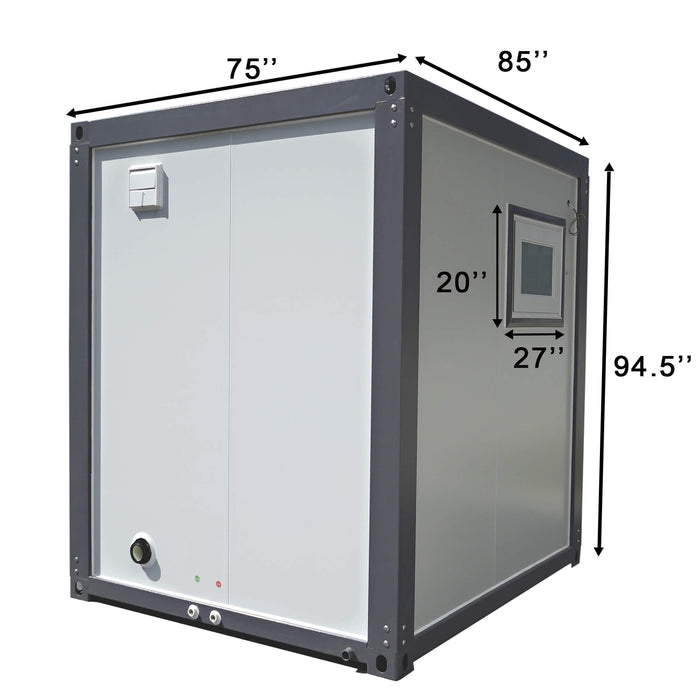

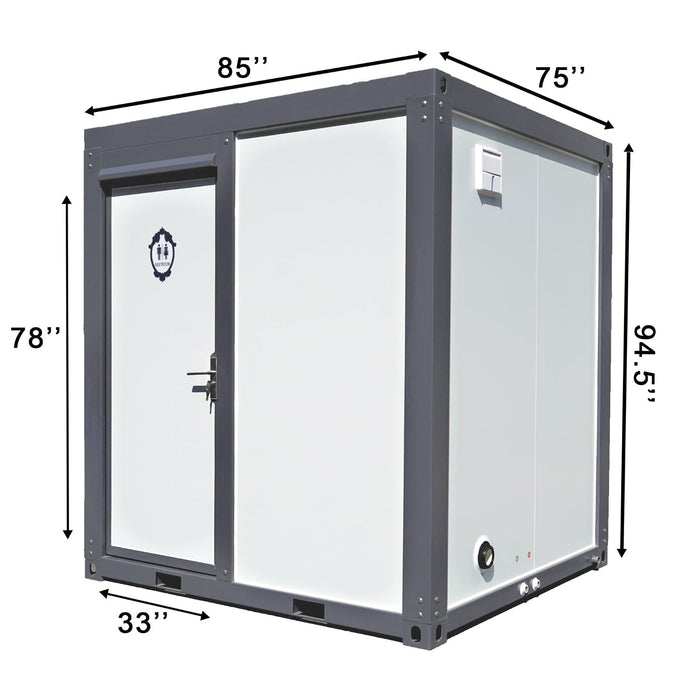

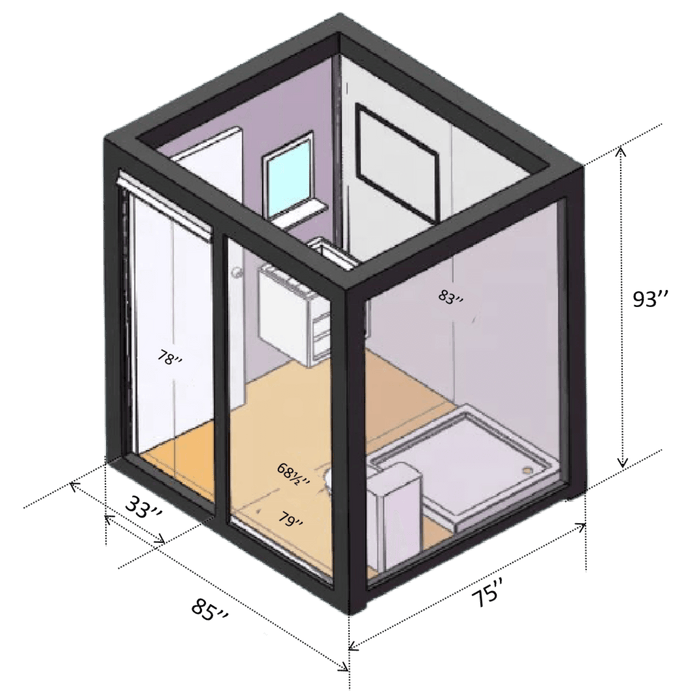

| Dimension (LxWxH) |
85"x75"x94.5" |

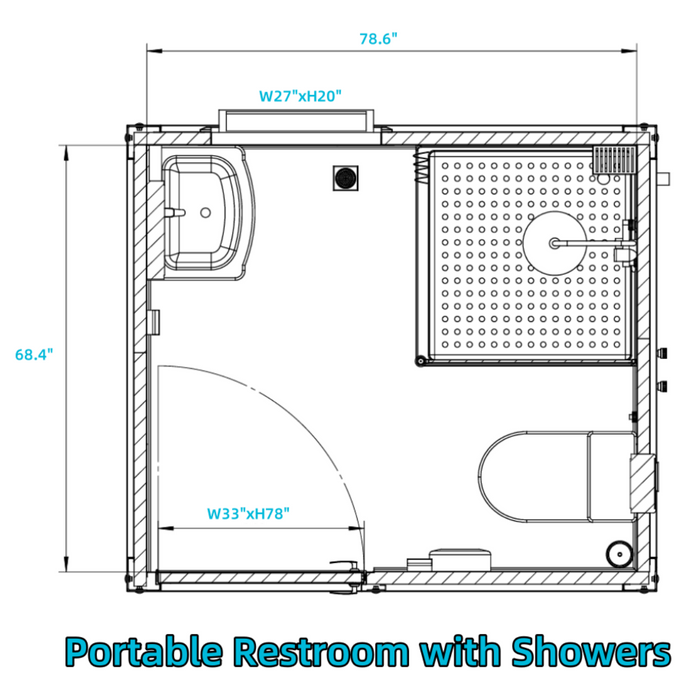

| Interior Dimension (LxW) |
78.6"x68.4" |

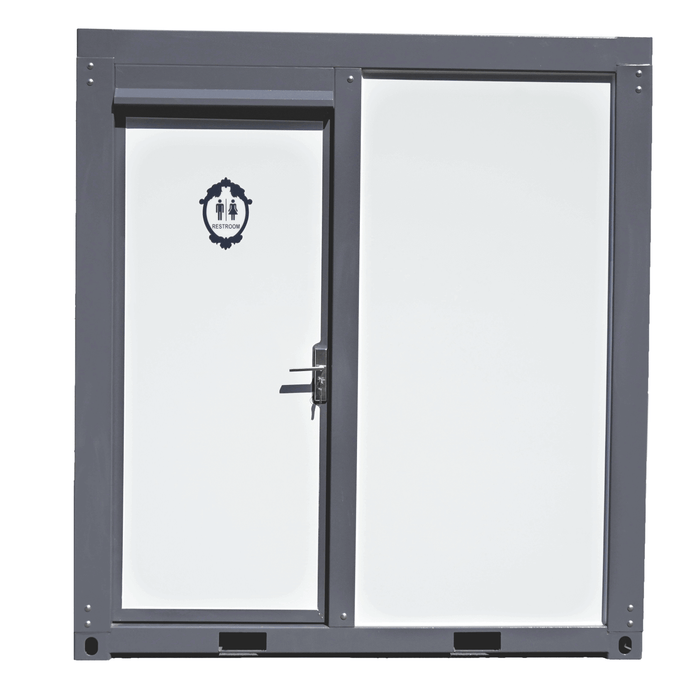

| Door Size |
W 33" x H 78" |
| Net Area |
37.3 ft² |
| Frame |
Steel |
| Surface Coating |
High-Temperature Resistant Paint |
| Roof Material |
2-inch EPS fire-resistant & insulated wall panels |
| Wall Material |
2-inch EPS fire-resistant & insulated wall panels |
| Floor Material |
Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value |
7.09~8.27 |
| Doors |
- EPS Composite Panel
- Inward Opening Door
|
| Circuit Breaker Spec |
13~16 Amps |
| Power Supply |
110V~220V |
| Wire info |
3 core 2.5 sqmm |

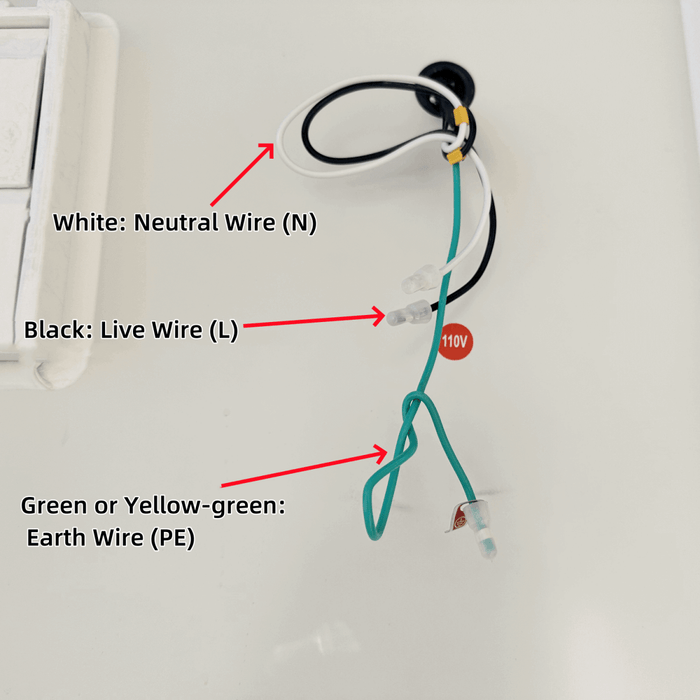

| Wiring Instructions |
White Wire: Neutral Wire
Black Wire: Live Wire
Green or Yellow-green Wire: Earth Wire |
| Flush volume |
1.6 gpf |
| Inlet Pipe Material |
PPR Pipe |
| Inlet Pipe Inner diameter |
4/5 inch |
| Outlet Pipe Material |
PVC Pipe |
| Outlet Pipe Inner diameter |
- Gray Water Pipe: 1 ⅘ inch
- Black Water Pipe: 3 inch
|
Lowest Pipe Working Temperature
|
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level |
B2 |
| Wind Load |
56 MPH |
| Snow Load |
125 lb/sqft |
| Forklift Pockets |
Dimension: W7"x H3"
Distance between forklift pocket: 28" |
| Lifespan |
15+ Years |
| Warranty |
1 Year |
Set up

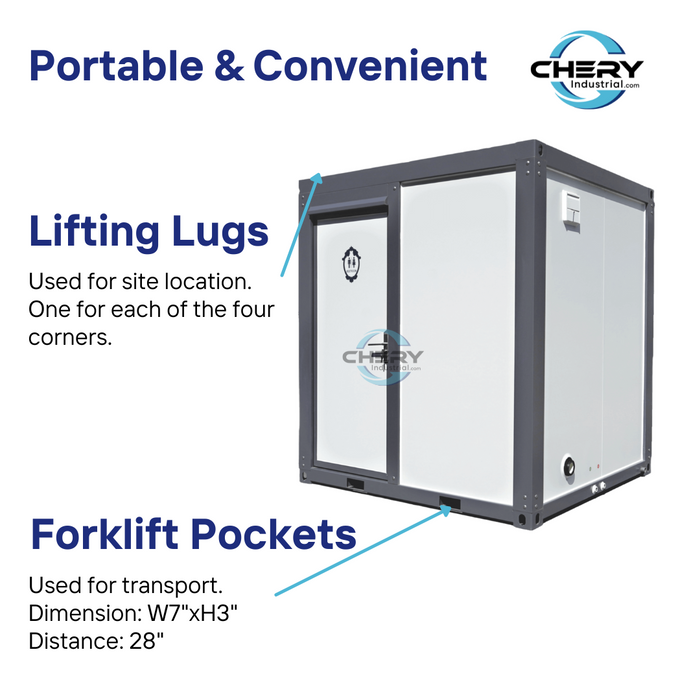

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Portable Restroom w/ Showers is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Package Size
- L*W*H (inch): 75x85x95
- Weight (lb): 1941
- Forklift or equivalent is required for unloading
