Douglas Pickleball Court Divider Systems

Semi-permanent Pickleball Court Divider Systems. Movable Indoor Pickleball Court Divider Solutions

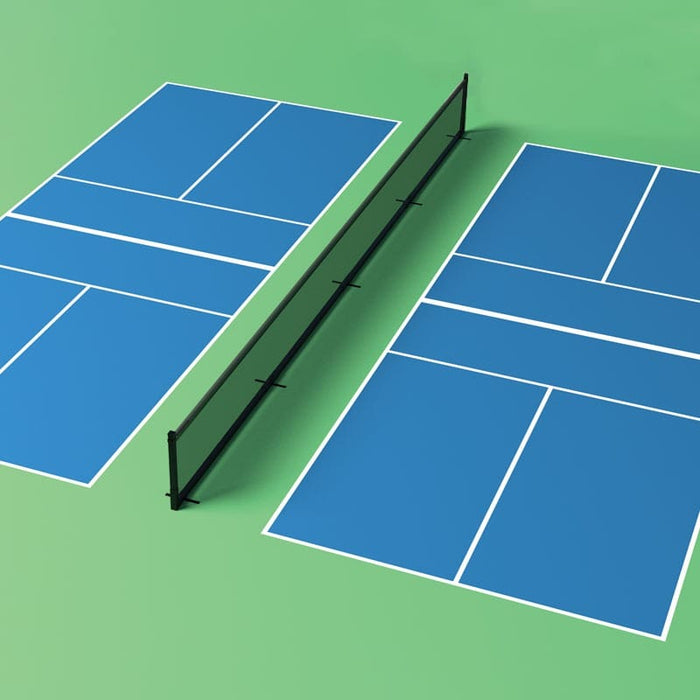

With the Movable Douglas Pickleball Court Divider Systems, there’s no need to drill into your indoor court or install ground sleeves. Pickleball court separation is essential, so there’s no more retrieving errant balls or getting interrupted by pickleballs from opposing courts.

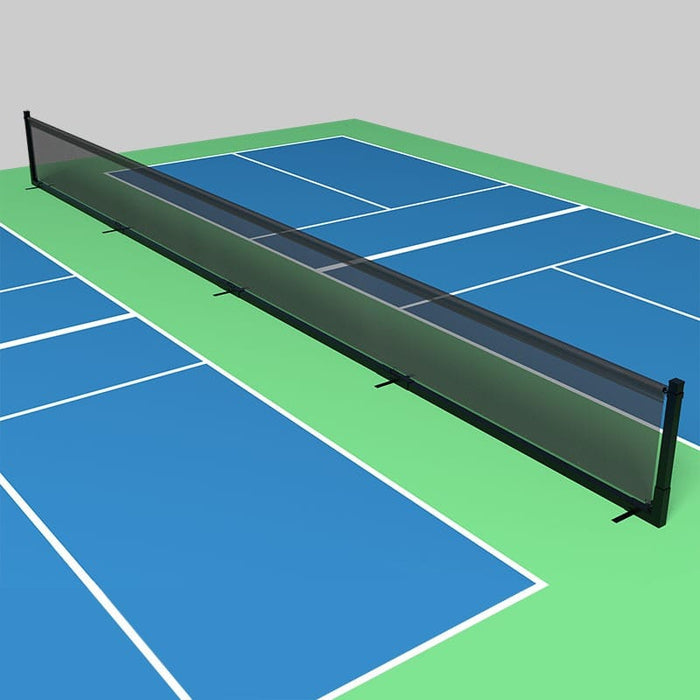

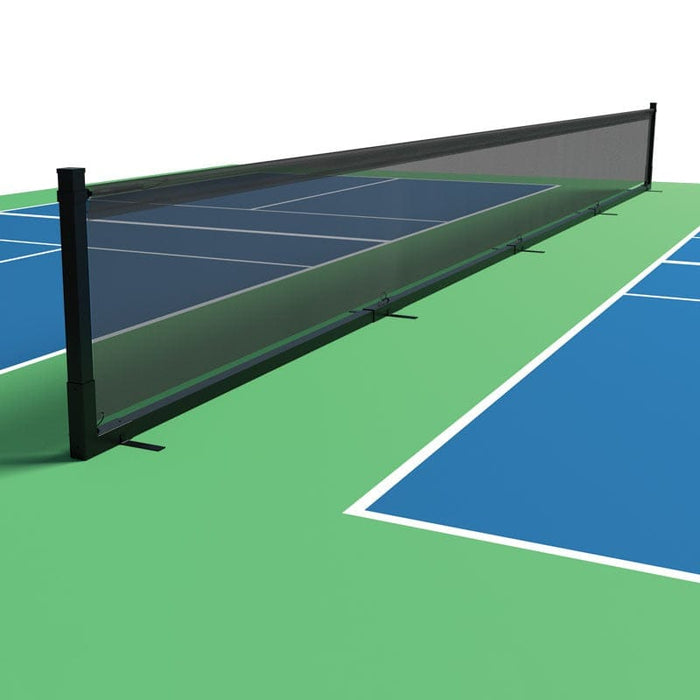

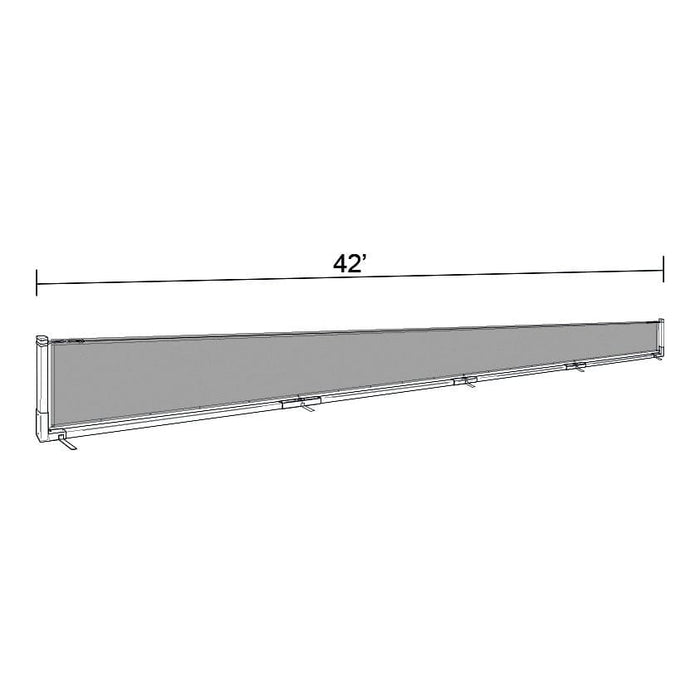

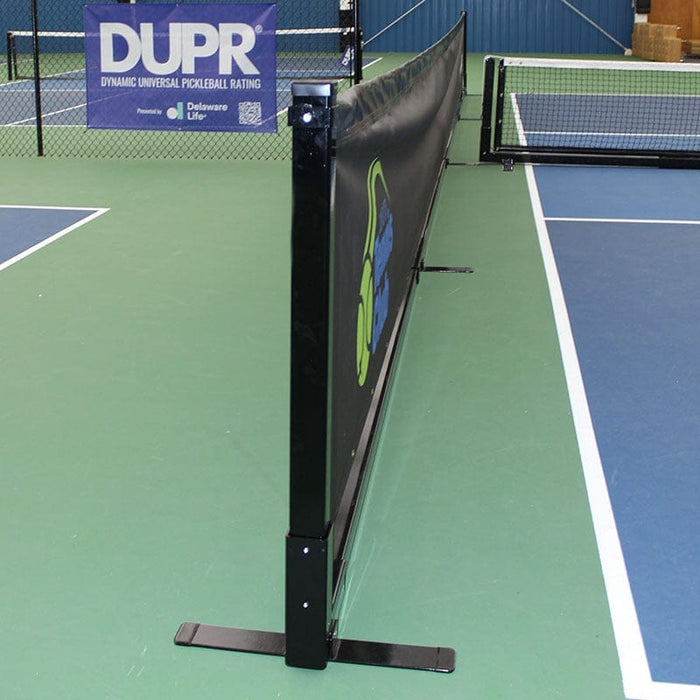

The mesh court divider panel is supported by a movable 4’ high steel base frame that is available in 21’, 32’6”, or 42’ lengths. The divider panel is hung on a tensioned cable between the upright posts and secured along the bottom at each frame connection. All Douglas® pickleball court barrier components are made with the best materials, ensuring your pickleball court divider system will last for years.

Quick Specifications

• 4’ High support frame and divider panel

• Available in (3) Lengths: 21’, 32’6” or 42’

• 3” square, 11-gauge steel frame

• Flat stabilizer legs for frame support

• Black baked-on powder-coated finish.

• Complete with galvanized steel cable and hardware.

• Mesh windscreen divider panels with reinforced tape borders

• Personalize divider panels with your facility branding or sponsorship logos.

Rugged Solid Steel Construction - The 3” square vertical posts are constructed from heavy-duty 11-gauge steel. Heavy-duty base frame is also constructed of 3/16” wall 11-gauge 3” square steel. The divider system is finished with a black baked-on polyester powder coat to resist rust and increase durability.

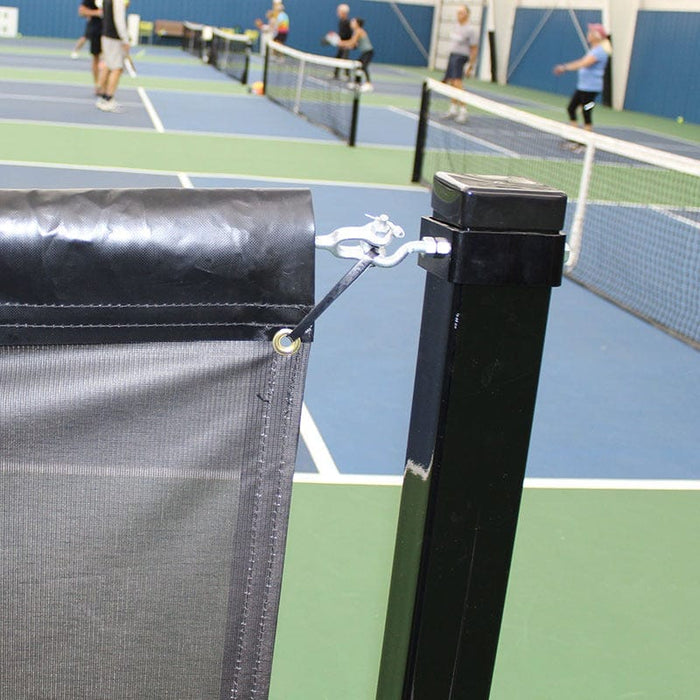

Durable Long-Lasting Hardware - All hardware components for the tension cable system are comprised of galvanized steel for maximum strength and longevity. Hardware includes ¼” cable, cable clamps, turnbuckles, and attachment components.

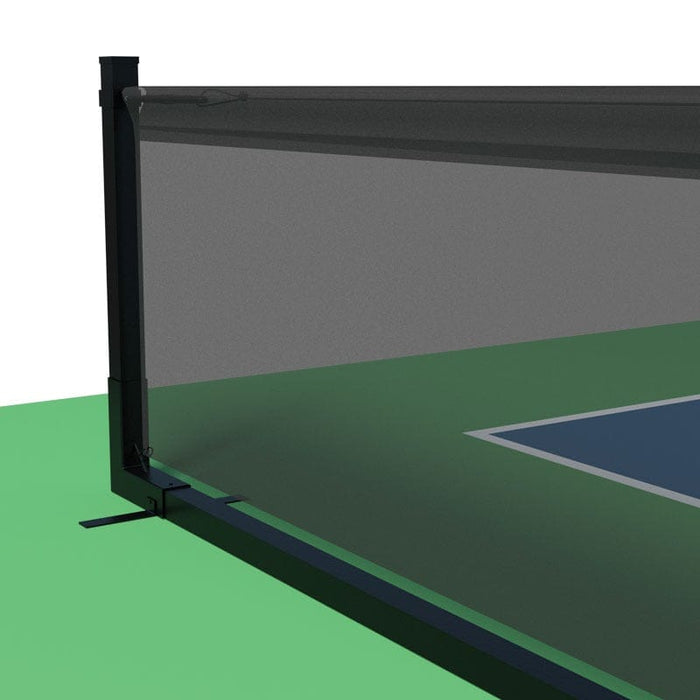

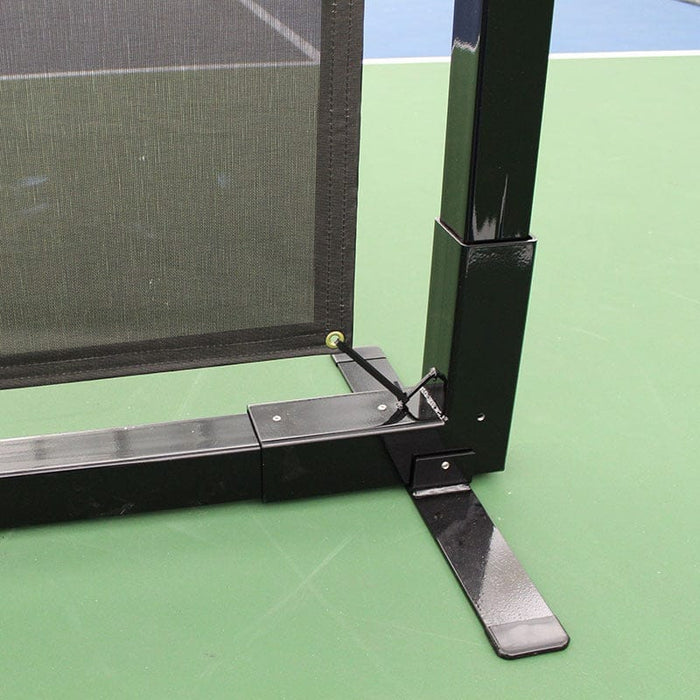

Flat Stabilizer Legs - This movable pickleball divider system is supported by entirely flat braces that only extend 12” on each side of the court. This unique style offers a greater range of play and increases player safety. Flat stabilizer legs are secured at each end and at each frame connection.

Divider panels are fabricated from VCP or VCP MAX windscreen at 3’6”H to fit inside the framework. Windscreen length is 4” less than the frame size. . The mesh divider panel is sewn with a top headband pocket that conceals all the tension hardware for an attractive finish with no exposed components. The sides and bottoms of the divider panel have reinforced tape borders that are double-sewn with 1-1/2” solid vinyl and complete with #2 brass grommets spaced evenly for easy installation.

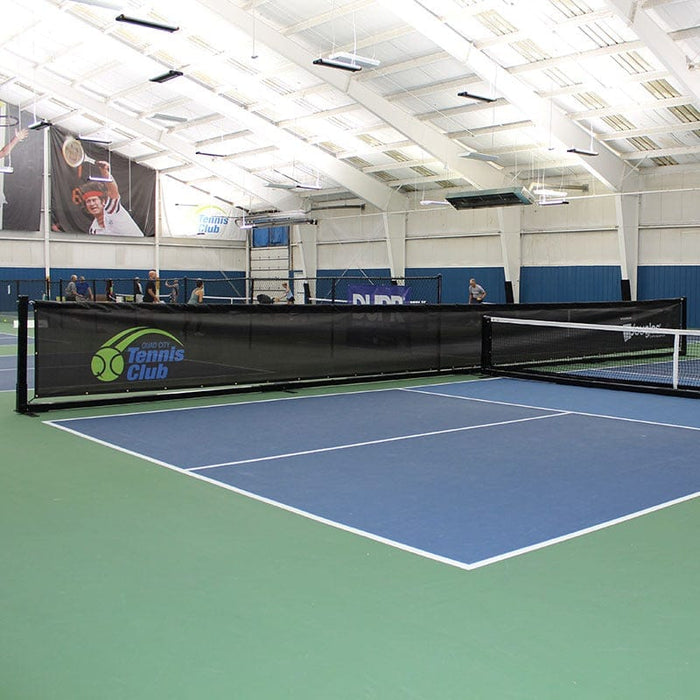

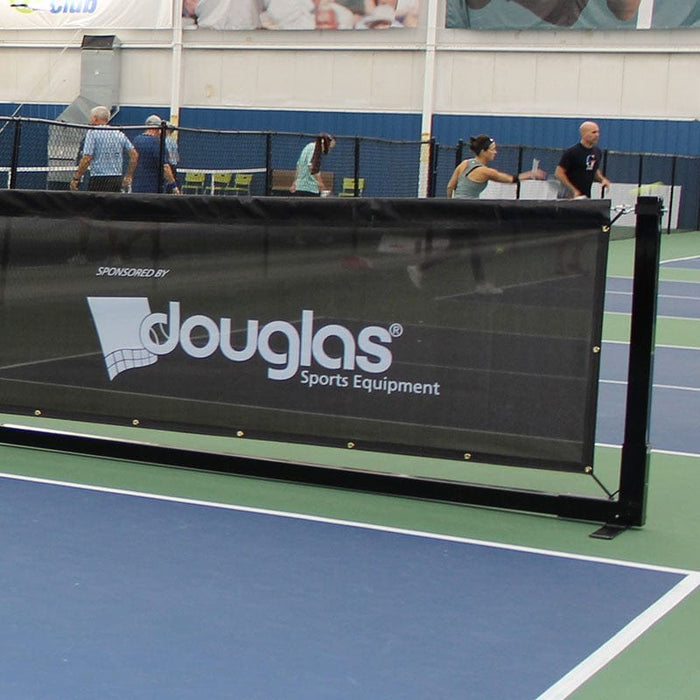

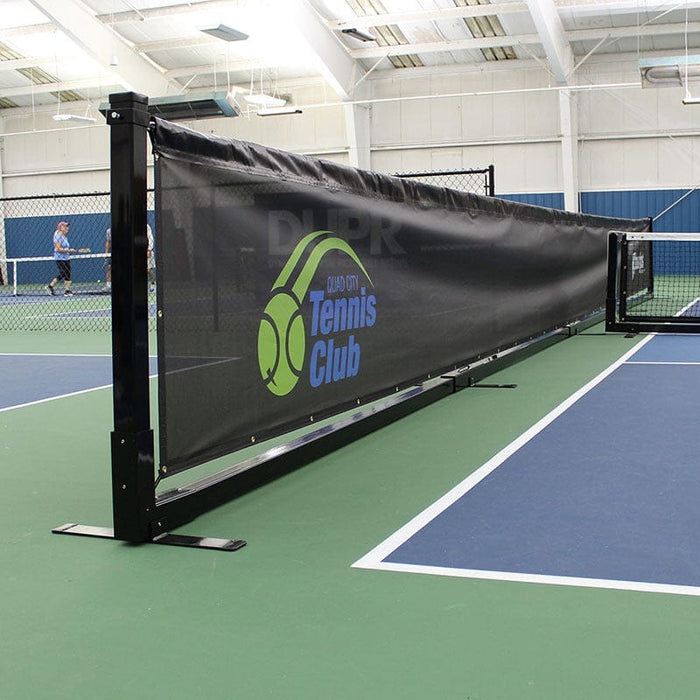

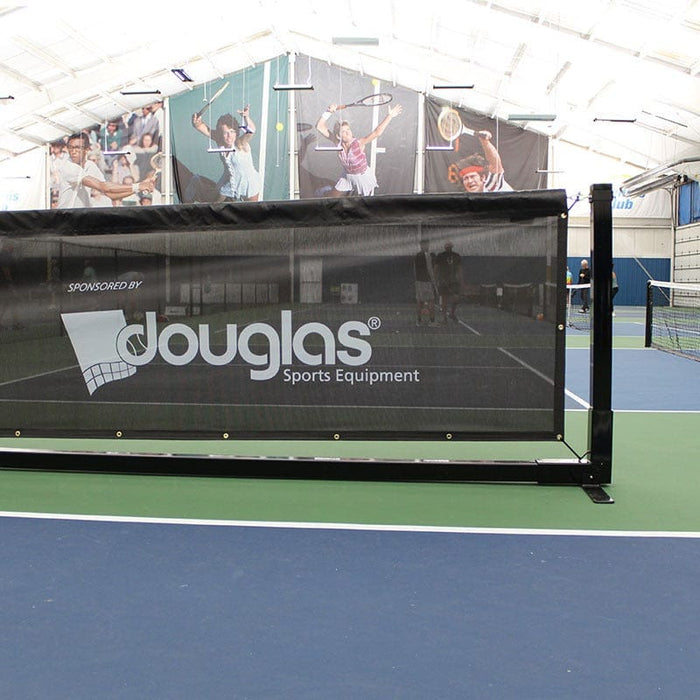

These mesh windscreen materials offer an excellent visual blockage and custom digital printing can be printed directly on it. Printing is a great opportunity to brand your facility or to add advertisements to support sponsors.

The complete system includes upright poles and base frame, divider panel, and tension hardware.

The standard Douglas Pickleball Court Divider System is also available. It is ideal for both indoor and outdoor courts when in-ground installation is an option.
