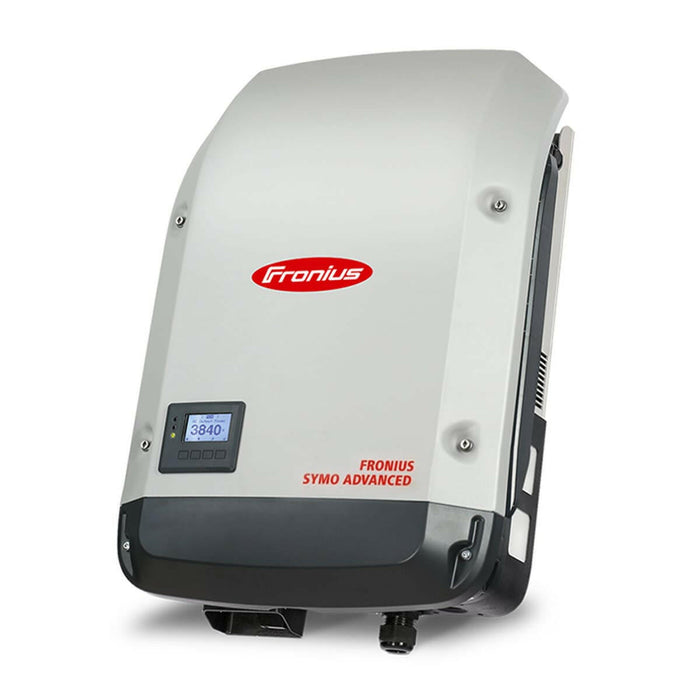

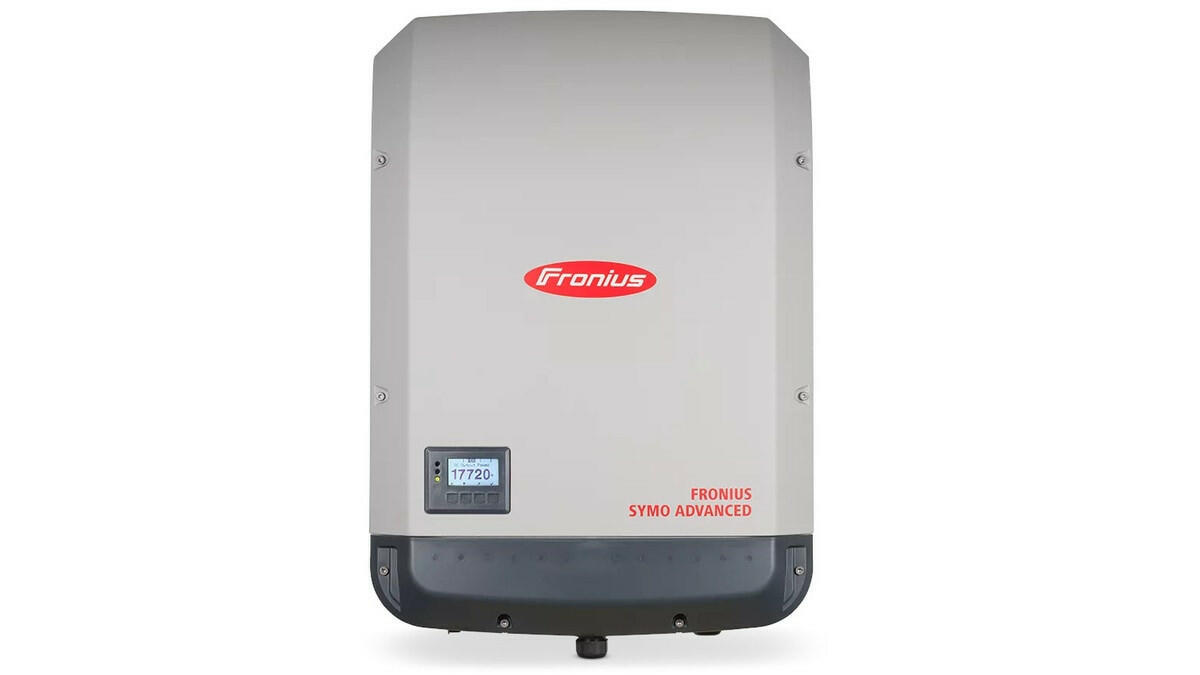

Fronius Symo Advanced Three Phase Commercial String Inverter with Data Manager 2.0 Card

Fronius Symo Advanced Three Phase Commercial String Inverter with Data Manager 2.0

The Fronius Symo Advanced represents the next evolution in the SnapINverter portfolio, combining proven commercial performance with advanced safety features. Designed with power categories from 10 kW to 20 kW (with additional models up to 24 kW), this three-phase inverter is an ideal solution for commercial photovoltaic systems of all sizes.

A key highlight is the integration of Fronius Arc Guard technology, delivering reliable arc fault protection to enhance safety and compliance. The SuperFlex Design allows for complete flexibility in roof planning, while the Dynamic Peak Manager optimizes power harvest for maximum yields.

The Advanced models build upon the robust capabilities of the standard Symo, adding features that address Module Level Shutdown requirements, including an integrated PLC transmitter supporting the SunSpec Rapid Shutdown communication standard. These units meet NEC 2014 and 2017 requirements (as well as pre-2014 compliance), support zero-tilt mounting, and are both lightweight and field-serviceable for ease of maintenance.

Key Features

• • Advanced Safety: Integrated Fronius Arc Guard for reliable arc fault protection.

  • Module Level Shutdown Ready: Built-in PLC transmitter for SunSpec Rapid Shutdown.

  • Flexible Design: SuperFlex Design for versatile system configuration and roof layouts.

  • High Efficiency: Dynamic Peak Manager for optimized energy production.

  • Compliance: Meets NEC pre-2014, 2014, and 2017 standards.

  • Easy Installation: Zero tilt mounting, lightweight construction, and SnapINverter hinge mounting system.

  • Serviceability: Field-replaceable components for minimal downtime.

Specifications

• Width: 28.5 in
• Height: 20.1 in
• Depth: 8.9 in
• Recommended PV Power (kWp): 18 kW Peak
• Maximum Usable Input Current (MPPT 1/MPPT 2): 25/16.5 A
• Maximum Array Short-Circuit Current (1.5 lmax) (MPPT1/MPPT2): 37.5/24.8 A
• Nominal Input Voltage: 350 V at 208 V / 370 V at 240 V
• DC Input Voltage Range (Udc Min + Udc Max): 200-600 V
• Feed-In-Start Voltage (Udc start): 200 V
• MPP Voltage Range: 300-500 V
• Maximum Input Voltage: 600 V
• Number of MPPT: 2
• AC Nominal Output (P ac,r): 11995 W at 208/240 V
• Maximum Output Power: 11995 VA at 208 V / 9995 VA at 240 V
• Output Configuration: 208/240 V
• Nominal Operating Frequency: 45-60 Hz
• Total Harmonic Distortion (THD): <1.5%
• Power Factor Range: 0-1 Ind/Cap
• Maximum Continuous Output Current: 33.3 A at 208 V / 28.9 A at 240 V
• OCPD/AC Breaker Size: 45 A at 208 V, 40 A at 240 V
• Maximum Efficiency: 97%
• CEC Efficiency: 96.5%
• Enclosure Rating: NEMA 4X
• Night Time Consumption: <1 W
• Inverter Topology: Transformerless
• Cooling: Regulated Air Cooling
• Installation: Indoor & Outdoor Installation, Tilt from 0 - 90 deg
• Operating Temperature: -40 to 140°F
• Humidity: 0-100% (Non-Condensing)
• Elevation: Maximum Input Voltage of 600 V up to 3400 m
• DC Connection Terminals: 6x DC+ & 6x DC- Screw Terminals for Copper (Solid/Stranded/Fine Stranded) or Aluminum (Solid/Stranded)
• AC Connection Terminals: Screw Terminals 14-6 AWG
• DC Reverse Polarity Protection: Yes
• Anti-Islanding: Yes
• Over Temperature Protection: Output Power Derating/Active Cooling
• AFCI: Yes
• Rapid Shutdown Compliant: Yes
• Ground Fault Protection with Isolation Monitor Interrupter: Yes
• DC Disconnect: Yes
• Interfaces: USB (A Socket), 2x RS422 (RJ45 Socket), Power Line Communication (PLC)
• DIN Rail: 4.2 in Length x 3.5 in Width x 2.6 in Depth
• Standards:
  • UL 1741-2010 Second Edition (Incl. UL1741 Supplement SA 2016-09 for California Rule 21 & Hawaiian Electric Code Rule 14H)
  • UL1998 (For Functions: AFCI, RCMU & Isolation Monitoring)
  • IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003
  • ANSI/IEEE C62.41
  • FCC Part 15 A & B
  • NEC 2017 Article 690
  • C22. 2 No. 107.1-16
  • UL1699B Issue 2-2013
  • CSA TIL M-07 Issue 1-2013
• Warranty: 10 Years
• Weight: 41.7 lb


Documents

• Specification Sheet
