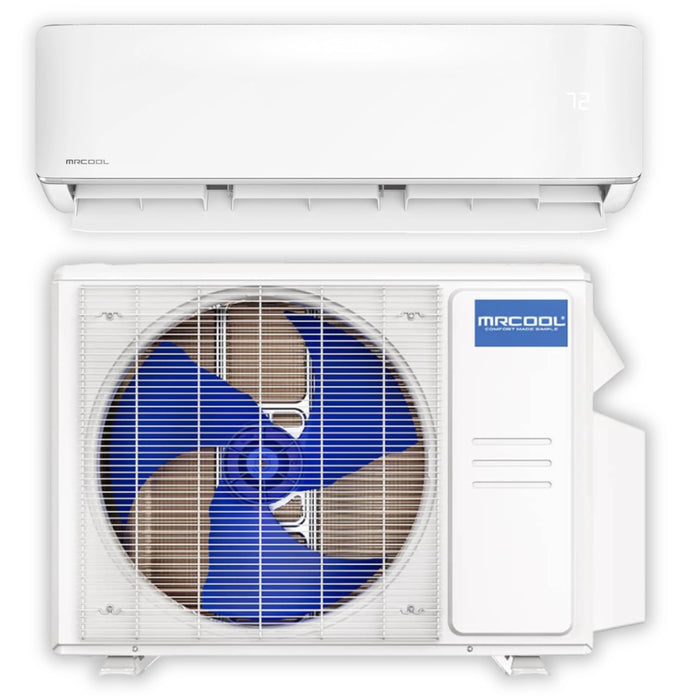

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System with 25 Ft. Line Set, 230V (DIY-24-HP-WM-230D25-O)

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System with 25 Ft. Line Set, 230V (DIY-24-HP-WM-230D25-O)

by MRCOOL
SKU DIY-24-HP-WM-230D25-O
Save 15% Save 15%
$3,899.00
$3,899.00 - $3,899.00
$3,899.00
$3,329.00
$3,329.00 - $3,329.00
$3,329.00
  • Authorized online dealer
  • Transparent pricing. Any delivery cost is confirmed before processing*
  • Typical delivery 4 to 7 business days on standard shipments*
  • Price Match Guarantee. We beat verified prices
  • 30 day returns on eligible items
  • Manufacturer warranty included
  • No sales tax in most states*

Questions? Text or call +1 (307) 248-7227

*Exclusions apply. Freight, oversized items, made-to-order items, or remote delivery may require additional delivery time and cost confirmation. See Shipping and Returns.

Shipping confirmation required*
Price Match Guarantee at OffGrid Lux

At OffGrid Lux, we're committed to offering you the best prices online. That's why we have a Price Match Guarantee in place. If you find a lower price for the same product elsewhere, we'll match or beat it to ensure you get the best value.

For full details on our Price Match Guarantee, including eligibility criteria and how to request a price match, please click here to view our complete policy.

Shipping & Order Policy at OffGrid Lux

When you place an order, we confirm stock availability before charging your card. Orders typically process within 1-2 business days, and shipping is fast—most orders arrive within 4-7 days. We use reliable third-party carriers and provide tracking information promptly.

For more details, click here to view our full Shipping Policy.

Refunds & Returns at OffGrid Lux

We're committed to your happiness with every purchase. Need assistance? Just reach out. You have 30 days from delivery to return items in their original condition. We process refunds promptly, usually within 3 business days of receiving your return.

For more info, check out our full Returns & Refunds Policy here.

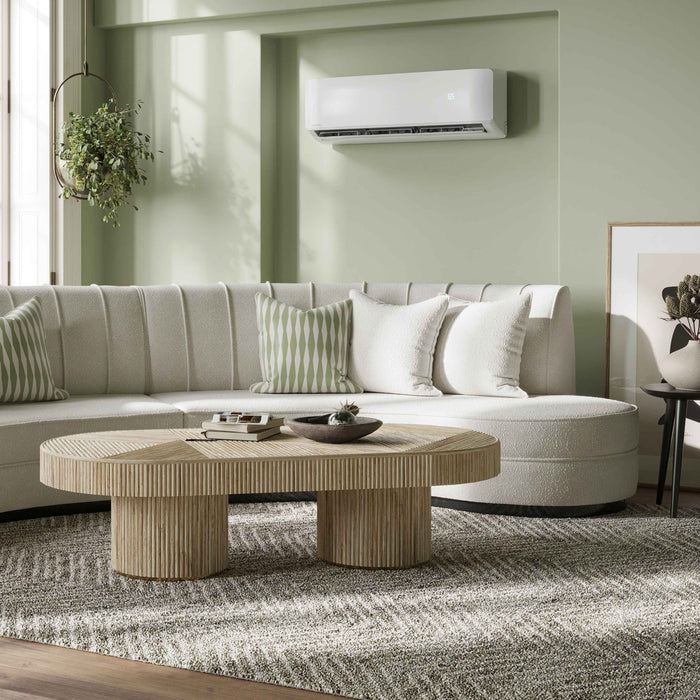

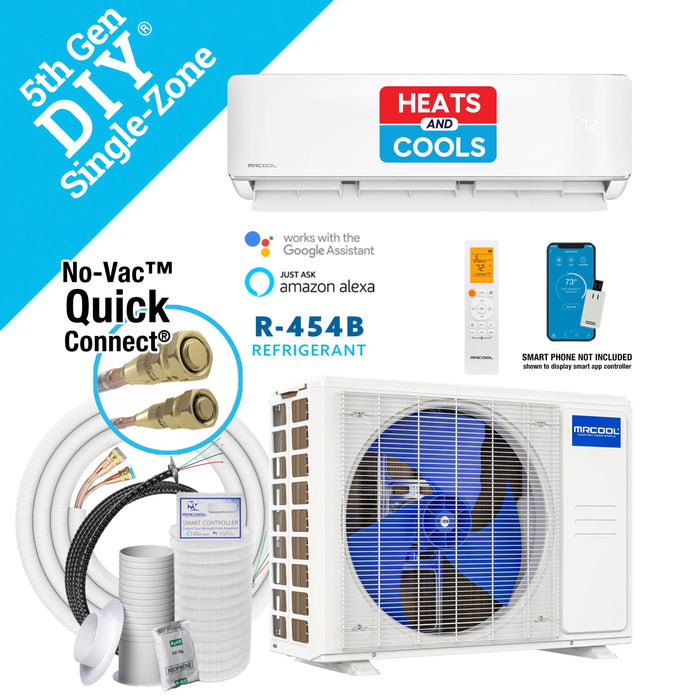

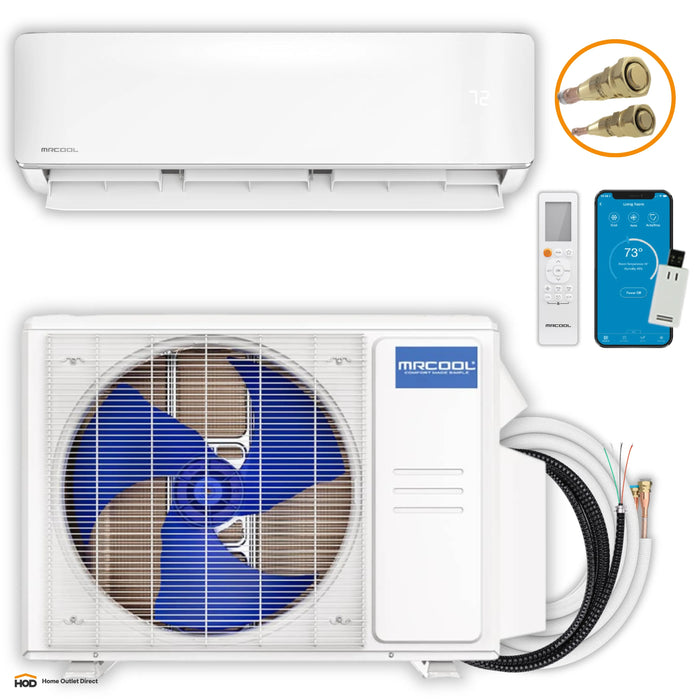

Introducing the 5th Gen MRCOOL® DIY® 24K BTU Single Zone Mini-Split Air Handler for year-round heating and cooling in spaces 750 to 1,000 sq. ft. Easy DIY installation with included 25 ft. QuickConnect® line set and DIYPRO® cable. Customize comfort with wireless remote, SmartHVAC app, or voice commands. Industry-leading warranty for reliable, energy-efficient performance.

Features

  • DIY Installation: Easy, tool-free setup with no prior experience required.

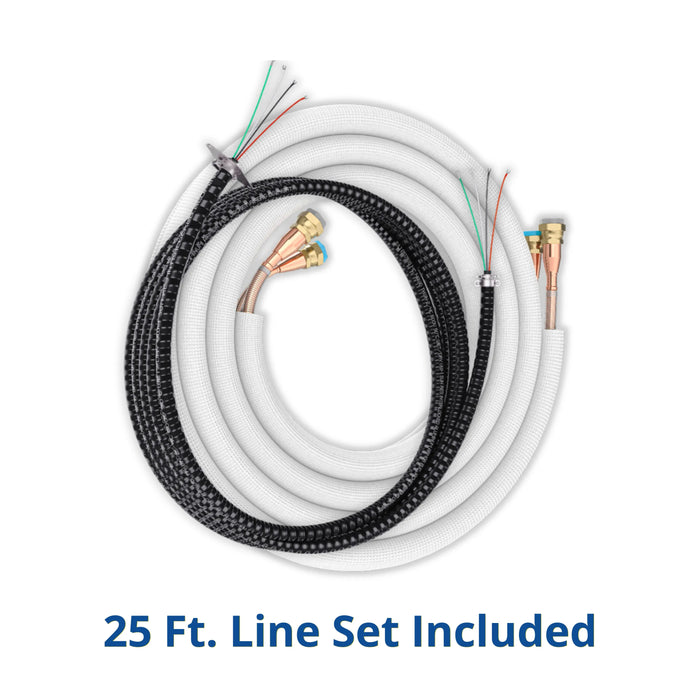

  • DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant for quick and vacuum-free installation.
  • Environmentally Friendly Refrigerant: R-454B refrigerant has a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while improving energy efficiency.
  • DIYPRO® Cable: Eliminates the need for electrical conduit, offering enhanced durability against outdoor elements and wildlife.

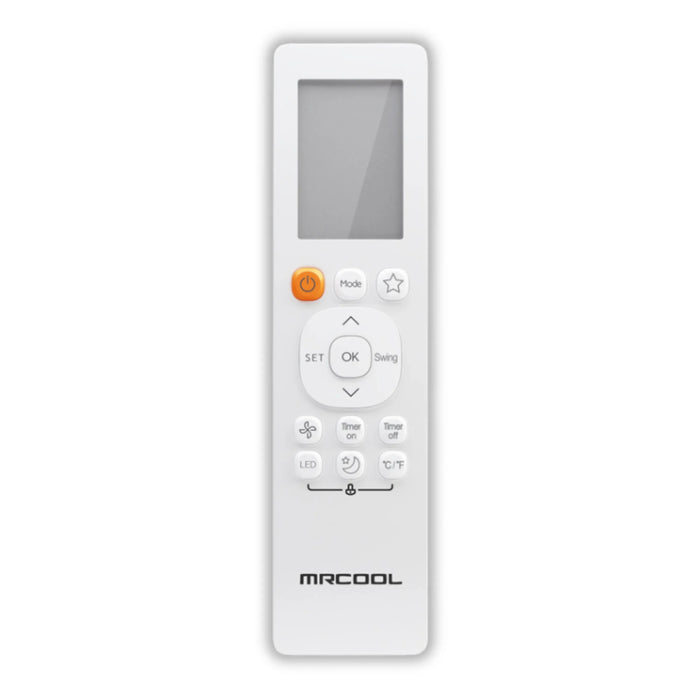

  • Wireless Control Options: Use the included remote, SmartHVAC app (Apple and Android), or voice commands via Amazon Alexa and Google Assistant.
  • Follow Me Function: Maintains consistent comfort by adjusting airflow based on the remote’s location.
  • Dry Mode: Acts as a dehumidifier to reduce excess moisture and improve indoor air quality.

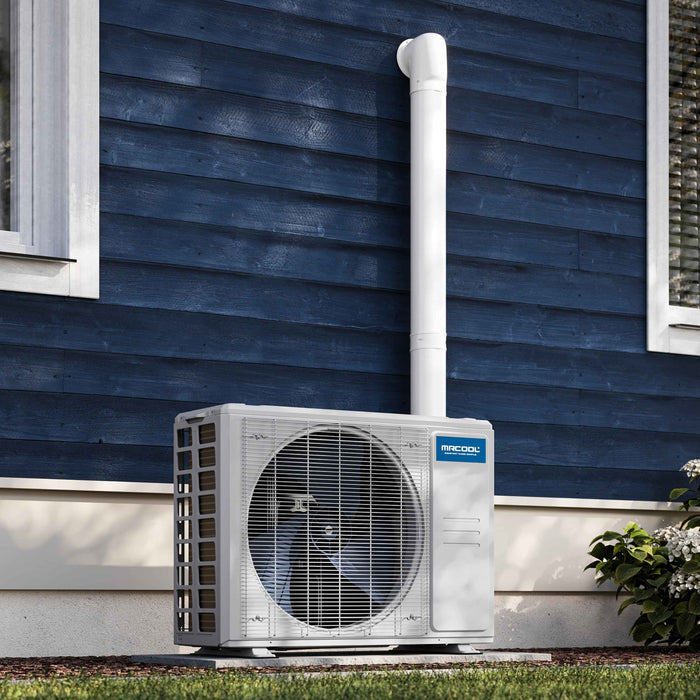

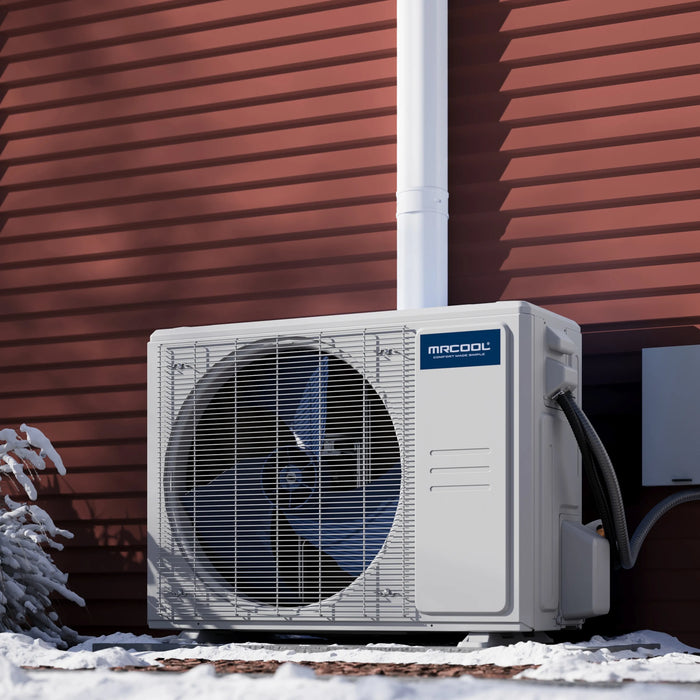

  • Gold Fin® Condenser: Provides corrosion resistance for coastal homes, ensuring long-lasting performance.
  • Industry-Leading Warranty: Limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty.
  • Certified Quality: Intertek listed 5031495 for reliable performance and safety.
Dimensions & Weight

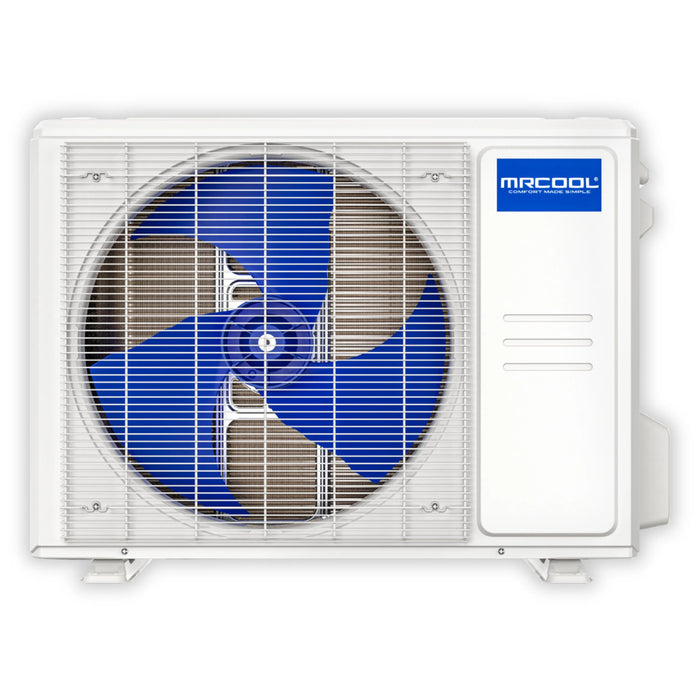

Condenser Dimensions 37.24 W" x 16.14 D" x 31.89 H"
Condenser Weight 112.8 lbs / 55.7 kg

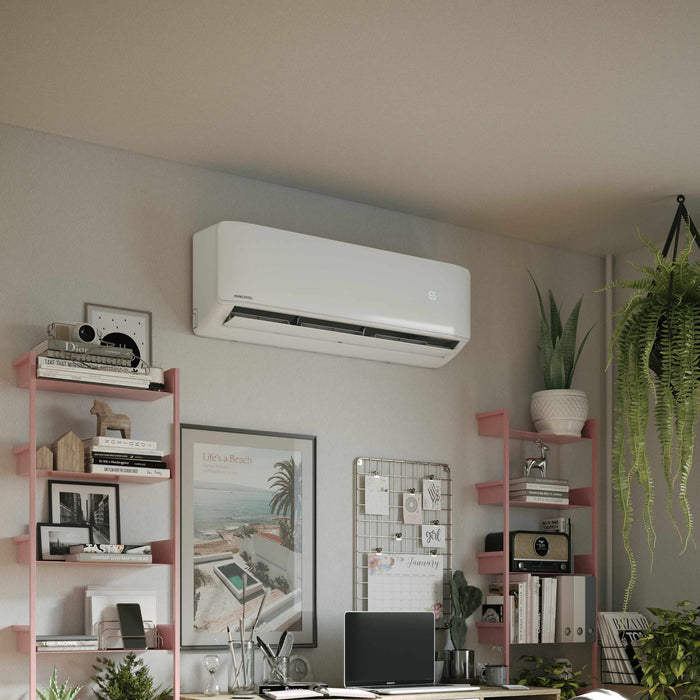

Air Handler Dimensions 42.52 W" x 8.90 D" x 13.19 H"
Air Handler Weight 35.49 lbs / 16.1 kg
Capacity & Performance
Zone Capacity 1
Cooling Capacity 23,000 BTU
EER2 12.7
SEER2 22.7
Heating Capacity 23,000 BTU
HSPF2-4 9.6
HSPF2-5 7.1
Coverage Area 750 to 1,000 sq ft.
Outdoor Noise Level 58.5 dB(A)
Indoor Noise Level (Hi/Mi/Lo) 54.0/48.0/43.0/33.5/20.0 dB(A)
Electrical Requirements
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 25A
Min Circuit Ampacity 24A
Refrigerant & Piping
Refrigerant Type R-454B
Refrigerant Volume 67.37 oz
Liquid Line Size 3/8"
Suction Line Size 5/8"
Max Line Set Length 164 ft.
Features
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
Certifications & Warranty
Certifications UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty 7 Years Compressor
5 Years Parts
Extended Limited Lifetime Replacement
*If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty
**The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
Product Brochure
Installation Manual
Remote Control Manual
Warranty Document
AHRI Cert
Energy Guide
