Description
This product only includes an air handler.

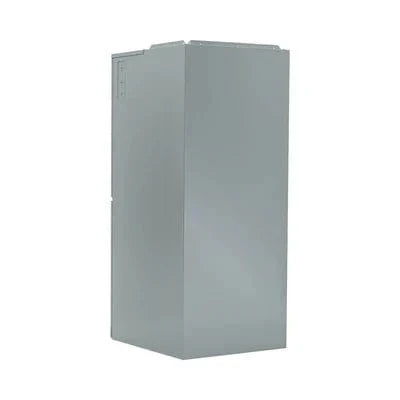

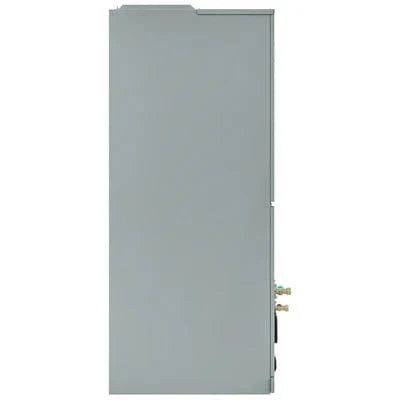

The MRCOOL VersaPro 2nd Generation 2 Ton Central Ducted Air Handler delivers efficient, reliable heating and cooling for spaces up to 1,000 square feet. With a SEER2 efficiency rating of up to 18.3, this system offers superior energy performance while keeping your home comfortable year-round. Its durable construction, featuring painted galvanized steel, ensures long-lasting operation and resistance to wear over time.
Equipped with a self-diagnostics panel, this air handler simplifies maintenance by quickly identifying error codes, reducing troubleshooting time and service interruptions. Its flexible installation options — upflow, downflow, and horizontal (left or right) — make it adaptable to a wide range of home configurations and retrofits.
The system uses environmentally friendly R-454B refrigerant, helping reduce environmental impact without sacrificing efficiency. It is fully compatible with the Central Ducted Hyper Heat system for enhanced heating capabilities. For homes requiring additional warmth, an optional heat kit can be installed.

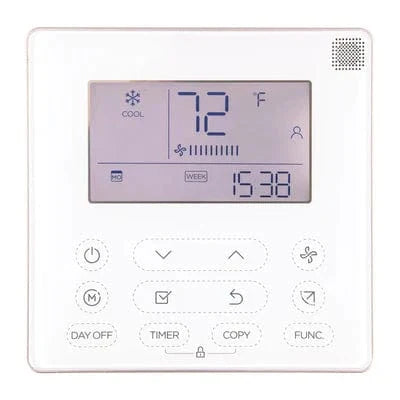

The included wireless remote features the convenient Follow Me function, which monitors the temperature at the remote's location for more accurate and personalized comfort. Paired with the MRCOOL Smart Thermostat, managing your indoor climate becomes simple and precise. You can also control the system remotely using the SmartHVAC app, giving you full access to temperature adjustments from your smartphone or tablet.
Backed by a 10-year limited warranty, the MRCOOL VersaPro 2 Ton Central Ducted Air Handler offers a combination of energy efficiency, flexibility, and long-term reliability. It's an excellent, cost-effective solution for upgrading your home’s HVAC system with modern technology and performance.
Specifications
|
Dimensions
|
17.52" D x 45" H x 21.02" W
|
|
CFM
|
824.04/759.29/694.55/629.80
|
|
Tonnage
|
2
|
|
Cooling Capacity (BTU)
|
24000
|
|
Heating Capacity (BTU)
|
26000
|
|
Voltage (V)
|
115/208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
5.5/4.0
|
|
Color
|
gray
|
|
Decibel Rating Low (DBA)
|
28
|
|
Decibel Rating High (DBA)
|
44
|
|
Number of Speeds
|
3
|
|
Max Lineset Length (FT)
|
164 ft
|
|
Liquid Line Size
|
3/8
|
|
Suction Line Size
|
3/4
|
|
Filter Type
|
Replaceable
|
|
Filter Size
|
16x20x1
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
Yes
|
|
Auxiliary Heater Sizes
|
5kW/8kW/10kW/15kW
|
|
Adjustable Thermostat
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
ETL Certified
|
Yes
|
|
Energy Star Certified
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Base Parts Warranty
|
10 Years
|
|
Base Compressor Warranty
|
10 Years
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Net Weight (Lbs)
|
105.6
|
|
Gross Depth (In)
|
20.87
|
|
Gross Height (In)
|
48.62
|
|
Gross Width (In)
|
26.57
|
|
Gross Weight (Lbs)
|
127.43
|
Product Warranty
MRCOOL Limited Lifetime Warranty
LIMITATIONS OF WARRANTIES
Q1 How do I register my warranty?
Answer: Go to here to file your warranty.
Q2 How do I find the AHRI number of my unit?
Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
