Description
This product only includes an air handler.

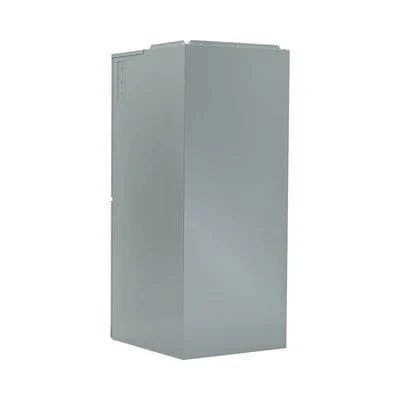

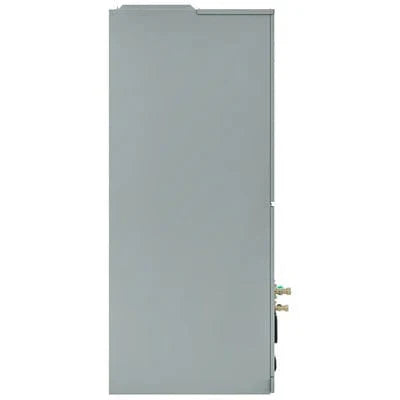

The MRCOOL VersaPro 5 Ton Central Ducted Air Handler delivers powerful and efficient heating and cooling for areas up to 2,500 square feet. With a SEER2 rating of up to 16, this system offers energy-efficient performance to help maintain consistent indoor comfort while managing energy costs.
Constructed with painted galvanized steel, this air handler is built for long-term durability and daily use. Its integrated self-diagnostics panel simplifies maintenance by quickly detecting and displaying any system errors, reducing downtime and making troubleshooting much easier.
Designed for flexible installation, this unit supports multiple configurations including upflow, downflow, and horizontal (left or right), making it adaptable to different home layouts and HVAC setups. Utilizing environmentally conscious R-454B refrigerant, the system helps minimize its environmental impact while maintaining high performance.

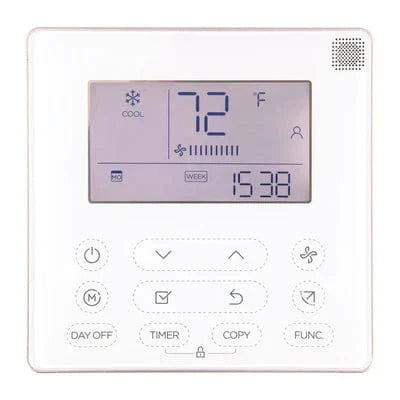

For homeowners needing additional heating capacity, an optional heat kit can be added to enhance the unit’s functionality. The included MRCOOL Smart Thermostat ensures precise and reliable temperature control, while full compatibility with the SmartHVAC app allows you to monitor and adjust your home’s climate remotely from any smartphone or tablet.
This air handler is fully compatible with the Central Ducted Hyper Heat Condenser, offering even greater versatility and whole-home comfort. Backed by a 10-year limited warranty, the MRCOOL VersaPro 5 Ton Central Ducted Air Handler combines energy efficiency, durability, and user-friendly features, making it an excellent upgrade for any home HVAC system.
Specifications
Dimensions
|
24.49" D x 52.99" H x 21.02" w
|
CFM
|
1807.00/1583.33/1359.67/1136.00
|
Tonnage
|
5
|
Cooling Capacity (BTU)
|
54000
|
Heating Capacity (BTU)
|
54000
|
Voltage (V)
|
115/208-230
|
Phase
|
1
|
Cycle
|
60
|
Ma Fuse Breaker (A)
|
15
|
Min Circuit Ampacity (A)
|
14.5/11.0
|
Color
|
gray
|
Decibel Rating Low (DBA)
|
34.5
|
Decibel Rating High (DBA)
|
56
|
Number of Speeds
|
4
|
Max Lineset Length (FT)
|
246 ft
|
Liquid Line Size
|
3/8
|
Suction Line Size
|
3/4
|
Filter Type
|
Replaceable
|
Filter Size
|
23x20x1
|
Auxiliary Heater Included
|
No
|
Auxiliary Heater AVAILABLE
|
Yes
|
Auxiliary Heater Sizes
|
10kW/15kW/20kW
|
Adjustable Thermostat
|
Yes
|
WIFI Compatibility
|
Yes
|
APP Compatibility
|
Yes
|
ETL Certified
|
Yes
|
Energy Star Certified
|
Yes
|
AHRI Certified
|
Yes
|
Base parts Warranty
|
10 Years
|
Base Compressor Warranty
|
10 Years
|
Contains Electronics
|
Yes
|
Contains Chemicals
|
Yes
|
Contains Compressed Gas
|
Yes
|
Net Weight (Lbs)
|
162.92
|
Gross Depth (In)
|
26.77
|
Gross Height (In)
|
56.5
|
Gross Width (In)
|
27.95
|
Gross Weight (Lbs)
|
190.92
|
Product Manual
Product Warranty
MRCOOL Limited Lifetime Warranty
LIMITATIONS OF WARRANTIES
Q1 How do I register my warranty?
Answer: Go to here to file your warranty.
Q2 How do I find the AHRI number of my unit?
Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
