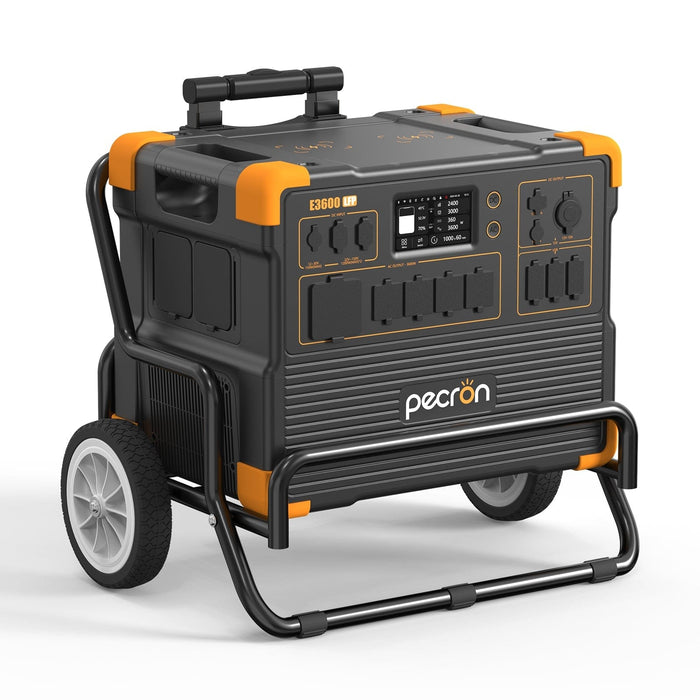

PECRON E3600LFP Portable Power Station – 3600W 3072Wh
High-Capacity, Ultra-Fast Charging, and Expandable Power Solution
The PECRON E3600LFP Portable Power Station is a next-generation solar generator designed for off-grid living, home backup, RVs, and professional energy needs. With a 3600W bidirectional pure sine wave inverter (7000W surge) and a 3072Wh LiFePO4 battery, it delivers reliable, long-lasting power for everything from appliances and tools to emergency backup systems.
Featuring ultra-fast AC charging (full charge in just 1.3 hours at 3200W), a massive 2400W solar input, and expandability up to 15,360Wh, this unit provides unmatched scalability and efficiency. For even greater power, two E3600LFP units can be paired for 7200W at 240V—ideal for running large household appliances.
Key Features
-
Powerful & Expandable Energy System
-
3600W AC inverter (7000W surge) with pure sine wave output.
-

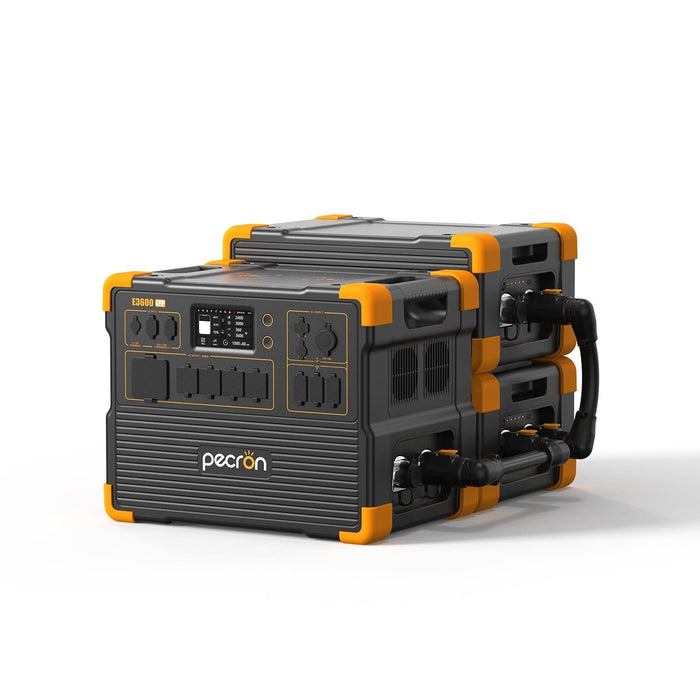

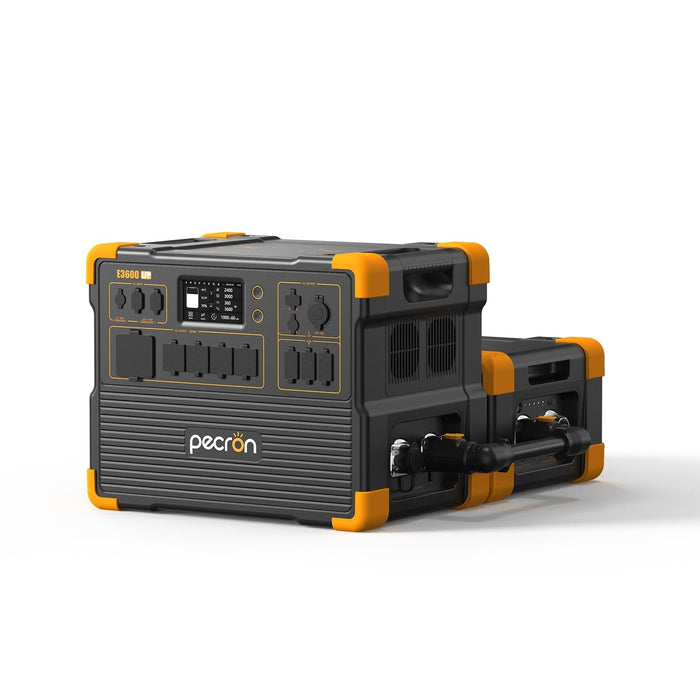

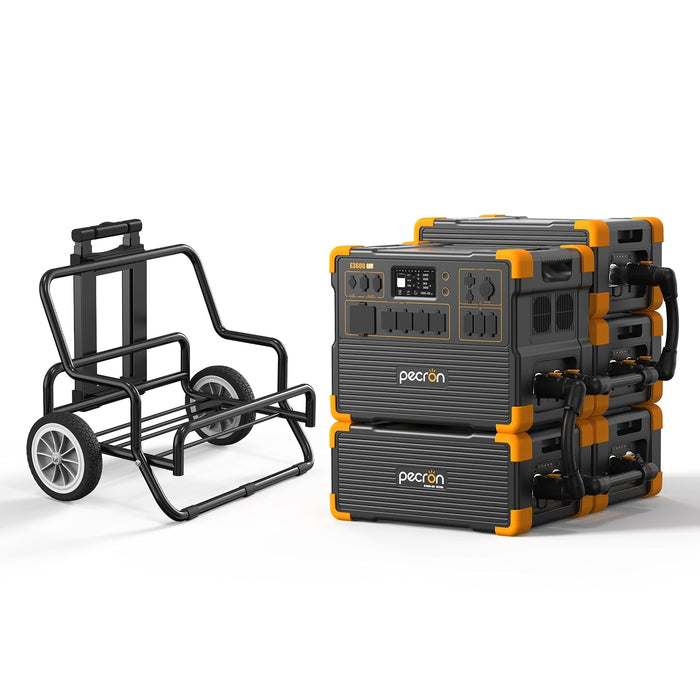

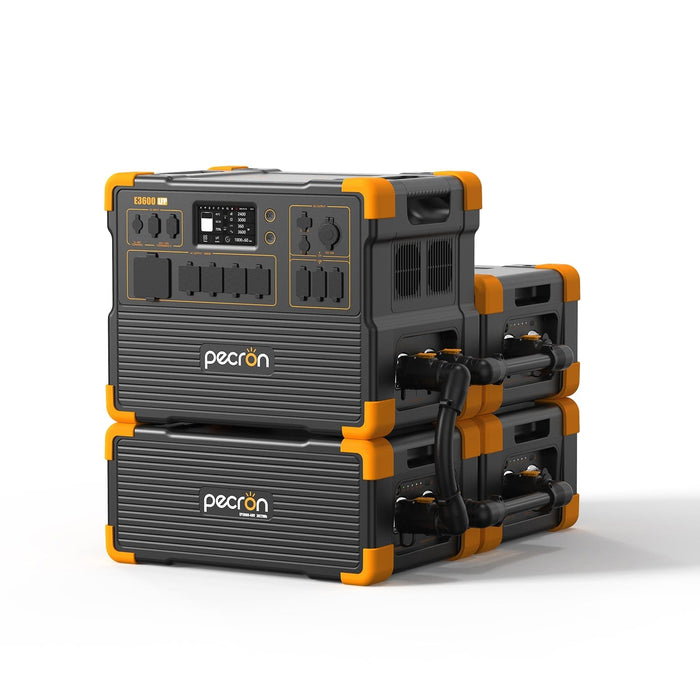

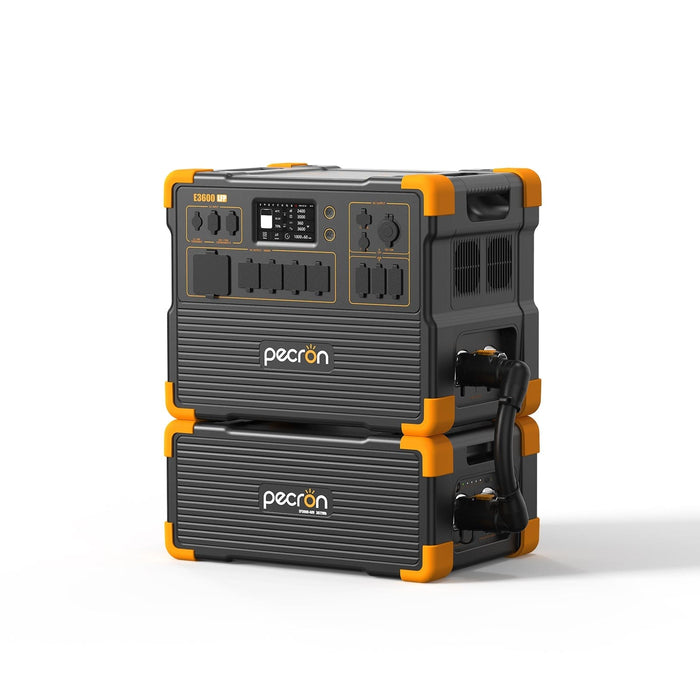

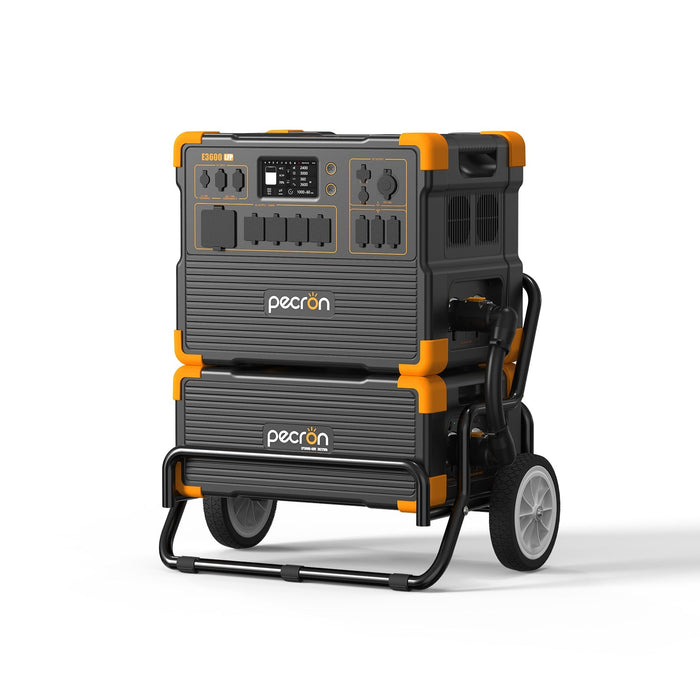

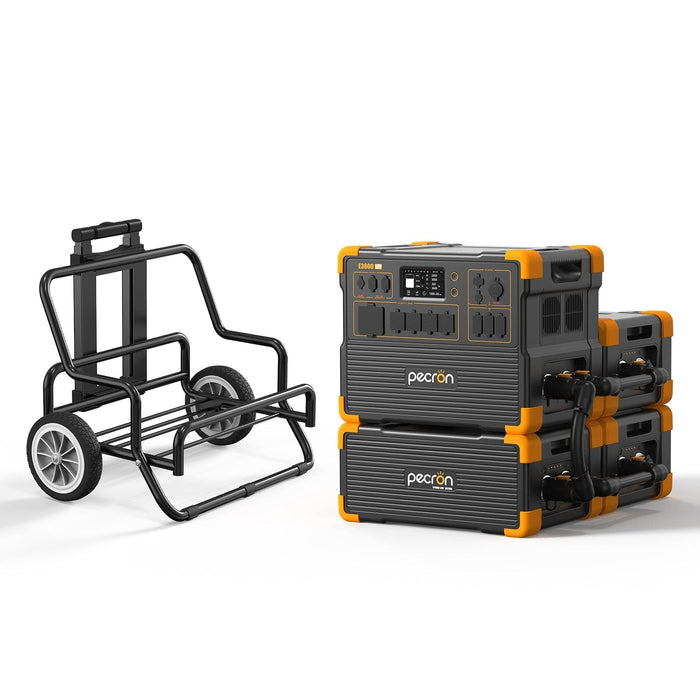

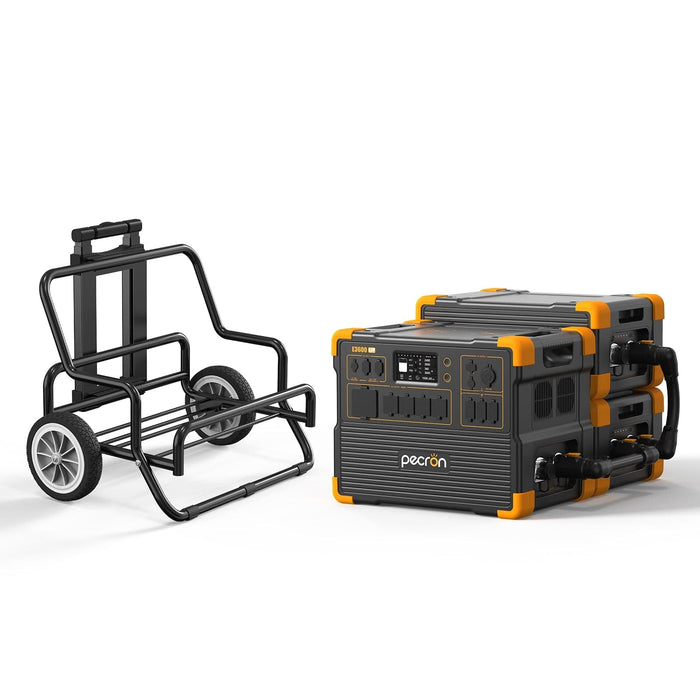

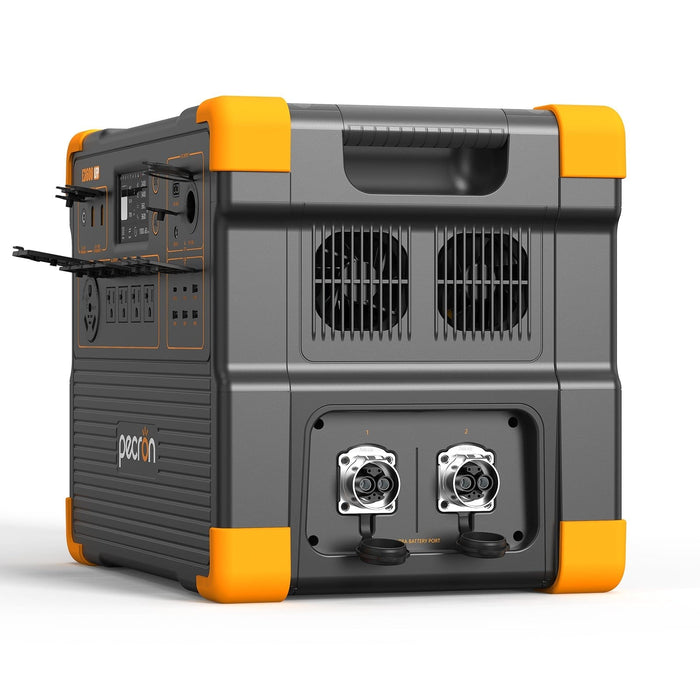

3072Wh LiFePO4 battery expandable to 15,360Wh with four EP3000-48V modules.
-

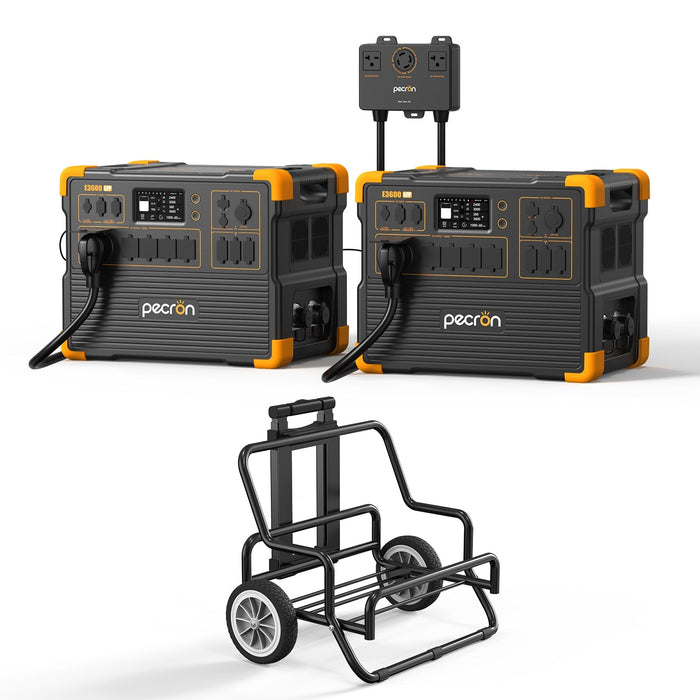

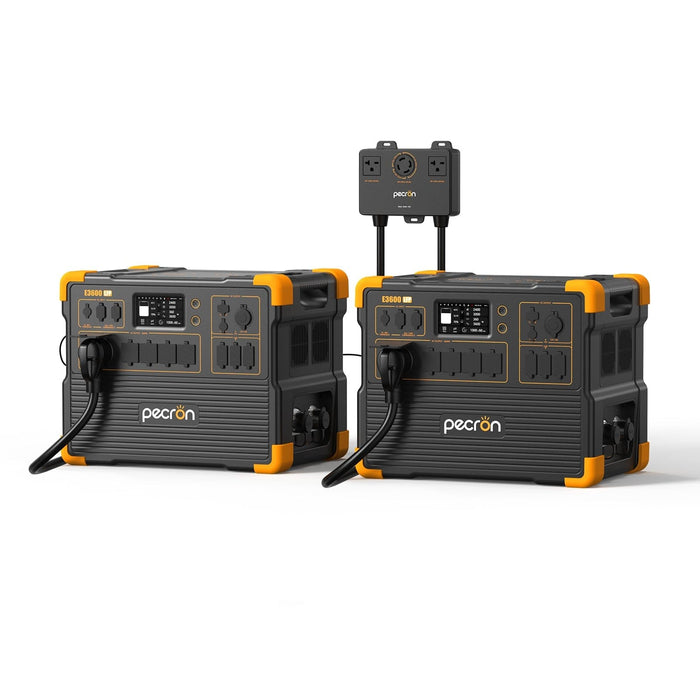

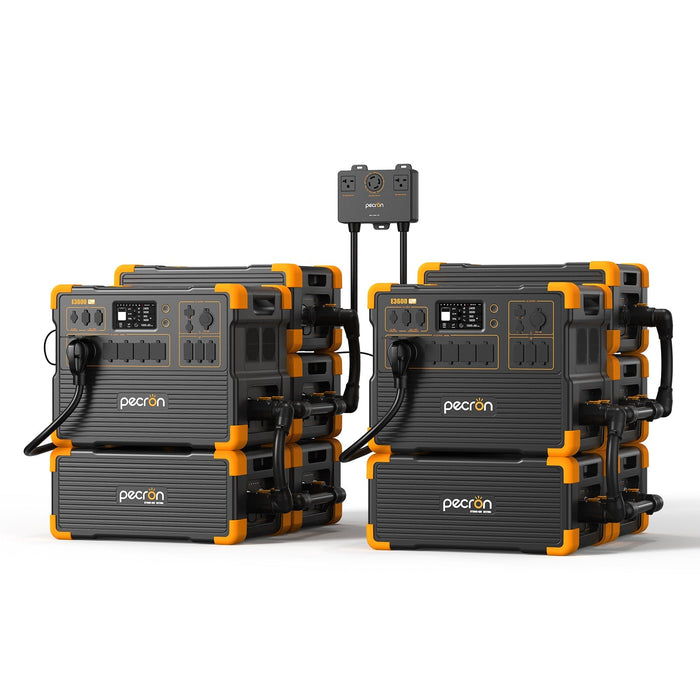

240V capability: pair two units with the 240V kit for 7200W output.
-
Ultra-Fast & Flexible Charging
-
3200W AC charging (30A cable) – full charge in 1.3 hours.
-
1800W AC charging (15A cable) – full charge in 1.8 hours.
-

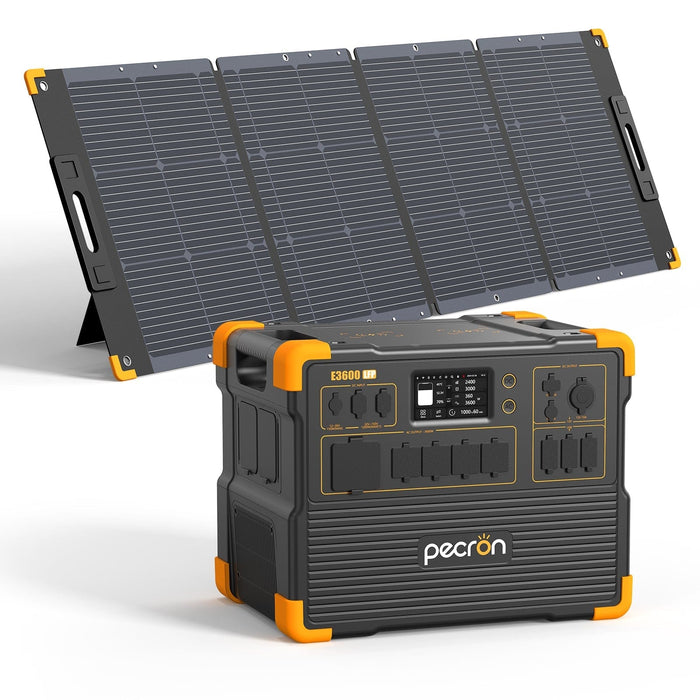

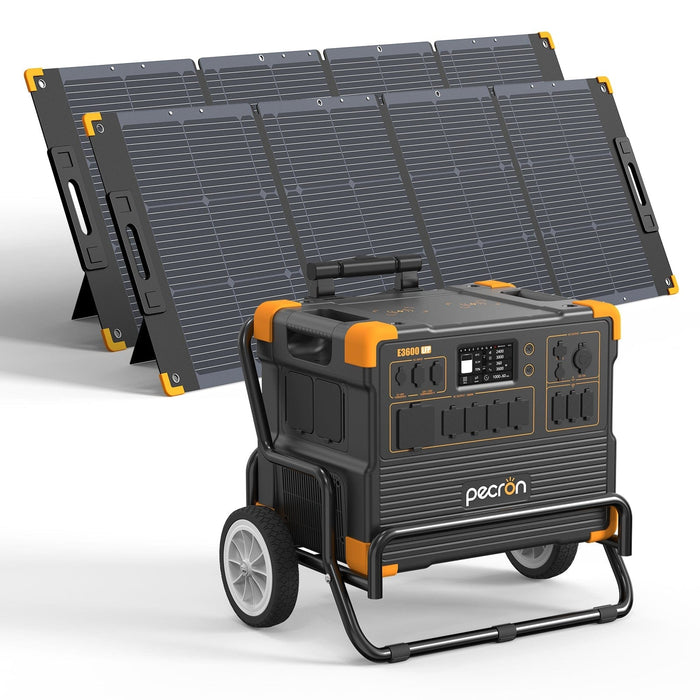

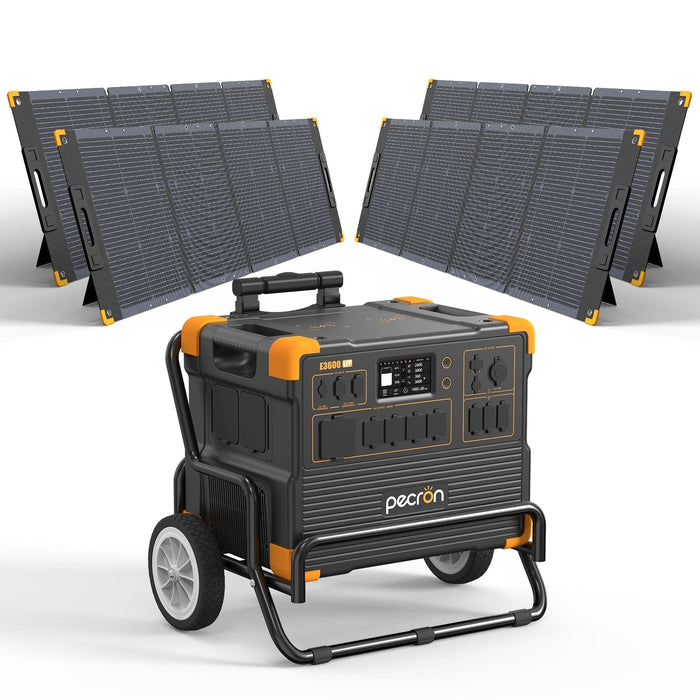

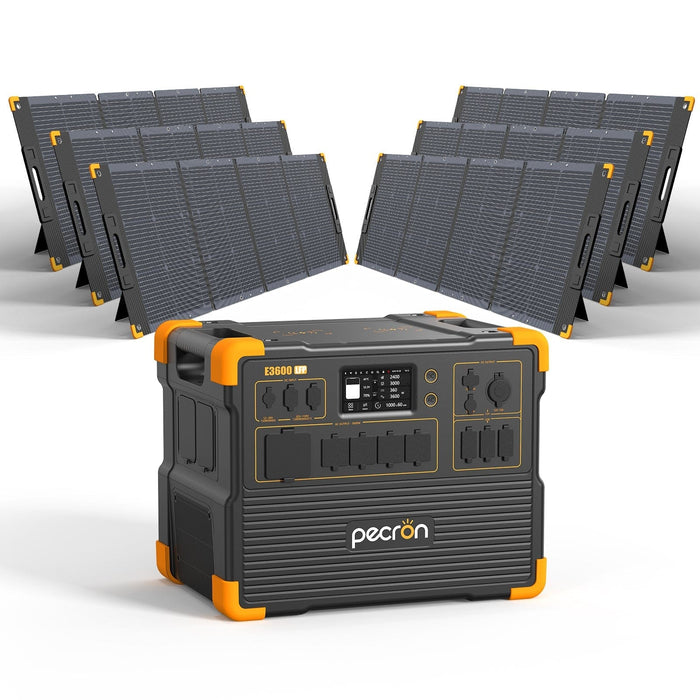

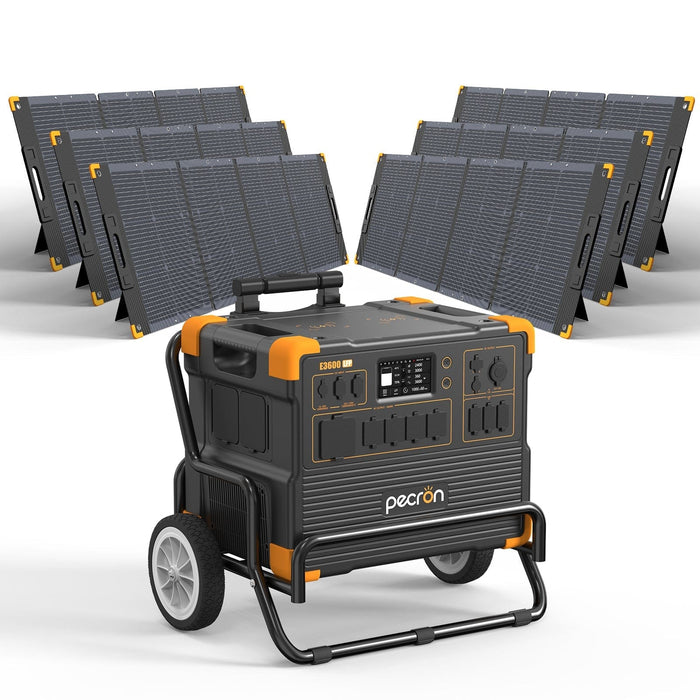

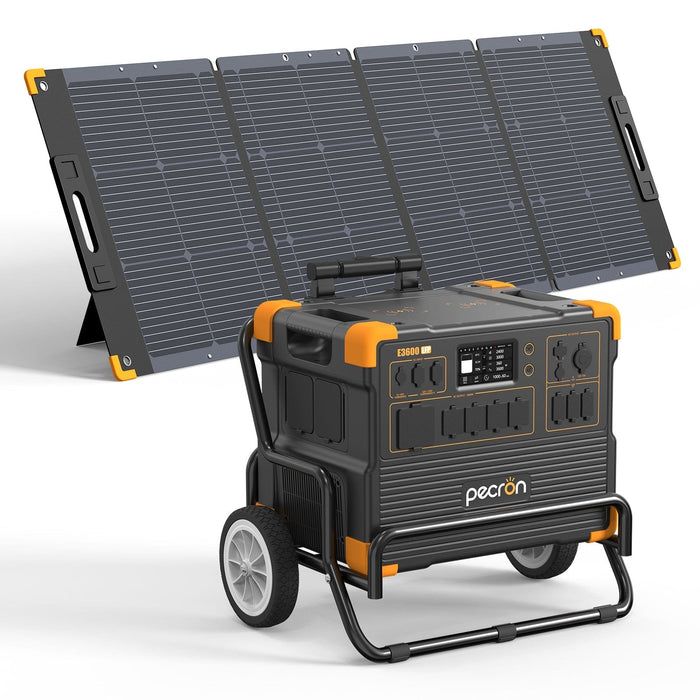

Dual XT60 ports support up to 2400W solar input (2 × 1200W).
-
Multiple charging options: AC, solar, car, or hybrid AC + Solar.
-
Advanced LiFePO4 Battery Technology
-
3,500+ cycles to 80% capacity for long-term durability.
-
UPS functionality ensures seamless backup power.
-
Bidirectional charging for optimized energy management.
-
Smart Control & Connectivity
-
Versatile Power Outputs
-

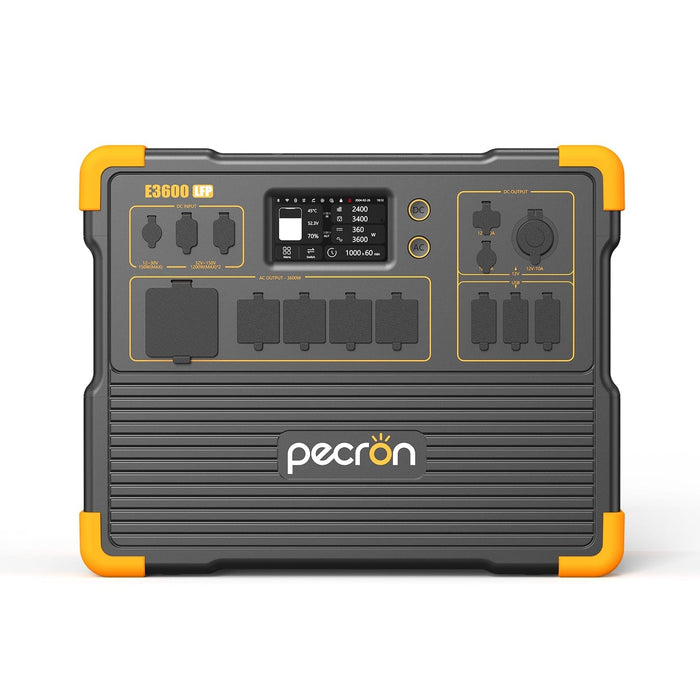

16 output ports to run multiple devices at once.
-
5 × AC outlets with up to 30A output.
-
PD 100W USB-C & USB-A QC3.0 for fast charging electronics.
-
15W wireless charging pad for smartphones.

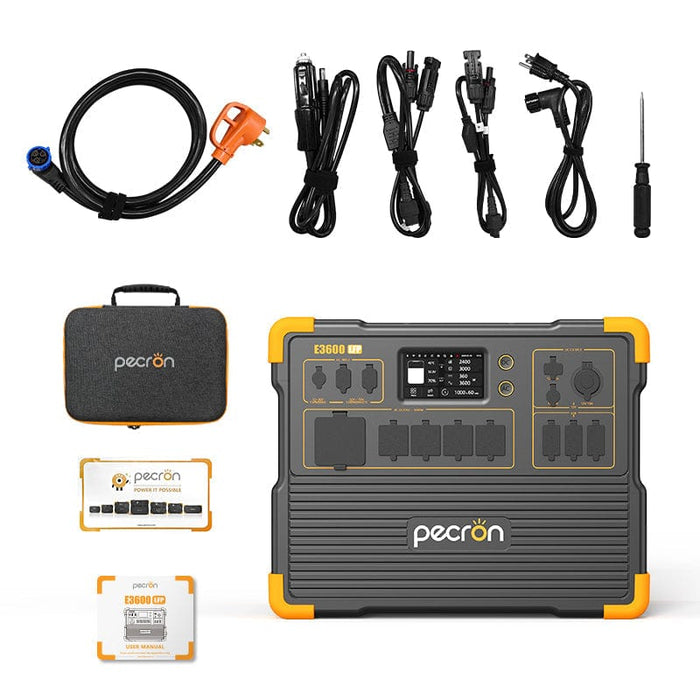

Package Includes
- PECRON E3600LFP Portable Power Station
- 15A AC Charging Cable
- Single Port XT60 to MC4 Solar Charging Cable
- Parallel Dual Port XT60 to MC4 Solar Charging Cable
- Slotted Screwdriver
- Accessory Pouch
- User Manual
Specifications
| Model |
E3600LFP |
| Rated Power |
3600W |
| Peak Power |
7000W |
| Capacity |
3072Wh |
| Battery Type |
LiFePO4 |
| Weight |
79 lbs (36 kg) |
| AC Output |
100V~120V Pure Sine Wave |
| Solar Input |
2×XT60: Voc 32V~150V / 1200W Max / 20A Max |
| Car Input |
12V~30V / 150W Max / 7A Max |
| AC Input |
100V~120V / 3200W (30A) or 1800W (15A) |
| Charging Time |
1.3 Hours (30A AC) / 2 Hours (15A AC) |
| DC Output |
30A (12V) |
| USB Ports |
PD 100W USB-C, USB-A QC3.0 18W |
| Wireless Charger |
15W Wireless Charging Pad |
| Smart App |
Wi-Fi and Bluetooth control |
| Charge Temperature |
0°C to 45°C (32°F to 113°F) |
| Discharge Temperature |
-20°C to 45°C (-4°F to 113°F) |
| Dimensions |
17.5 × 12.1 × 13.8 in |
FAQs
What devices can I run on the E3600LFP?
The E3600LFP can power any device with a consumption of 3600W or less. However, devices with inductive loads (e.g., fridges, compressors, motors) may require 3-7 times their rated power to start.
How do I calculate how long the E3600LFP will power my devices?
Use the formula:
Total Capacity (Wh) × 85% ÷ Device Power Consumption (W)
Example:
- A 100W LED floodlight would run for approximately 26 hours.
- With four EP3000-48V batteries, it could run over 130 hours continuously.
Does the E3600LFP have built-in MPPT charge controllers?
Yes, it features three independent MPPT charge controllers, significantly improving charging efficiency and effectiveness.

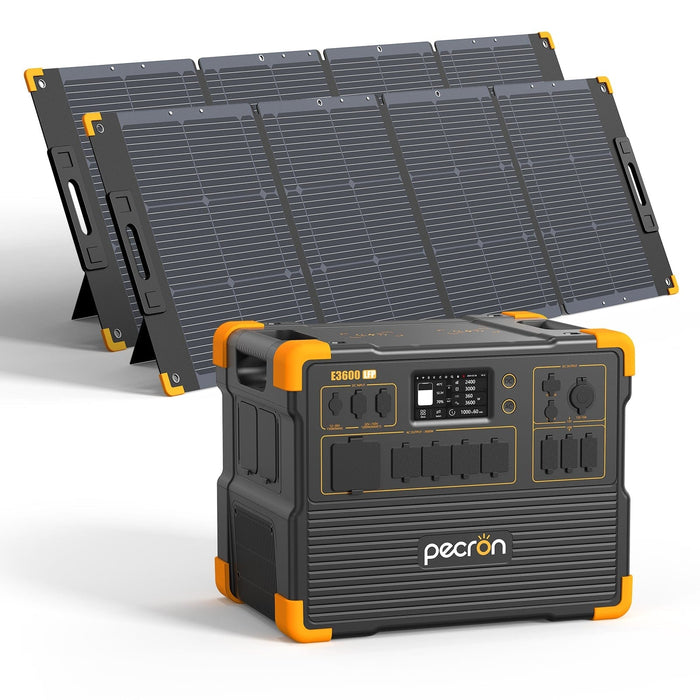

How can I maximize the 2400W solar input?
To fully utilize 2400W solar input, you can:
-
Connect two 1200W solar arrays to each XT60 input port.
-
Use Pecron solar panels or compatible third-party panels within 32V-150V range.
Can I use third-party solar panels with the E3600LFP?
Yes, as long as your solar panels fall within these voltage ranges:
- 32V~150V (1200W Max per XT60 port)
How do I enable 240V output?

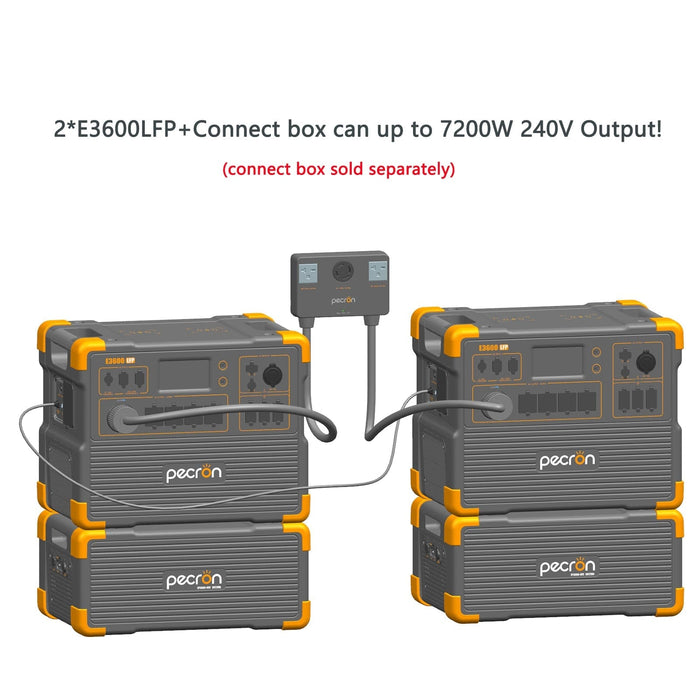

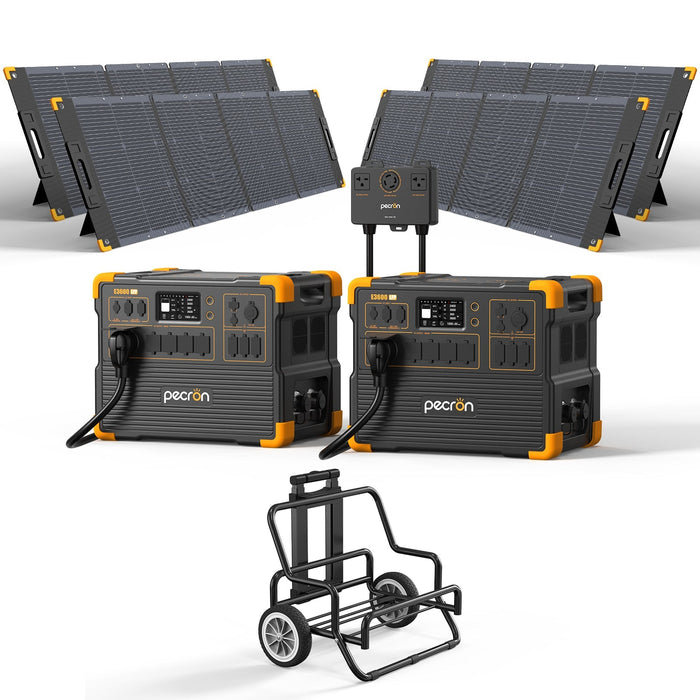

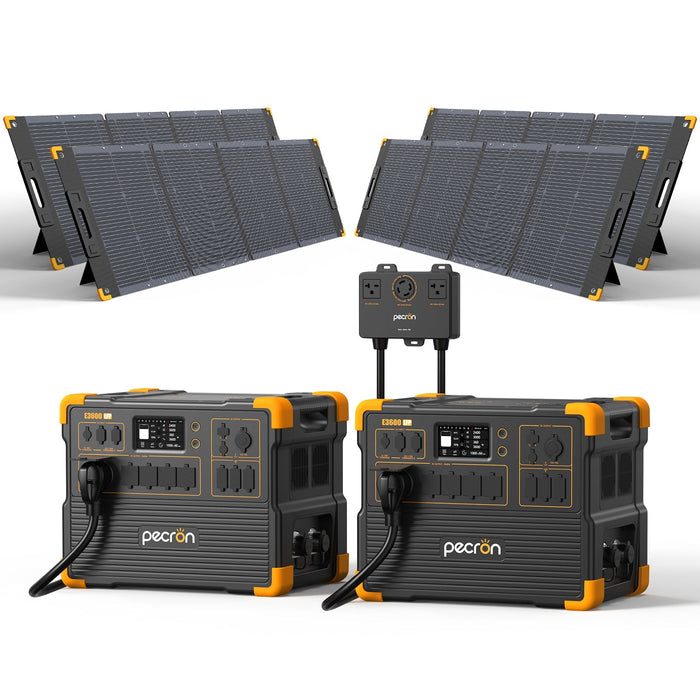

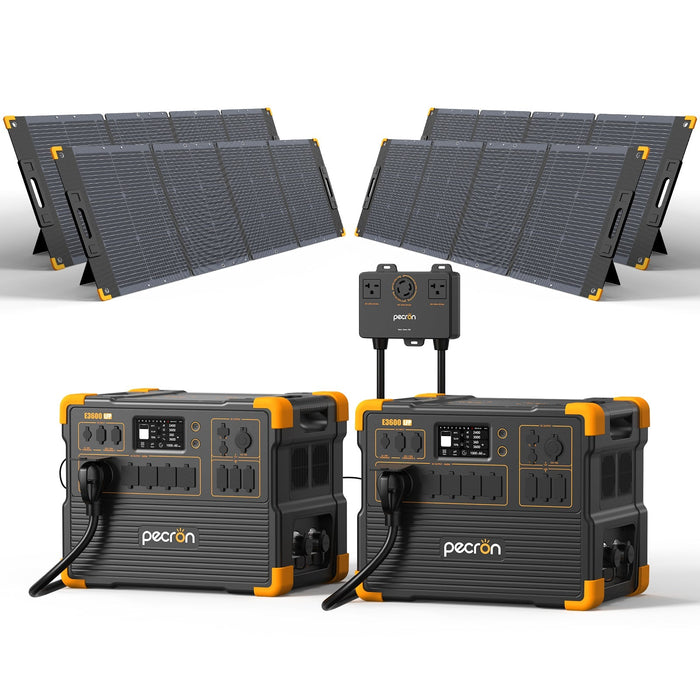

To enable 240V output at 7200W, connect two E3600LFP units using the 240V series connection kit (sold separately).
The PECRON E3600LFP is the ultimate high-capacity, fast-charging power station designed for home backup, professional use, off-grid setups, and high-power appliances. Its expandable capacity, rapid charging, and smart control features make it a top choice for serious energy users.
