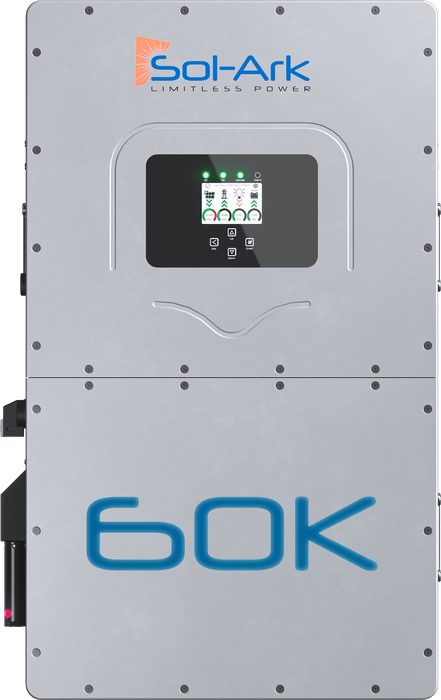

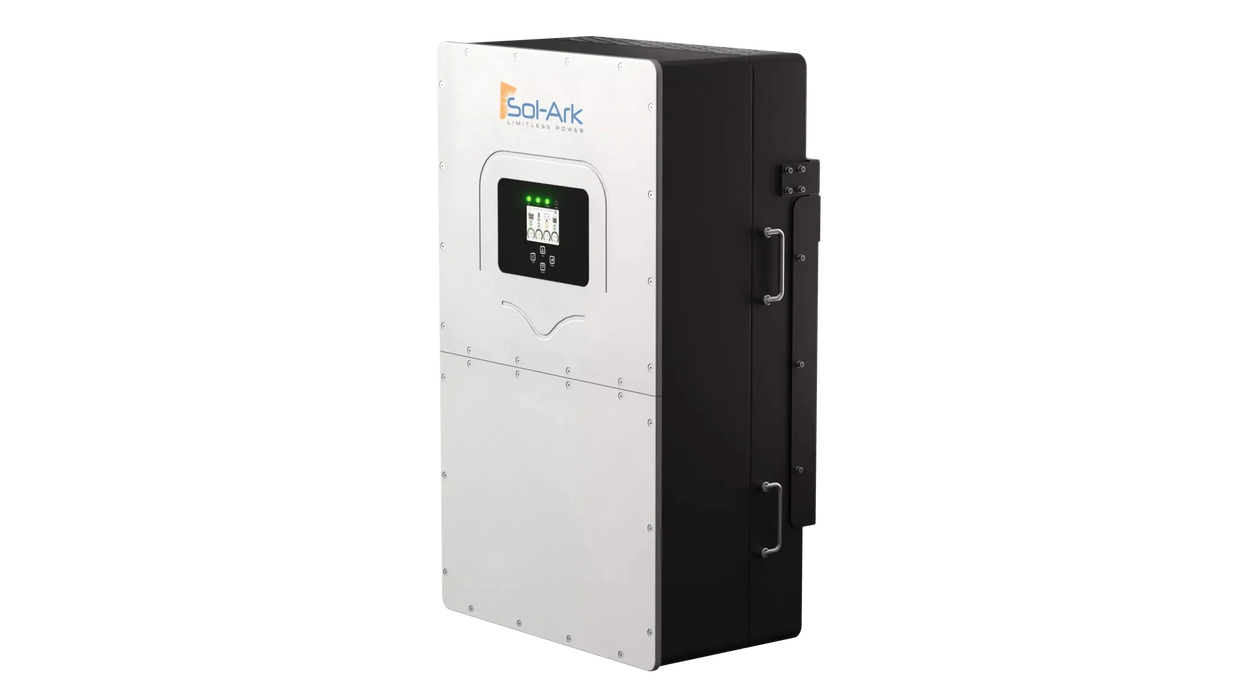

Sol-Ark 60K-3P | 60kW Commercial Inverter | 480/277VAC 3 Phase | High Voltage DC Battery | Indoor/Outdoor | NEMA-3R
The Sol-Ark 60K-3P-480V Commercial Inverter is designed for native 277V/480V Three Phase applications like commercial and industrial projects.
The Sol-Ark 60K-3P-480V delivers versatile AC and DC coupling with a powerful 60kW output and features a 200A Transfer Switch that reacts in just 5ms. Its four MPPT channels allow efficient energy management from multiple sources, while the integrated PV disconnect and rapid shutdown ensure system safety. Additionally, it supports continuous AC grid or generator power up to 132kW with a 160A input, making it a reliable choice for demanding commercial applications.
Designed for commercial and industrial use, this inverter operates at 277V/480V three-phase power. It features built-in WiFi and LAN connectivity, enabling you to remotely monitor and manage your entire Sol-Ark system from any location. Plus, you can connect up to 12 units in parallel to scale your energy solution as needed.
Features:
- 200A built-in transfer switch
- Able to be in parallel with up to 12 units
- Capable of different modes, including grid sell, limited power to home, limited power to load, and time of use
- Able to turn on loads when excess power is available
- UL 1741 certified
- It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
- Used with high-voltage batteries
- Built-in Rapid shutdown and emergency stop
- Built-in remote monitoring system
Specifications
Sol-Ark 60K-3P | 60kW Commercial Inverter | 480/277VAC 3 Phase | High Voltage DC Battery | Indoor/Outdoor | NEMA-3R Product Specifications
- 78,000W of Max PV Power
- 1,000VDC Max PV Power
- 4 MPPTs
- 100A of Battery Charge Current
- 96% Efficiency
- Idle Consumption: 60W
- 300V+ battery voltage
- Hybrid All-In-One unit
- UL 1741-2010/2018 and UL 1741SB Certified
Manuals
Warranty
Limited Warranty: Sol-Ark 60K-3P-480V
10-Year Limited Warranty for Sol-Ark LLC Products. Sol-Ark LLC provides a Ten-year (10) limited
Warranty ("Warranty") against defects in materials and workmanship for its Sol-Ark LLC products
("Product"). The term of this warranty begins on the Product(s) initial purchase date, or the date
of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the
invoice, bill of sale from your installer. This warranty applies to the original Sol-Ark LLC Product
purchaser and is transferable only if the Product remains installed in the original use location.
Please call Sol-Ark LLC to let us know if you are selling your Home and give us name and contact
of the new owner.
The warranty does not apply to any Product or Product part that has been modified or damaged by the following:
• Installation or Removal (examples: wrong voltage batteries, connecting batteries backward, damage due to water/rain to
electronics, preventable damage to solar wires.)
• Alteration or Disassembly.
• Normal Wear and Tear.
• Accident or Abuse.
• Unauthorized Firmware updates/software updates or alterations to the software code.
• Corrosion.
• Lightning: unless using EMP hardened system, then Sol-Ark LLC will repair the product.
• Repair or service provided by an unauthorized repair facility.
• Operation or installation contrary to manufacturer product instructions.
• Fire, Floods, or Acts of Nature.
• Shipping or Transportation.
• Incidental or consequential damage caused by other components of the power system.
• Any product whose serial number has been altered, defaced, or removed.
• Any other event not foreseeable by Sol-Ark LLC
Sol-Ark LLC liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Sol-Ark
LLC discretion. Sol-Ark LLC does not warrant or guarantee workmanship performed by any person or firm installing its Products. This warranty
does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products. LCD
screen and fans are covered for 5 years from date of purchase.
THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY APPLICABLE TO SOL-ARK LLC PRODUCTS. SOL-ARK LLC EXPRESSLY DISCLAIMS
ANY OTHER EXPRESS OR IMPLIED WARRANTIES OF ITS PRODUCTS. SOL-ARK LLC ALSO EXPRESSLY LIMITS ITS LIABILITY IN THE EVENT
OF A PRODUCT DEFECT TO REPAIR OR REPLACEMENT IN ACCORDANCE WITH THE TERMS OF THIS LIMITED WARRANTY AND
EXCLUDES ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR
PRODUCTS NOT BEING AVAILABLE FOR USE OR LOST REVENUES OR PROFITS, EVEN IF IT IS MADE AWARE OF SUCH POTENTIAL
DAMAGES.
